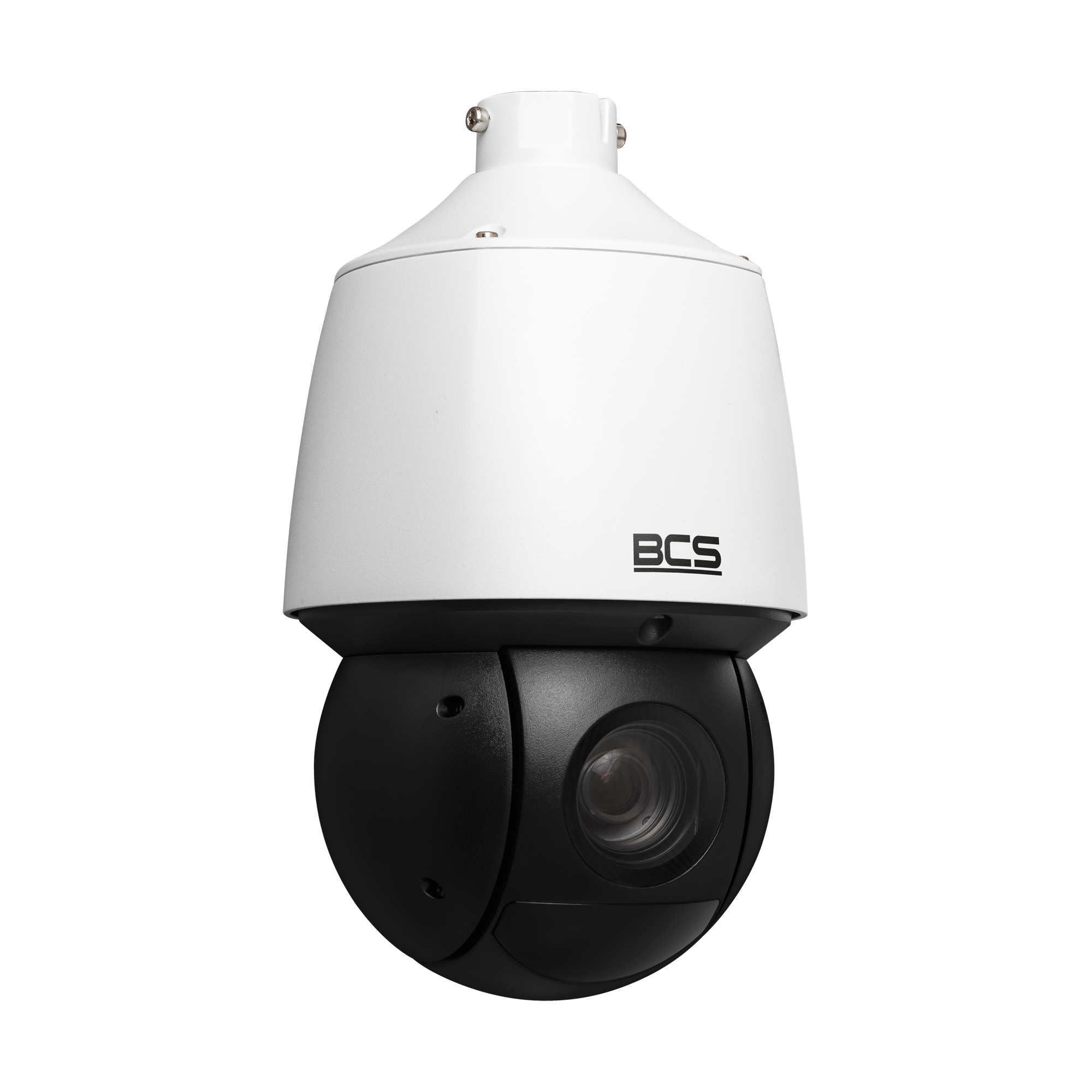

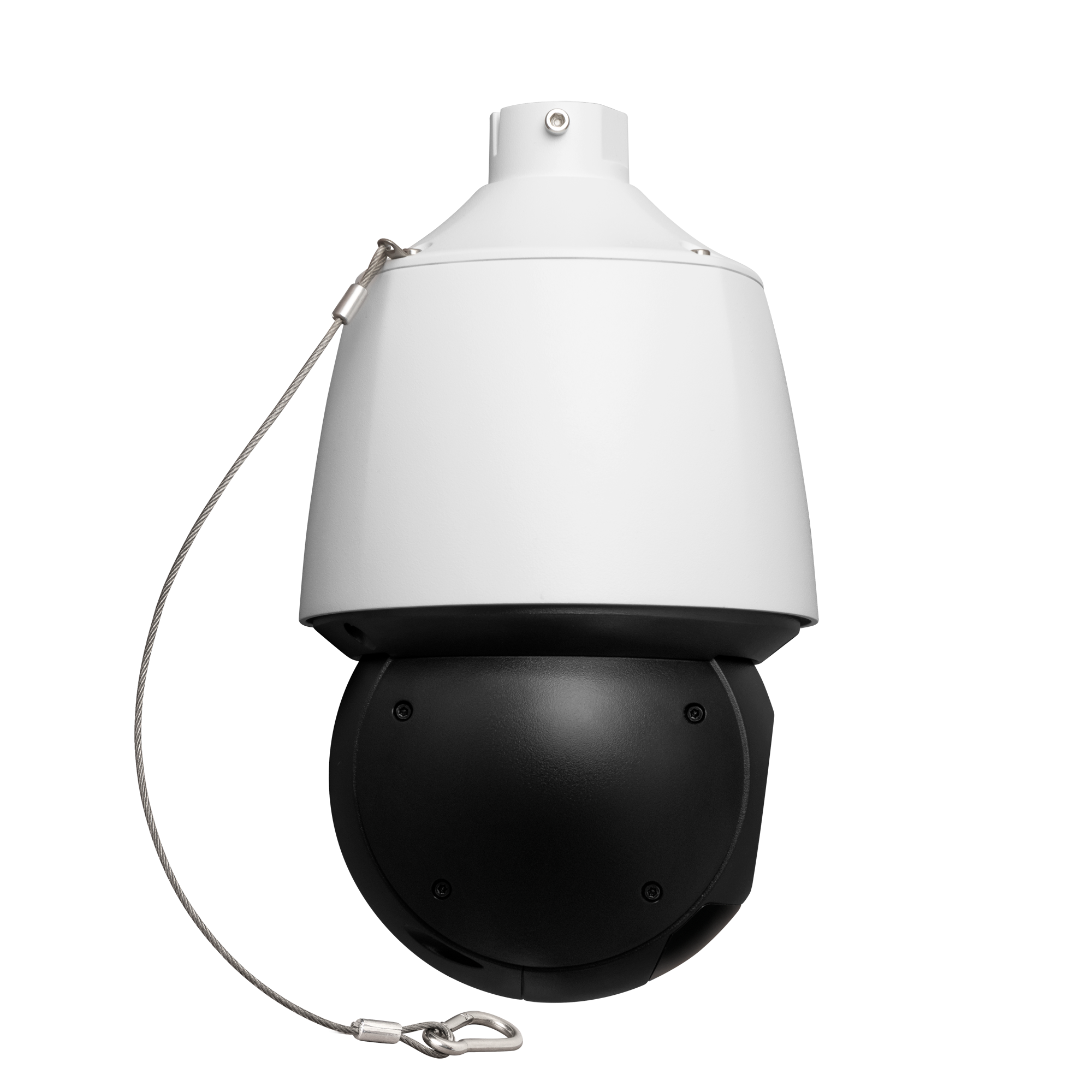

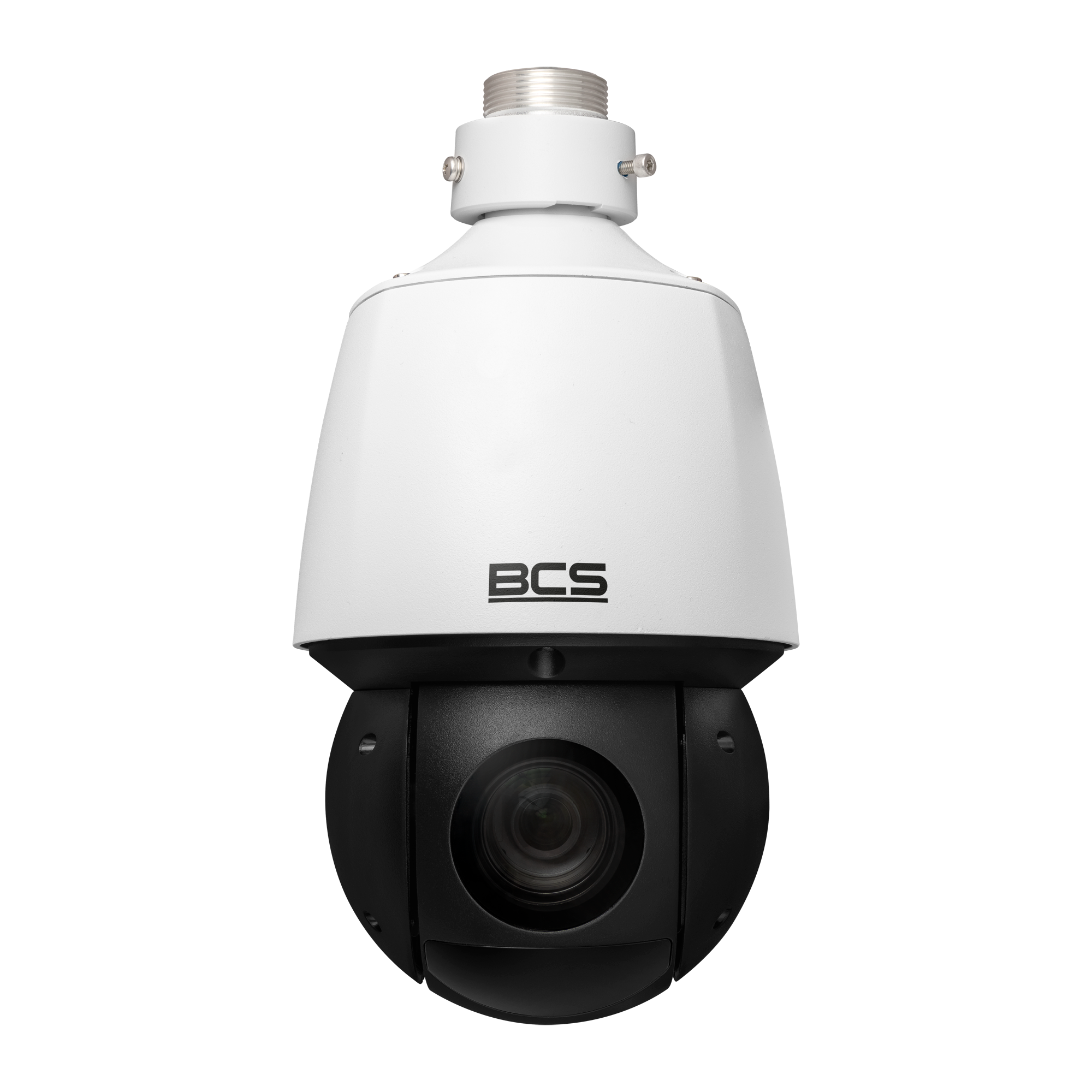

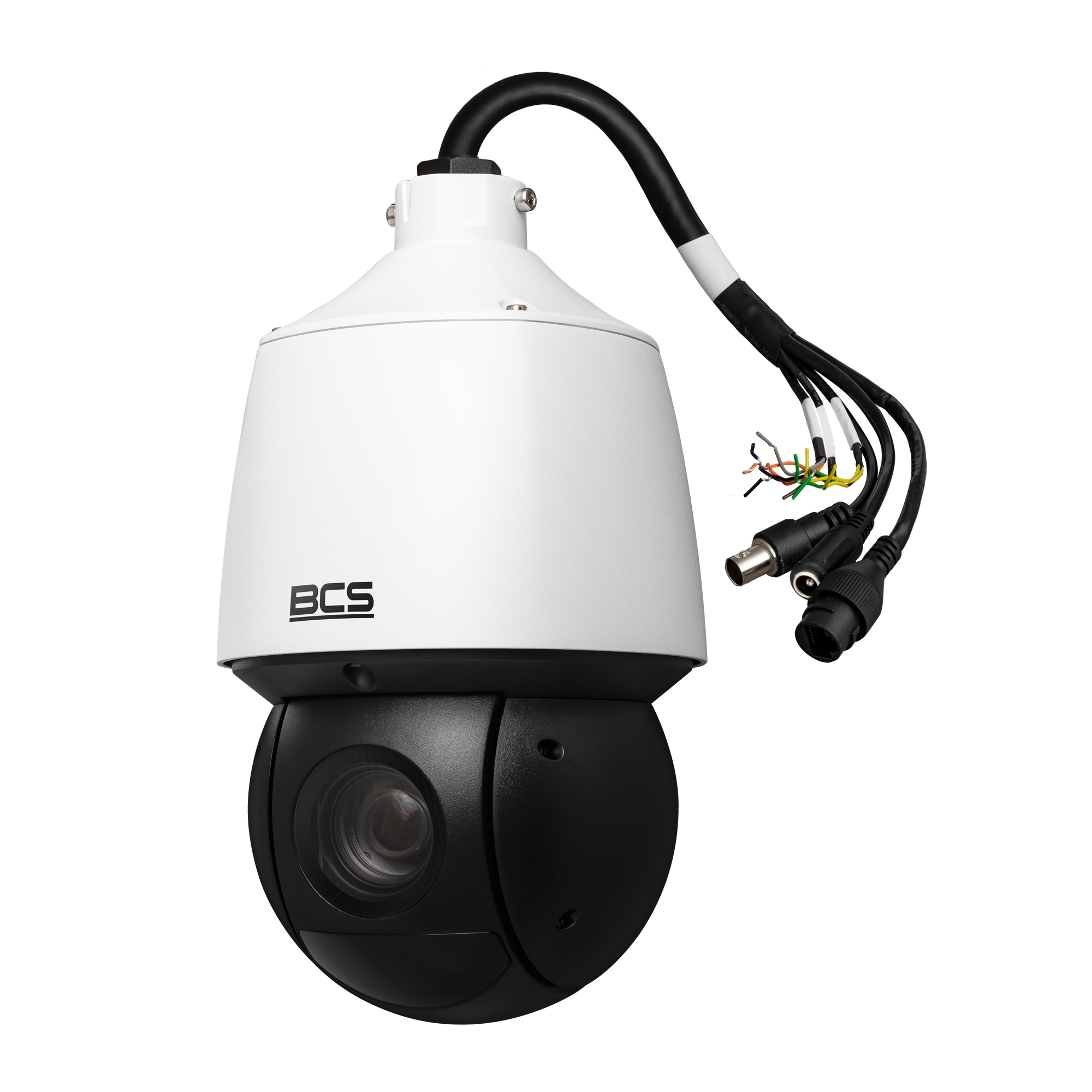

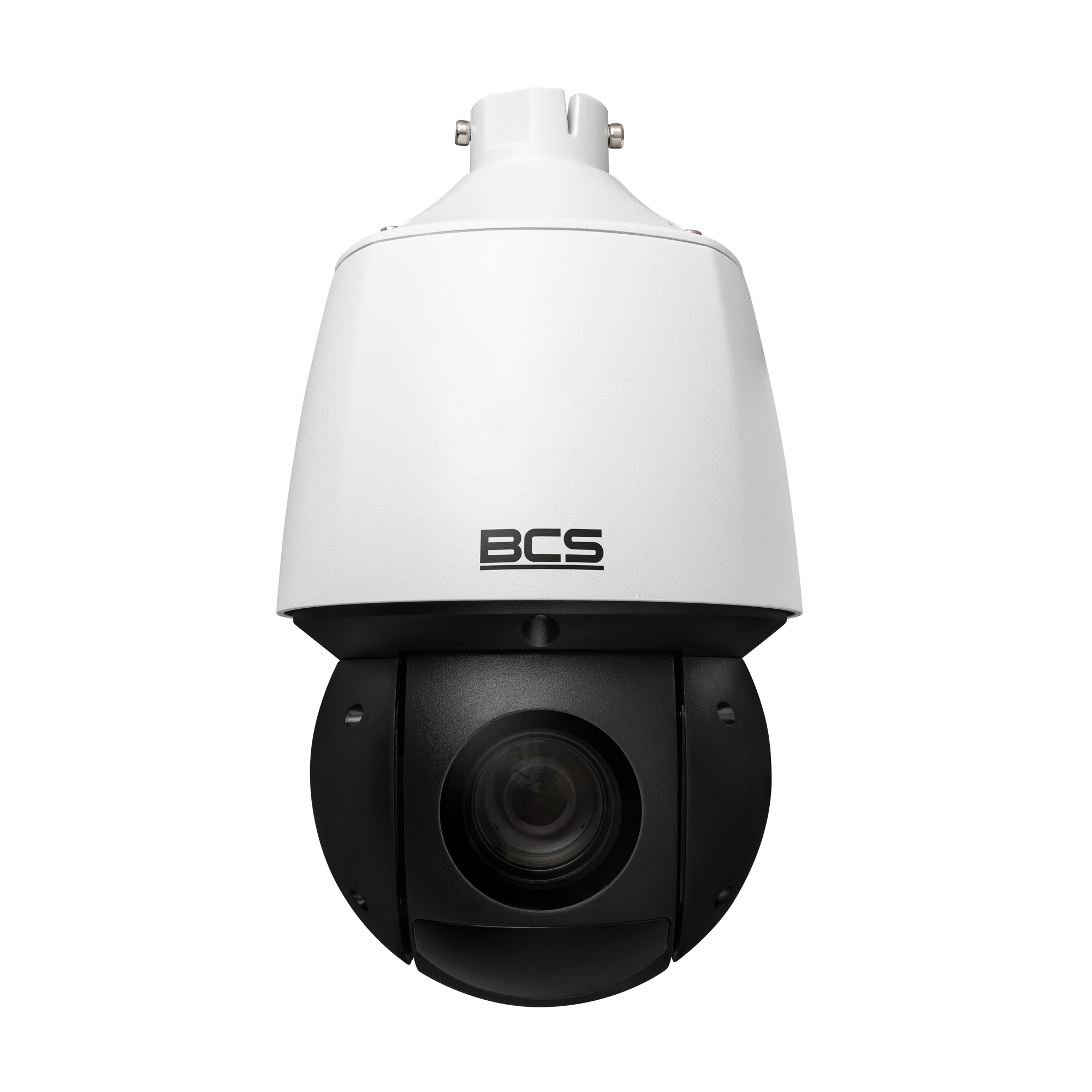

4Mpx PTZ IP camera. 1/2.8″ Starlight sensor with 4.8 ~ 120mm motozoom lens and 25 × zoom. Compression: H.265 / H.265 + / H.264 / H264 + / MJPEG. Resolution 4Mpx, IR illuminator up to 100m, progressive scan, memory card slot microSD 256GB. 1 Audio Input and 1 Output, 2 Alarm Inputs and 1 Alarm Output, RS485. Motion detection, automatic tracking, object recognition, face detection, people counting, perimeter protection, privacy mask, web service. White IK10 housing, class of protection : IP66 Power: DC 12V / PoE (802.3at).
Warning: This product belongs to the BCS POINT product line.
Use only components and devices from the same line to ensure compatibility.
BCS POINT
BCS-P-SIP2425SR10-Ai2
1052,88 € gross
Out of Stock4Mpx PTZ IP camera. 1/2.8″ Starlight sensor with 4.8 ~ 120mm motozoom lens and 25 × zoom.
Out of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
| Accessories included | Adapter PTZ, power supply 12VDC |
|---|---|
| Camera type | PTZ |
| Sensor | 1/2.8'' CMOS |
| Lens | motozoom |
| Iris | Auto / manual |
| DORI | Detect 120~2475m / Observe 48~990m / Recognize 24~495m / Identify 12~247m |
| WDR | 120dB |
| Image rotate | Mirror, Flip 0°/90°/180°/270° |
| Product | BCS-P-SIP2425SR10-Ai2 |
| NDAA | National Defense Authorization Act |
| Resolution | 4 Mpx |
| Scanning system | Progressive Scan |
| Pixels | 2688(H)×1520(V) |
| Bitrate | 128Kbps~16Mbps |
| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| Focal length | 4.8~120 mm |
| Aperture | F 1.5~F3.8 |
| Focus | Auto / manual |
| Optical zoom | 25× |
| Digital zoom | 16× |
| Angle of view | H:52.20°~2.74°V:30.81°~1.54° D:64.20°~3.23° |
| Min illumination | 0.003Lux(F1.5,AGC) 0Lux(B/W,IR) |
| S/N ratio | 56dB |
| White balance | (AWB) Auto / manual |
| Backlight compensation | BLC / HLC / WDR(120dB) |
| Shutter | Auto / manual 1~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 2D/3D DNR |
| Stream support | 3 |
| Resolutions | 4M(2688×1520) / 2M(1920×1080) / 720P(1280×720) / D1(720×576) / 2CIF(704×288) / (640×360) / CIF(352×288) |
| Main stream | 2688×1520 / 1920×1080 / 1280×720(25/30fps) |
| Second stream | 1920×1080 / 1280×720 / 720×576 / 704×288 / 640×360 / 352×288(25/30fps) |
| Third stream | 720×576 / 640×360 / 704×288 / 352×288 (25/30fps) |
| Video compression | H.265 / H.265+ / H.264 / H.264+ / MJPEG |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED |
| IR range | 100m |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711U / G.711A |
| Alarm in | 2 |
| Alarm out | 1 |
| Memory card slot | microSD 256GB |
| Other interfaces | RS485 |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 24 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
| Network security | HTTPS, SSL, TLS, Digest Authentication, Login Authentication, Account Lockout, IP address filtering, ARP protection |
| Power supply | PoE |
| Power supply type | 12V DC / PoE(802.3at) |
| Power consumption | max 21W |
| Housing color | White |
| IP class | IP67 |
| IK10 | Yes |
| Surge protection | TVS 6kV |
| Working environment | -40°C~+70°C max 95% RH |
| Dimensions | Ø166mm×295mm |
| Weight | 3 kg |
| PAN speed | 0.1°/s~200°/s(240°/s preset) |
| TILT speed | 0.1°/s~120°/s(200°/s preset) |
| PAN range | 0°~360° |
| TILT range | -15°~90° auto-flip |
| Auto tracking | Yes |
| Ai - Perimeter protection | Crossline, intrusion |
| &Ai - Object classification | Yes |
| Ai - Face detection | Face detection and tracking, snapshot |
| Ai - People counting | People counting for intrusion and crossline, counting people in/out |
| Ai - Human/vehicle detection | Human/vehicle classification for crossline and intrusion reduces false alarms |
