| Ai - Human/vehicle detection | Human/vehicle classification for crossline and intrusion reduces false alarms |
|---|---|
| Product | BCS-P-SIP9442SR50-Ai2 |
| NDAA | National Defense Authorization Act |
| Resolution | 4 Mpx |
| Pixels | 2688(H)×1520(V) |
| Focus | Auto / manual |
| Angle of view | H:59.47°~2.20° V:35.62°~1.24° D:73.14°~2.59° |
| White balance | (AWB) Auto / manual |
| Noise reduction | 2D/3D DNR |
| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| Flag | TO ORDER |
| Camera type | PTZ |
| Sensor | 1/1.8'' CMOS |
| Scanning system | Progressive Scan |
| Second stream | 2M(1920×1080) 60fps |
| Lens | motozoom |
| Focal length | 6~252 mm |
| Aperture | F 1.2~F4.6 |
| Iris | Auto / manual |
| Optical zoom | 42× |
| Digital zoom | 16× |
| DORI | Detect 93.1~4310.3m / Observe 37.2~1564.1m / Recognize 18.6~782.1m / Identify 9.3~391m |
| Min illumination | 0.0003Lux(F1.2,AGC) 0Lux(B/W,IR) |
| S/N ratio | 56dB |
| WDR | 150dB |
| Backlight compensation | BLC / HLC / WDR(150dB) |
| Shutter | Auto / manual 1~1/100000s |
| Gain control | (AGC) Auto / manual |
| Image Stabilization | EIS (Gyroscope) |
| Defog | Optical/Electronic |
| Image rotate | Mirror, Flip 0°/90°/180°/270° |
| Stream support | 3 |
| Main stream | 4M(2688×1520) 60fps |
| Third stream | 720×576 25/60fps |
| Bitrate | 128Kbps~16Mbps |
| Video compression | H.265 / H.265+ / H.264 / H.264+ / MJPEG |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED |
| IR range | 500m |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711U / G.711A |
| Alarm in | 7 |
| Alarm out | 2 |
| Storage | ANR, NAS(NFS) |
| Memory card slot | microSD 512GB |
| Other interfaces | RS485, BNC |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 24 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/G/T/M) |
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Network security | |
| Power supply | PoE |
| Power supply type | 24V AC / 24V DC / PoE(802.3bt) |
| Power consumption | max 65.5W |
| Housing color | White |
| IP class | IP67 |
| IK10 | Yes |
| Surge protection | TVS 6kV |
| Working environment | -40°C~+70°C max 95% RH |
| Dimensions | Ø226.7mm×440.3mm |
| Weight | 6.9 kg |
| PAN speed | 0.1°/s~300°/s |
| TILT speed | 0.1°/s~180°/s |
| PAN range | 0°~360° |
| TILT range | -15°~90° auto-flip |
| Auto tracking | Yes |
| Ai - Perimeter protection | Crossline, intrusion |
| &Ai - Object classification | Yes |
| Ai - People counting | People counting for intrusion and crossline, counting people in/out |
Warning: This product belongs to the BCS POINT product line.
Use only components and devices from the same line to ensure compatibility.
BCS POINT

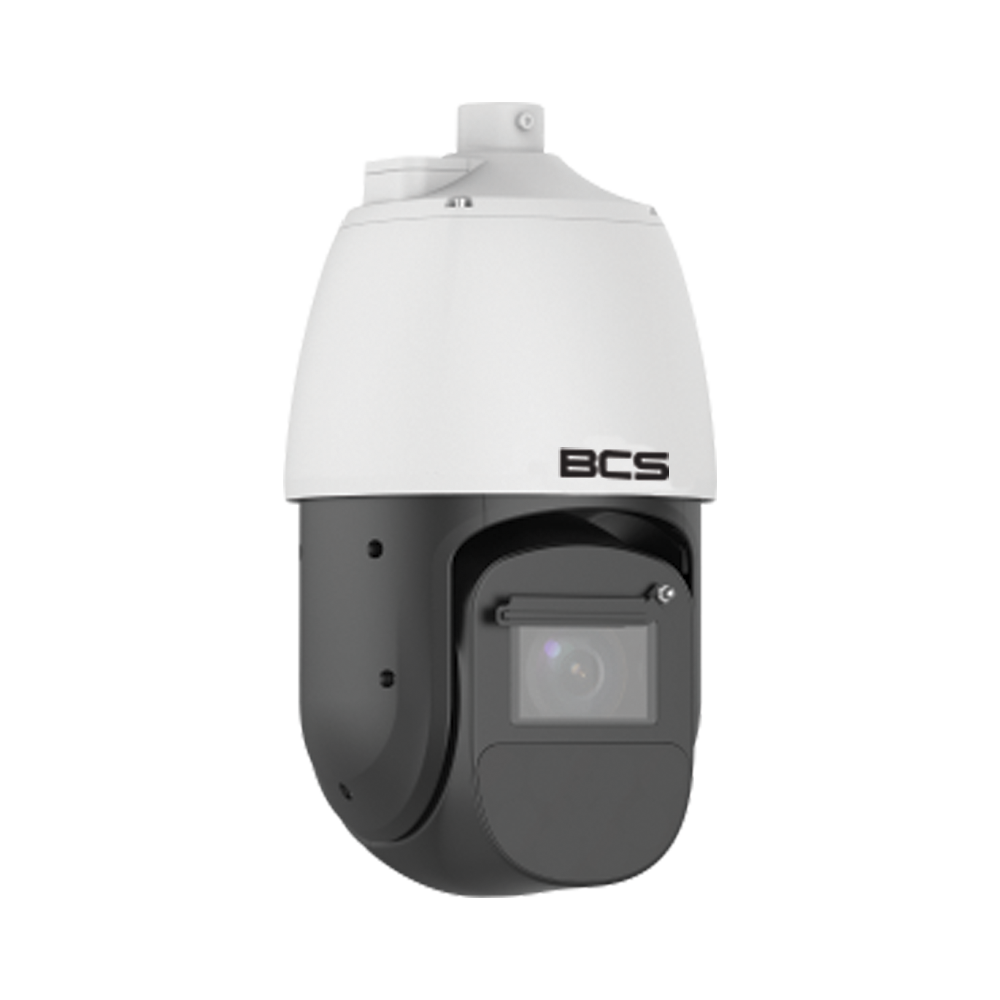

BCS-P-SIP9442SR50-Ai2
3387,42 € gross
Out of Stock- 4Mpx pan-tilt IP camera
- 1/1.8" PS CMOS sensor
- SkyLight technology
- NDAA compliance
- 6–252 mm motorised zoom lens
- 42x optical zoom
- IR 500m
- Alarm 7/2, audio 1/1
- IP67-rated housing
- Gyroscopic image stabilisation
- Built-in smart features
Out of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
