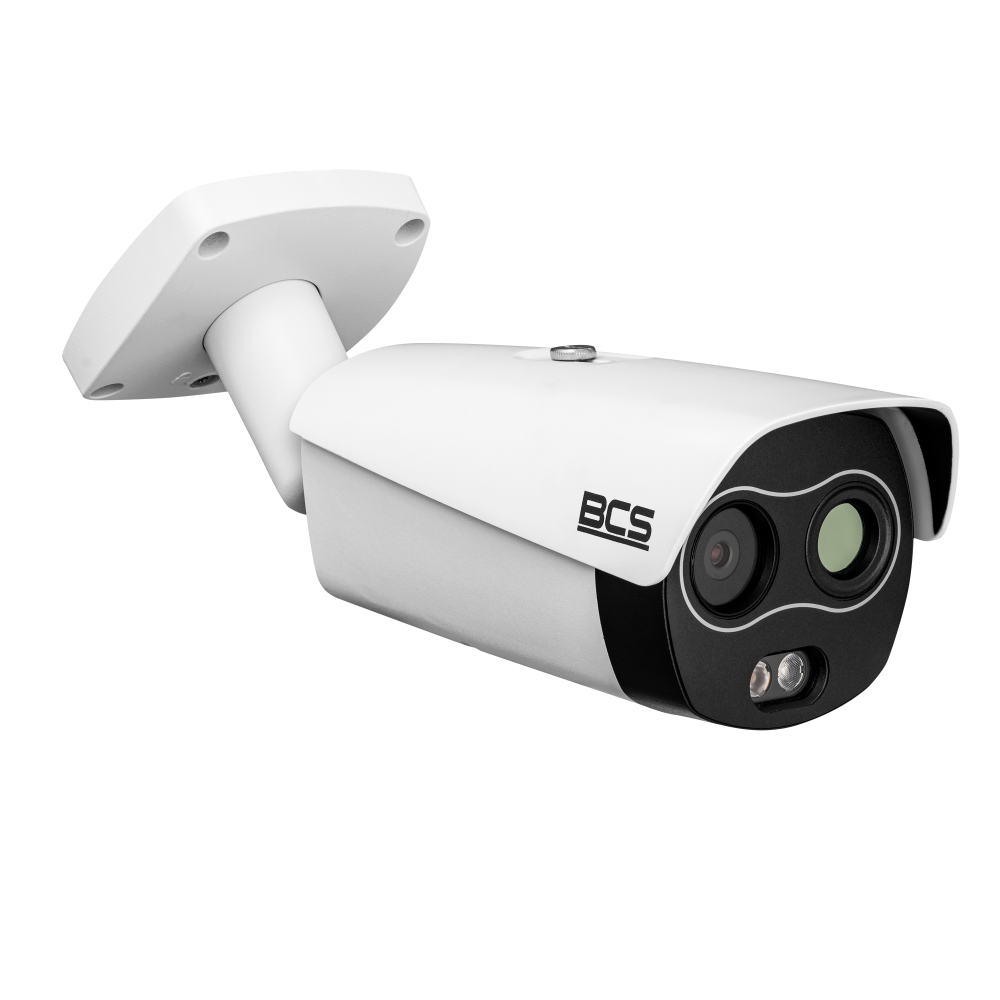

Thermal 400 × 300 dual-sensor tube IP camera with temperature measurement / 2Mpx vision. Matrix focal detector, 1/2.8″ CMOS vision sensor with 8mm lens, 13mm thermal lens. Infrared illuminator up to 35m, 2/2 alarm, 1/1 audio, intelligent functions, microSD memory card slot, white IP67 housing, power supply: 12V DC / PoE (802.3af) Dimensions: Ø365 x 175 x 176mm.
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE
BCS-TIP5240813-IR-TTW
0,00 € gross
Out of StockThermal 400 × 300, dual-sensor, tube IP camera with temperature measurement / 2Mpx vision.
The product is available on request
Out of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
| Spectral range | 8~14um |
|---|---|
| Thermal camera angle of view | H: 30° V: 22.6° |
| Ai - Built-in intelligent functions | Kamera termowizyjna do pomiaru temperatury ludzkiego ciała |
| Temperature measurement range | 30°C~45°C |
| Temperature measurement accuracy | Max ±1°C Max ±0.3°C(black body) |
| Temperature measurement environment | 10°C~+30°C |
| Flag | TO ORDER |
| Product | BCS-TIP5240813-IR-TTW |
| Camera type | Thermal |
| Resolution | 2 Mpx |
| Sensor | 1/2.8'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 1920(H)×1080(V) |
| Lens | fixed |
| Focal length | 8 mm |
| Aperture | F1.9 |
| Focus | fixed |
| Iris | fixed |
| Digital zoom | 16× |
| Angle of view | H: 40° V: 22° D: 46° |
| DORI | Detect 110m / Observe 44m / Recognize 22m / Identify 11m |
| Min illumination | 0.002Lux 0.0002Lux(B/W) 0Lux(IR) |
| White balance | (AWB) Auto / manual |
| WDR | DWDR |
| Backlight compensation | BLC / HLC / DWDR |
| Shutter | Auto / manual 1~1/30000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 2D/3D DNR |
| Stream support | 2 |
| Resolutions | 2M(1920×1080) / 720P(1280×720) / D1(704×576) /CIF(352×288) |
| Main stream | 1920×1080(25/30fps) 1280×720(25/30fps) 704×576(25fps) |
| Second stream | 704×576(25fps) 352×288(25fps) |
| Video compression | H.265 / H.264M / H.264H / H.264B / MJPEG |
| Day/night | ICR |
| Illuminator type | IR LED |
| IR range | 35m |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711a / G.711mu / AAC / PCM |
| Alarm in | 2 |
| Alarm out | 2 |
| Memory card slot | microSD 256GB |
| Other interfaces | RS485 |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF |
| Protocols | HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, SNMP, QoS, UPnP, NTP |
| Power supply | PoE |
| Power supply type | 12V DC / PoE(802.3af) / ePoE |
| Power consumption | max 12W |
| Housing color | White |
| IP class | IP67 |
| Working environment | 10°C~+30°C max 95% RH |
| Dimensions | 365×175×176mm |
| Weight | 1.4 kg |
| Thermal camera sensor | Focal plane detector microbolometric sensor with active absorbing material Vox |
| Thermal camera resolution | 400(H)×300(V) |
| Thermal camera main stream | 1280×1024(25fps) 1280×960(25fps) 1024×768(25fps) 640×480(25fps) 256×192(25fps) |
| Thermal camera second stream | 640×512(25fps) 256×192(25fps) |
| Thermal camera lens | 13 mm |
| Thermal camera aperture | F1.0 |
| Temperature measurement | Yes |
| Temperature measurement mode | Spot 12 / Line 12 / Area 12 |
| Pixel size | 17um |
| Thermal sensitivity | 40mK |
