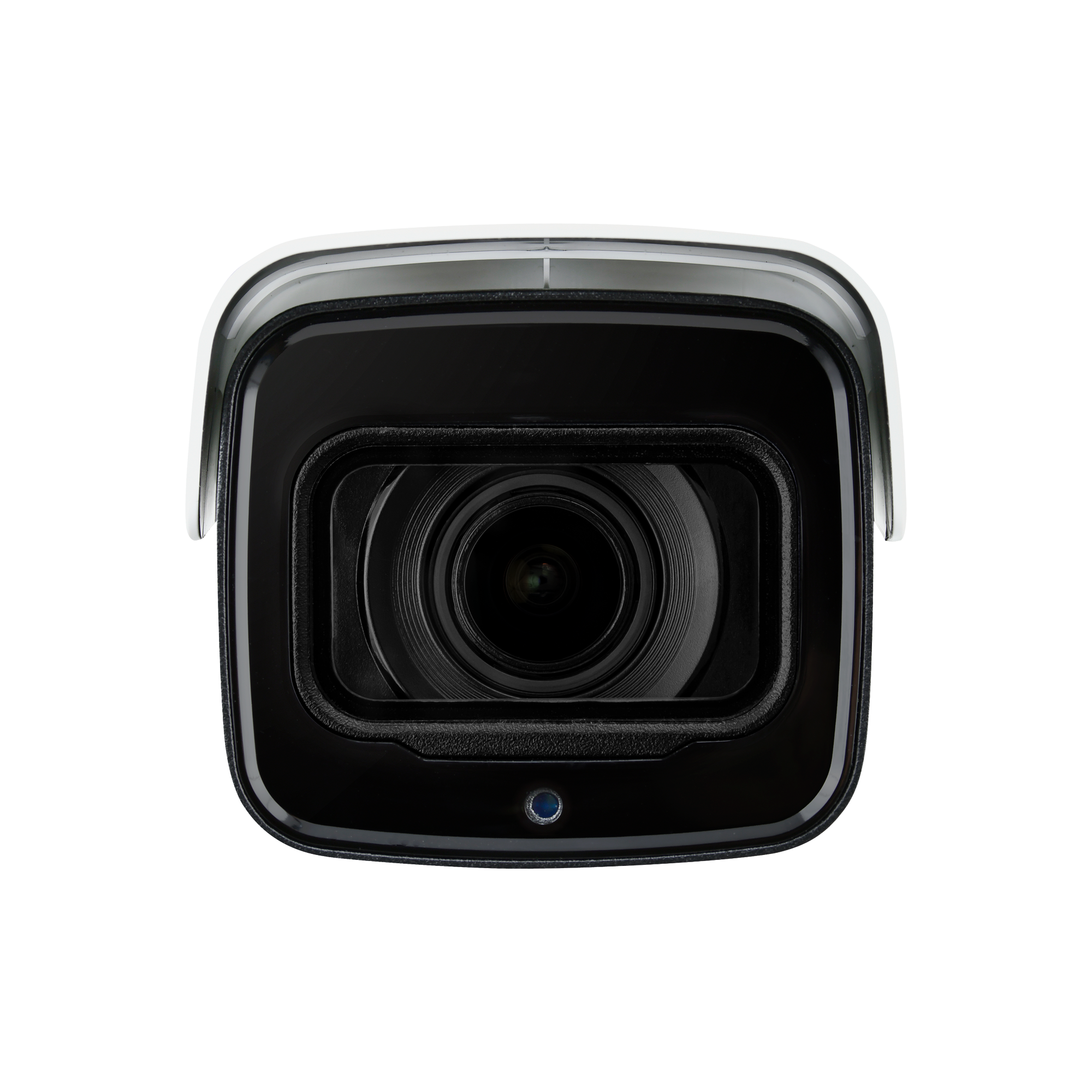

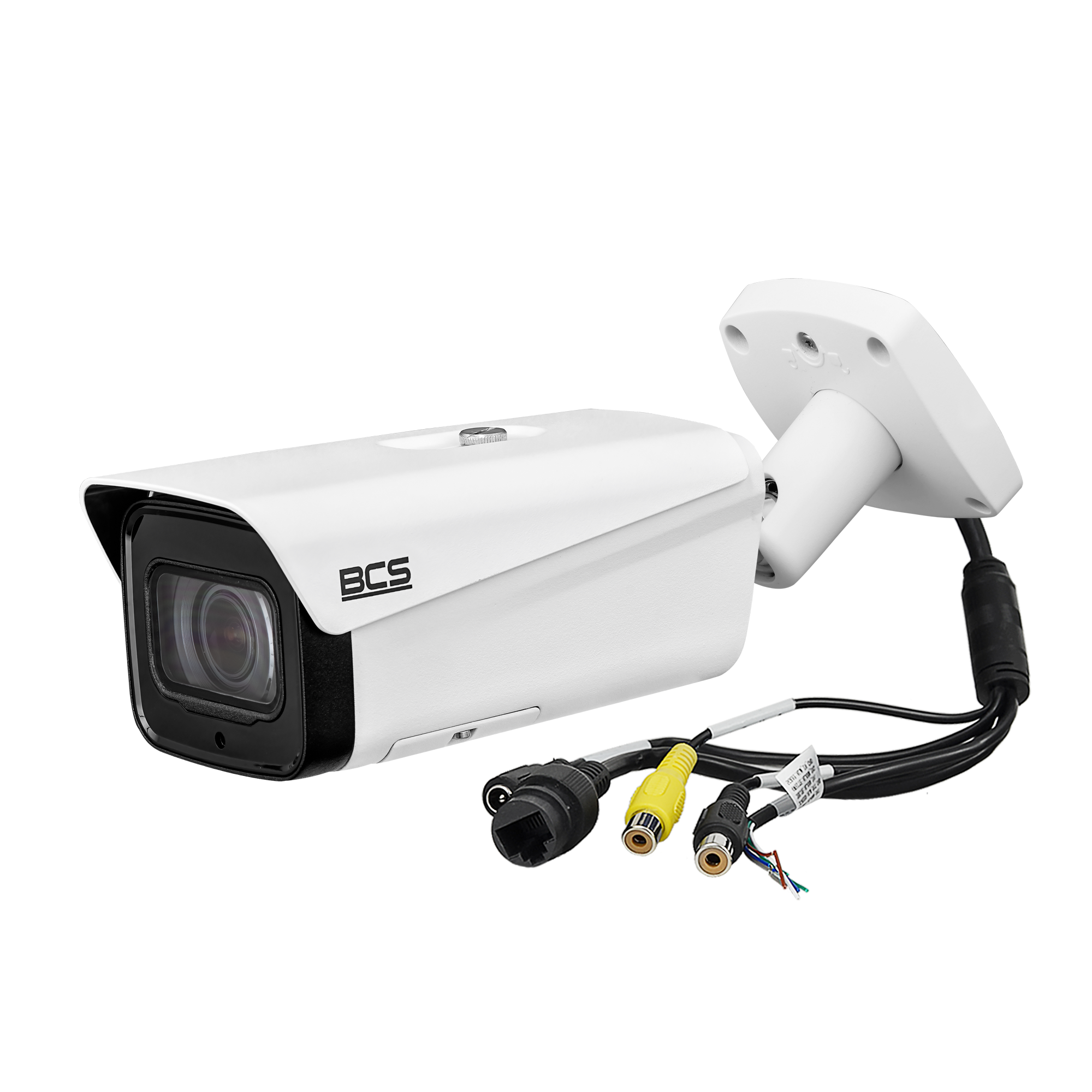

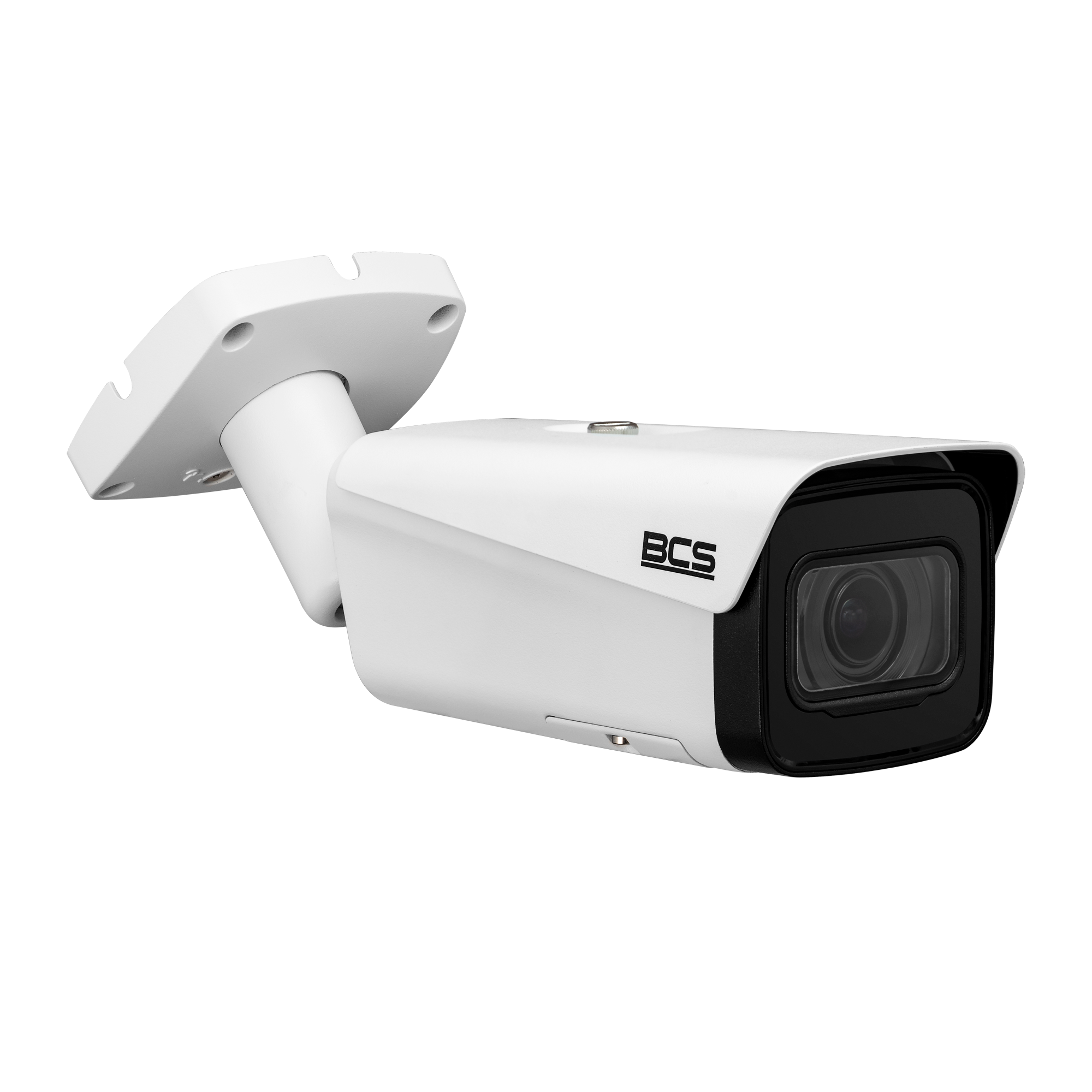

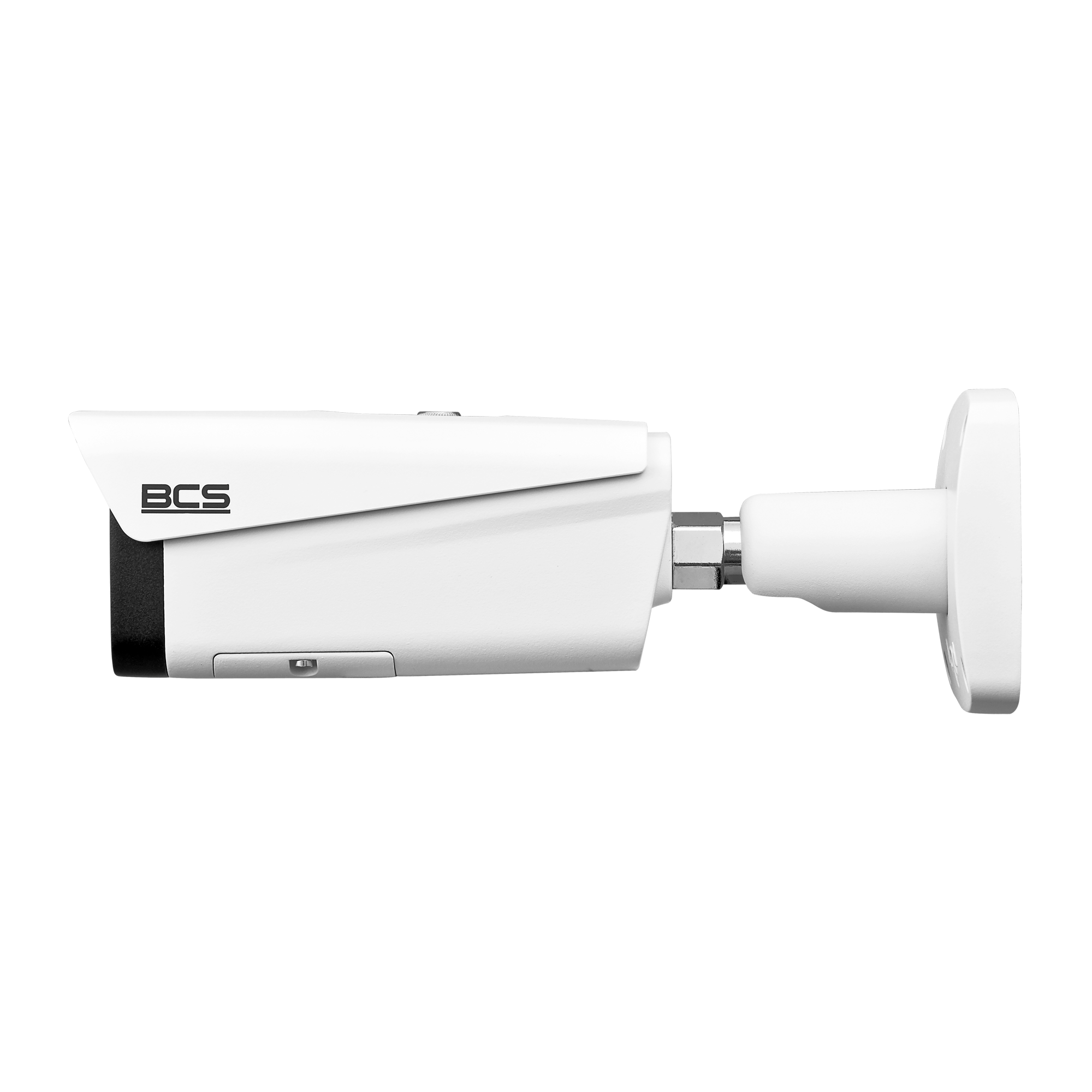

BCS LINE tube 5Mpx IP camera. 1/2.7″ CMOS sensor with motozoom 2.7 ~ 13.5mm lens, WDR (120dB), infrared illuminator – 50m, 2/1 alarm, 1/1 audio, intelligent functions, motion detection, maxi privacy, perimeter protection, object recognition, detection face counting, people counting, metadata, heat map, 256GB microSD memory card slot, white IK10 housing, IP67, power supply: 12V DC Dimensions: Ø273.2 x 95 x 95mm.
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE
BCS-TIP8501IR-Ai
630,99 € gross
Out of Stock- 5Mpx IP bullet camera
- 1/2.7" PS CMOS sensor
- SkyLight technology
- exPoE technology
- 2.7–13.5 mm motorised zoom lens
- WDR 120dB
- IR 50m
- Alarm 2/1, audio 1/1, microphone
- IP67, IK10 housing
- Built-in smart features
Out of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
| Ai - Human/vehicle detection | Yes |
|---|---|
| Resolution | 5 Mpx |
| Scanning system | Progressive Scan |
| ROM | 128MB |
| Focus | Auto / manual |
| Angle of view | H: 100°~28° V: 72°~21° (2592×1944) H: 104°~29° V: 55°~16° (2688×1520) |
| White balance | (AWB) Auto / manual |
| Ai - Built-in intelligent functions | Yes |
| Noise reduction | 3D DNR |
| Product | BCS-TIP8501IR-Ai |
| Camera type | Bullet |
| Sensor | 1/2.7'' CMOS |
| Pixels | 2592(H)×1944(V) |
| RAM | 1GB |
| Lens | motozoom |
| Focal length | 2.7~13.5 mm |
| Aperture | F1.5 |
| Iris | Auto |
| Optical zoom | 4× |
| Digital zoom | 16× |
| DORI | Detect 64~212m / Observe 26~85m / Recognize 13~42m / Identify 6~21m |
| Min illumination | 0.005Lux(F1.5) 0Lux(IR) |
| S/N ratio | 56dB |
| WDR | 120dB |
| Backlight compensation | BLC / HLC / WDR(120dB) |
| Shutter | Auto / manual 1/3~1/100000s |
| Gain control | (AGC) Auto / manual |
| Image rotate | Mirror, Flip 0°/90°/180°/270°, corridor mode |
| Stream support | 3 |
| Resolutions | 5M(2592×1944) / 4M(2688×1520)(2560×1440) / 3M(2304×1296) / 2M(1920×1080) / 1.3M(1280×960) / 720P(1280×720) / D1(704×576/704×480) / VGA(640×480) / CIF(352×288/352×240) |
| Main stream | 2592×1944(1~20fps) 2560×1440(1~25/30fps) 1920×1080(1~50/60fps) |
| Second stream | 704×576/704×480(1~20/30fps) 704×576/704×480(1~50fps) |
| Third stream | 1920×1080(1~17fps) |
| Bitrate | H.264: 32 Kbps~8192 Kbps H.265: 19 Kbps~8192 Kbps |
| Video compression | H.265 / H.265+ / H.264 / H.264+ / MJPEG |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED |
| IR range | 50m |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711Mu / G.723 / G.726 / AAC |
| Alarm in | 2 |
| Alarm out | 1 |

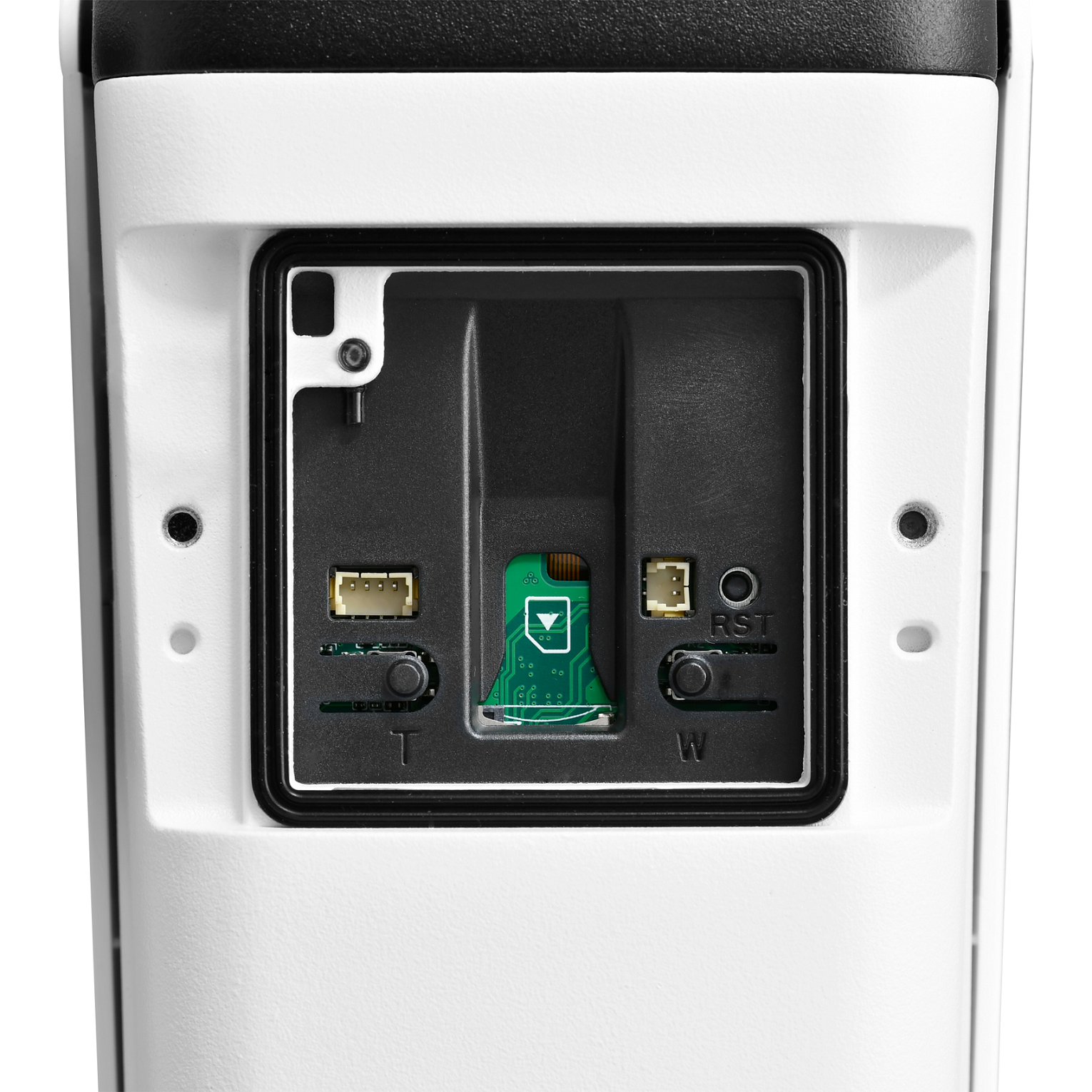

| Memory card slot | microSD 256GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 4 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x, SNMP |
| Power supply | PoE |
| Power supply type | 12VDC / PoE(802.3af) / ePoE |
| Power consumption | max 10.9W |
| Housing color | White |
| IP class | IP67 |
| IK10 | Yes |
| Working environment | -30°C~+60°C max 95% RH |
| Dimensions | 273.2×95×95mm |
| Weight | 1.1 kg |
| Ai - Perimeter protection | Yes |
| &Ai - Object classification | Yes |
| Ai - Face detection | Yes |
| Ai - People counting | Yes |
| Ai - Metadata | Yes |
| Ai - Heat map | Yes |
