A Linux-based system capable of recording up to 8 IP channels; the recorder is equipped with 1 Gigabit Ethernet port (client), 8 Fast Ethernet ports (IP camera) and 1 Gigabit Ethernet port (external), client connections to remote client software in a LAN or WAN environment, bandwidth in normal mode 50 Mbps, configuration of 2 SATA ports (up to 10 TB each) + 1 eSATA port, display resolution: HDMI: 3840 x 2160, 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200; VGA: 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200, 1 RCA audio output and 1 HDMI audio output, supports up to 240 frames per second, graphical user interface provided in Polish, ability to record during an event, before and after an event, support for alarms, audio, motion, exclusion zones, video loss, system event triggering, fan failure, recording errors, storage-related alerts and alarm input errors, frame-by-frame search capability, event log, text search, equipped with Chained-Fingerprint™ encryption options, SSL, password encryption, built-in 8-port PoE switch (IEEE 802.3at Class 4, 50W), monitoring and reporting (S.M.A.R.T.) of hard disk operation with early warning of potential problems
Warning: This product belongs to the BCS ULTRA product line.
Use only components and devices from the same line to ensure compatibility.

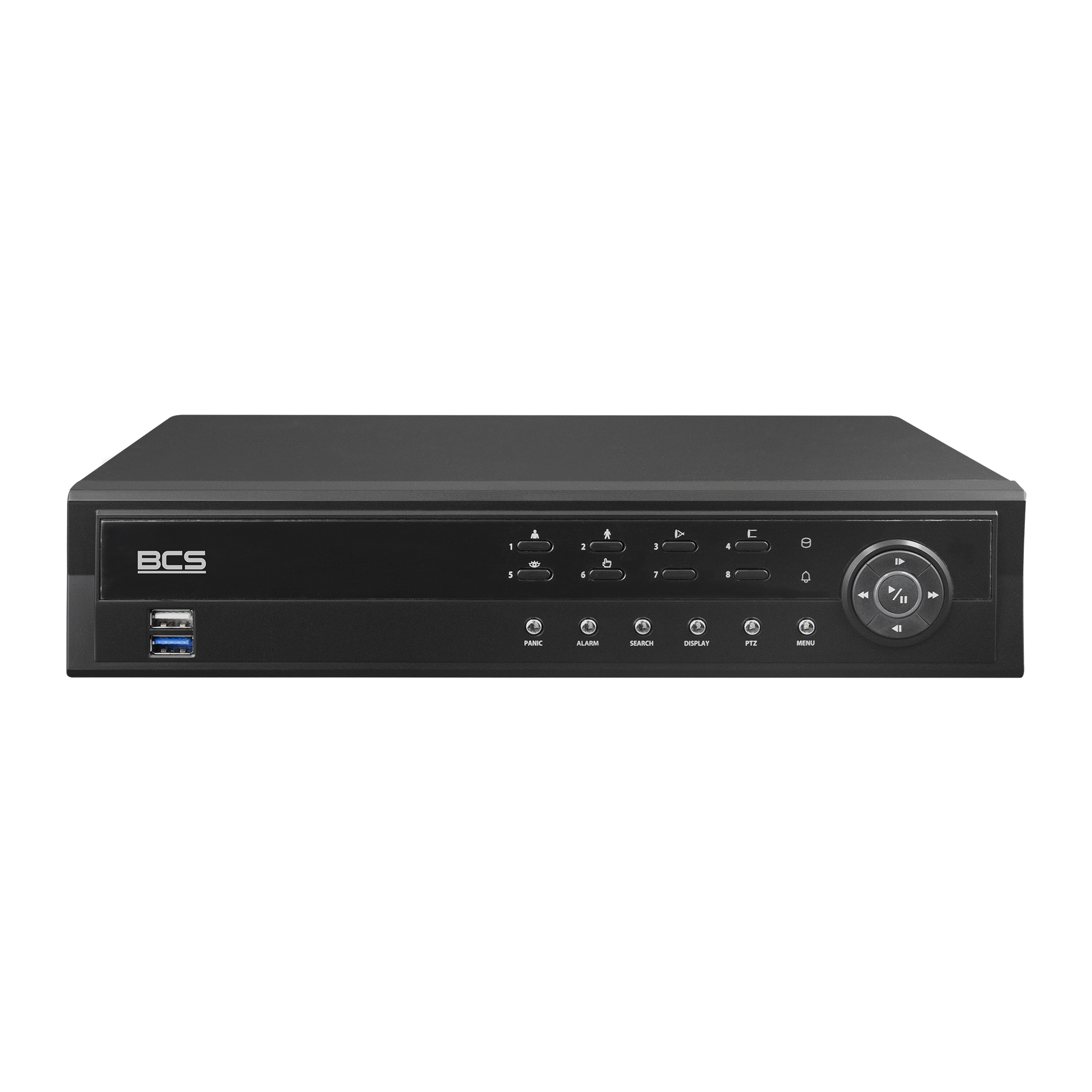

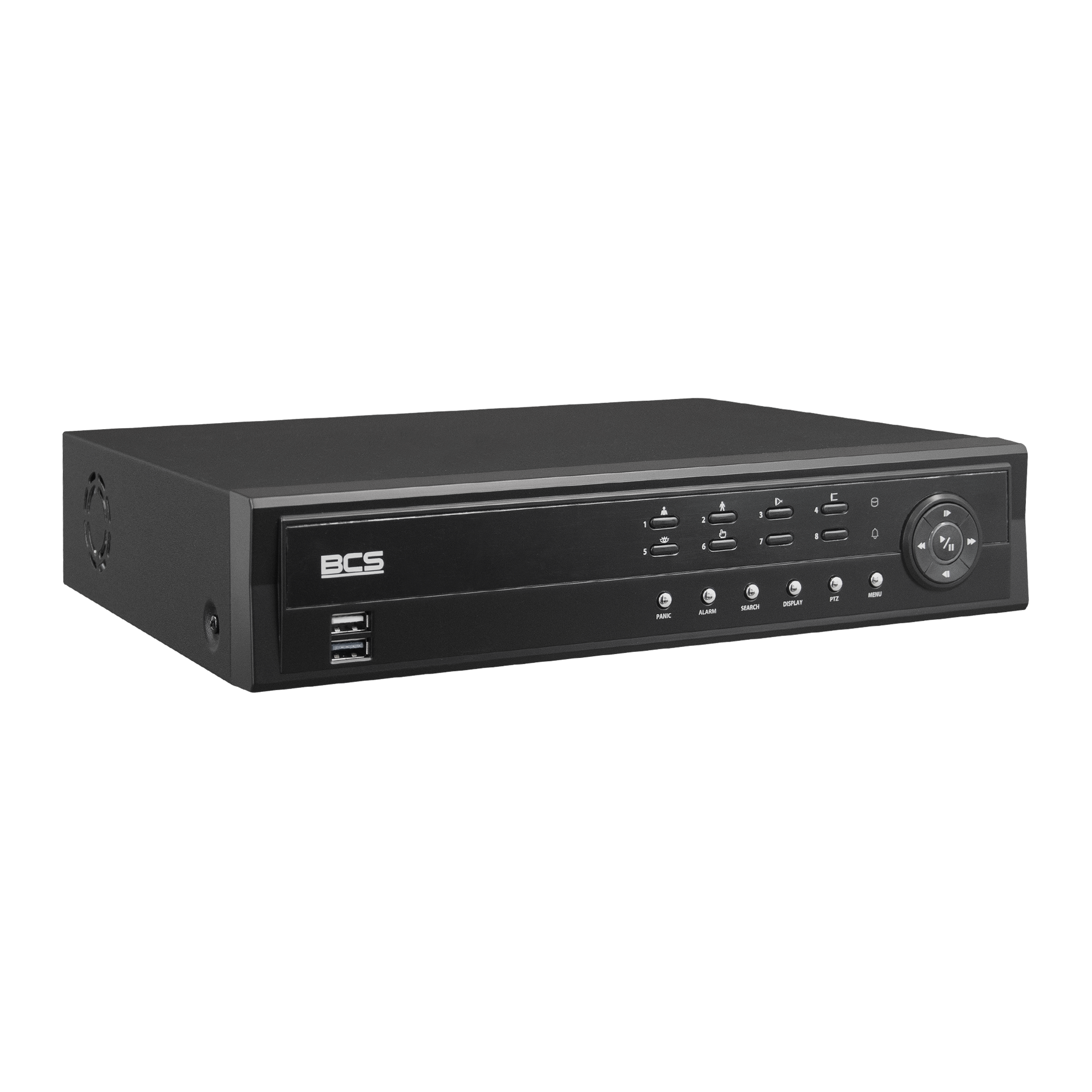

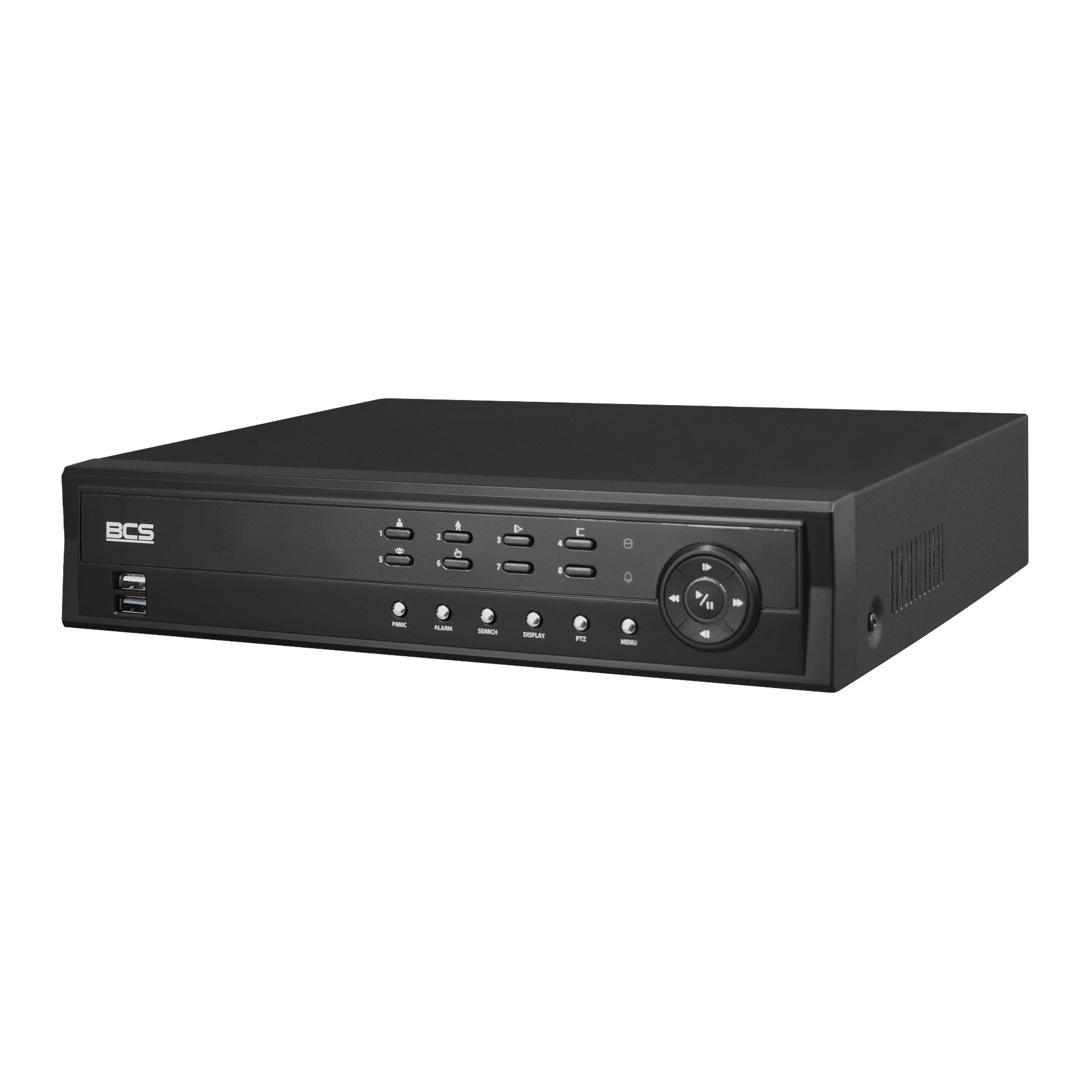

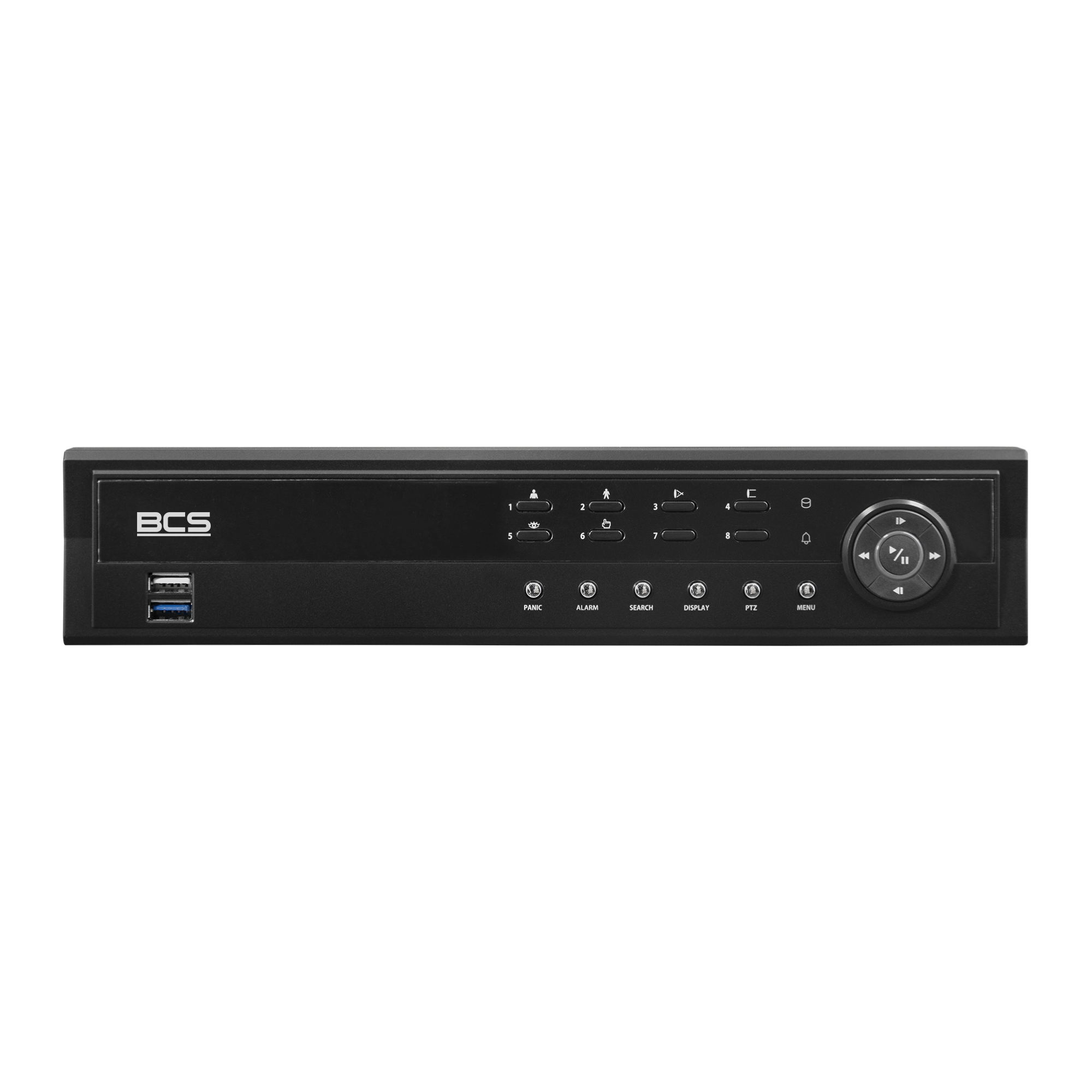

BCS-U-NVR0802-A-4K-8P(6TB)
1660,50 € gross
12 In Stock- 8-channel IP recorder
- Compliance with the NDAA
- Built-in 8-port 50W PoE switch
- Supports 2 hard drives
- Built-in 1x6TB hard drive
- Supports 12Mpx IP cameras
- 4/1 alarm, audio output
- HDMI 4K/VGA output
12 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
| Product | BCS-U-NVR0802-A-4K-8P(6TB) |
|---|---|
| NDAA | National Defense Authorization Act |
| System | IP |
| Pentaplex function | Live view / recording / playback / archiving / remote access |
| Channels | 8 |
| HDD support | 2 |
| HDD capacity | 10 TB |
| Record mode | Continuous, manual, alarm, motion detection, schedule, Ai |
| Max recording resolution | 12 Mpx |
| Incoming bandwidth | 270Mbps |
| Video compression | H.265+ / H265 / H.264+ / H.264 |
| HDMI out | HDMI4K |
| VGA out | VGA |
| HDMI display resolutions | 3840×2160 / 1920×1080 / 1280×1024 / 1280×720 / 1024×768 |
| VGA display resolutions | 1920×1080 / 1280×1024 / 1280×720 / 1024×768 |
| Display split | 1/2/3/4/6/8/9/16 |
| Synchronous playback | 8 |
| Archiving | Possibility to download material to external media such as USB FLASH, USB HDD |
| Interfaces | 1×USB2.0, 1×USB3.0, 1×eSATA |
| Serial port | RS232 |
| Audio out | 1 |
| Alarm in | 4 |
| Alarm out | 1 |
| Alarm | Motion detection, signal lost,, sabotage, scene change, PIR, IPC, Ai functions, offline, HDD, IP, MAC, login |
| Support | Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Network | Client 1×RJ-45 10/100/1000Mbps, Video in 1×RJ-45 10/100/1000Mbps |
| Compatibility | ONVIF, support third party cameras |
| Network security | DirectIP, SSL, TLS, FEN, iBank, Firewall, Chained Fingerprint, IPC separated network |
| Standard | IEEE 802.3 af/at |
| Switch PoE power | 50W |
| PoE channels | 8 |
| Power supply | 12V DC + 48V DC |
| pa_power-consumption-with-f3386 | max 50.4W |
| Working environment | 0°C~+40°C max 90% RH |
| Casing | 1.5U |
| Dimensions (W×D×H) | 300×231×62mm |
| Weight (without HDD) | 2.3 kg |
| pa_ai-intelligent-functio-b8957 | Perimeter protection (intrusion, crossing the line), object recognition (person/motor vehicle), face detection |
