BCS-UPS/IP16Gb/E-S

863,46 € gross

Out of Stock

Buffer power supply kit for 16 PoE devices, in an outdoor housing.

Out of stock

This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.

SKU: 8159 Categories: ,

A set for buffer power supply of IP CCTV cameras. The device is a convenient solution to the problem of a buffer power supply for surveillance cameras that require uninterrupted operation. The device is designed to work with IP cameras and other network devices powered in PoE 802.3at / af and PoE PASSIVE standards.

The device is especially recommended for systems requiring higher network bandwidth, such as 4K Ultra HD CCTV monitoring. The system is adapted to work with lead-acid or dry SLA batteries.

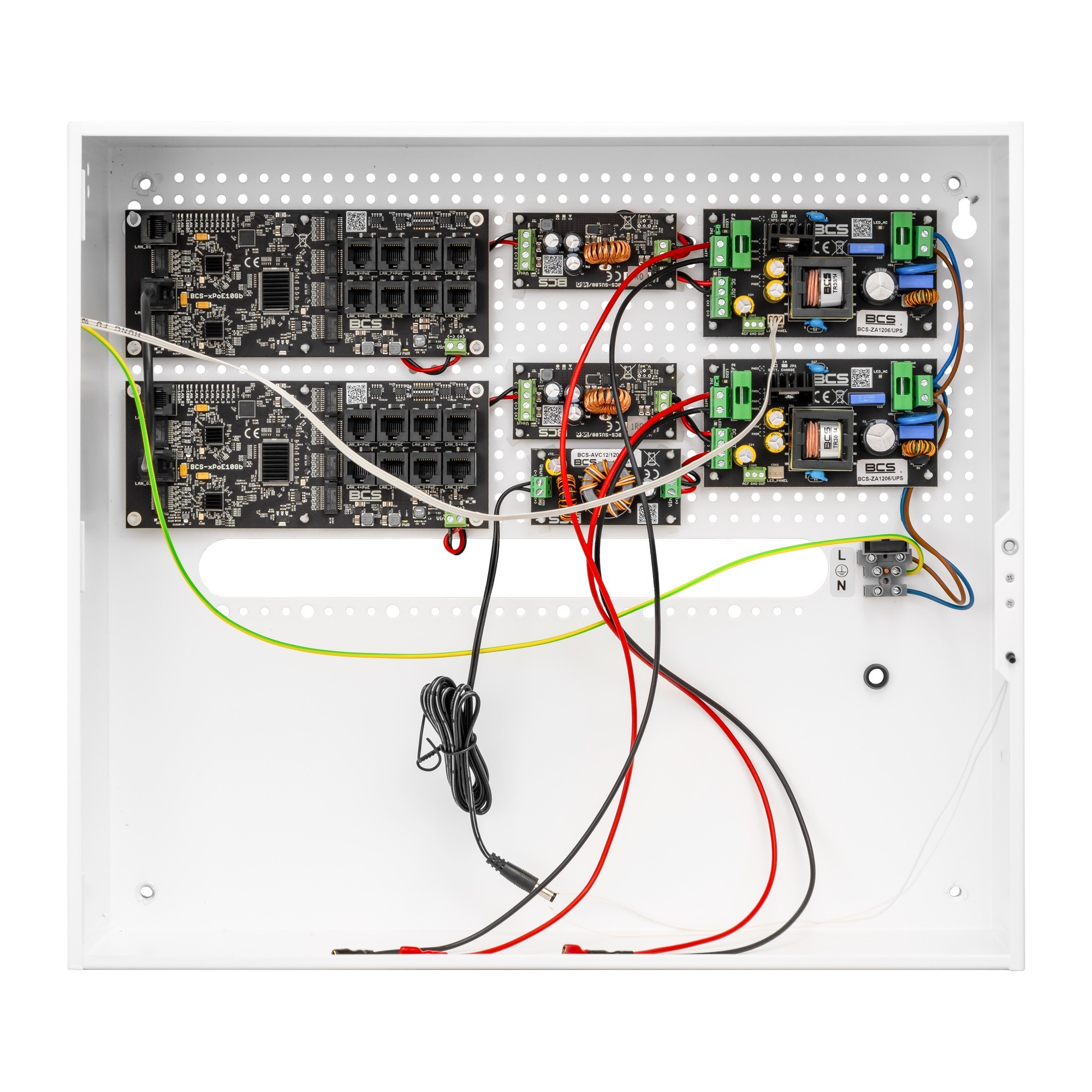

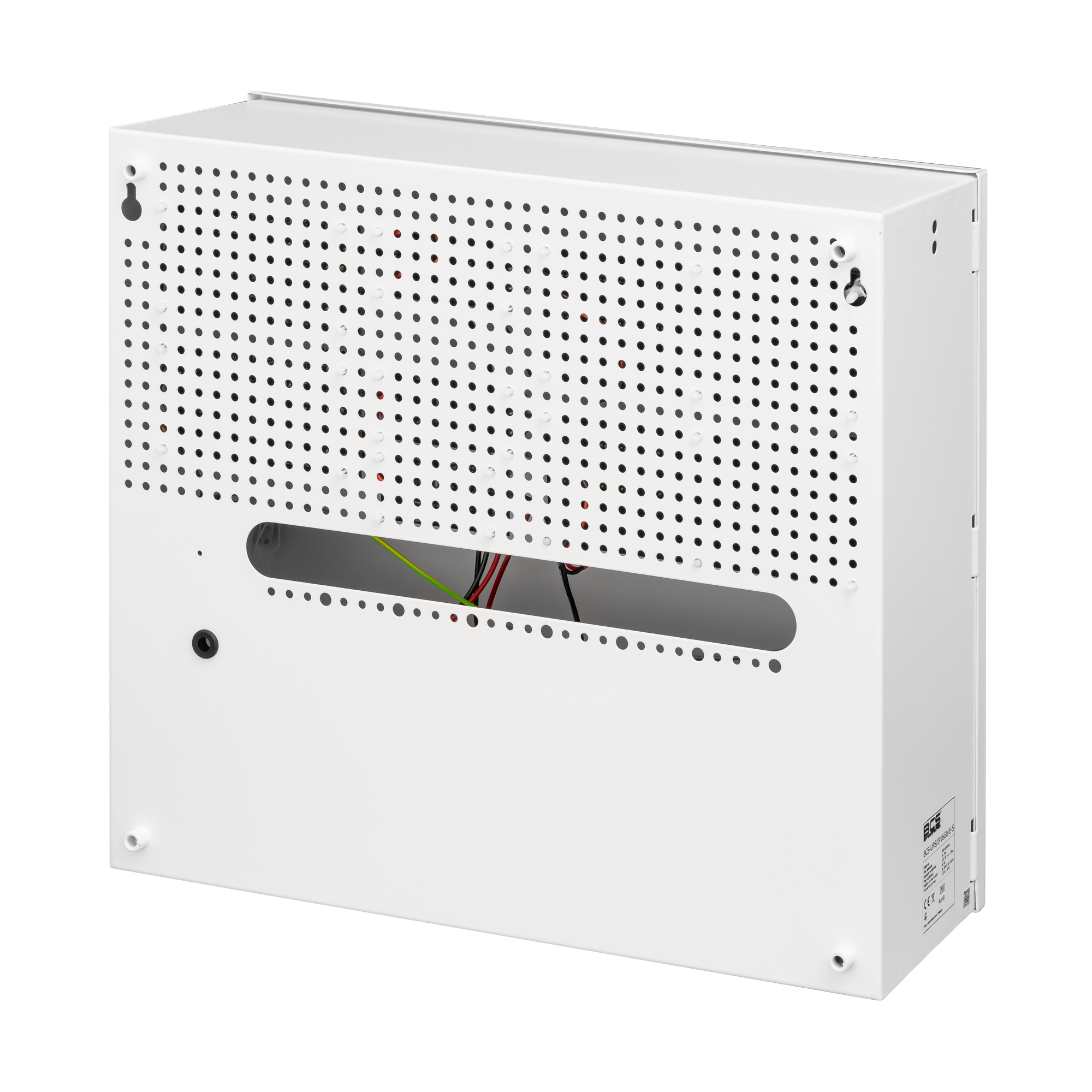

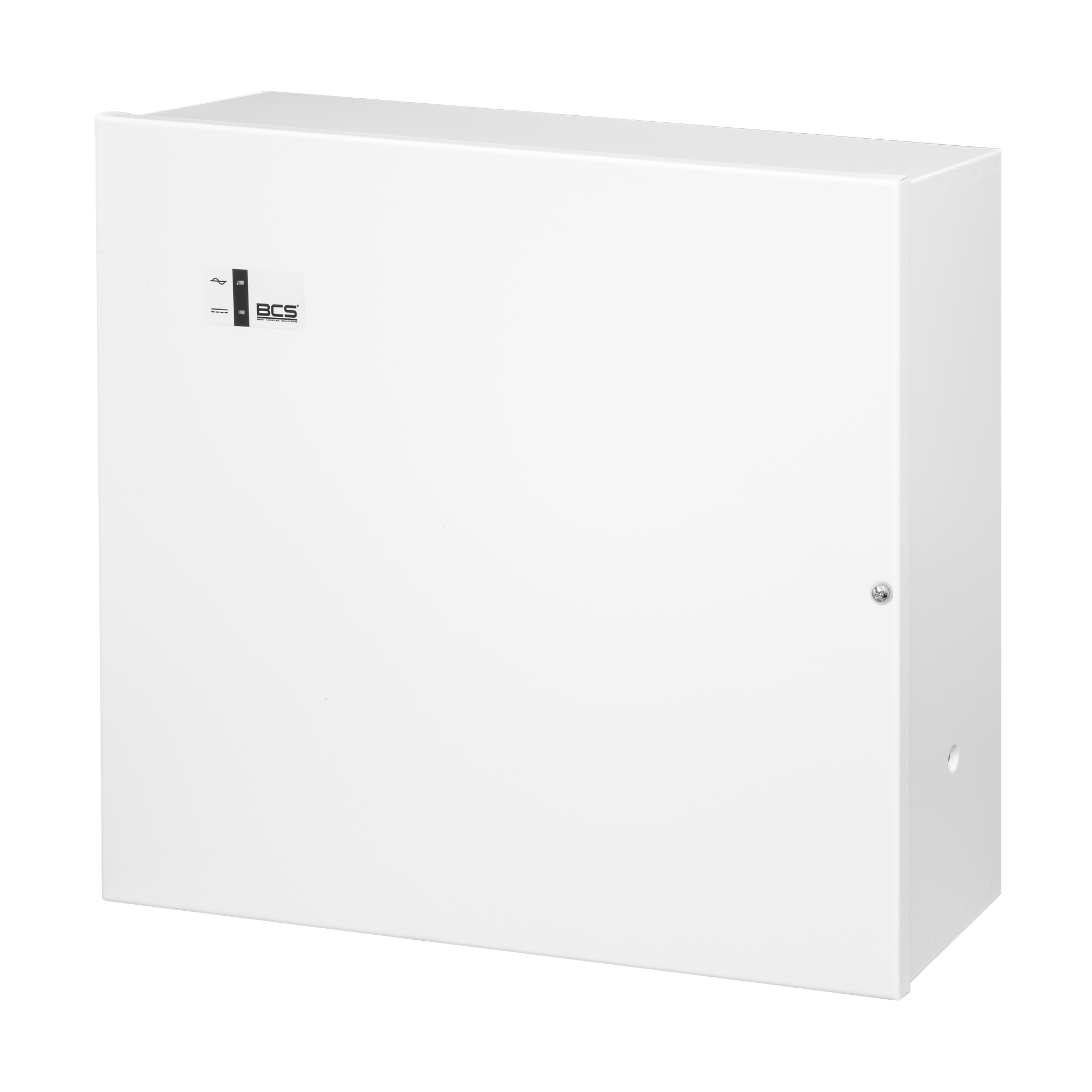

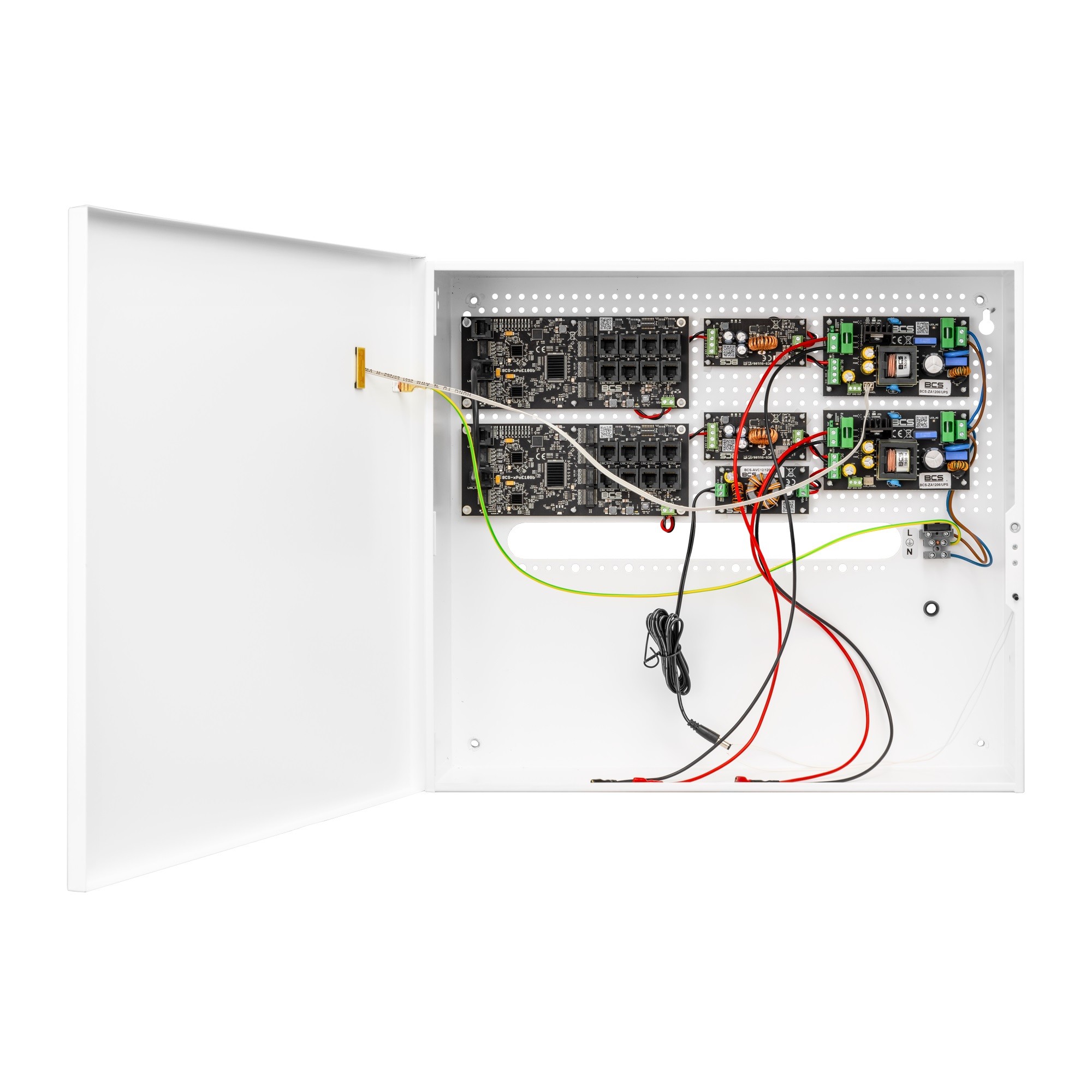

The device is closed in the BCS-H internal housing, which is a convenient solution to the problem of aesthetic installation of monitoring devices and termination of wiring inside buildings. The housing is made of sheet steel, powder coated in a semi-matt white color.

Product

BCS-UPS/IP16Gb/E-S

PoE ports

16×RJ45 100Mbps

Standard IEEE

802.3af / 802.3at / PoE PASSIVE

Adapter power

2×72W

Power supply

V in: 190-260 VAC, 50 Hz V out: 48 VDC +/- 2%

UPS backup

max 2 × 12V 18Ah

Working environment

-10°C~+40°C max 90% RH

Weight

4.7 kg

Protection level

IP20

Casing

BCS-H housing, Housing material – 0.8 mm steel sheet, White powder-coated housing, Opening tamper installed, System drilling 4.8 mm in 10.8 mm pitch, Wall distance, Mounting holes 6mm

Dimensions (W×D×H)

450×400×140mm
