| Ai - Human/vehicle detection | Human/vehicle classification for crossline and intrusion reduces false alarms |
|---|---|

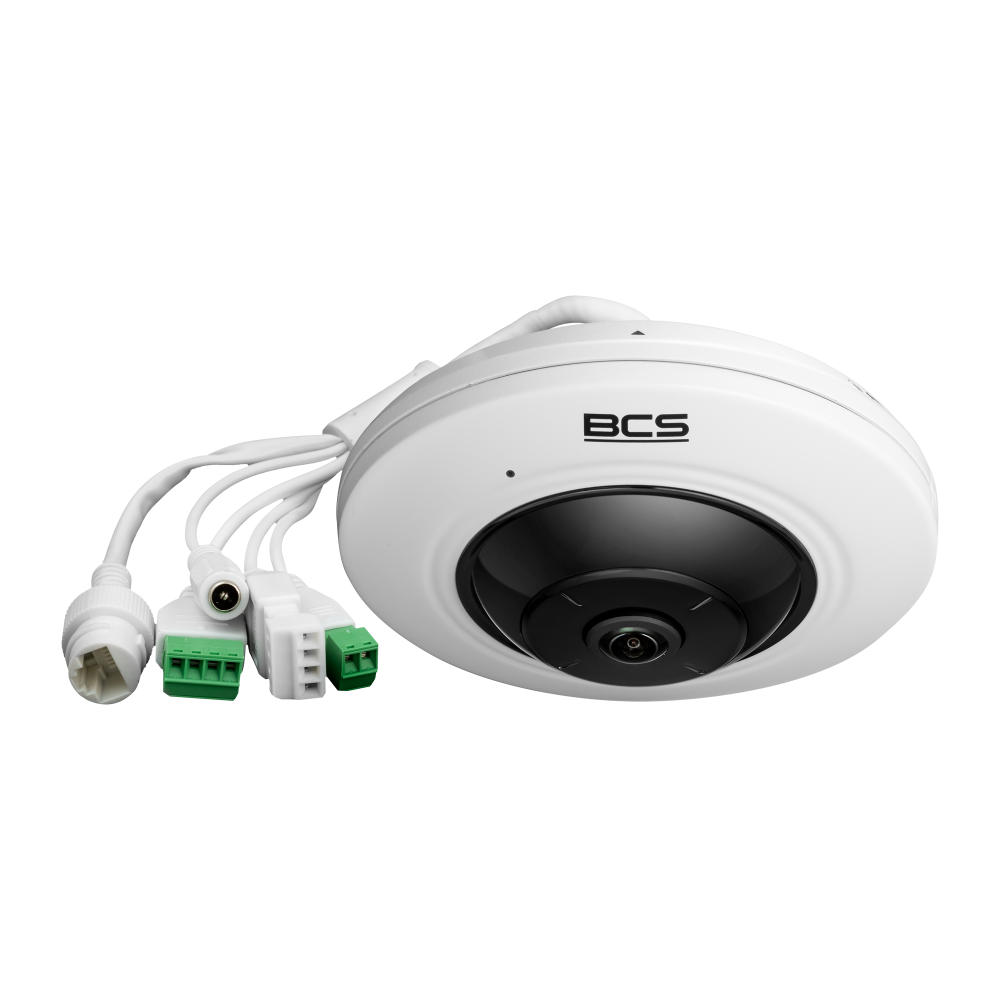

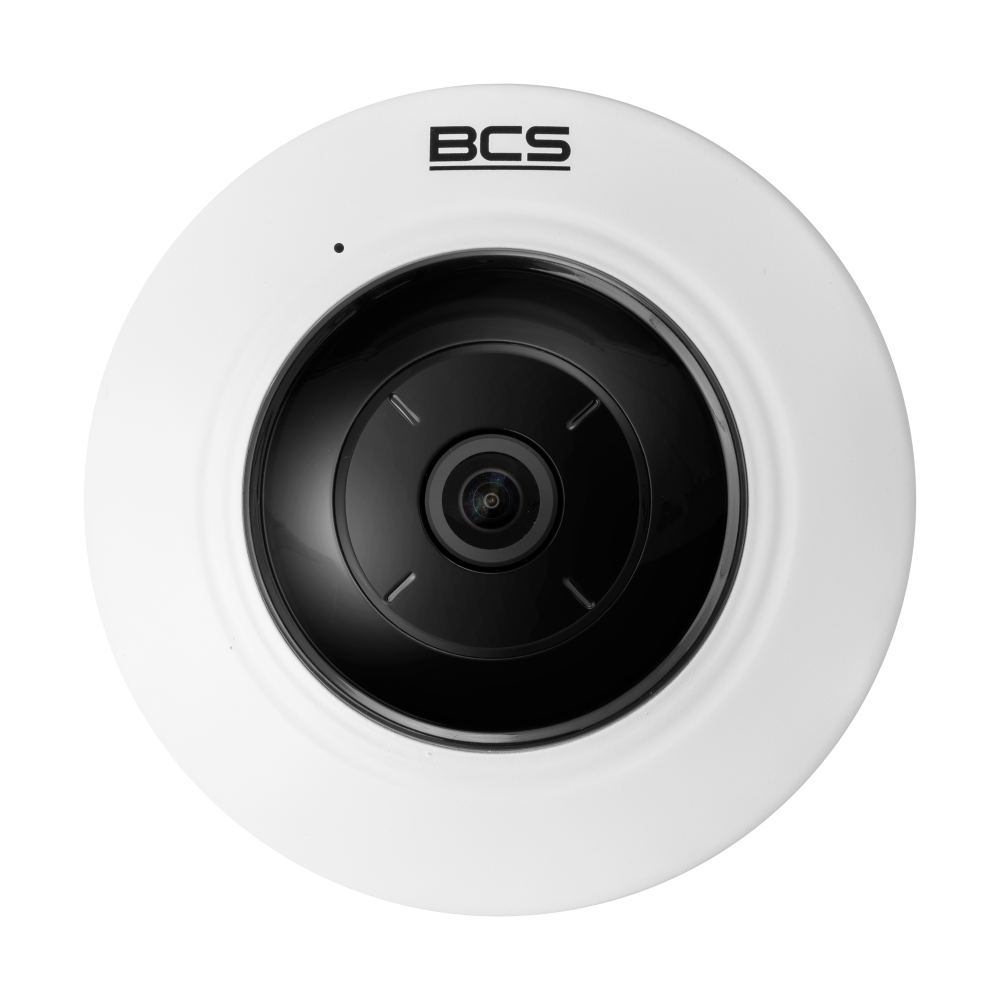

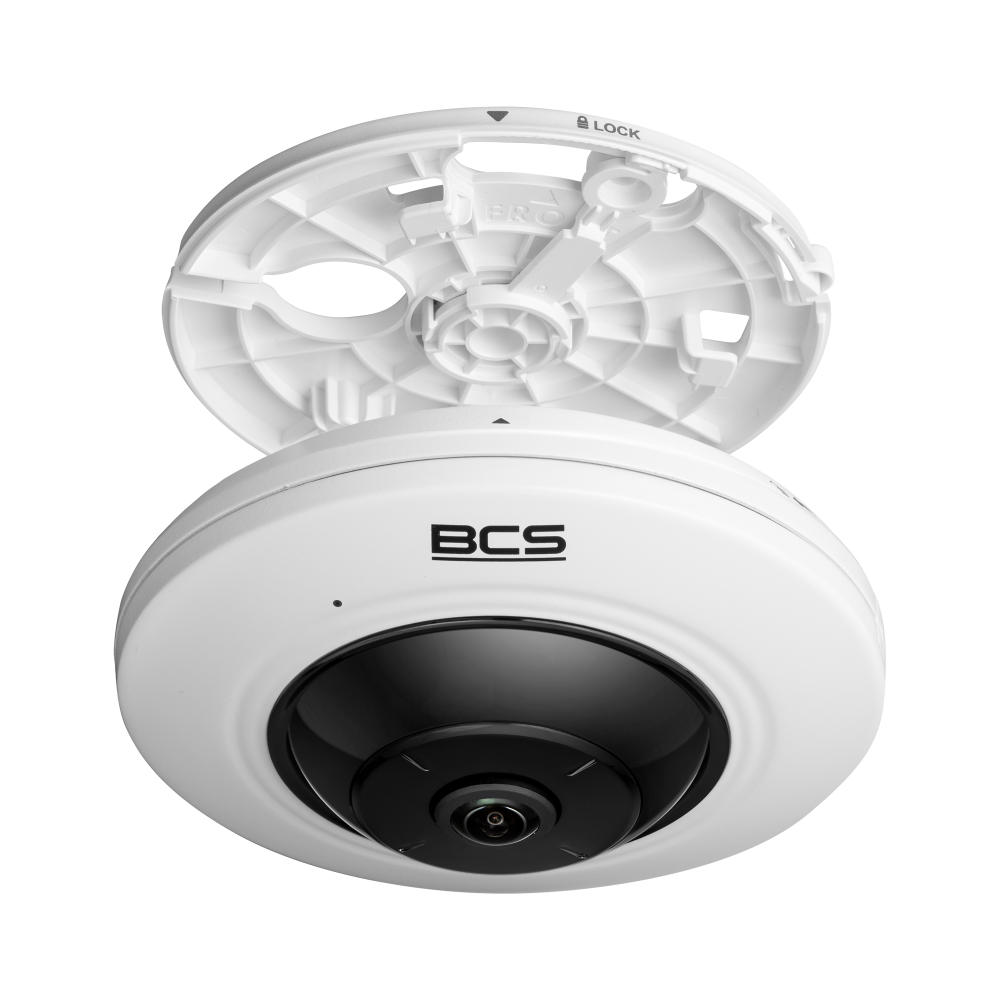

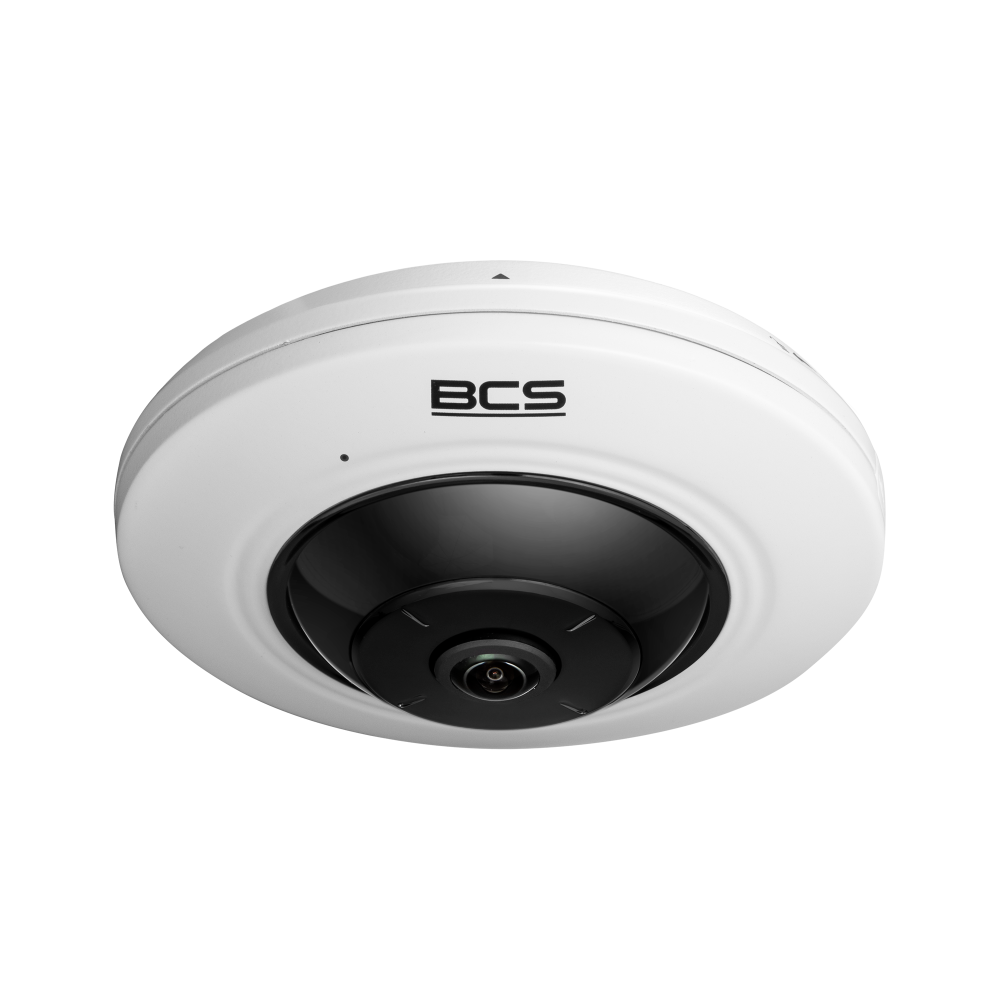

| Product | BCS-V-FIP25FWR1-AI1 |
| Camera type | Fisheye |
| Sensor | 1/2.7'' CMOS |
| Lens | fixed |
| Iris | fixed |
| White balance | (AWB) Auto / manual |
| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| Gain control | (AGC) Auto / manual |
| Flag | OUTLET |
| Resolution | 5 Mpx |
| Scanning system | Progressive Scan |
| Pixels | 2560(H)×1920(V) |
| Focal length | 1.05 mm |
| Aperture | F 2.25 |
| Focus | fixed |
| Angle of view | H: 180° V: 180° D: 180° |
| DORI | Detect 21m / Observe 8m / Recognize 4m / Identify 2m |
| Min illumination | 0.017Lux(F2.25, AGC) 0Lux(B/W,IR) |
| WDR | 120dB |
| Backlight compensation | BLC / WDR(120dB) |
| Shutter | Auto / manual 1/3~1/100000s |
| Noise reduction | 3D DNR |
| Image rotate | Mirror |
| Stream support | 2 |
| Resolutions | 5M(2560×1920) / 3M(2048×1536) / (1280×960) / (640×480) |
| Main stream | 2560×1920@30fps 2048×1536@30fps 1280×960@30fps |
| Second stream | 640×480@30fps |
| Bitrate | 32Kbps~16Mbps |
| Video compression | H.265 / H.265+ / H.264 / H.264+ / MJPEG |
| Day/night | ICR |
| Illuminator type | IR LED |
| IR range | 10m |
| Microphone | Yes |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / AAC |
| Alarm in | 1 |
| Alarm out | 1 |
| Storage | NAS (NFS, SMB/CIFS) |

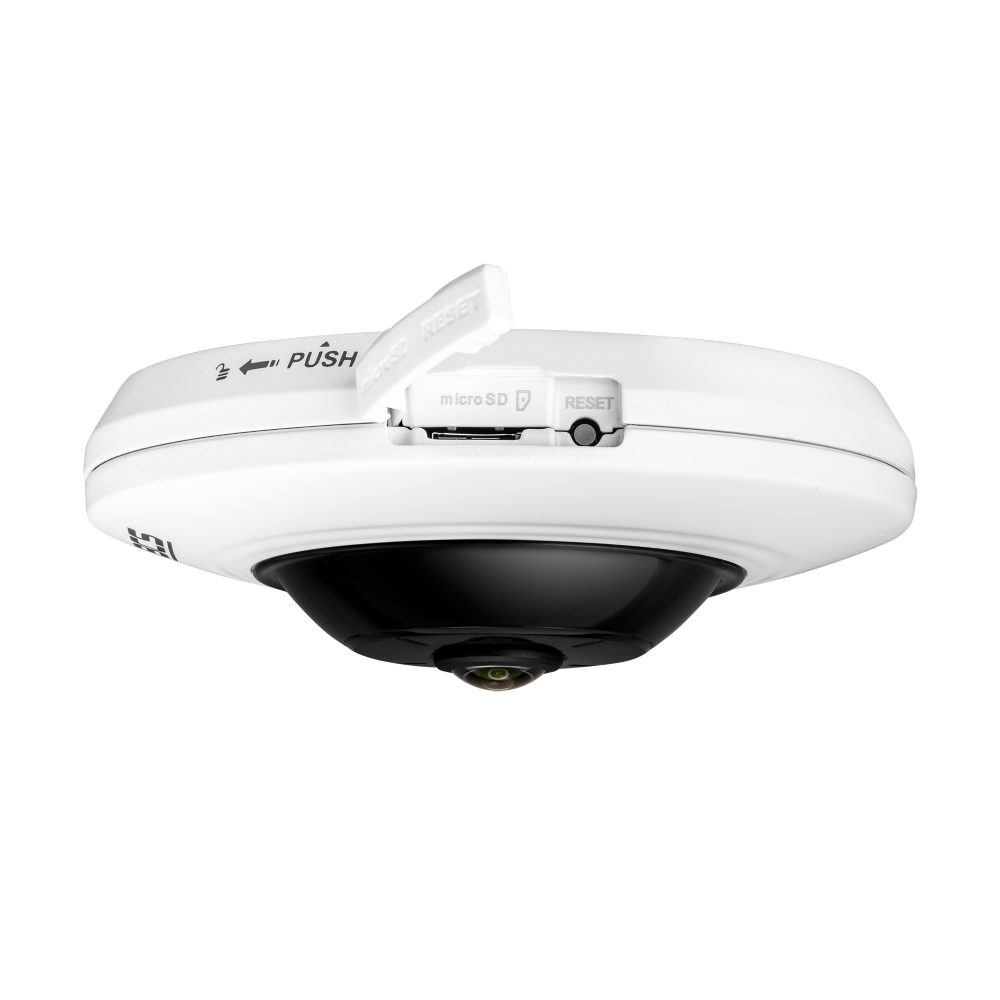

| Memory card slot | microSD 256GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | Yes |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
| Network security | HTTPS, SSL, TLS, IEEE802.1X, Digest authentication, IP adress filtering, Login Auth/Account Lockout |
| Power supply | PoE |
| Power supply type | 12V DC / PoE (802.3af) |
| Power consumption | max 7.5W |
| Housing color | White |
| Working environment | -10°C~+50°C max 95% RH |
| Dimensions | Ø119.9.5×41.2mm |
| Weight | 0.32 kg |
| Ai - Perimeter protection | Crossline, intrusion |
| &Ai - Object classification | Yes |
Warning: This product belongs to the BCS VIEW product line.
Use only components and devices from the same line to ensure compatibility.
BCS VIEW
BCS-V-FIP25FWR1-Ai1
704,79 € gross
Out of StockOut of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
