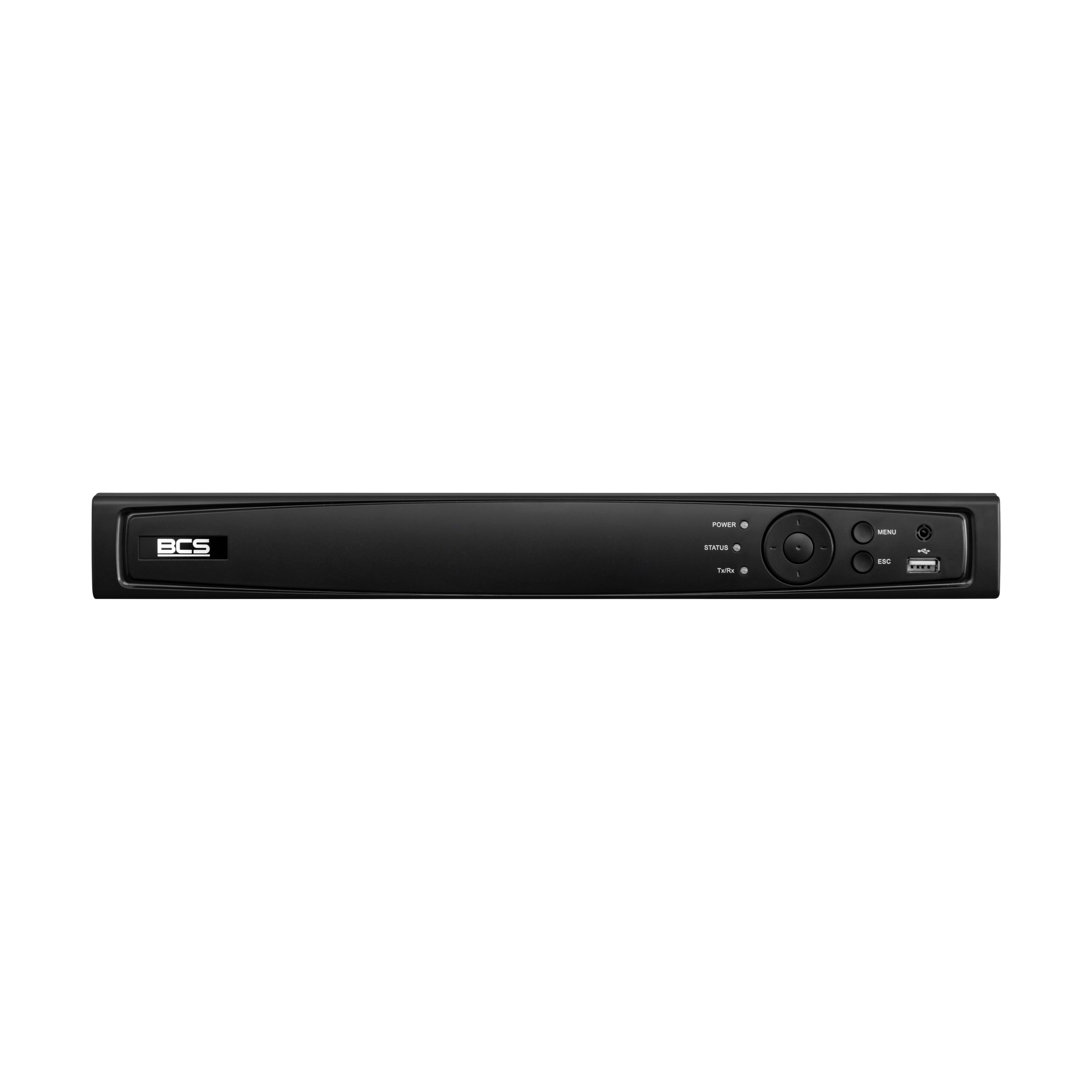

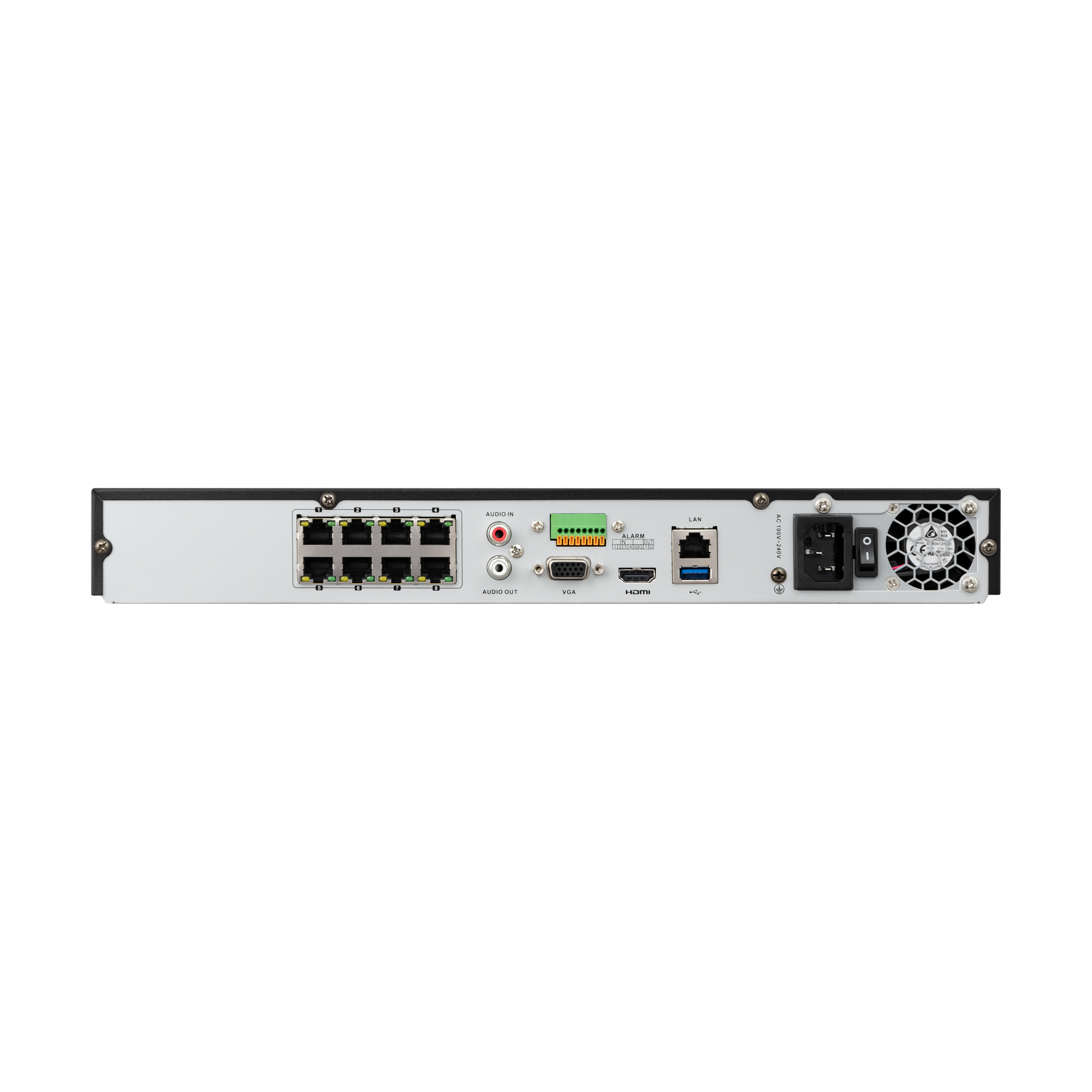

8-channel IP Recorder, BCS VIEW series. Adapted to work with cameras with a maximum resolution of 12Mpx. Allows for installation of two hard drives with a total capacity of 12 TB. The recorder is powered from 240V and is placed in a 1U casing. Interfaces: HDMI 4K, VGA 1080P, RJ45 (1000Mbps), audio 1/1, alarm 4/1, 1xUSB2.0, 1xUSB3.0.
Warning: This product belongs to the BCS VIEW product line.
Use only components and devices from the same line to ensure compatibility.
BCS VIEW
BCS-V-NVR0802-4K-8P
831,48 € gross
Out of Stock- 8-channel IP recorder
- Built-in 8-port 120W PoE switch
- Supports 2 hard drives
- Supports 12Mpx IP cameras
- HDMI 4K/VGA output
- Alarm 4/1, audio 1/1
Out of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
| Weight (without HDD) | 3 kg |
|---|---|
| Pentaplex function | Live view / recording / playback / archiving / remote access |
| HDD support | 2 |
| Incoming bandwidth | 80Mbps |
| Power consumption (without HDD) | max 15W |
| Video compression | H.265+ / H265 / H.264+ / H.264 / MPEG4(ONVIF H.264) |
| Product | BCS-V-NVR0802-4K-8P |
| System | IP |
| Channels | 8 |
| HDD capacity | 8 TB |
| Max recording resolution | 12 Mpx |
| Outgoing bandwidth | 256Mbps |
| Display efficiency | 2×12M(20fps) / 4×8M(25fps) / 8×4M(30fps) |
| Recording resolutions | 12M / 8M / 6M / 5M / 4M / 3M / 2M / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| VGA display resolutions | 1920×1080 / 1600×1200 / 1280×1024 / 1280×720 / 1024×768 |
| HDMI out | HDMI4K |
| VGA out | VGA |
| HDMI display resolutions | 3840×2160 / 1920×1080 / 1600×1200 / 1280×1024 / 1280×720 / 1024×768 |
| Display split | 1/4/6/8/9 |
| Synchronous playback | 1/4/8 |
| Archiving | Possibility to download material to external media such as USB FLASH, USB HDD |
| User connections | 32 |
| Interfaces | 1×USB2.0, 1×USB3.0 |
| Audio in | 1 |
| Audio out | 1 |
| Alarm in | 4 |
| Alarm out | 1 |
| Support | Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Network | RJ-45 10/100/1000Mbps |
| Compatibility | ONVIF, support third party cameras |
| Protocols | TCP/IP, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS, P2P |
| Standard | IEEE 802.3 af/at |
| Switch PoE power | 120W |
| PoE channels | 8 |
| Power supply | 100~240V AC |
| Working environment | -10°C~+55°C max 90% RH |
| Casing | 1U |
| Dimensions (W×D×H) | 385×315×52mm |
