| Ai - Perimeter protection | Crossline, intrusion |
|---|---|
| Resolution | 4 Mpx |
| Scanning system | Progressive Scan |
| Focal length | 1.68 mm |
| Digital zoom | 16× |
| WDR | 120dB |
| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| Product | BCS-V-PIP14FWR1 |
| Camera type | Dome |
| Sensor | 1/2.7'' CMOS |
| Pixels | 2688(H)×1520(V) |
| Lens | fixed |
| Aperture | F 2.0 |
| Focus | fixed |
| Iris | fixed |
| Angle of view | H: 180° V: 101° D: 180° |
| Min illumination | 0.028Lux(F2.0, AGC) 0.0028Lux(F2.0, AGC) 0Lux(B/W,IR) |
| White balance | (AWB) Auto / manual |
| Backlight compensation | BLC / HLC / WDR(120dB) |
| Shutter | Auto / manual 1/3~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 3D DNR |
| Stream support | 2 |
| Resolutions | 4M(2688×1520) / 3M(2304×1296) / 2M(1920×1080) / 720P(1280×720) / VGA(640×480) / 360P(640×360) / QVGA(320×240) |
| Main stream | 2688×1520@25fps 2304×1296@30fps 1920×1080@30fps 1280×720@30fps |
| Second stream | 640×480@30fps 640×360@30fps 320×240@30fps |
| Bitrate | 32Kbps~16Mbps |
| Video compression | H.265 / H.265+ / H.264 / H.264+ / MJPEG |
| Day/night | ICR |
| Illuminator type | IR LED |
| IR range | 10m |

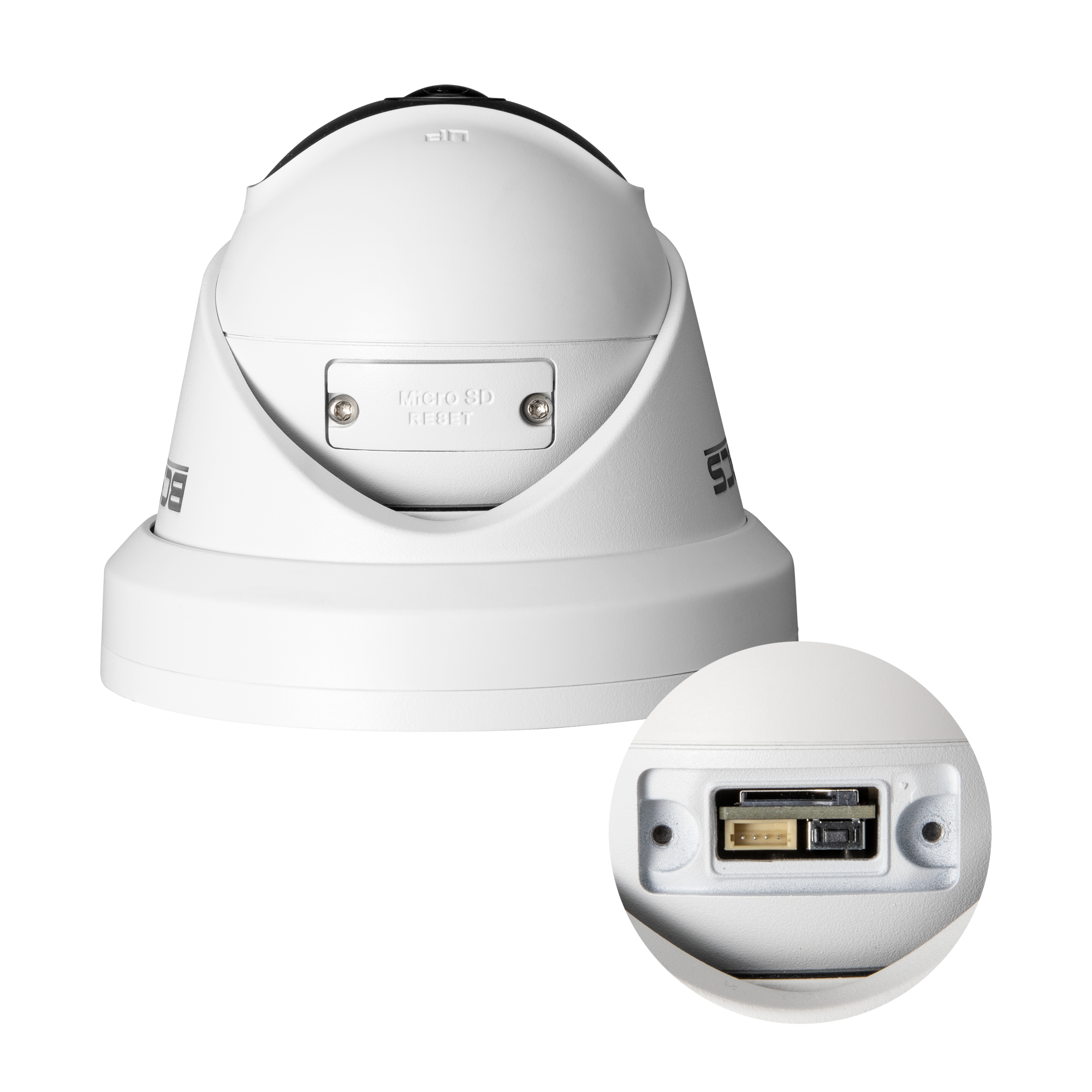

| Memory card slot | microSD 256GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | Yes |
| Privacy masking | 4 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/G) |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS |
| Network security | HTTPS, SSL, TLS, IEEE802.1X, Digest authentication, IP adress filtering |
| Power supply | PoE |
| Power supply type | 12V DC / PoE (802.3af) |
| Power consumption | max 6.8W |
| Housing color | White |
| Working environment | -10°C~+40°C max 95% RH |
| Dimensions | Ø127.3×104.1mm |
| Weight | 0.52 kg |
Warning: This product belongs to the BCS VIEW product line.
Use only components and devices from the same line to ensure compatibility.
BCS VIEW

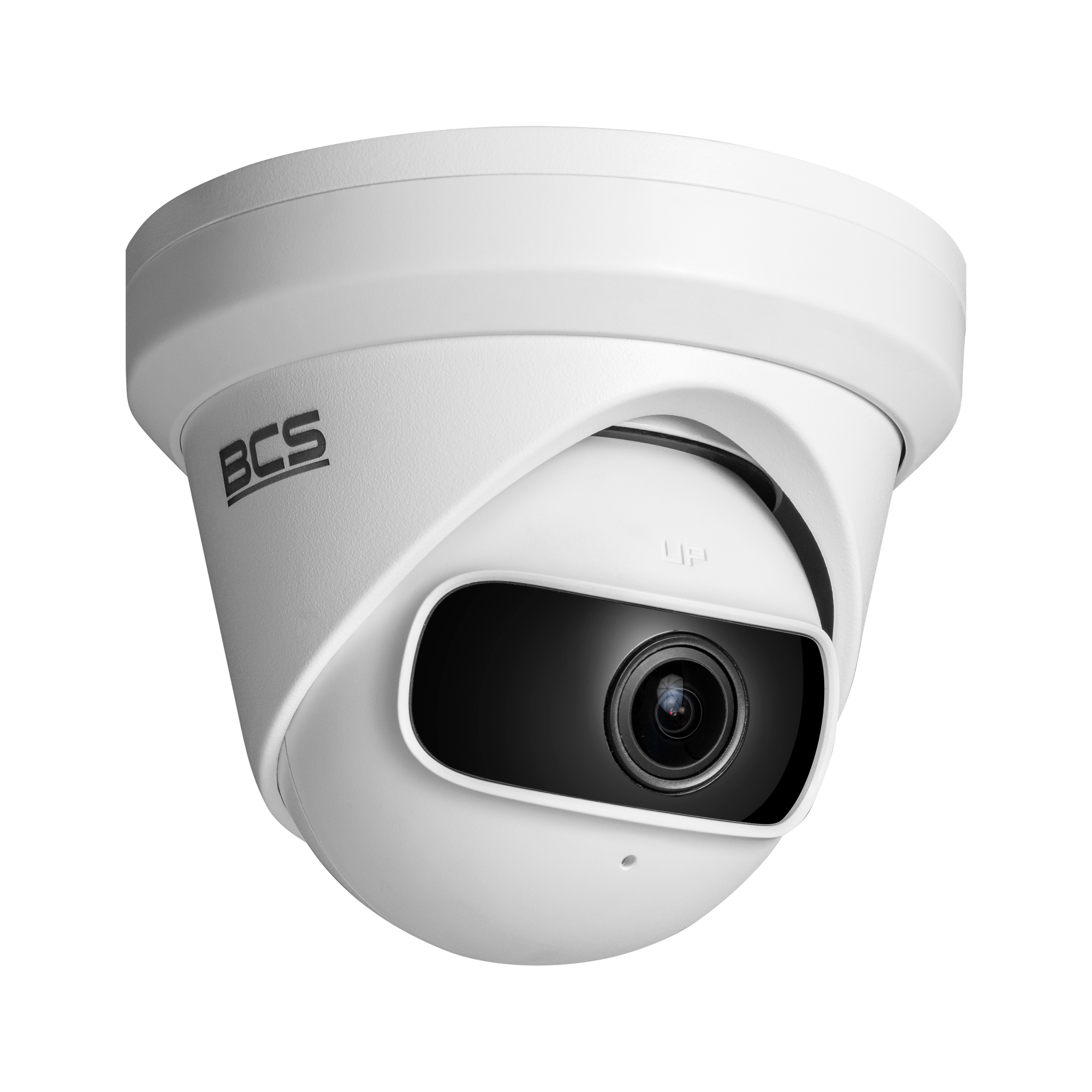

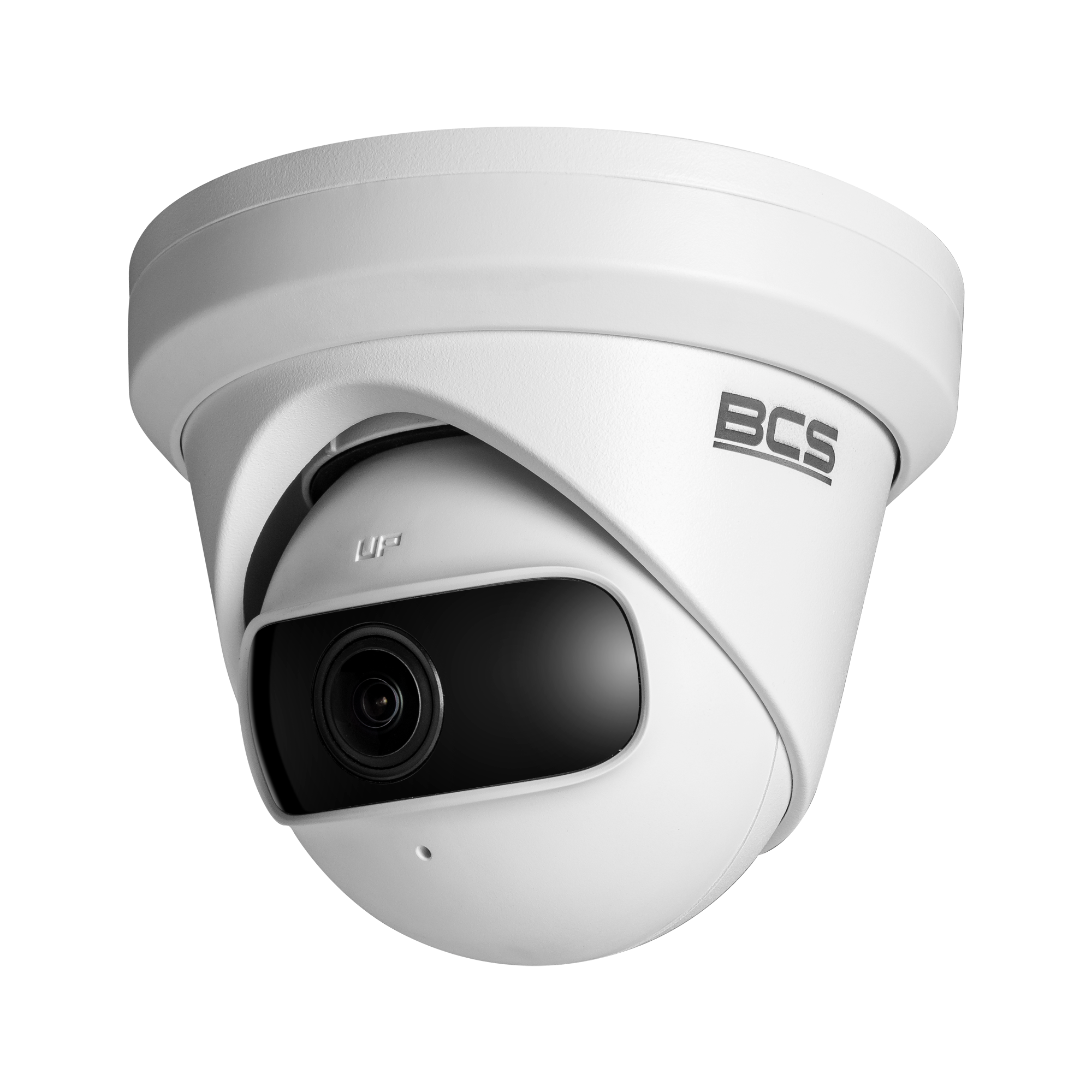

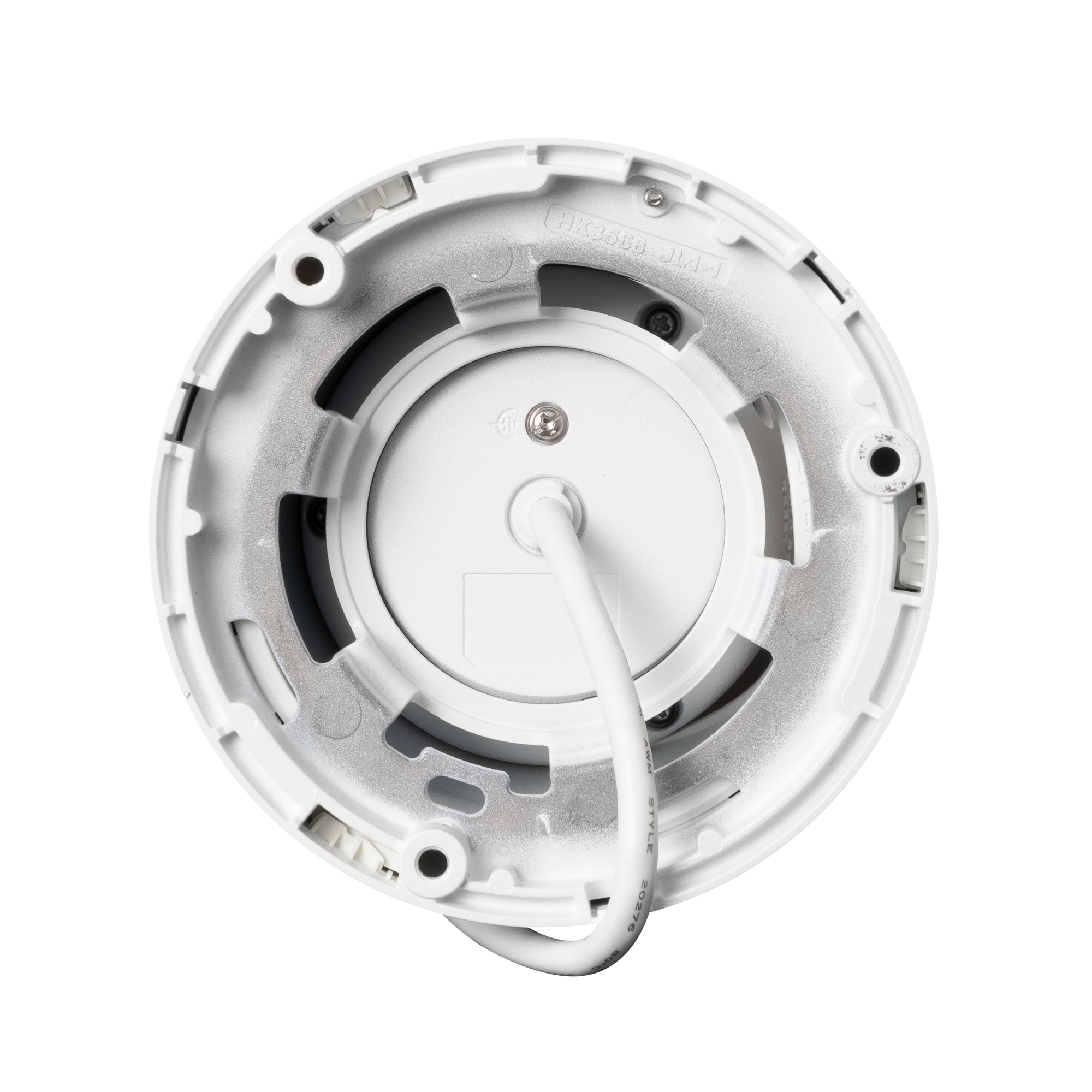

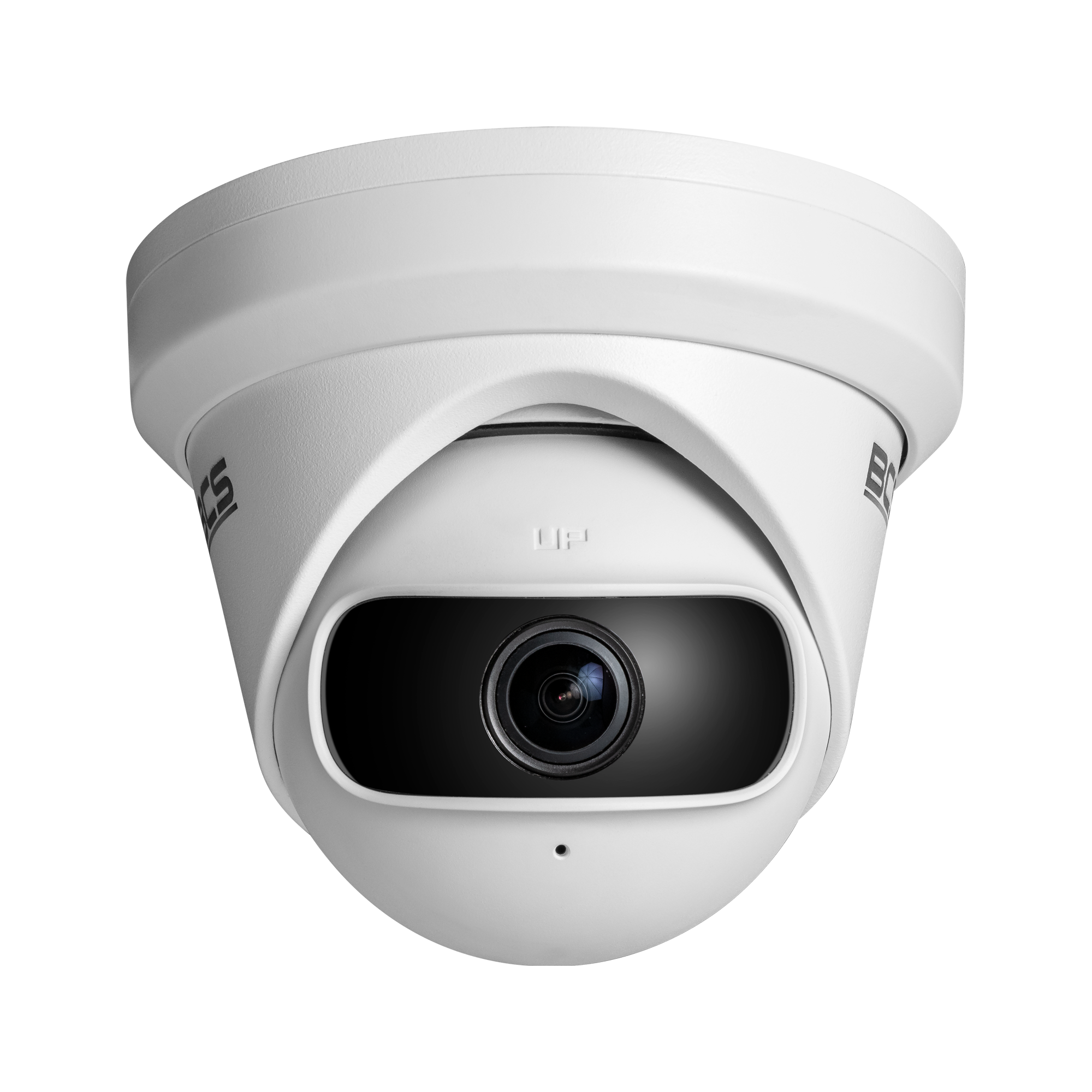

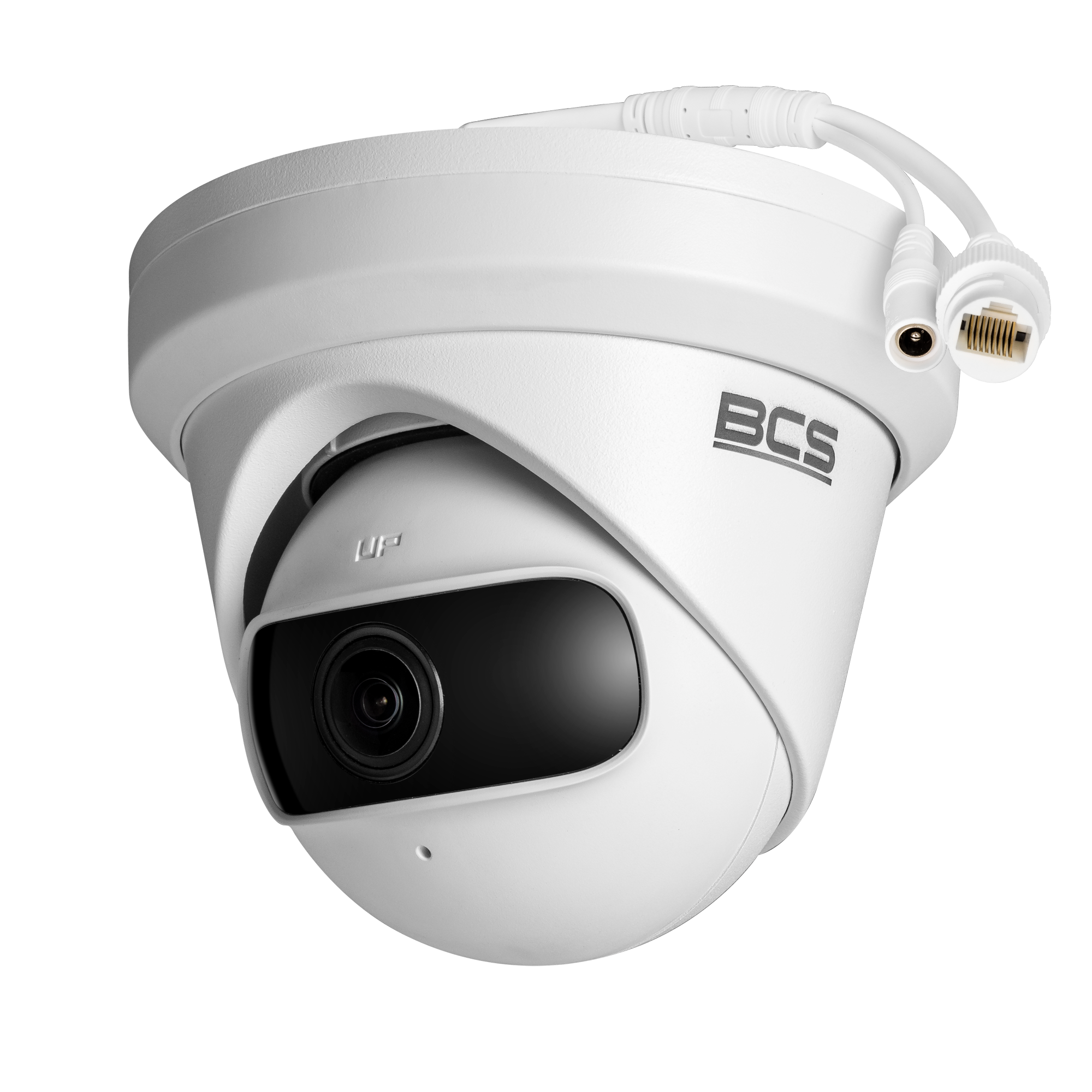

BCS-V-PIP14FWR1
327,18 € gross
Out of Stock- 4Mpx dome camera
- 180° panoramic
- 1/2.7'' PS CMOS sensor
- 1.68mm fixed lens
- IR 10m
- WDR 120dB
Out of stock
