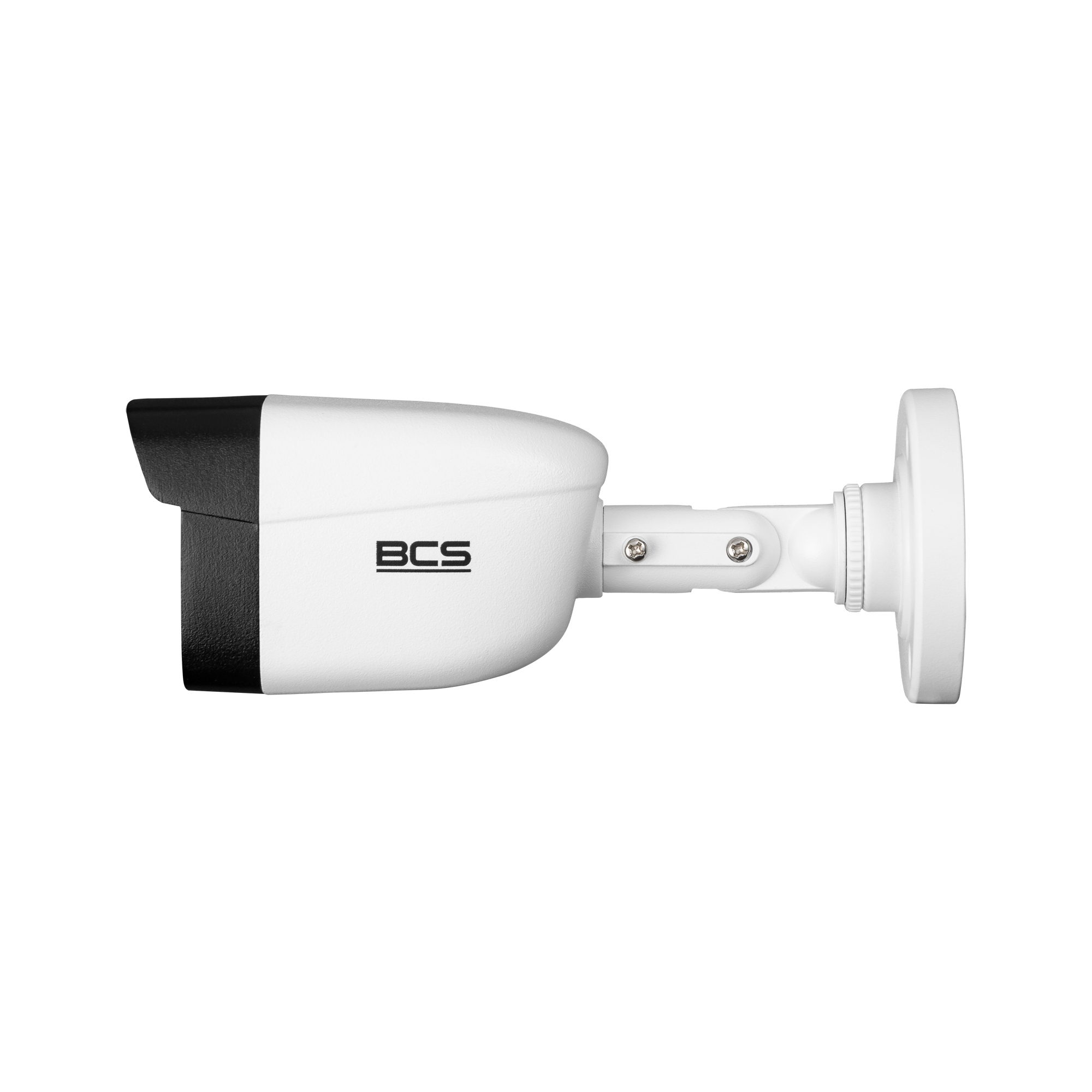

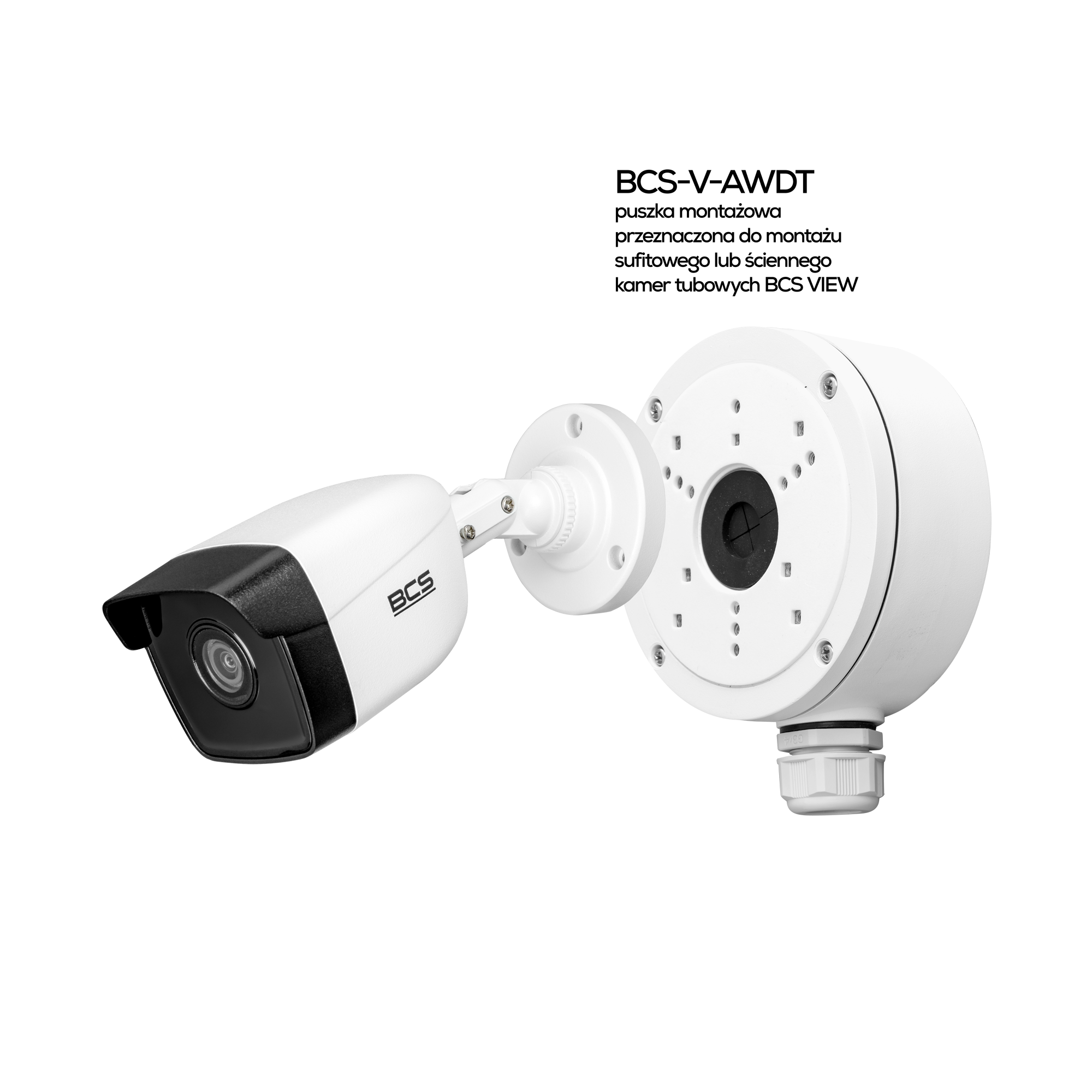

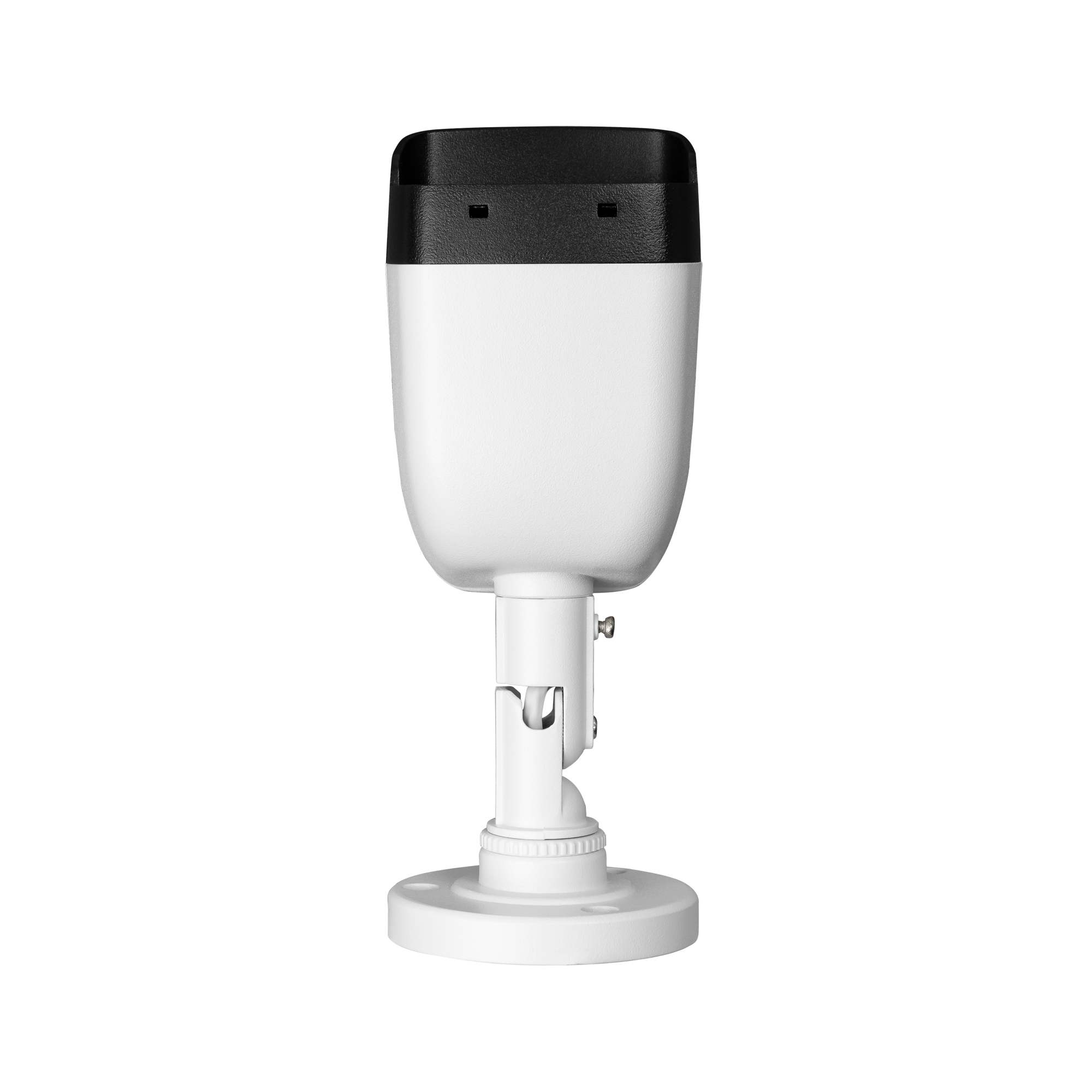

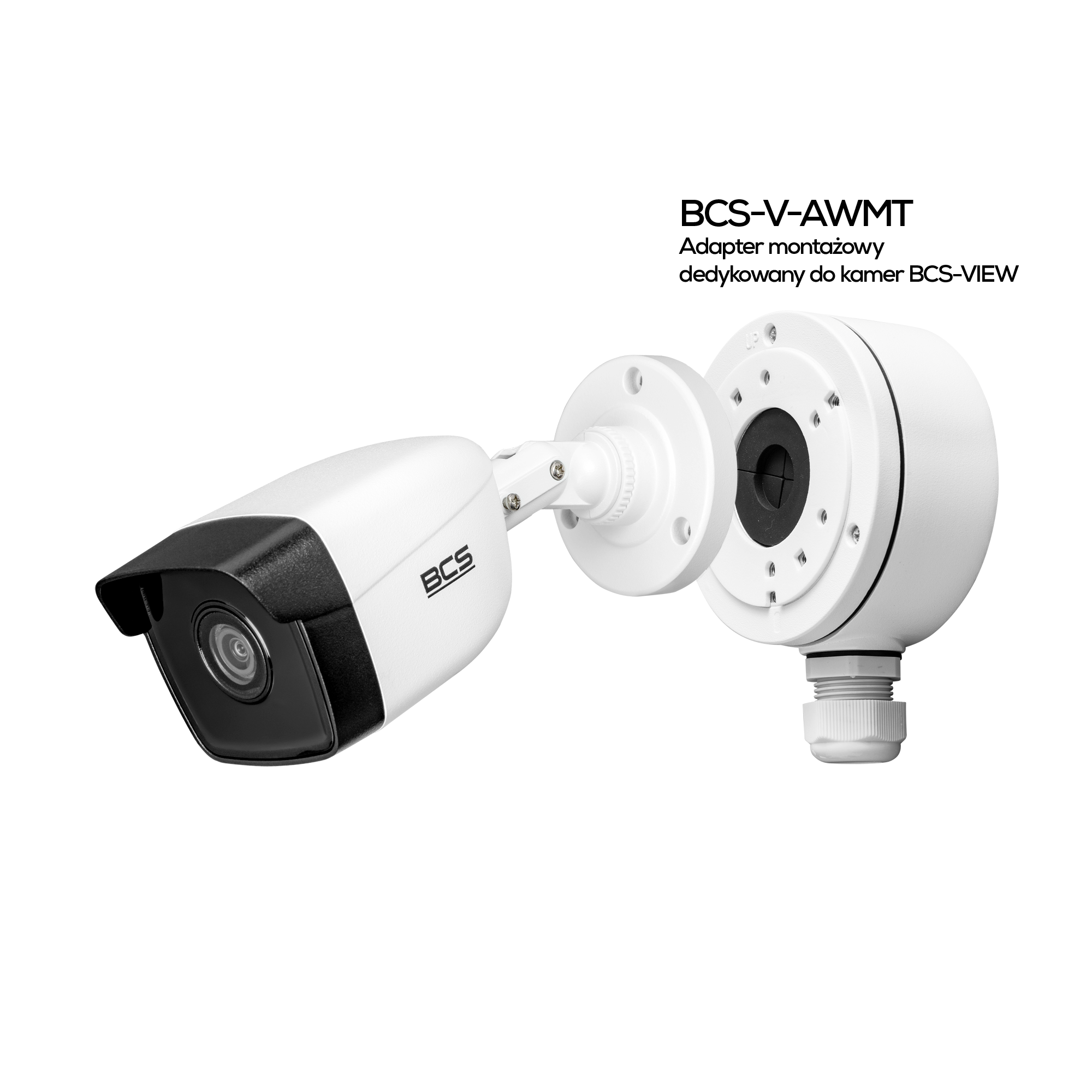

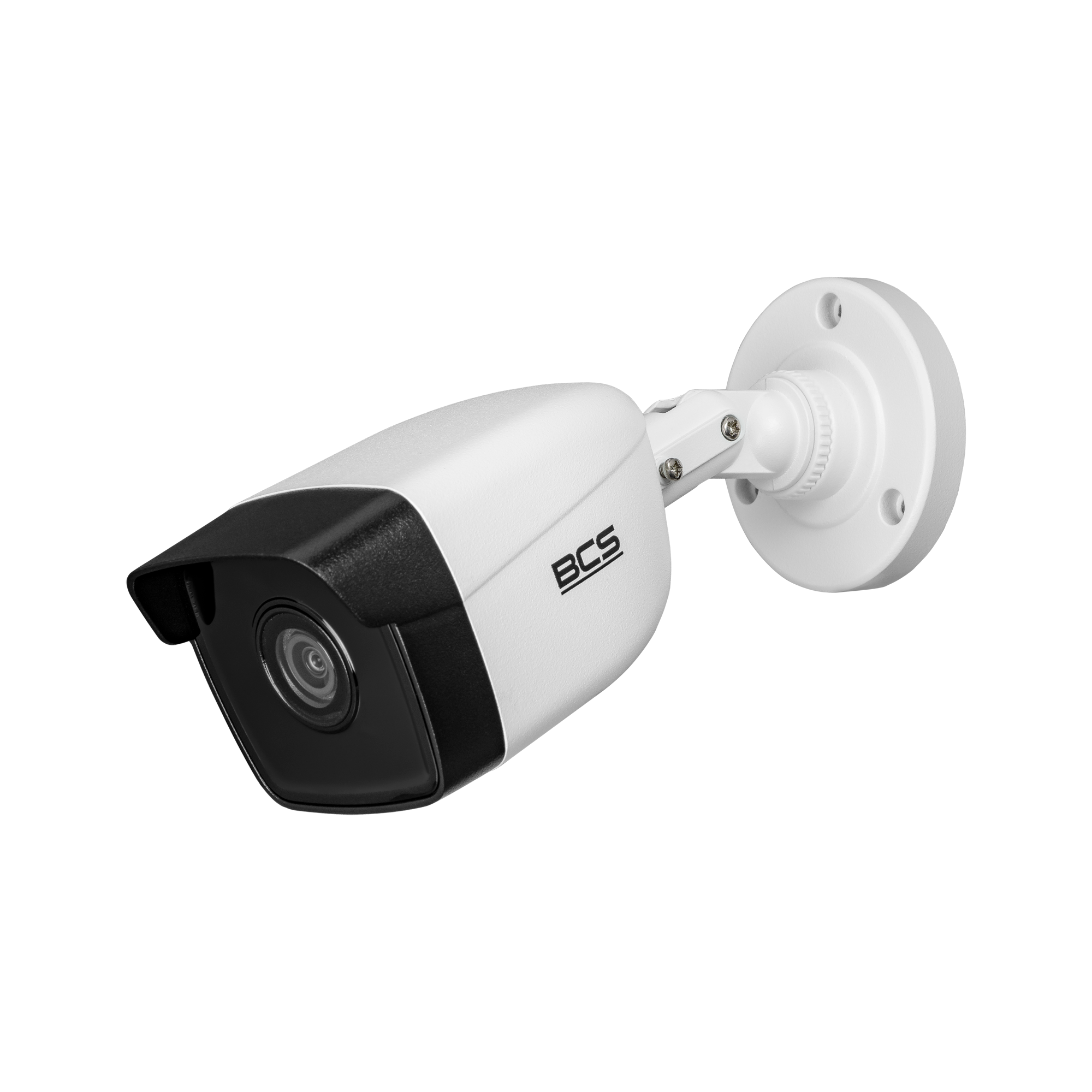

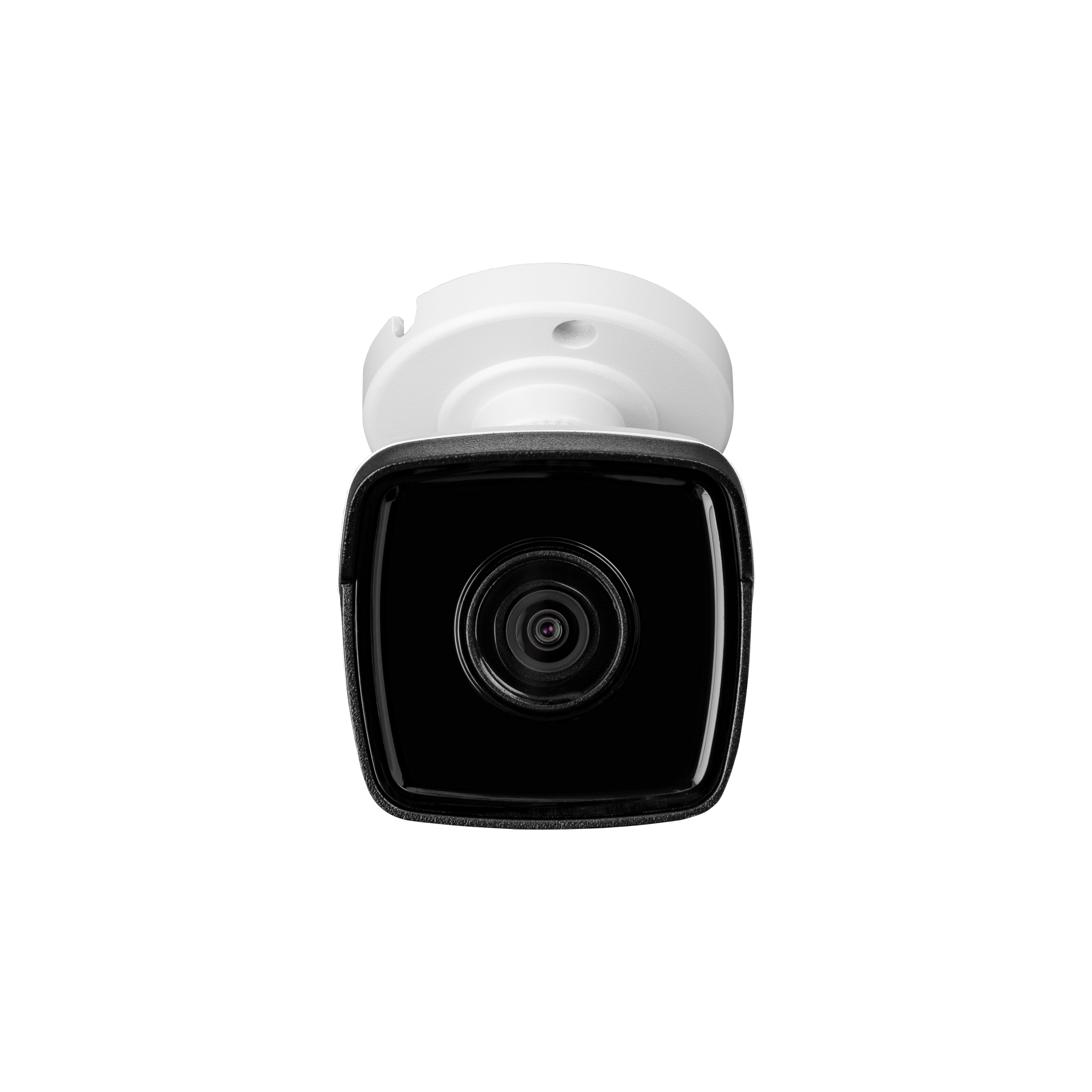

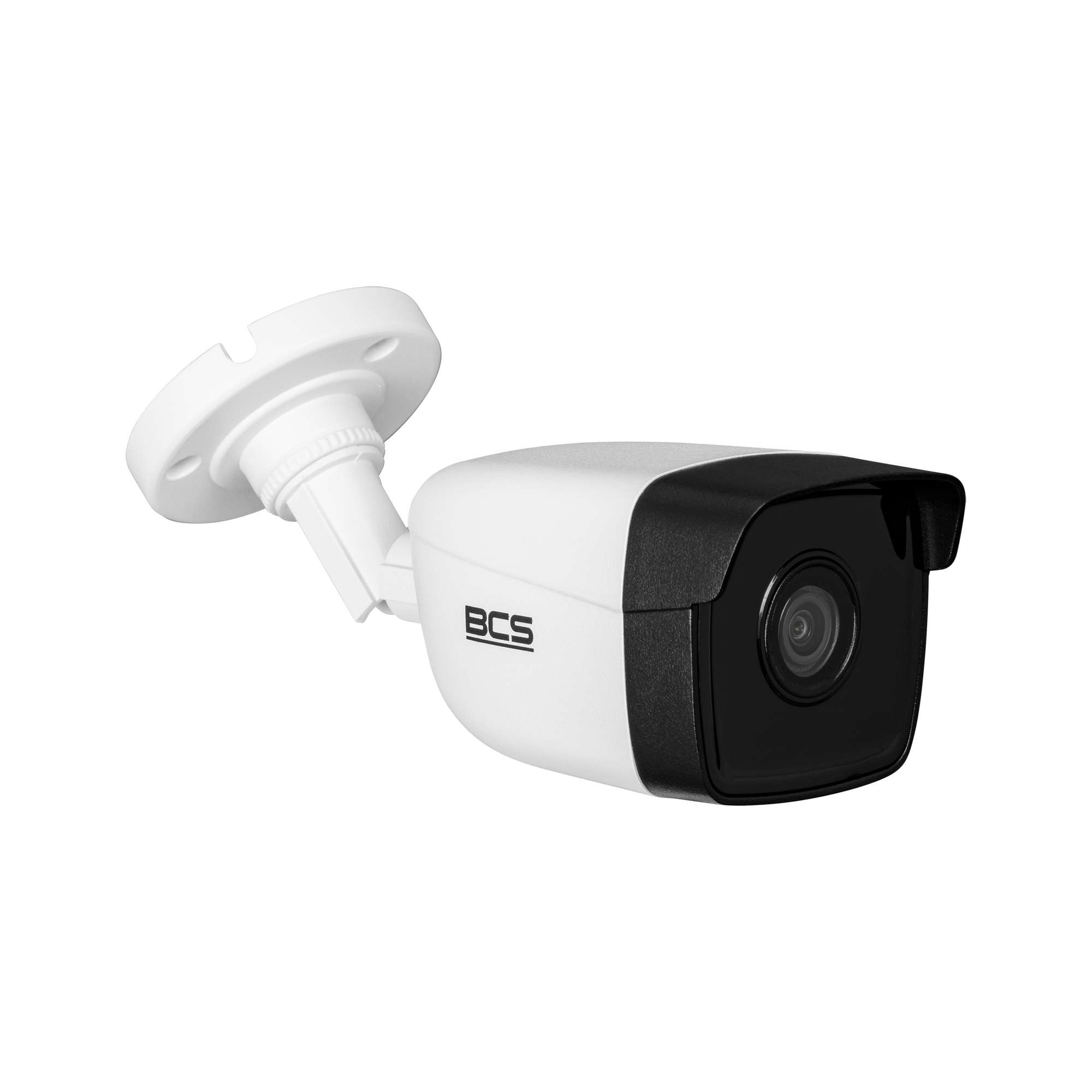

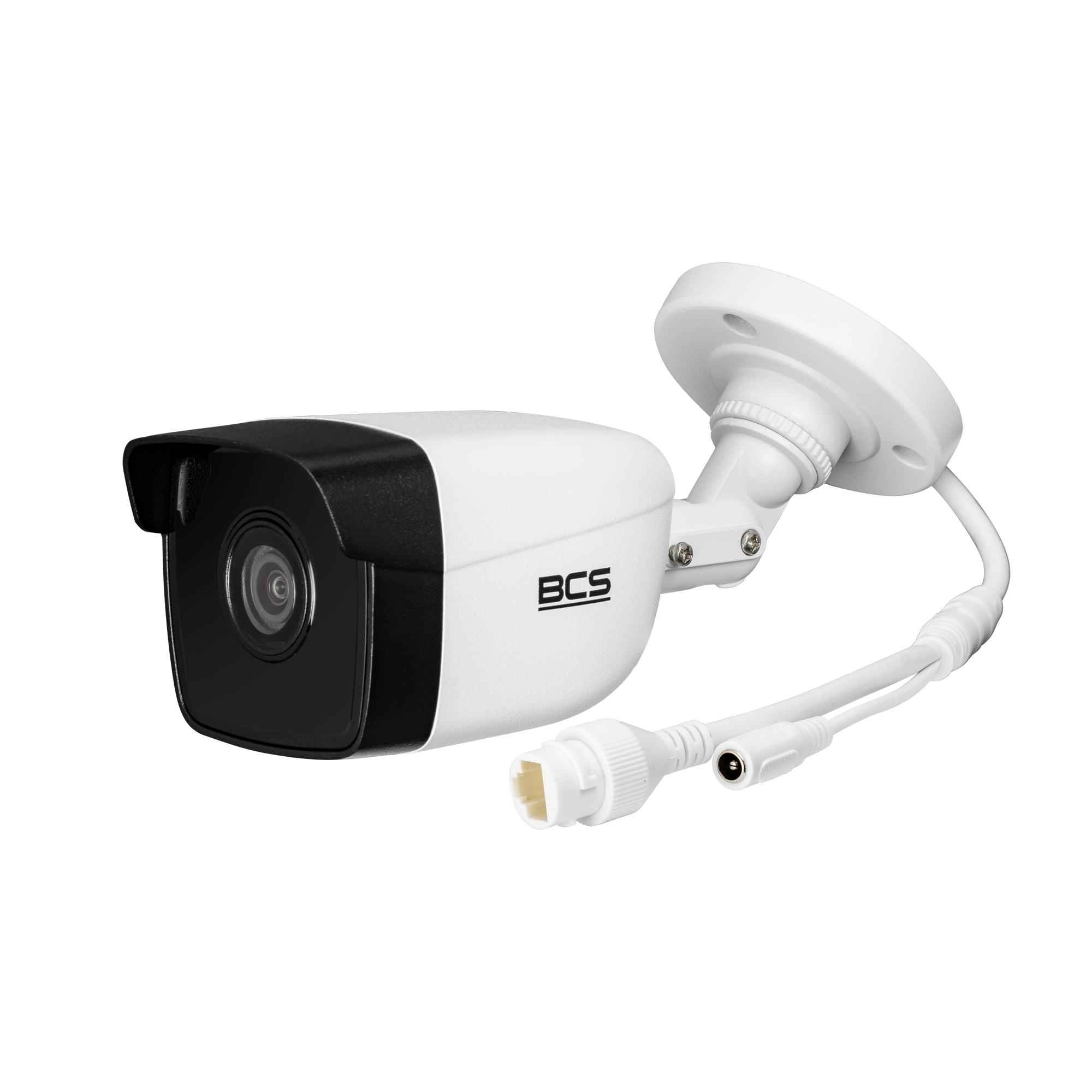

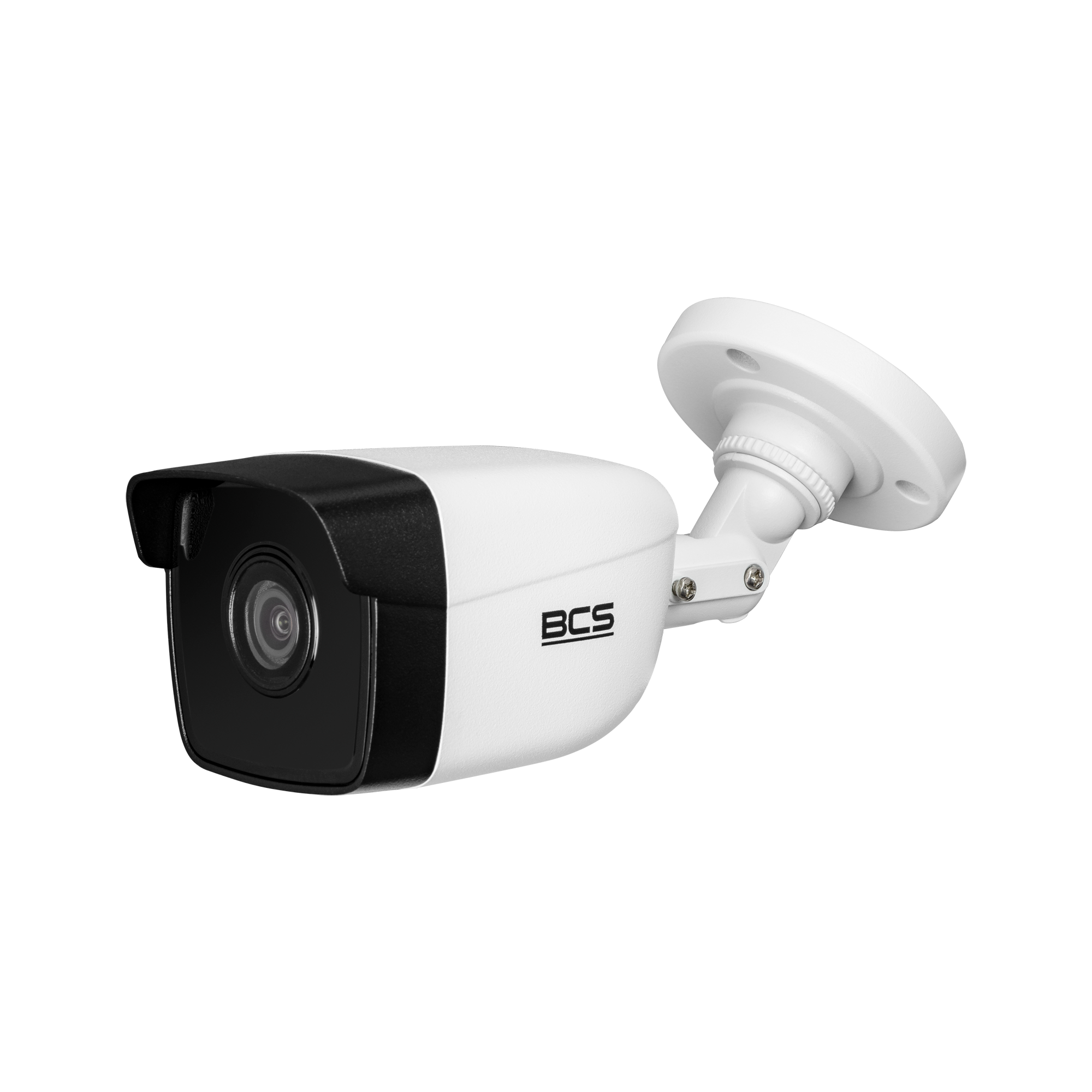

4Mpx tube IP camera with 1/3″ PS CMOS sensor with 2.8 mm lens.
Warning: This product belongs to the BCS VIEW product line.
Use only components and devices from the same line to ensure compatibility.
BCS VIEW
BCS-V-TIP14FWR3
185,73 € gross
Out of Stock- 4Mpx IP bullet camera
- 1/3" PS CMOS sensor
- 2.8mm fixed lens
- WDR 120dB
- IR 30m
- IP67 housing
Out of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
| Product | BCS-V-TIP14FWR3 |
|---|---|
| Camera type | Bullet |
| Resolution | 4 Mpx |
| Sensor | 1/3'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 2560(H)×1440(V) |
| Lens | fixed |
| Focal length | 2.8 mm |
| Aperture | F 2.0 |
| Focus | fixed |
| Iris | fixed |
| Digital zoom | 16× |
| Angle of view | H: 98° V: 53.1° D: 114.7° |
| Min illumination | 0.01Lux(F2.0, AGC) 0Lux(B/W,IR) |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| Backlight compensation | BLC / WDR(120dB) |
| Shutter | Auto / manual 1/3~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 3D DNR |
| Image rotate | Mirror |
| Stream support | 2 |
| Resolutions | 4M(2560×1440) / 3M(2304×1296) / 2M(1920×1080) / 720P(1280×720) / VGA(640×480) / 360P(640×360) |
| Main stream | 2560×1440@20fps 2304×1296@30fps 1920×1080@30fps 1280×720@30fps |
| Second stream | 1280×720@30fps 640×480@30fps 640×360@30fps |
| Bitrate | 32Kbps~8Mbps |
| Video compression | H.265 / H.265+ / H.264 / H.264+ / MJPEG |
| Day/night | ICR |
| Illuminator type | IR LED |
| IR range | 30m |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | Yes |
| Privacy masking | 4 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
| Network security | HTTPS, SSL, TLS, IEEE802.1X |
| Power supply | PoE |
| Power supply type | 12V DC / PoE (802.3af) |
| Power consumption | max 6.5W |
| Housing color | White |
| IP class | IP67 |
| Working environment | -30°C~+60°C max 95% RH |
| Dimensions | 177.6×66.2×67.8mm |
| Weight | 0.27 kg |
