| Ai - Built-in intelligent functions | Motion detection with human/vehicle recognition |
|---|---|
| Product | BCS-V-TIP44VSR5L5(2) |
| Camera type | Bullet |
| Resolution | 4 Mpx |
| Sensor | 1/3'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 2560(H)×1440(V) |
| Lens | motozoom |
| Focal length | 2.8~12 mm |
| Aperture | F 1.6 |
| Focus | Auto / manual |
| Iris | fixed |
| Optical zoom | 4× |
| Angle of view | H: 96.7°~29.7° V: 51.7°~16.7° D: 114.3°~34° |
| DORI | Detect 64~198m / Observe 25~79m / Recognize 13~40m / Identify 6~20m |
| Min illumination | 0.005Lux(F1.6, AGC) 0Lux(B/W,IR) |
| S/N ratio | 52dB |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| Backlight compensation | BLC / HLC / WDR(120dB) |
| Shutter | Auto / manual 1/3~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 3D DNR |
| RoI | Region of Interest |
| Image rotate | Mirror |
| Stream support | 2 |
| Resolutions | 4M(2560×1440) / 2M(1920×1080) / 720P(1280×720) / VGA(640×480) / 360P(640×360) |
| Main stream | 2560×1440@20fps 1920×1080@25fps 1280×720@25fps |
| Second stream | 1280×720@25fps 640×480@25fps 640×360@25fps |
| Bitrate | 32Kbps~16Mbps |
| Video compression | H.265 / H.265+ / H.264 / H.264+ / MJPEG |
| Day/night | ICR |
| Illuminator type | IR LED + WhiteLight |
| IR range | 50m |
| WhiteLight range | 50m |
| Microphone | Yes |
| Audio compression | G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / AAC |
| Storage | FTP |
| Memory card slot | microSD 512GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | Yes |
| Privacy masking | 4 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP |
| Power supply | PoE |
| Power supply type | 12V DC / PoE (802.3af) |
| Power consumption | max 12W |
| Housing color | White |
| IP class | IP67 |
| Working environment | -30°C~+60°C max 95% RH |
| Dimensions | Ø105×252mm |
| Weight | 0.75 kg |
Warning: This product belongs to the BCS VIEW product line.
Use only components and devices from the same line to ensure compatibility.
BCS VIEW

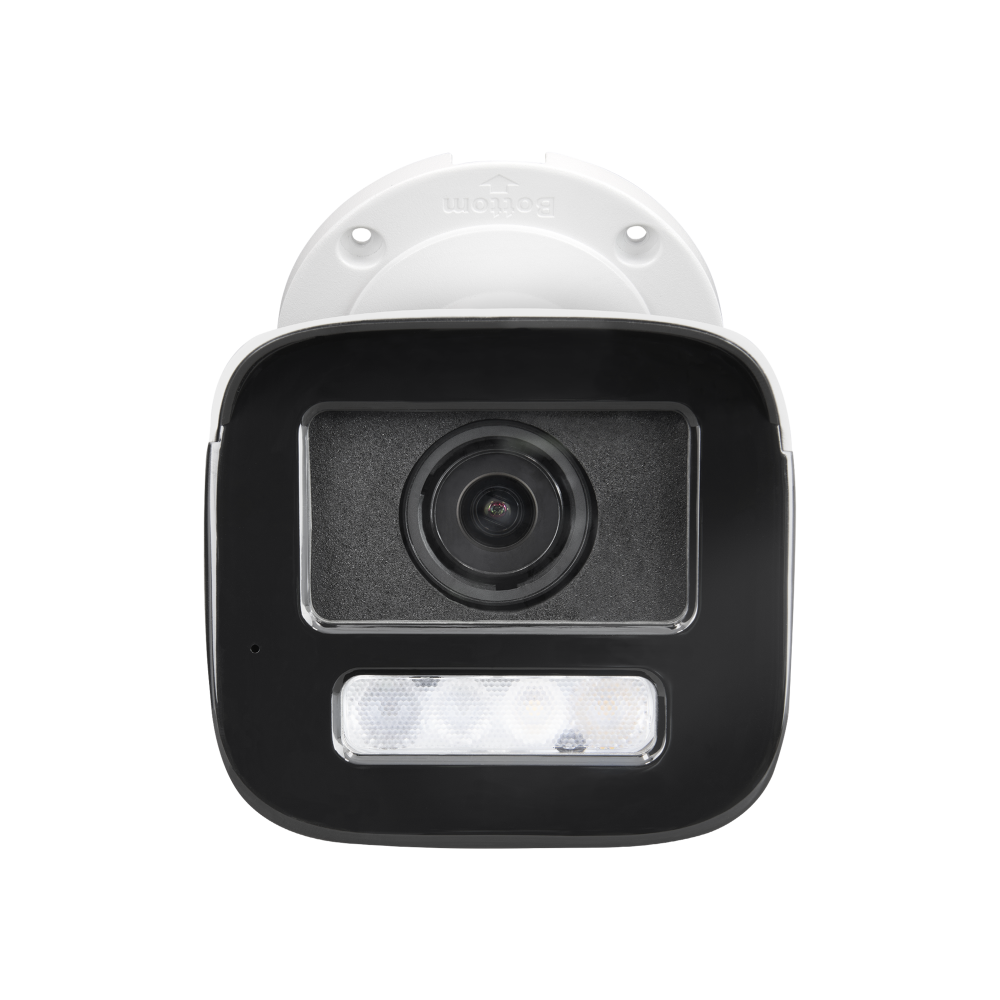

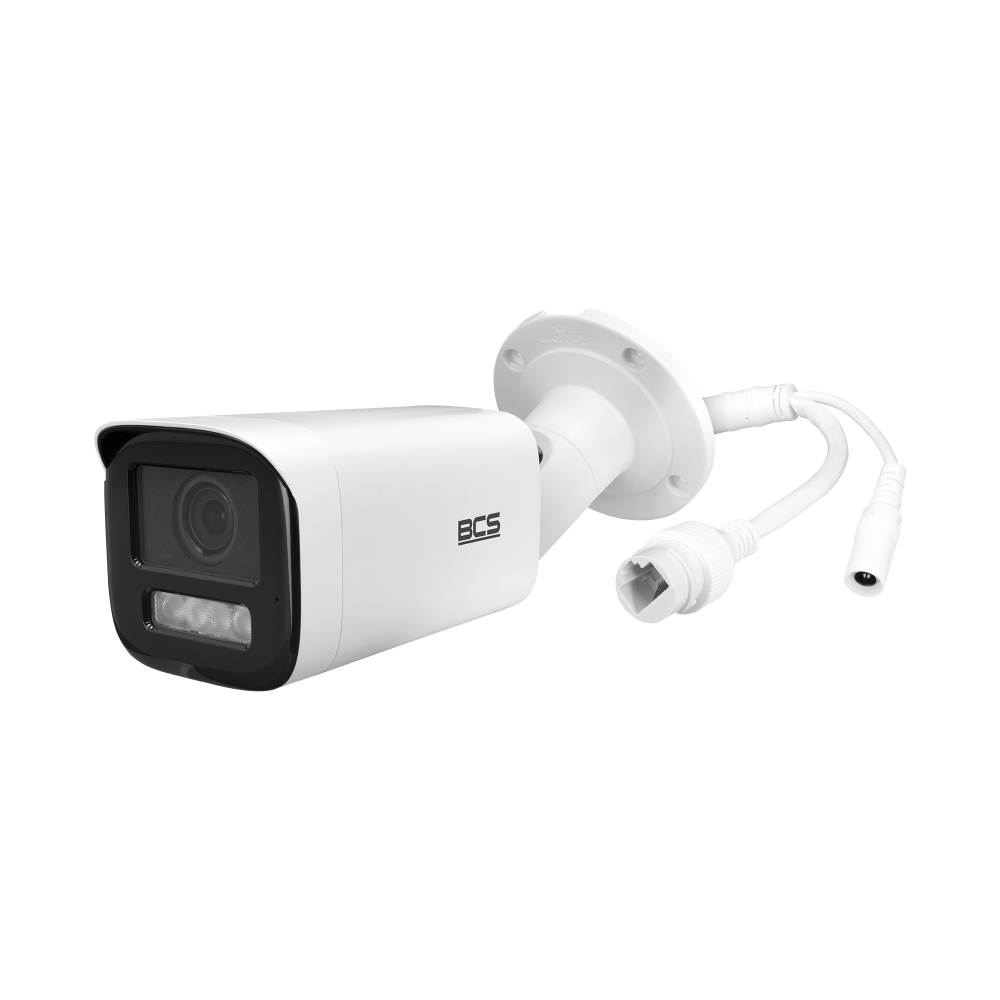

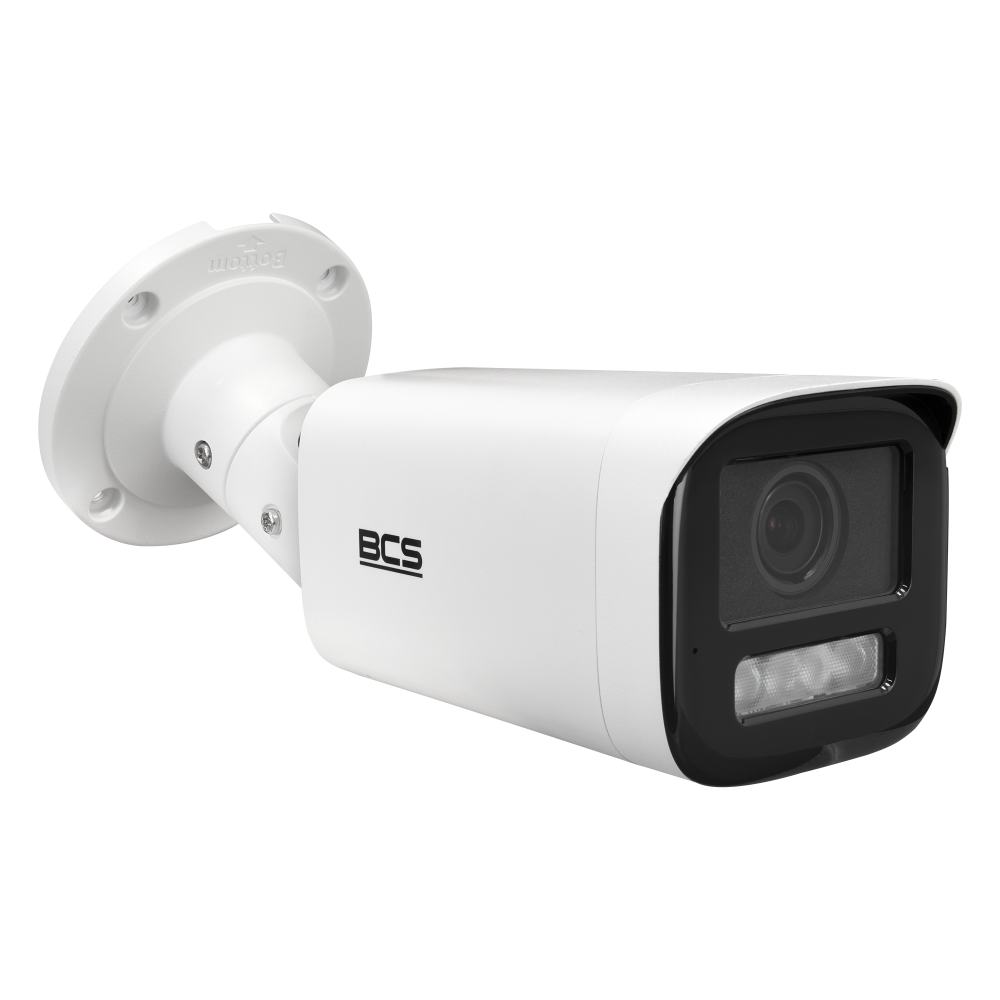

BCS-V-TIP44VSR5L5(2)
364,08 € gross
7 In Stock- 4Mpx IP bullet camera
- 1/3" PS CMOS sensor
- SkyLight technology
- 2.8–12 mm motorised zoom lens
- WDR 120dB
- Microphone
- IR 50m, WhiteLight 50m
- IP67-rated housing
7 in stock
