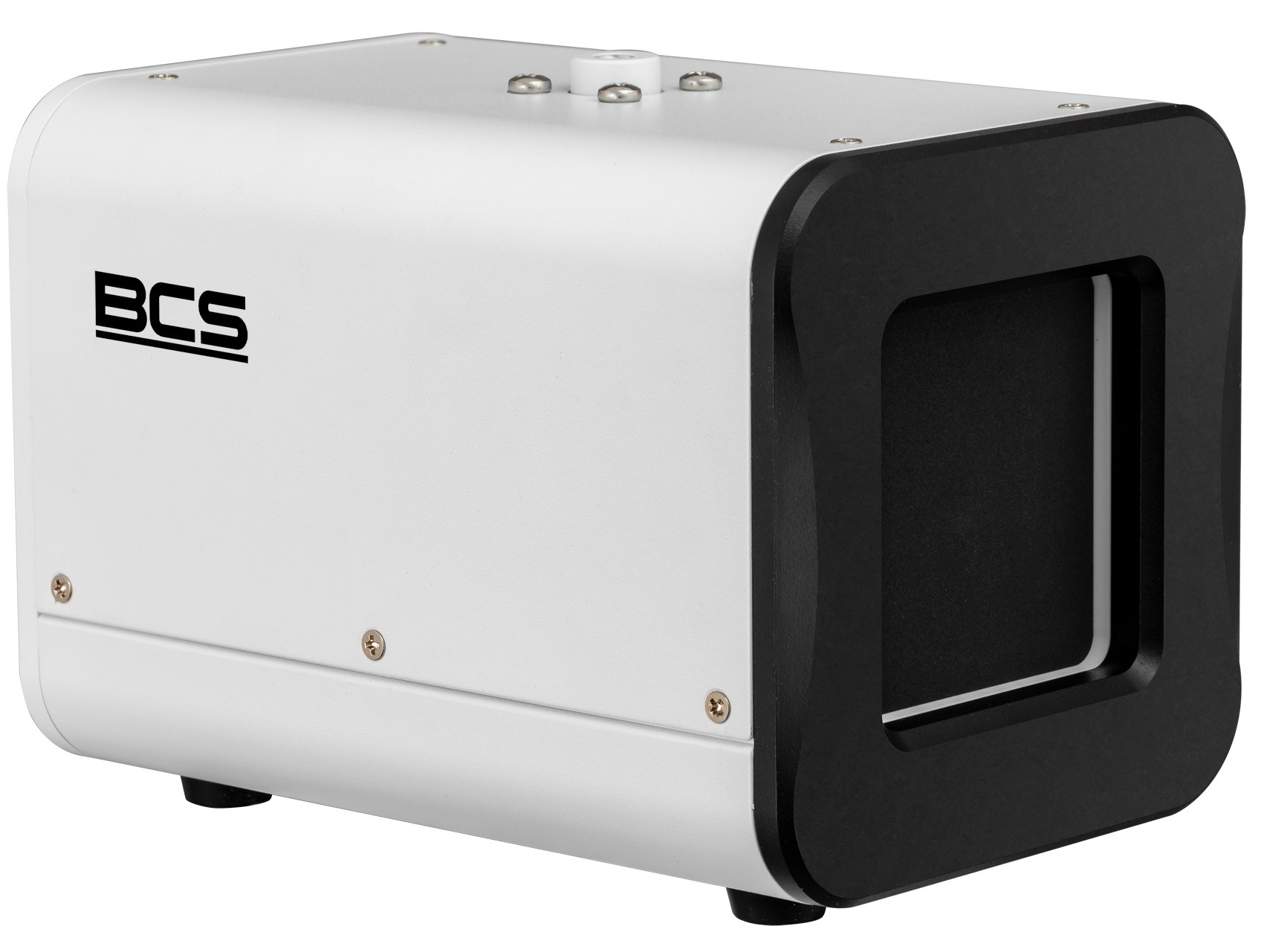

BlackBody – a module for calibrating BCS LINE thermal imaging cameras
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE
BCS-WT-E
0,00 € gross
Out of Stock- BlackBody – a module for calibrating BCS LINE thermal imaging cameras

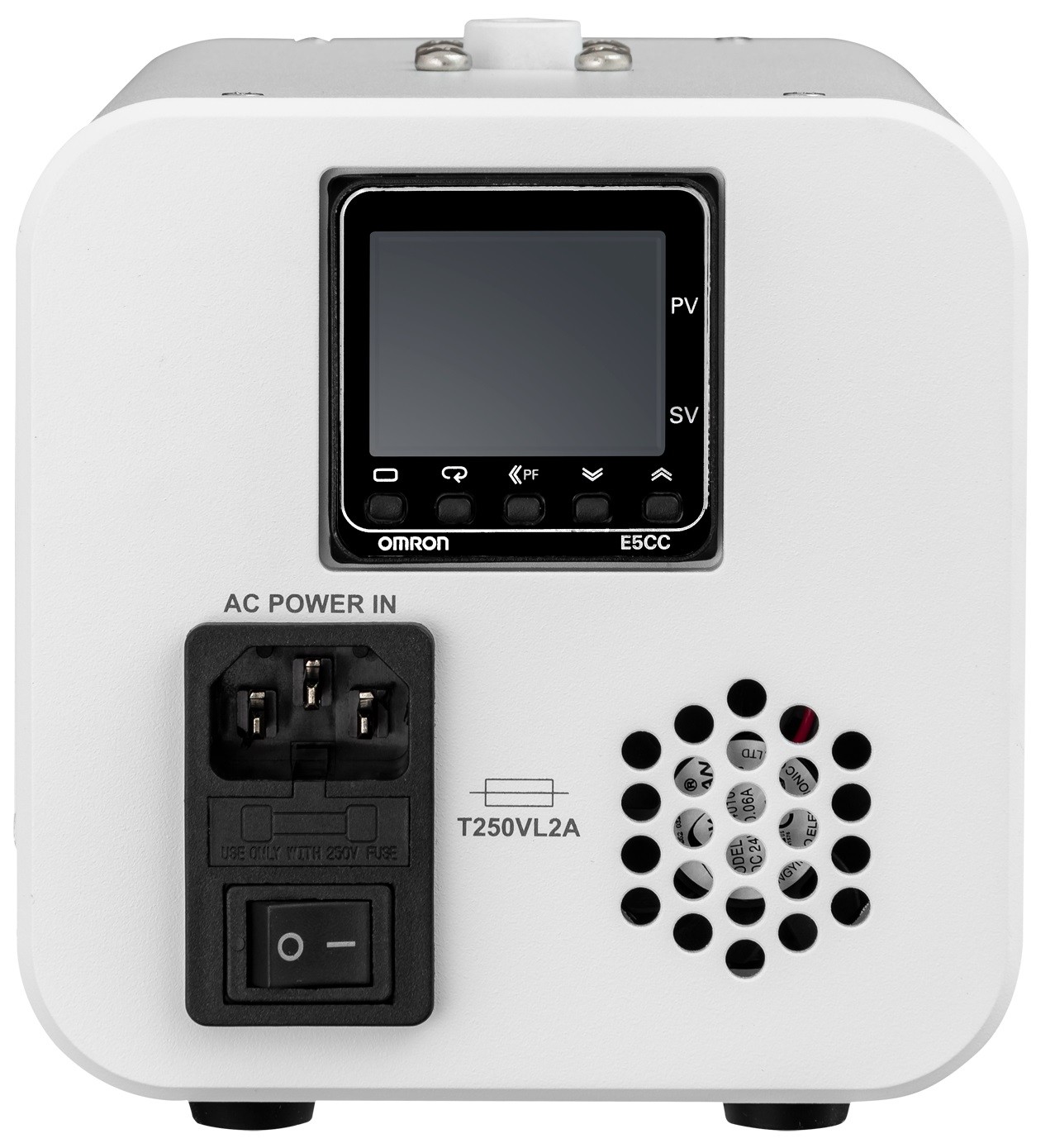

- The BCS-WT-E is a state-of-the-art heat standard, with properties similar to those of a perfect black body, enabling greater precision in temperature measurements by thermal imaging cameras
- The control system used ensures high accuracy and stability of parameters
- The surface of the standard is coated with a material with high emissivity
- Temperature accuracy: ±0.2 (single point)
- Effective emissivity 0.97 (±0.1)
- Effective surface area: 70 × 70 mm
- Temperature resolution 0.1
- Temperature stability: ±(0.1–0.2) / 30 min
- Power supply: 100–240 V AC, 50/60 Hz, 0.5 A
- Weight 2.35 kg
- Dimensions 125 × 125 × 184 mm
- Operating conditions: 5°C to 50°C / ≤ 80% RH
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
| Flag | TO ORDER |
|---|---|
| Product | BCS-WT-E |
