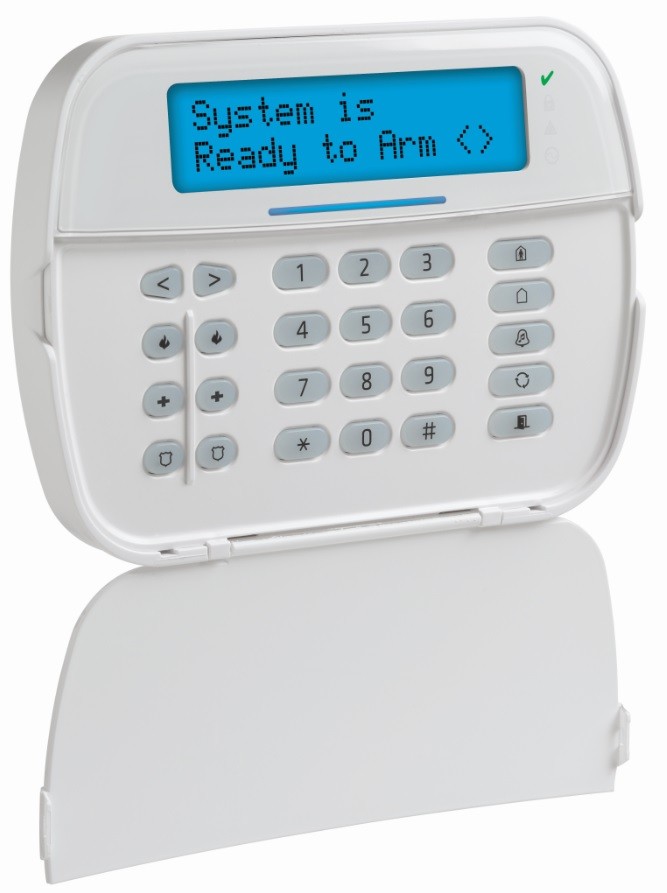

Wireless backlit LCD keypad, dedicated to work in DSC alarm systems, compatible with the HSM2HOST radio receiver and wired keypads equipped with RF series receivers. Working frequency 868MHz. Flat, easy-to-read front panel, white keyboard backlight, blue LCD 2×16 backlight, function keys configurable according to needs, alarm buttons, buzzer and backlight volume control. Status LEDs, tamper contact. Casing tightness class: IP30, vandal resistance class: IK04. Power supply: 4 AA 1.5V Alkaline batteries. Dimensions: 168 x 122 x 20 mm. White housing.
HS2LCDWF8E3
183,27 € gross
3 In StockWireless backlit LCD keypad, designed for use with DSC alarm systems, compatible with the HSM2HOST radio receiver and wired keypads fitted with RF series receivers.
3 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
| Product | HS2LCDWF8E3 |
|---|---|
| Proximity reader | No |
| Producer | Tyco (DSC) |
| pa_control-panels-compatibil | NEO series DSC control panels |
| Power supply (+/- 15%) | battery operated |
| Working temperature range | -10°C to +55°C |
| Keypad type | LCD |
| Touch | No |
| Inputs | 1 |
| Memory card support | No |
| Built-in radio module | Yes, PowerG |
| Keypad color | white |
| Wireless | Yes |
| Battery | 4 x 1.5 AA alkaline |
| Certificate EN50131 | Grade 2 |
| pa_power-consumption-standby | 30 mA |
| Keypad dimensions | 168 x 122 x 25 mm |
| Keypad weight | 260 g |
