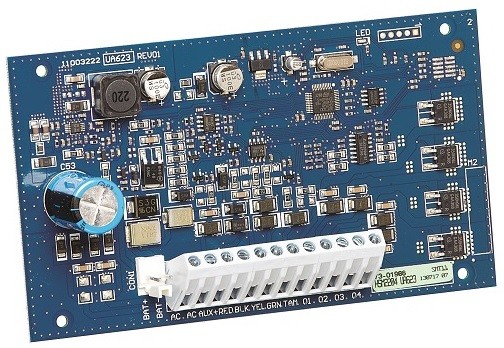

Power supply module with 4 high-current PGM outputs and two-way communication, compatible with DSC alarm control panels from the Power Neo series. Possibility to configure the keypad line as DEOL, buzzer volume and display brightness control, night backlight function, proximity keyfob reader, tamper clamp, double tamper protection. PGM outputs load: 1A for 4 outputs. Power supply: AC 16V. Dimensions: 145 x 83 mm.
HSM2204
56,58 € gross
45 In StockPower supply module with 4 high-current PGM outputs and two-way communication, compatible with DSC alarm control panels from Power Neo series.
45 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
| Product | HSM2204 |
|---|---|
| Producer | Tyco (DSC) |
| pa_control-panels-compatibil | NEO series control panels |
| Power supply (+/- 15%) | 16V AC |
| Module type | power supply and outputs module |
| Outputs | 4 |
| Max power output | 1A for 4 outputs |
| Output type | transistor |
| AUX max power output | 1A |
| Power consumption | 40 mA |
| Module dimensions | 145 x 83 mm |
| pa_module-working-temperatur | from -10°C to 55°C |
