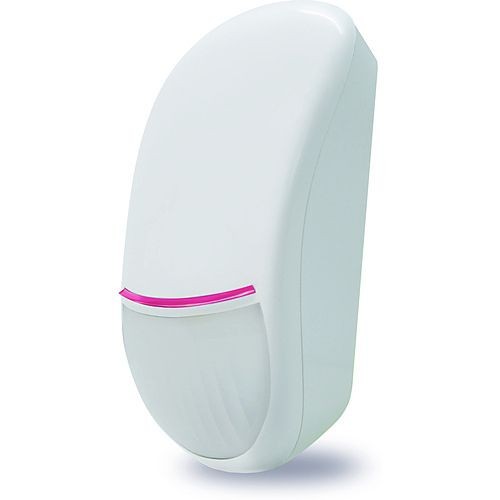

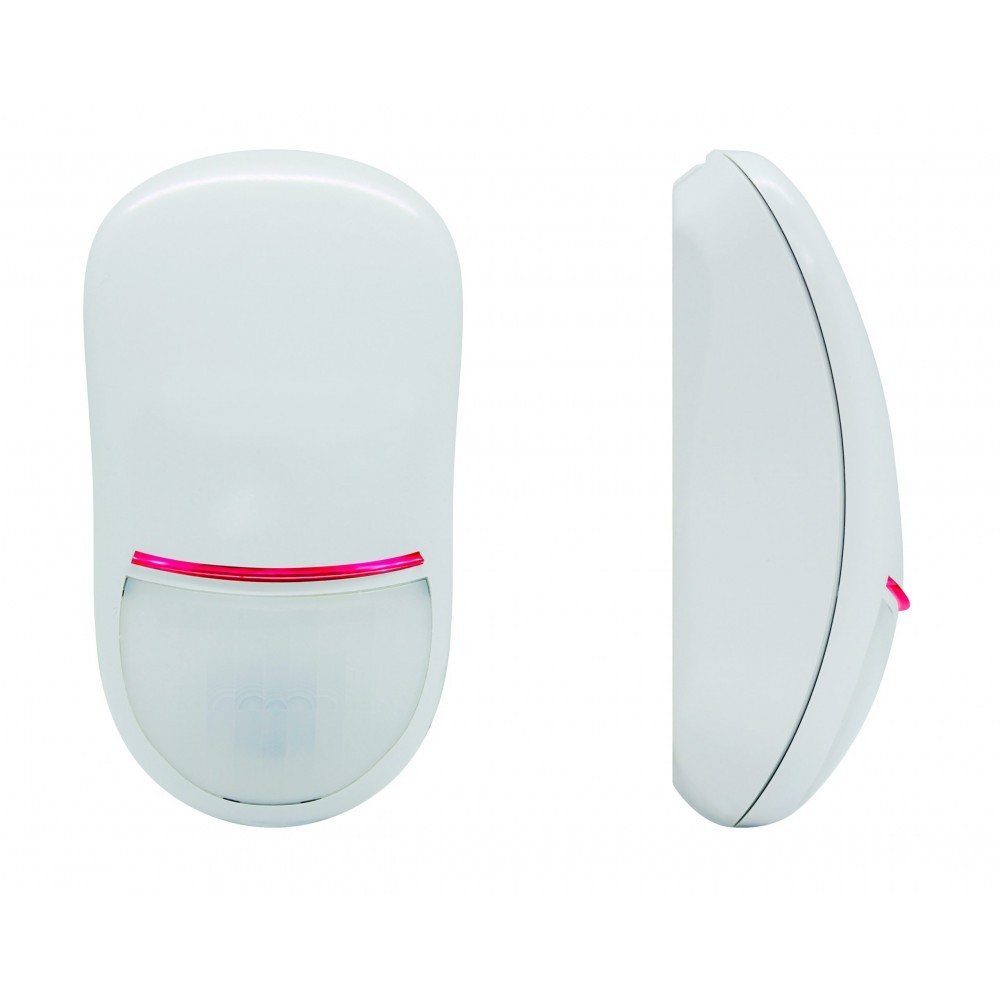

The LC-200 detectors use only digital PIR modules, which eliminates the need for the conversion typically carried out in traditional detectors, where the analogue PIR signal is amplified and converted to digital form.
This fully digital technology enables the detector to detect intrusions more accurately, without being affected by changes in light, UV radiation, temperature or air movement caused by heating orrefrigeration units, and is completely immune to electromagnetic interference resulting from electrical currents or radiation.
The LC-200 detectors are fitted with a lens designed by Johnson Controls and manufactured by Fresnel Technologies, Inc. LODIFF® optical technology, combined with POLY IR® materials, ensures the highest quality and performance of the device.
LC-200 detectors are pet-immune and have a detection range of 15 m at a 100-degree field of view, and feature built-in 5.6 kohm parametric resistors. The detector features a tamper-proof housing, an approach zone and a pulse counter.
Key features:
White light immunity
High protection against RFI interference
Protection against ultraviolet radiation POLY IR®4 lens material
Fully digital PIR module
Pet immunity up to 15kg
LODIFF® Fresnel lens technology
The detector can be mounted directly on the wall or using the LC-L2ST bracket. (Bracket sold separately).
12 V DC power supply.
