- Technology: GSM, GPRS, LTE (4G), GNSS
- Power supply: +12V/+24V
- Minimum current draw: 15mA
- Max. current consumption: 300mA
- Average current consumption: 40mA
- Operating temperature range: From -30°C to +85°C
- GSM antenna: Built-in
- GNSS antenna: External
- Dimensions (W × L × H): 91 × 64 × 32 mm
- Enclosure protection rating: IP30
- SIM card type: Nano (4FF)
- Built-in event and location data memory: 30,000 positions
- Built-in accelerometer: Detection of motion, tilt changes and g-forces
- Programming interface: Micro USB (manufacturer’s adapter required)
- Battery: Built-in 3.7V, 320mAh rechargeable battery
- ACC input: Ignition – changes the device’s operating mode
- Inputs:
- 1 universal ‘ground-controlled’ input (WE1)
- Analogue input (range 0–30 VDC)
- Interface: 1-Wire/UART interface for RFID readers, i-Buttons and DALLAS digital thermometers
- Control output: Universal open-collector (OC) control output (Imax=100mA)
- (WARNING!!! Do not use this output to cut off a vehicle’s ignition circuit)
Moduł LE-820ZAP
98,40 € gross

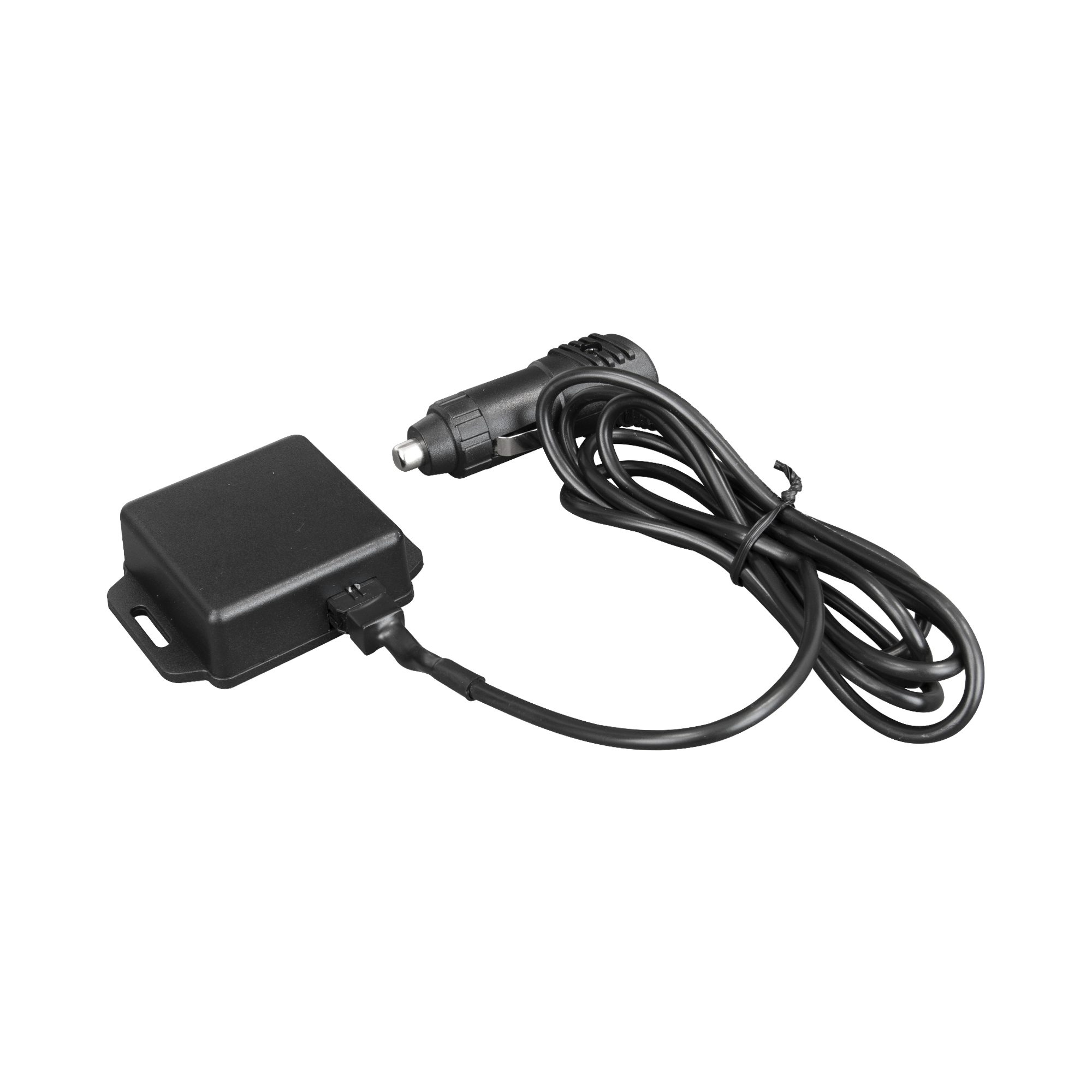

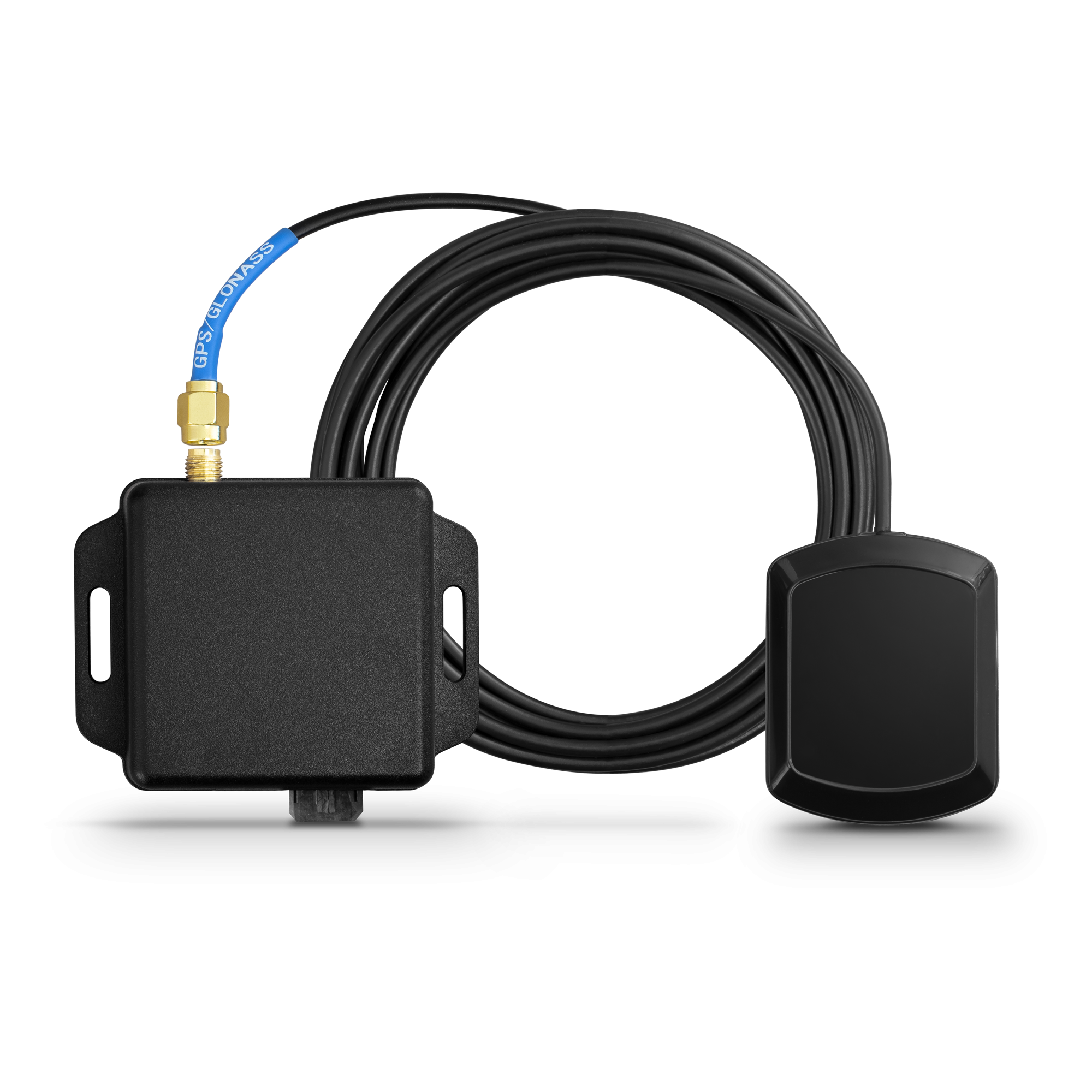

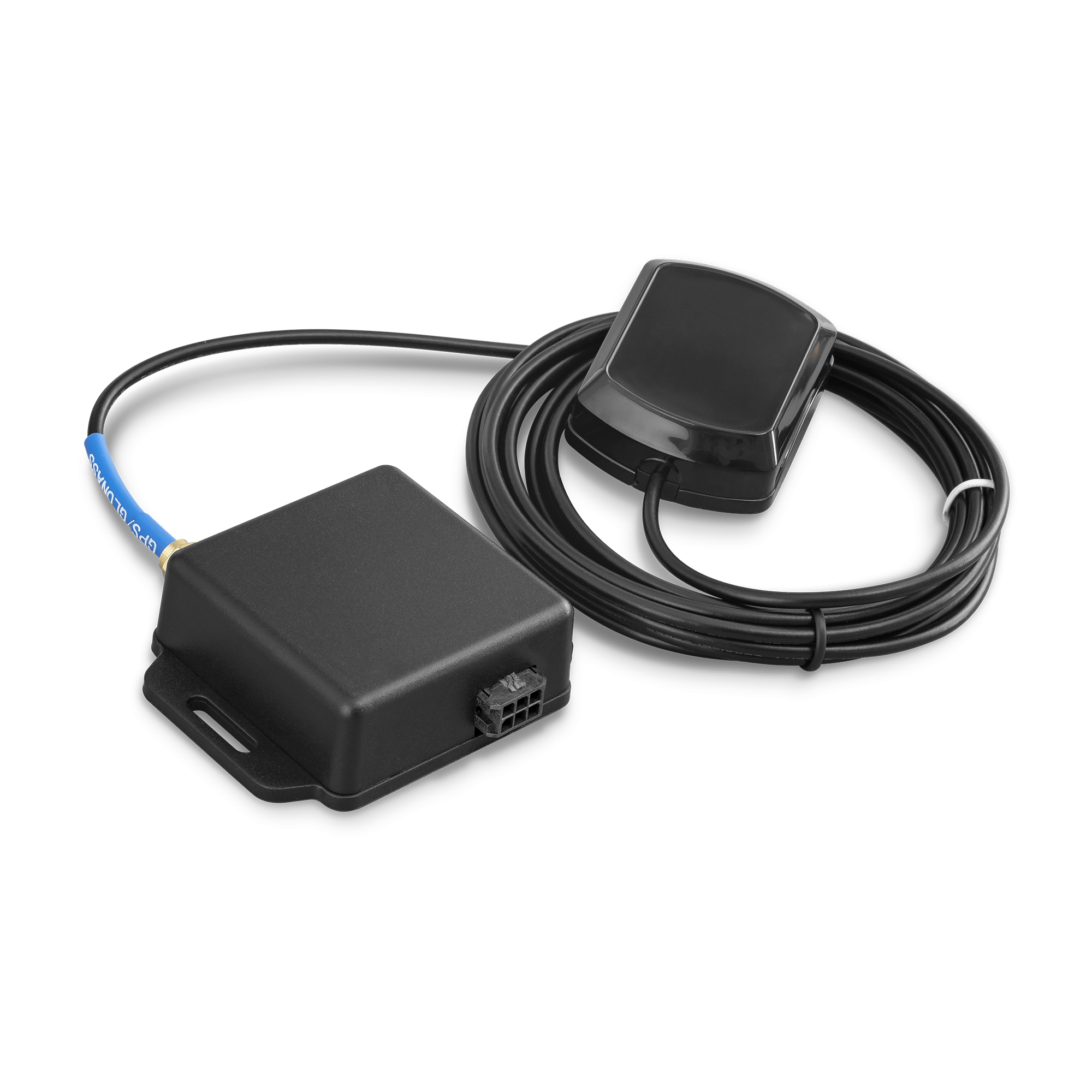

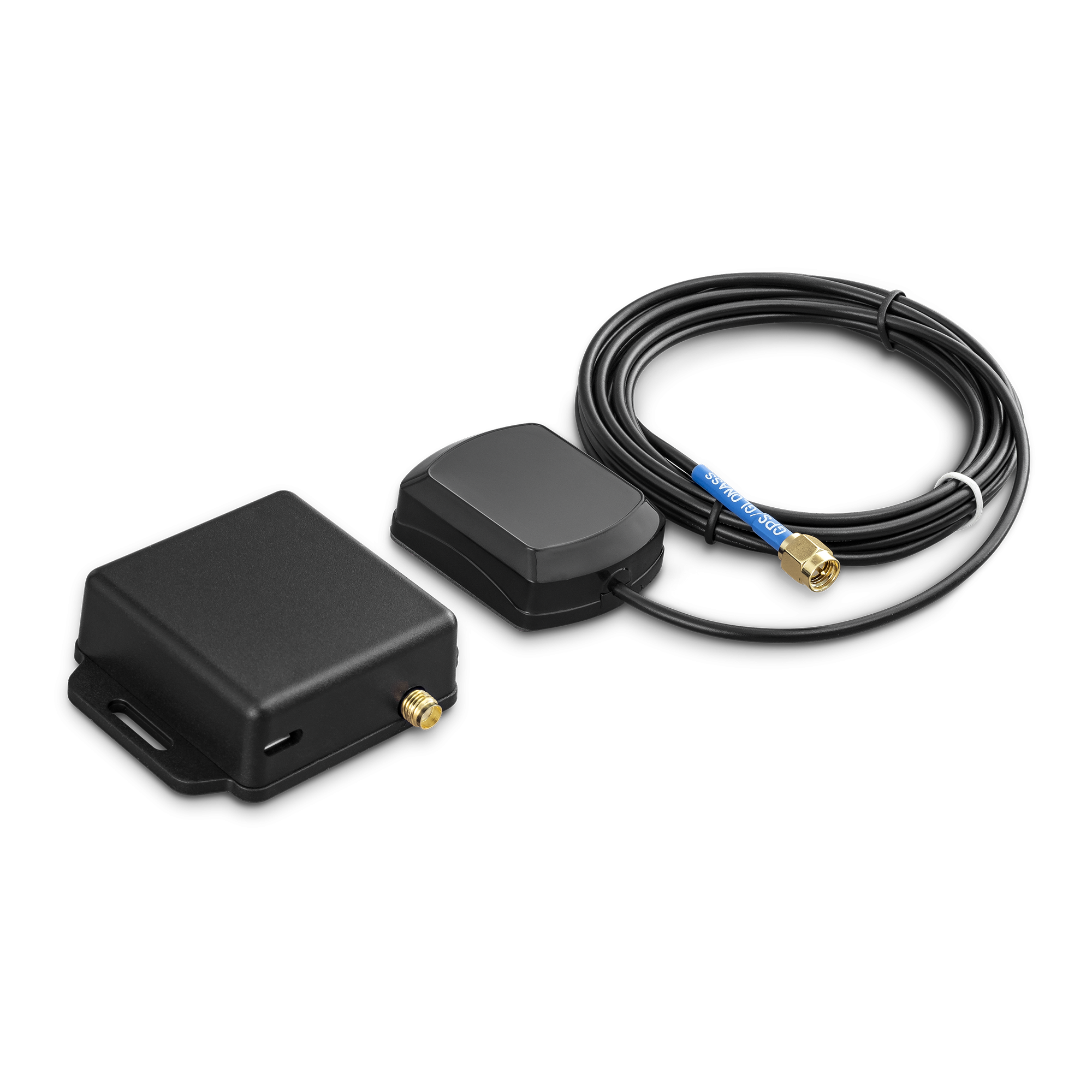

1 In Stock- A universal transmitter that can be plugged into the cigarette lighter socket, designed for tracking vehicles and construction machinery, with an external GPS antenna.
- E-toll and SENT-GEO certification
- Power supply: +12V/+24V

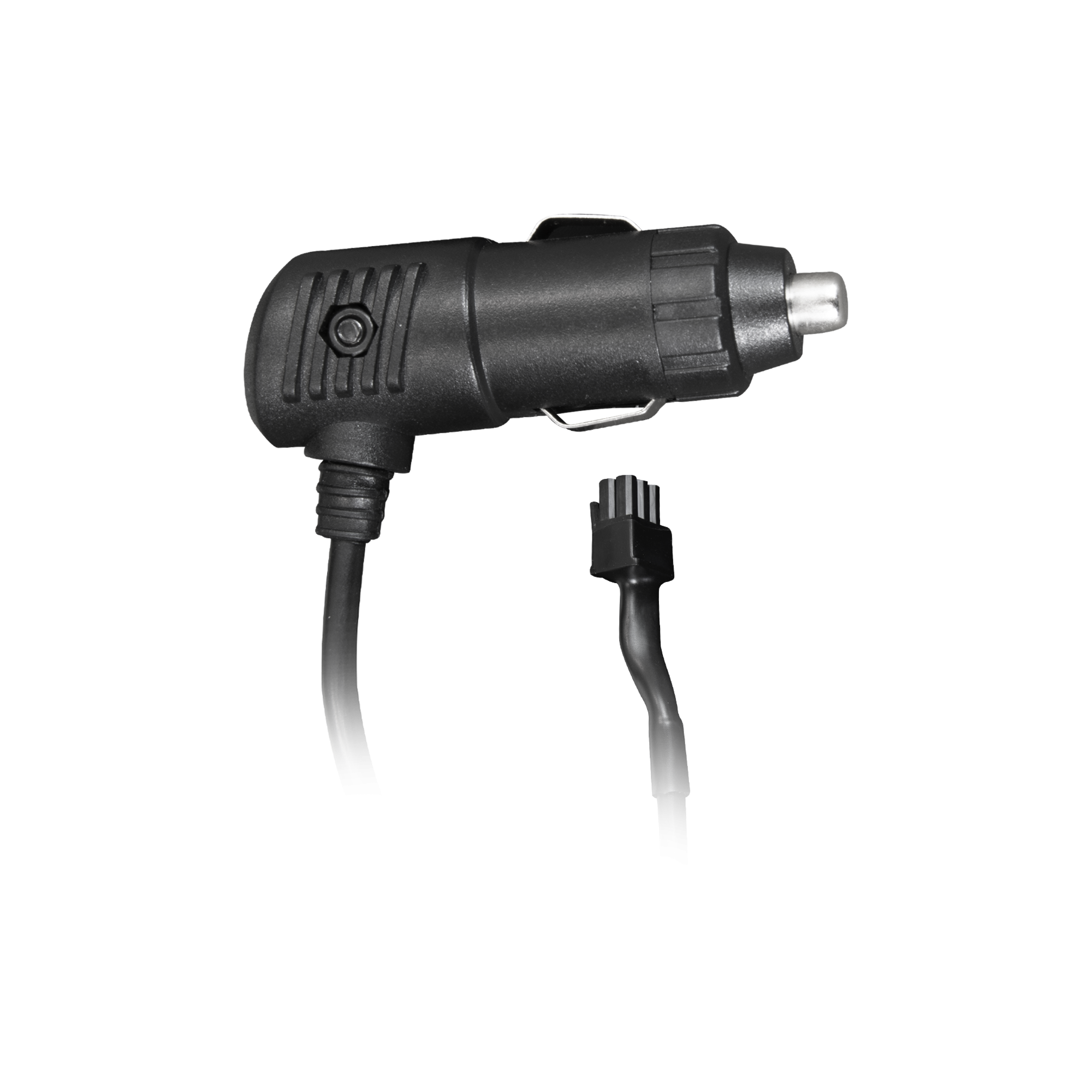

- Cigarette lighter socket plug
- Inputs:
- 1 universal ‘ground-controlled’ input / analogue input (range 0–30 VDC)
- 1 1-Wire/RFID interface input (driver identification/sensors)
- Power supply with voltage measurement
- Ignition – changes the device’s operating mode
1 in stock
