- transmission channels: GPRS (2G), LTE (4G), SMS, CLIP
- SMS transmission as a fallback in the event of TCP/UDP issues
- UDP communication – PULSON protocol, TCP – SIA-IP (ADM-CID) protocol
- ability to route traffic to two different IP addresses/domains
- capable of operating with a private or public APN
- programmable event codes for NO/NC inputs
- ability to send events to additional numbers (up to 10 user numbers), with editable content (up to 32 characters)
- external power supply voltage monitoring
- low battery voltage indication
- battery disconnection circuit in the event of battery failure
- three authorised numbers for remote reading and changing parameter settings
- confirmation of information delivery via GPRS/LTE
- (if no confirmation is received, the option to send to an additional IP address)
- confirmation of SMS message delivery
- (if no confirmation is received – event information is sent to a backup recipient number)
- continuous monitoring of login status on the home GSM operator’s network and measurement of the BTS base station signal level
- remote module status reading
- option to limit the number of messages sent within a specified time period (applies to NO/NC inputs)
- local programming using the ST-Konfigurator software
- remote upgrades, programming and parameter reading
- LED indicators: GSM operating mode, signal strength, SIM card status, battery status, AC power supply
- Programming connector: Mini USB (RS-USB converter required)
- Antenna connector: SMA
- 1 housing tamper sensor input
- 2 ‘open-collector’ outputs
- 1 AUX power output (12V, 160mA)
- Programming connector – mini USB (RS-USB converter required)
- Alarm inputs: 8 (NO/NC type)
- OC outputs: 2 (SMS/CLIP/TCP control capability)
- AUX output: 1 (12V, 160mA)
- Tamper output (TAMP)
- Weight: 80g

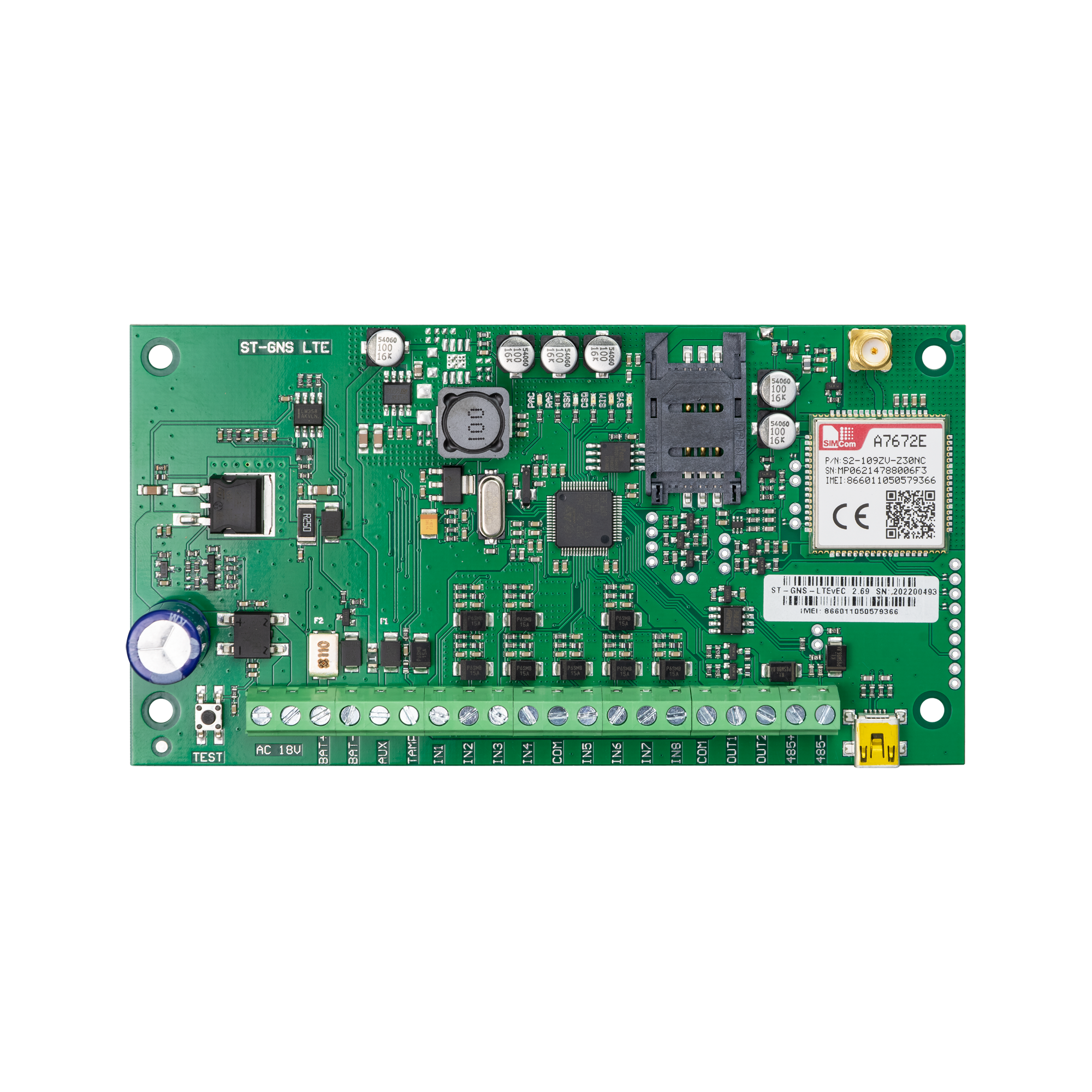

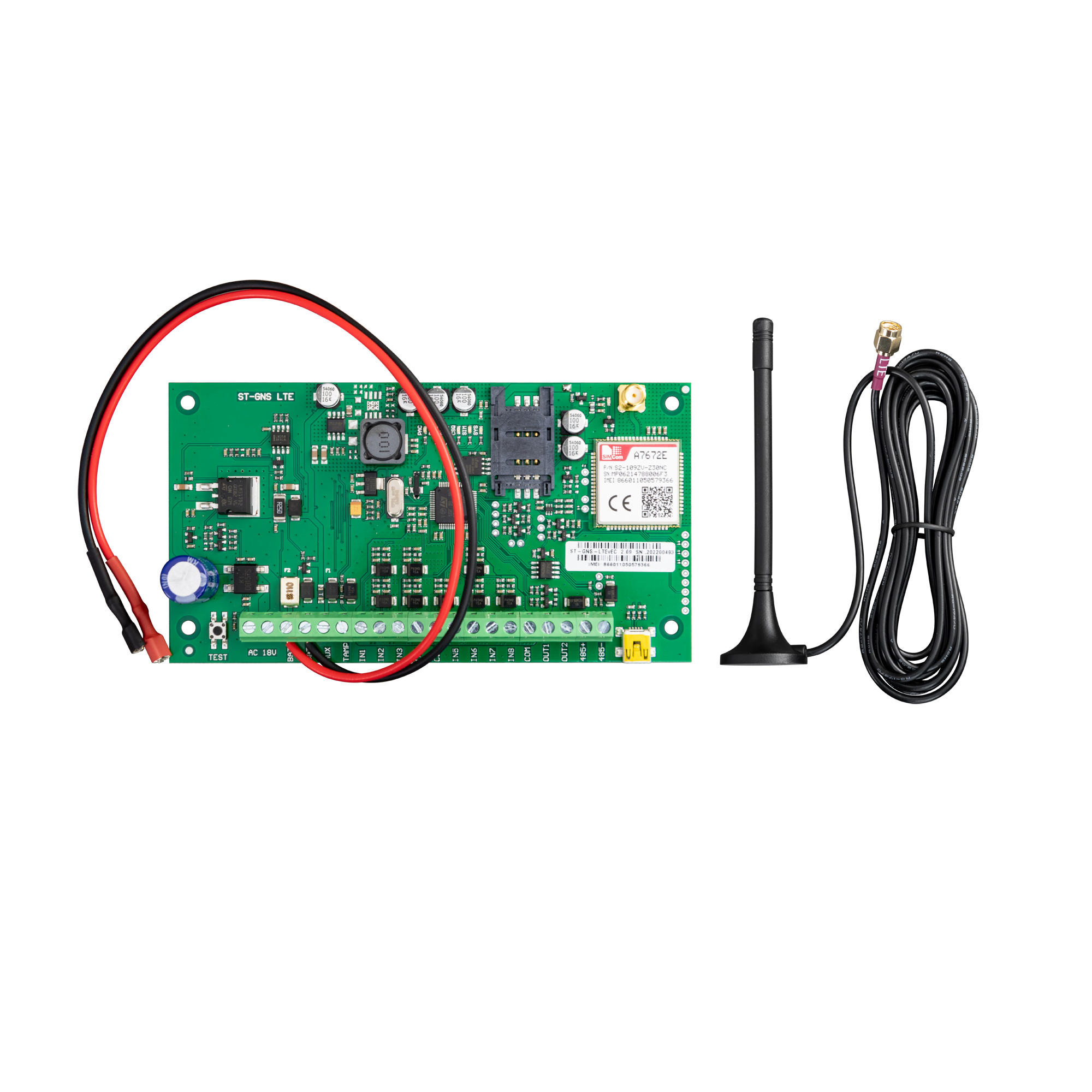

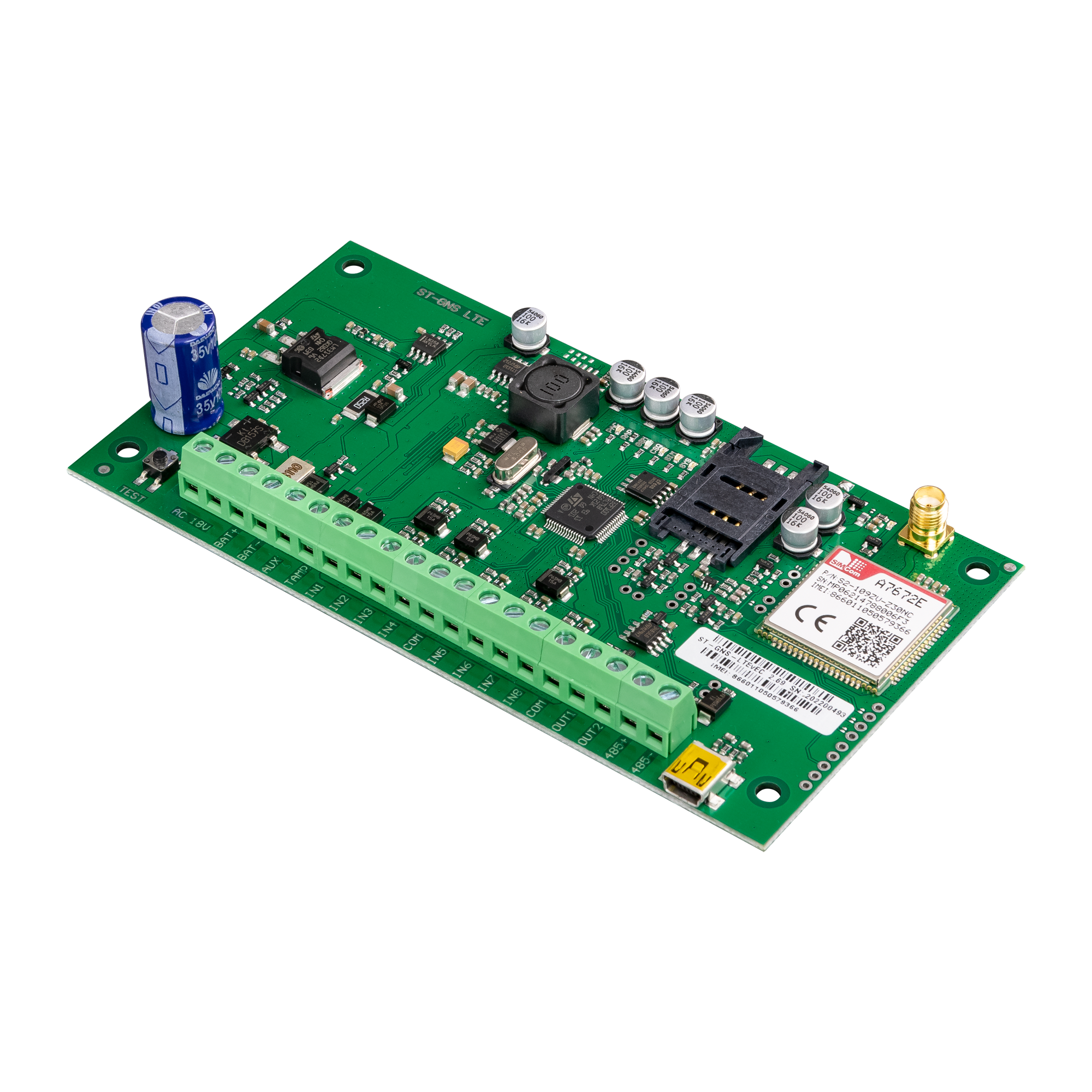

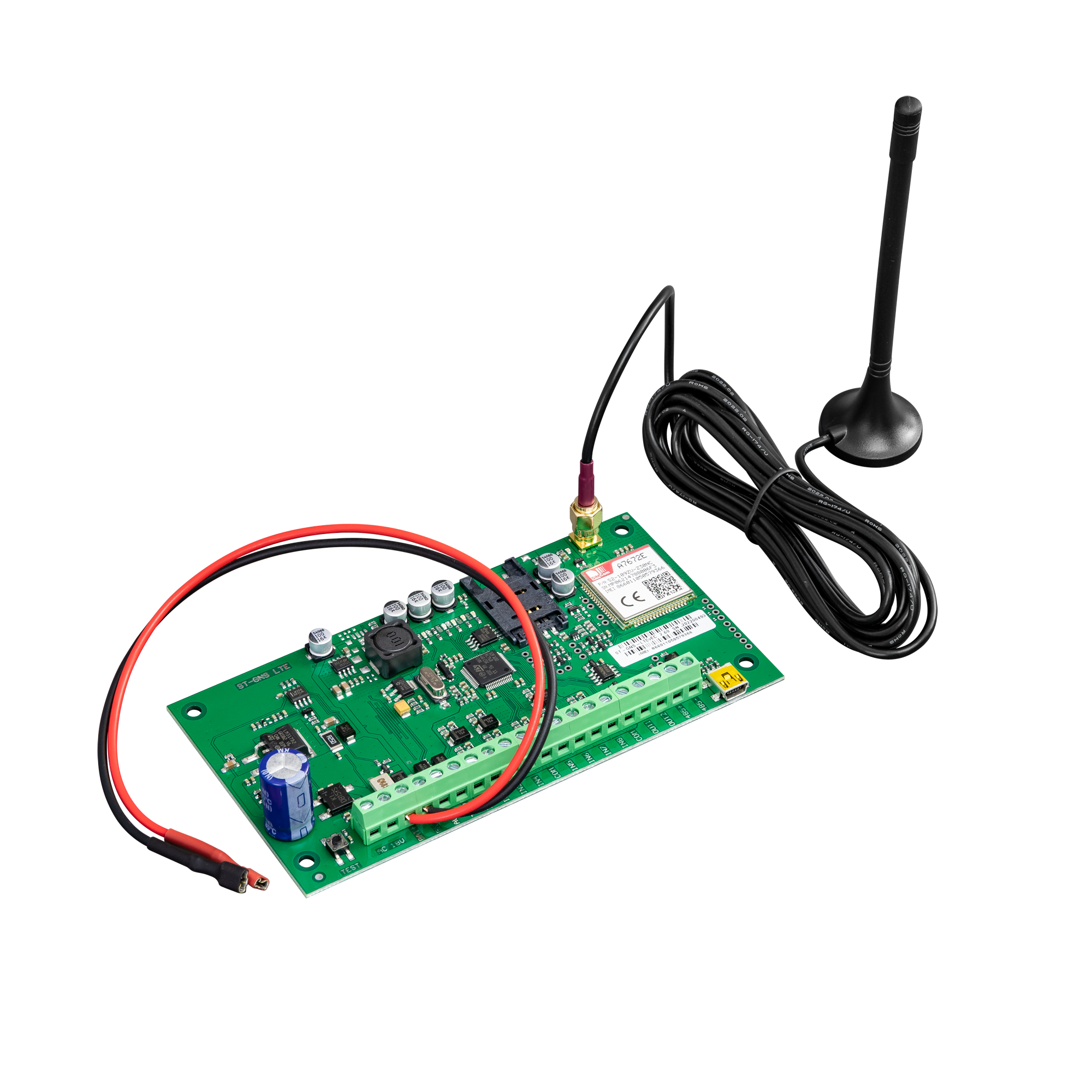

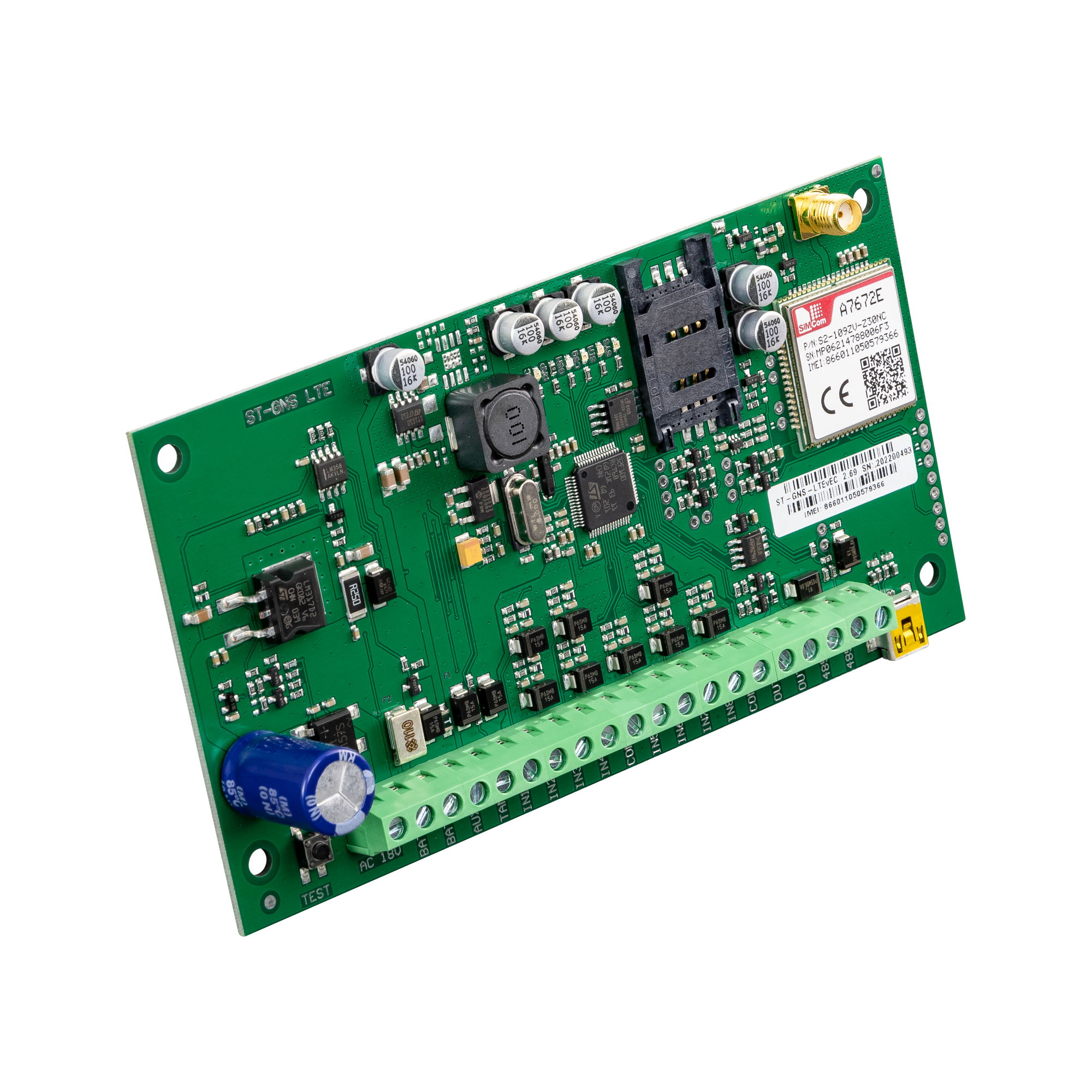

Nadajnik STN-4G
84,87 € gross
2 In Stock- The STN-4G (LTE) transmitter is designed to transmit alarm signals from protected premises to the monitoring centre via the GSM network (2G/4G). It is designed and manufactured entirely in Poland.
- It has 8 inputs and 2 outputs for controlling external devices.
- Technology: GSM/GPRS (2G)/LTE (4G)
- Output impedance: 50 Ω
- Rated DC voltage: 12.8V DC (range: 10.5V – 13.8V)
- Rated AC voltage: 16–18 V AC
- Minimum current draw: 30 mA DC (without charging)
- Maximum current draw: 1.2 A DC
- AUX output capacity: 100 mA
- Battery charging voltage: 13.7V DC
- Battery charging current: 800 mA DC
- Operating temperature range: -20°C to +55°C
- SIM card type: Mini SIM-2FF (compatible with Nano SIM-4FF)
