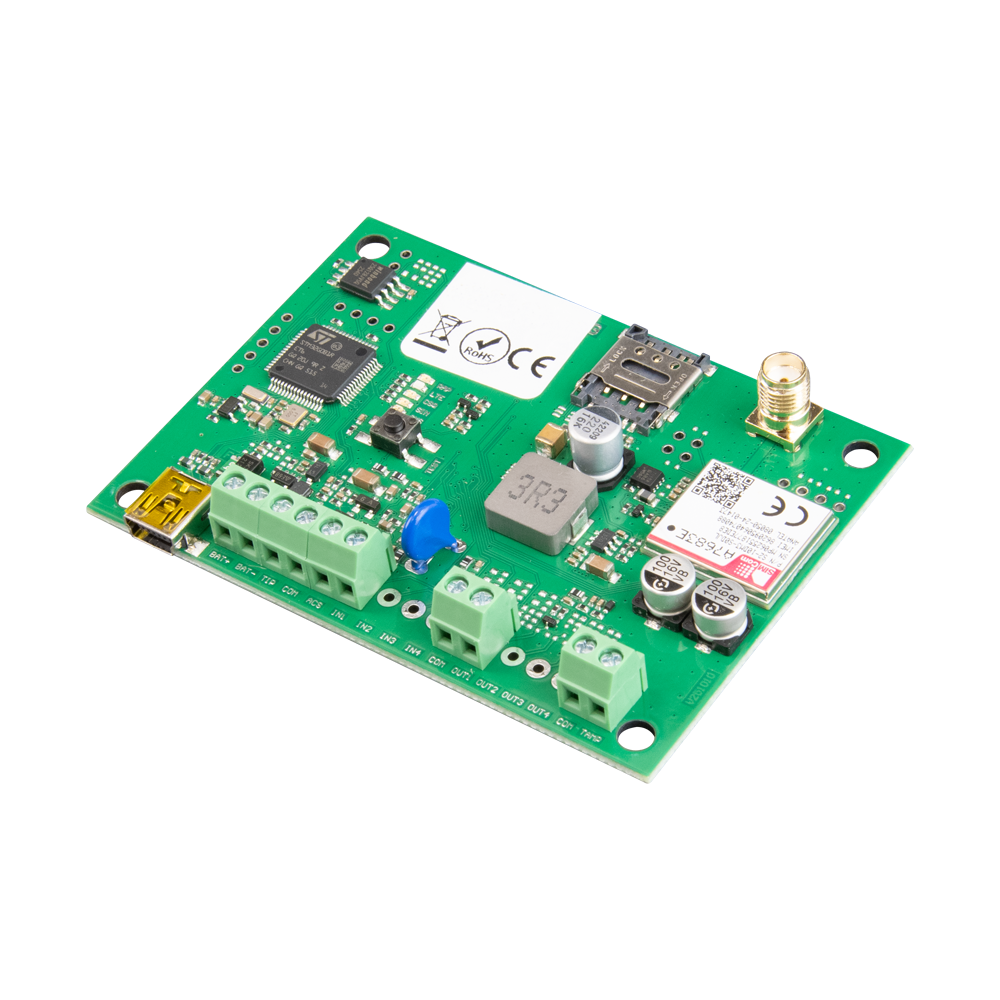

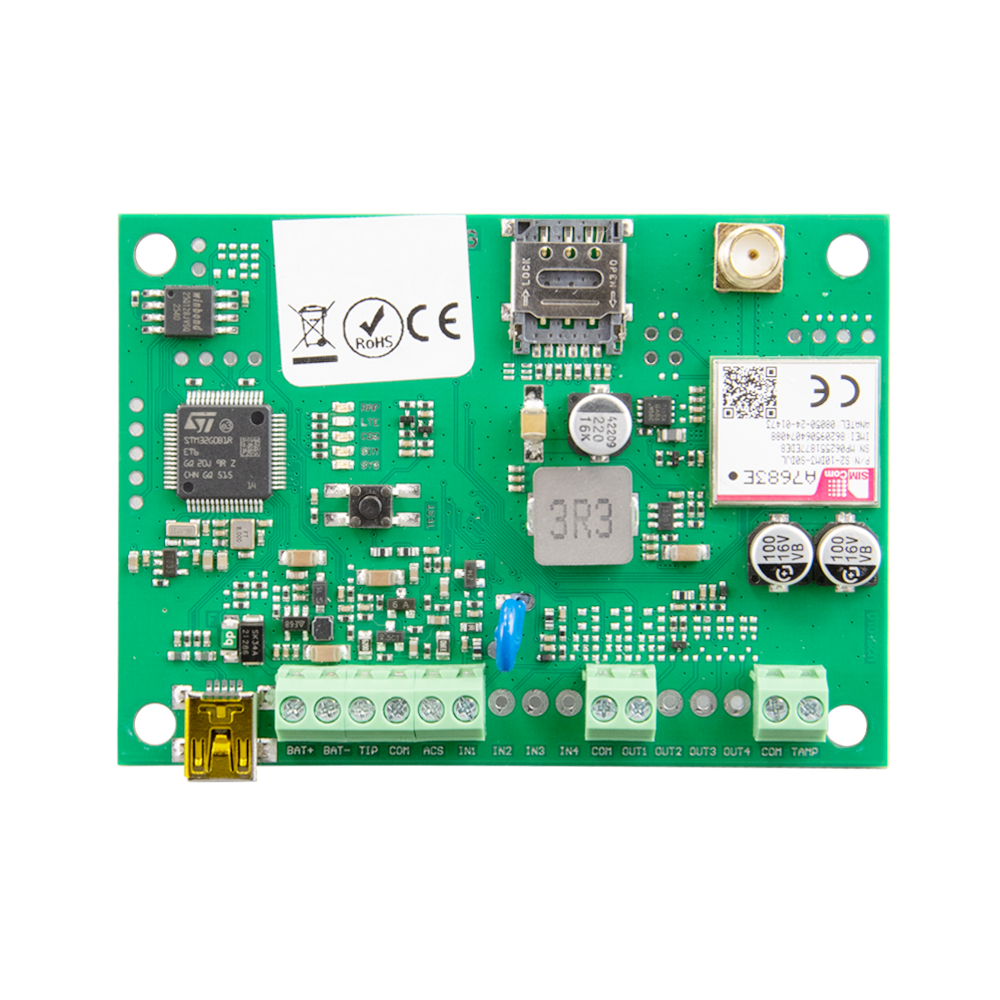

Specifications of the STD-4G Basic transmitter:
- Power supply: 12 V ± 15%
- Standby current consumption: 80 mA
- Maximum current consumption: 300 mA
- Inputs: 1 (including a dedicated AC input for monitoring the presence of alternating current, max 18 V AC 50 Hz)
- Outputs: 1 open-collector type (50 mA / 12 V DC)
- Programming connector: mini USB (using an adapter)

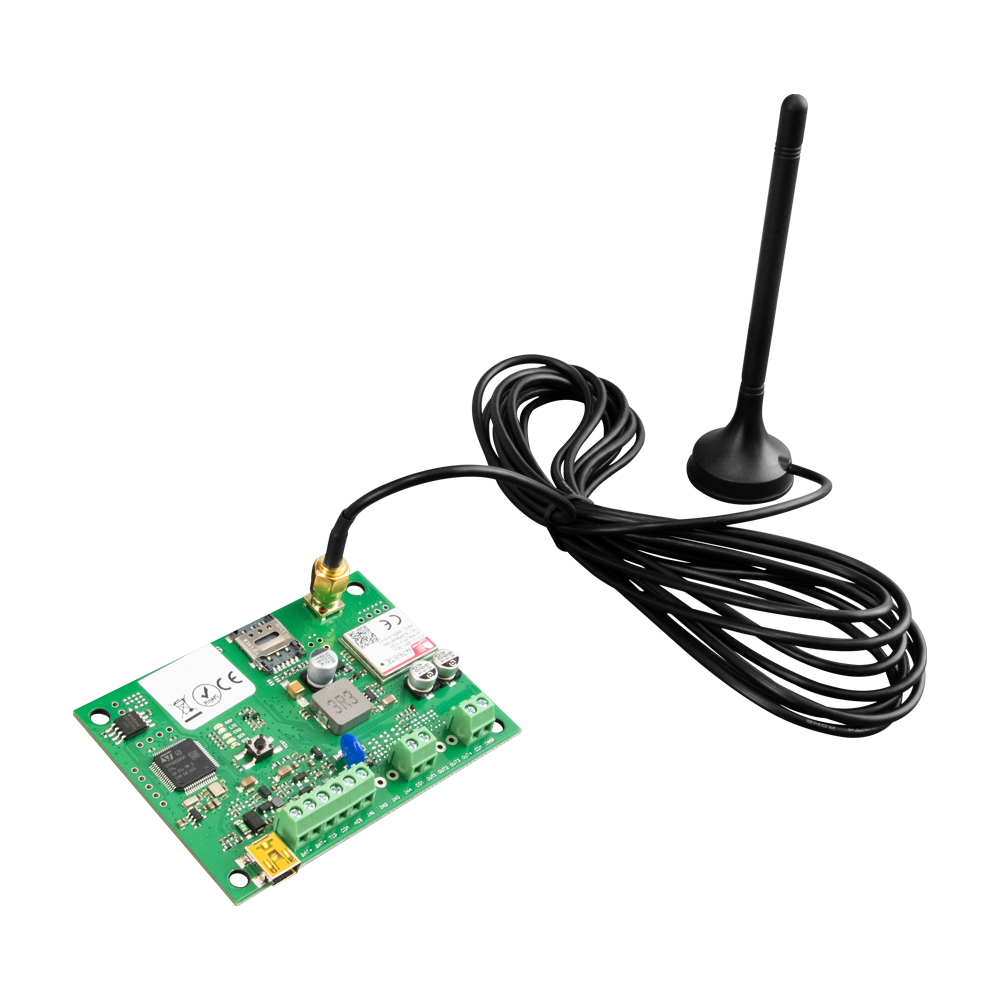

- Antenna: included with the 4G module
Additional features:
- Data transmission via 4G
- Transmission to the receiving station via SMS or GPRS
- Support for PULSON (UDP) and SIA (TCP, encryption, Contact ID) protocols
- Notifications to up to 10 users via SMS (up to 32 characters)
- Output control via SMS/CLIP (up to 10 users)
- Built-in temperature sensor
- Built-in event log (65,535 entries)
- Simulation of a telephone line and a receiving station for the alarm control panel’s dialler interface – the transmitter receives alarm events sent by the control panel using the Contact ID protocol
- Automatic acceptance of the monitoring station number – the transmitter enables communication with the alarm control panel without the need to programme the monitoring station’s telephone number in advance. Any number dialled by the control panel when establishing a connection is accepted
Application:
- Transmission of alarm signals to the monitoring centre
- Interoperability with alarm control panels via telephone line emulation
- Control of external devices (e.g. alarm, lighting)
- Remote notification of users via SMS/CLIP
- Transmission:
- GPRS/LTE (TCP/UDP)
- SMS as a backup channel
- Supports up to 10 users
- Notifications:
- SMS to up to 10 users (32 characters per message)
- Message delivery confirmation
- Programming:
- Locally – mini USB port (adapter required)
- Remote configuration (via data transmission)
