The BCS-AVC1203 module is a high-efficiency DC / DC converter designed to supply recorders, network drives and other devices requiring a stable 12 V power supply, operating with a buffer power supply, the output voltage of which varies in the range of 10 … 14 V depending on the operating mode ( battery operation / mains operation). The system ensures safe operation of powered monitoring devices regardless of the battery level of the buffer system.
BCS POWER

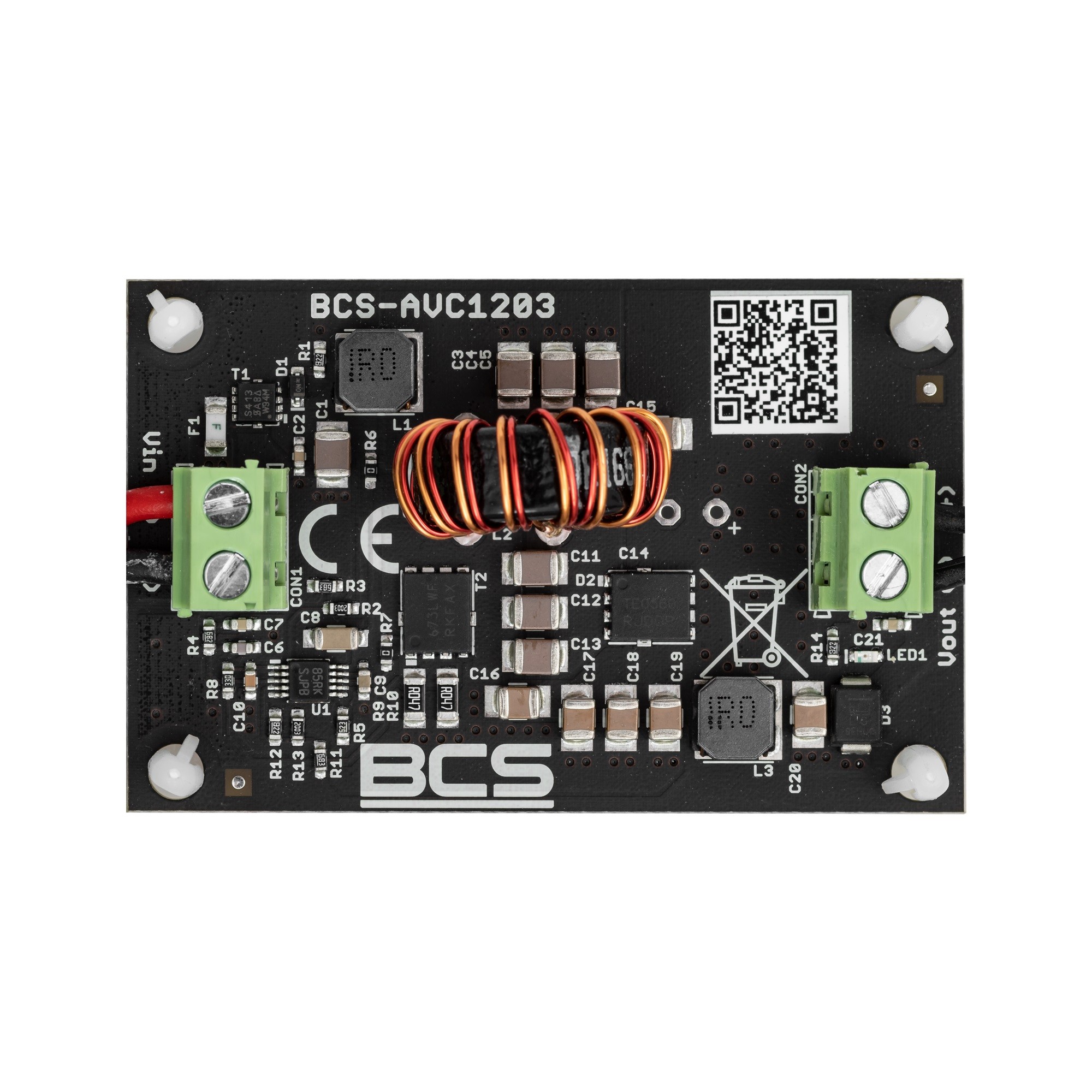

BCS-AVC1203
36,90 € gross
44 In Stock- High-efficiency DC/DC converter
- Supply voltage 10–30 V DC
- Output: 12 V DC ±5%, 2.5 A, 30 W
- Output short-circuit protection at 3A
- Dimensions 40x60x24mm, operating temperature -10–+40°C
- Snap-in spacer pins
- Mounting holes spaced at 10.8 mm
44 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
| Product | BCS-AVC1203 |
|---|
