| Accessories included | integrated Wall mount, antena Wi-Fi |
|---|---|
| Camera type | PTZ |
| Sensor | 1/2.7'' CMOS |
| Lens | motozoom |
| Iris | Auto |
| DORI | Detect 43~186m / Observe 17~74m / Recognize 9~37m / Identify 4~19m |
| WDR | 120dB |
| Ai - Built-in intelligent functions | Yes |

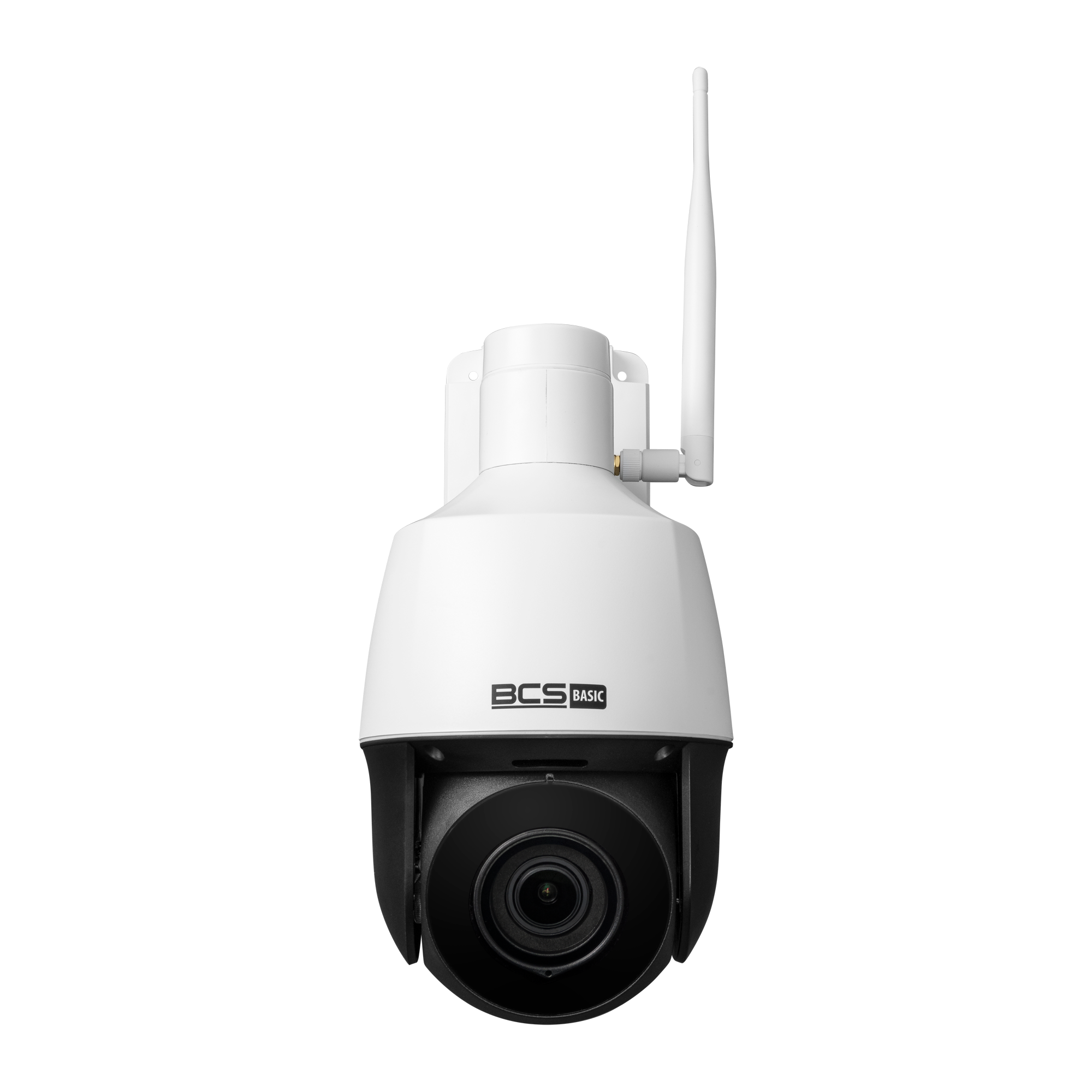

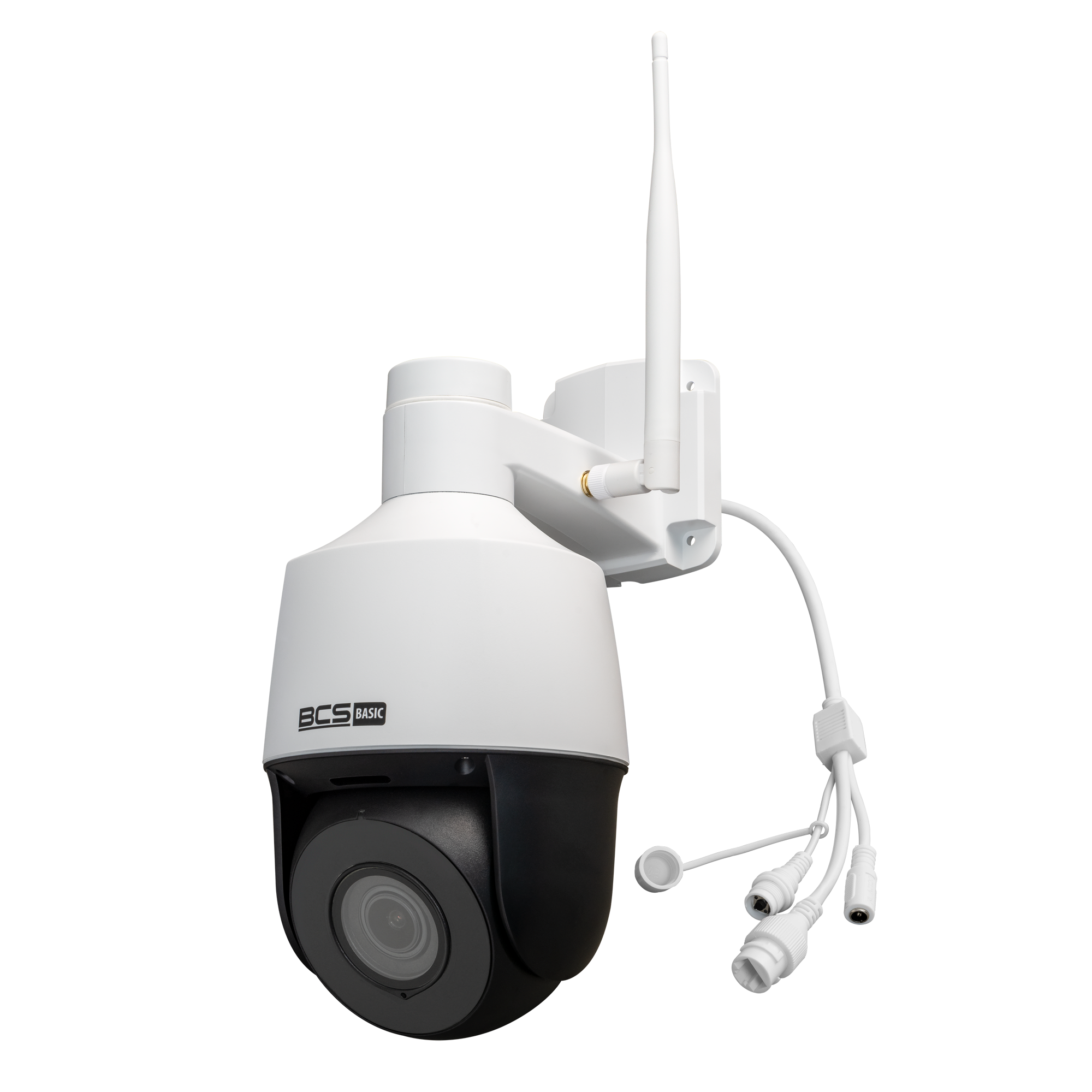

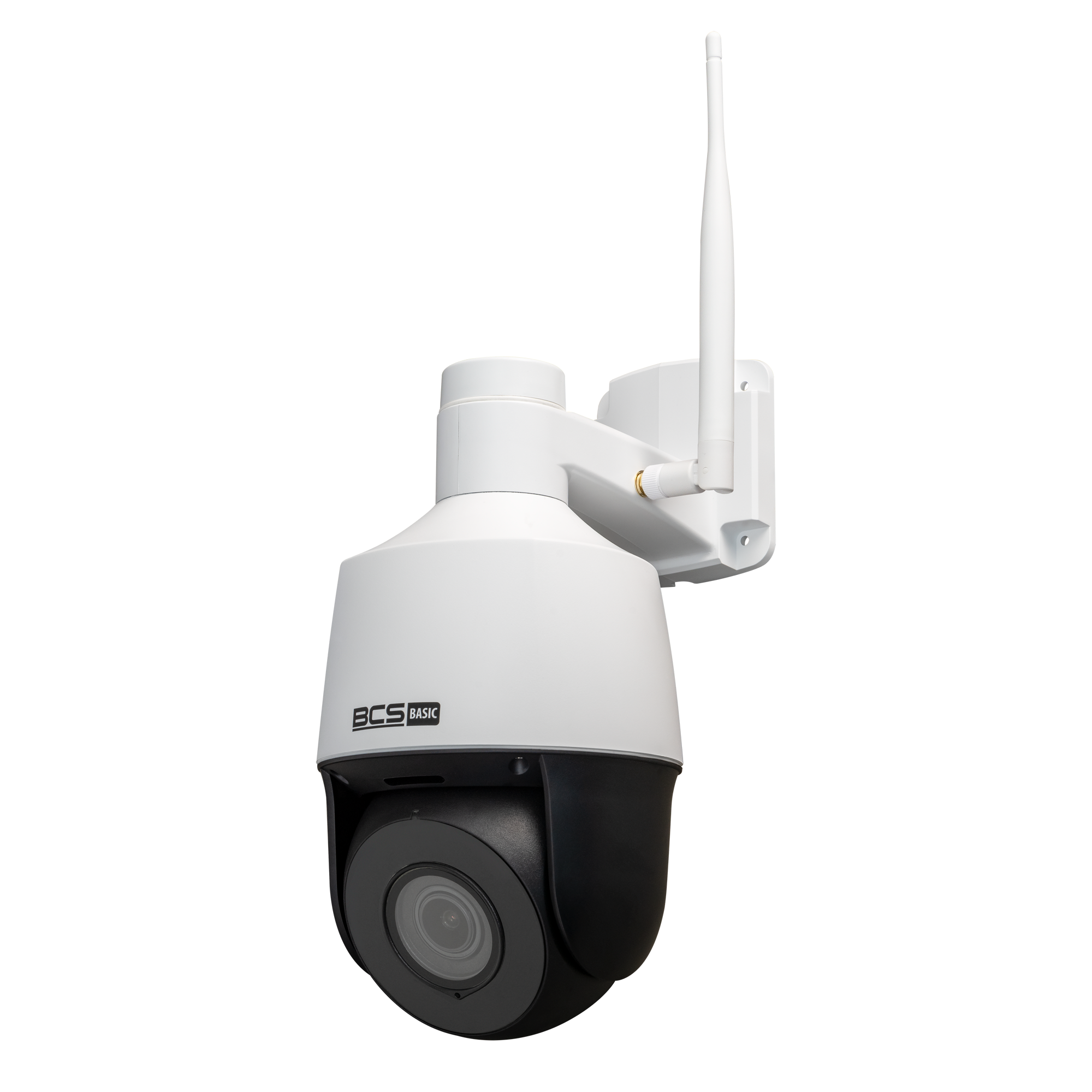

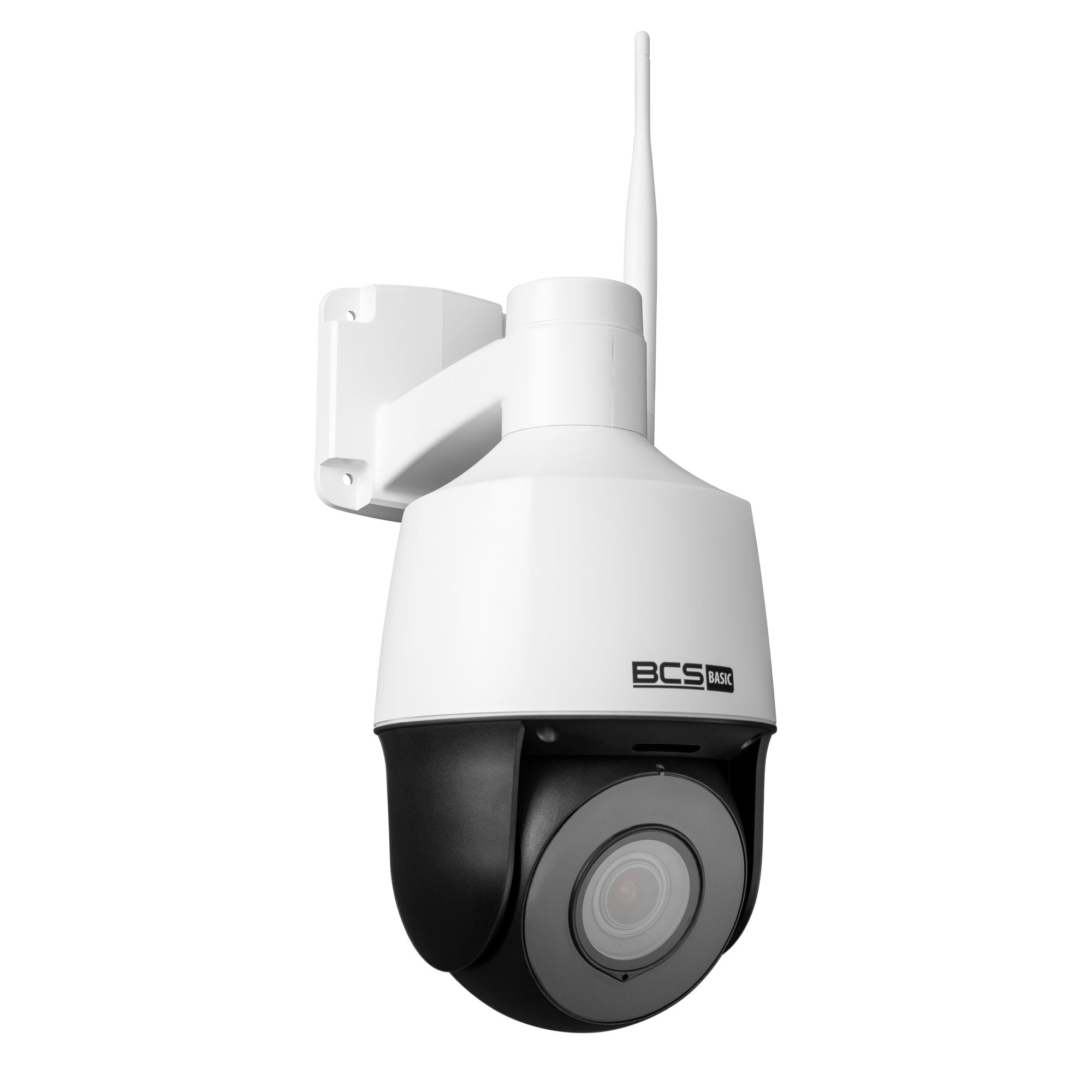

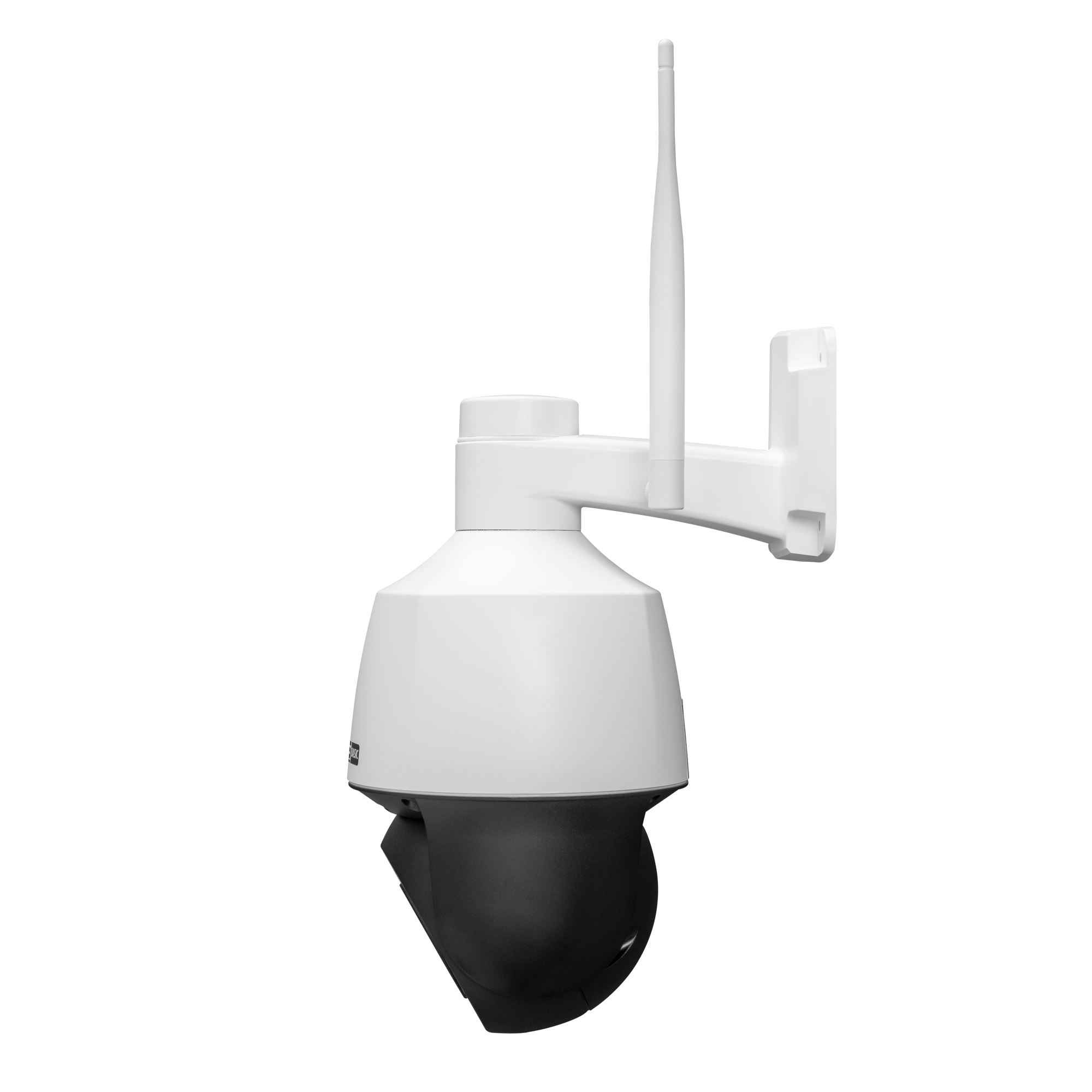

| Product | BCS-B-SIP124SR5-W |
| Image rotate | Mirror, Flip 0°/90°/180°/270° |
| Optical zoom | 4× |
| Recording in BCS CLOUD | Yes |
| Resolution | 2 Mpx |
| Scanning system | Progressive Scan |
| Pixels | 1920(H)×1080(V) |
| Focal length | 2.8~12 mm |
| Aperture | F 1.6 |
| Focus | Auto / manual |
| Digital zoom | 16× |
| Angle of view | H:105.2°~29.32° V:52.6°~16.38° D:108.7°~33.3° |
| Min illumination | 0.002Lux(F1.6,AGC) 0Lux(B/W,IR) |
| S/N ratio | 52dB |
| White balance | (AWB) Auto / manual |
| Backlight compensation | BLC / HLC / WDR(120dB) |
| Shutter | Auto / manual 1~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 2D/3D DNR |
| Stream support | 3 |
| Resolutions | 2M(1920×1080) / 720P(1280×720) / D1(720×576) / 2CIF(704×288) / (640×360) / CIF(352×288) |
| Main stream | 1920×1080 / 1280×720(25/30fps) |
| Second stream | 1280×720 / 720×576 / 704×288 / 640×360 / 352×288(25/30fps) |
| Third stream | 720×576 / 704×288 / 640×360 / 352×288(25/30fps) |
| Bitrate | 128Kbps~16Mbps |
| Video compression | H.265 / H.265+ / H.264 / H.264+ / MJPEG |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED |
| IR range | 50m |
| Microphone | Yes |
| Loudspeaker | Yes |
| Audio compression | G.711A / G.711U |
| Memory card slot | microSD 256GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 4 |
| Network | RJ-45 10/100 Mbps |
| Wi-Fi | 802.11b/g/n 2.4GHz |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP , PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP , 802.1x , SNMP, SSL |
| Power supply | 12V DC |
| Power supply type | 12V DC |
| Power consumption | max 12W |
| Housing color | White |
| IP class | IP66 |
| Surge protection | TVS 2kV |
| Working environment | -20°C~+60°C max 95% RH |
| Dimensions | Ø133×248mm |
| Weight | 0.86 kg |
| PAN speed | 0.1°/s~50°/s(50°/s preset) |
| TILT speed | 0.1°/s~40°/s(40°/s preset) |
| PAN range | 0°~345° |
| TILT range | -10°~110° |
| Auto tracking | Yes |
| Ai - Perimeter protection | Yes |
Warning: This product belongs to the BCS BASIC product line.
Use only components and devices from the same line to ensure compatibility.
BCS BASIC
BCS-B-SIP124SR5-W
216,48 € gross
