| Product | BCS-B-SP0802G |
|---|---|
| PoE ports | 8×RJ45 100Mbps |
| Uplink ports | 2×RJ45 1Gbps |
| Standard IEEE | 802.3af / 802.3at |
| Transfer | 10/100/1000Mbps half-duplex, full-duplex, auto-negotiation, auto MDI/MDIX |
| Packet forwarding rate | 4.17Mpps |
| Capacity | 5.6Gbps |
| MAC table | 2K |
| STANDARD mode | 100m |
| VLAN mode | VLAN mode ports 1-8 isolated |
| EXTEND mode | EXTEND mode ports 1-8 support transmission 250m 10Mbps (cat5e, cat6) |
| QoS mode | QOS Quality Of Service – priority video pockets |
| PoE mode | Monitoring ports supply PoE devices and automatic restart with power supply cut when not responding |
| PoE pin | 1,2(+), 3,6(-) |
| LED status | PWR(yellow): power supply connected, LINK/ACT(green): device connected, PoE(yellow): power supply PoE |
| PoE switch power | 96W max 30W/port |
| Protection | 6kV surge protection |

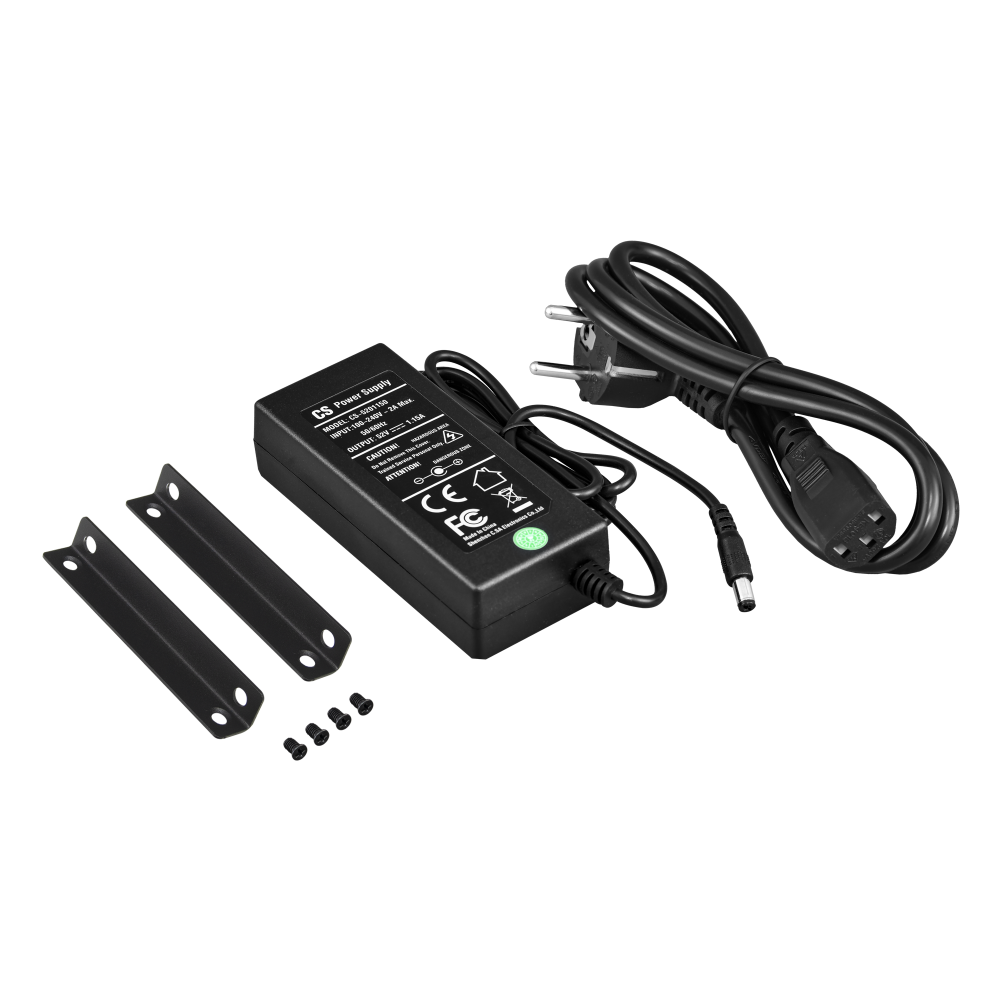

| Power supply | 52V DC 1.85A |
| Working environment | 0°C~+40°C max 90% RH |
| Weight | 0.8 kg |
| Casing | Desktop |
| Dimensions (W×D×H) | 184×94×27mm |
Warning: This product belongs to the BCS BASIC product line.
Use only components and devices from the same line to ensure compatibility.
BCS BASIC

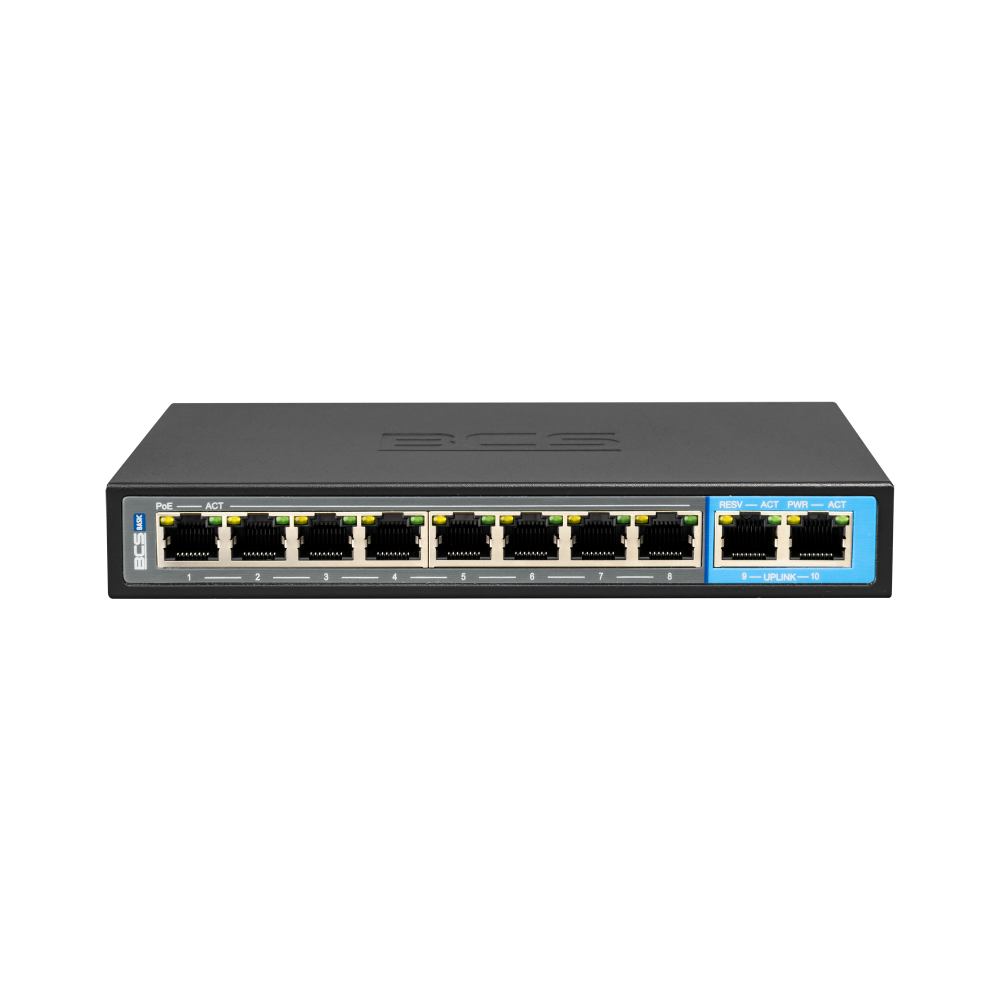

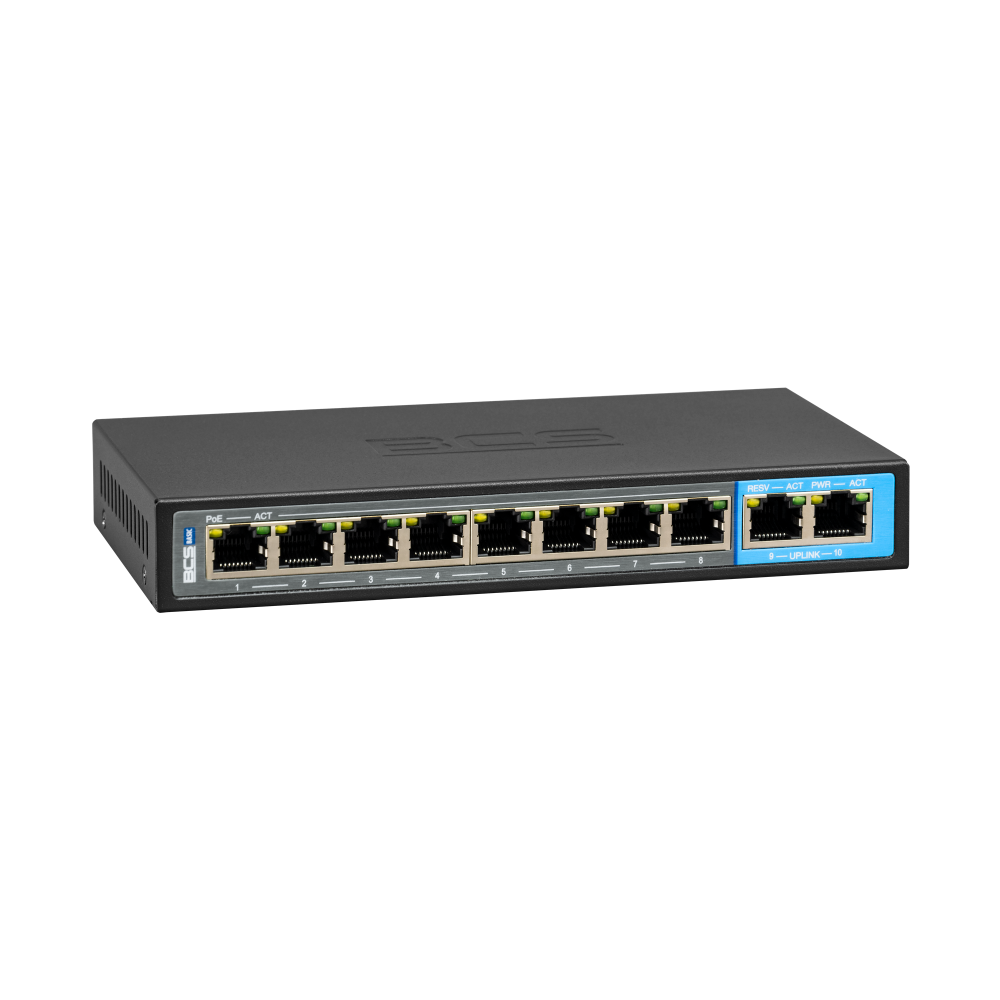

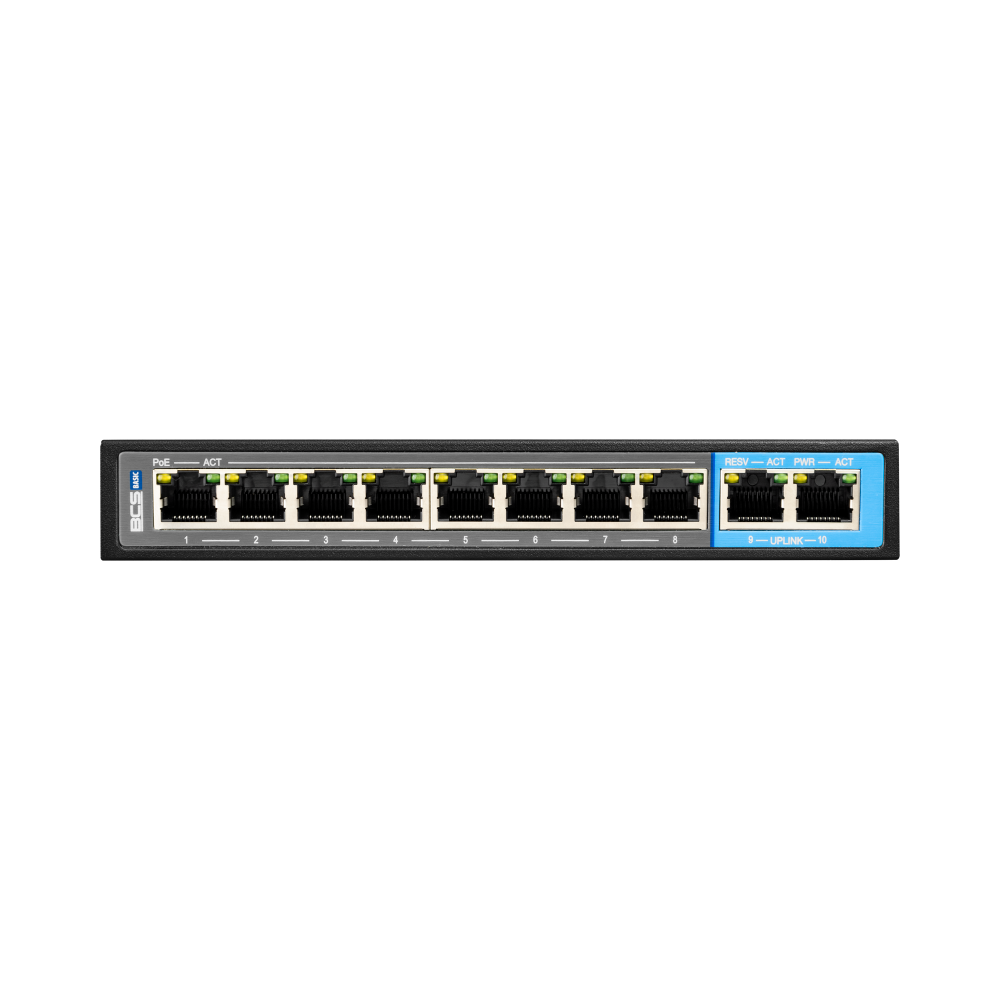

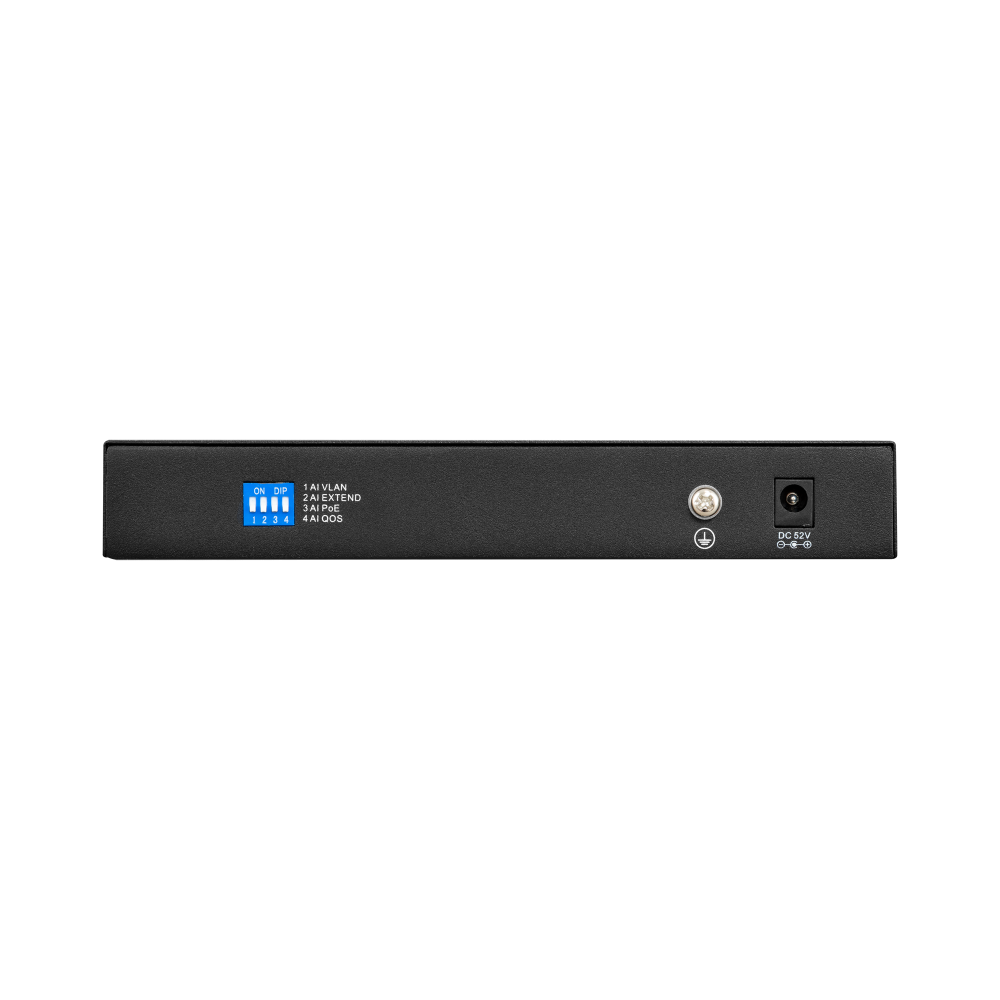

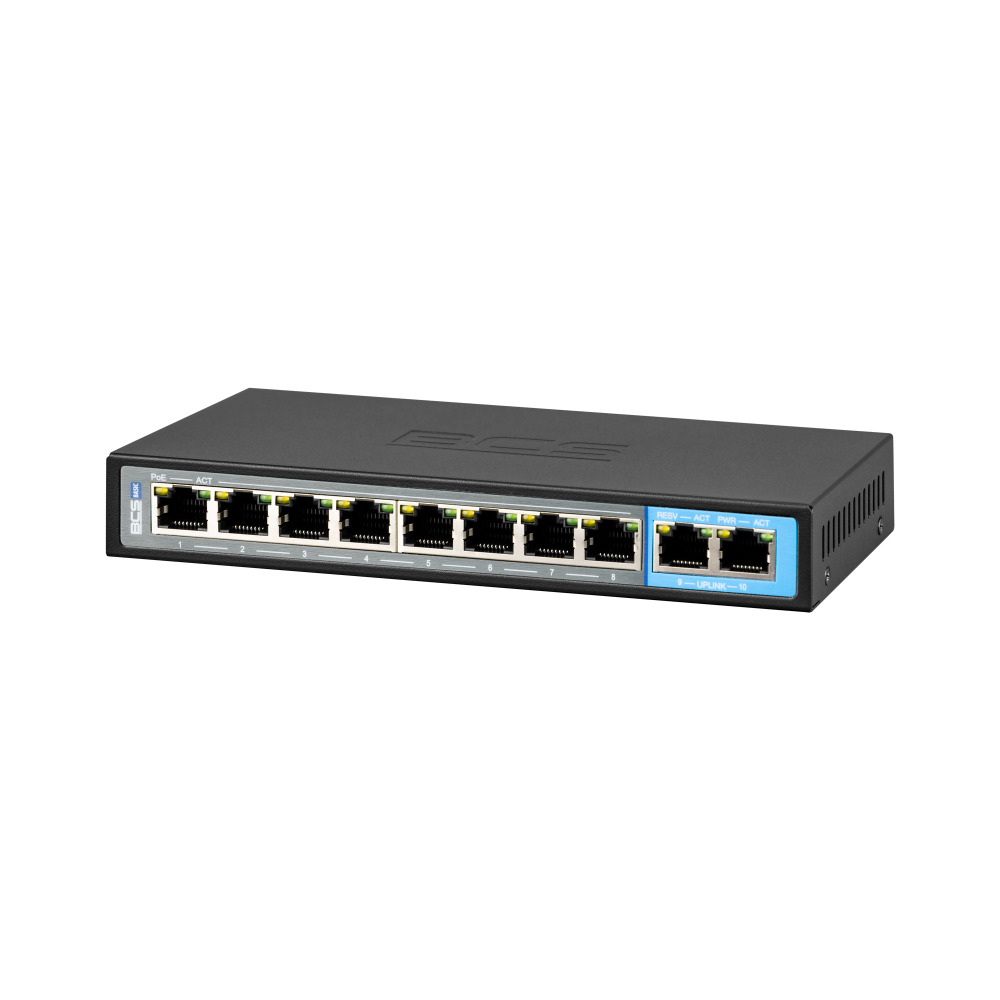

BCS-B-SP0802G
76,26 € gross
100 In Stock8-port PoE switch
- exPoE technology
- 8xPoE 100Mbps af/at
- 2xRJ45 1Gbps uplink
- Total power: 96W
- modes: standard/VLAN/extend/QoS/PoE
100 in stock
