Warning: This product belongs to the BCS BASIC product line.
Use only components and devices from the same line to ensure compatibility.

BCS-B-SP08G-2SFP
BCS-B-SP08G-2SFP - Image 2
BCS-B-SP08G-2SFP - Image 3
BCS-B-SP08G-2SFP - Image 4
BCS-B-SP08G-2SFP - Image 5
BCS-B-SP08G-2SFP - Image 6
BCS BASIC

BCS-B-SP08G-2SFP

151,29 € gross

100 In Stock
  • 8-port PoE switch
  • exPoE technology
  • 8xPoE 1Gbps af/at
  • 2x 1Gbps SFP uplinks
  • Total power: 96W
  • modes: standard/VLAN/extend/QoS/PoE

100 in stock

  • DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
  • Official BCS e-commerce Business Partner
  • Technical support
SKU: 8990 Categories: ,

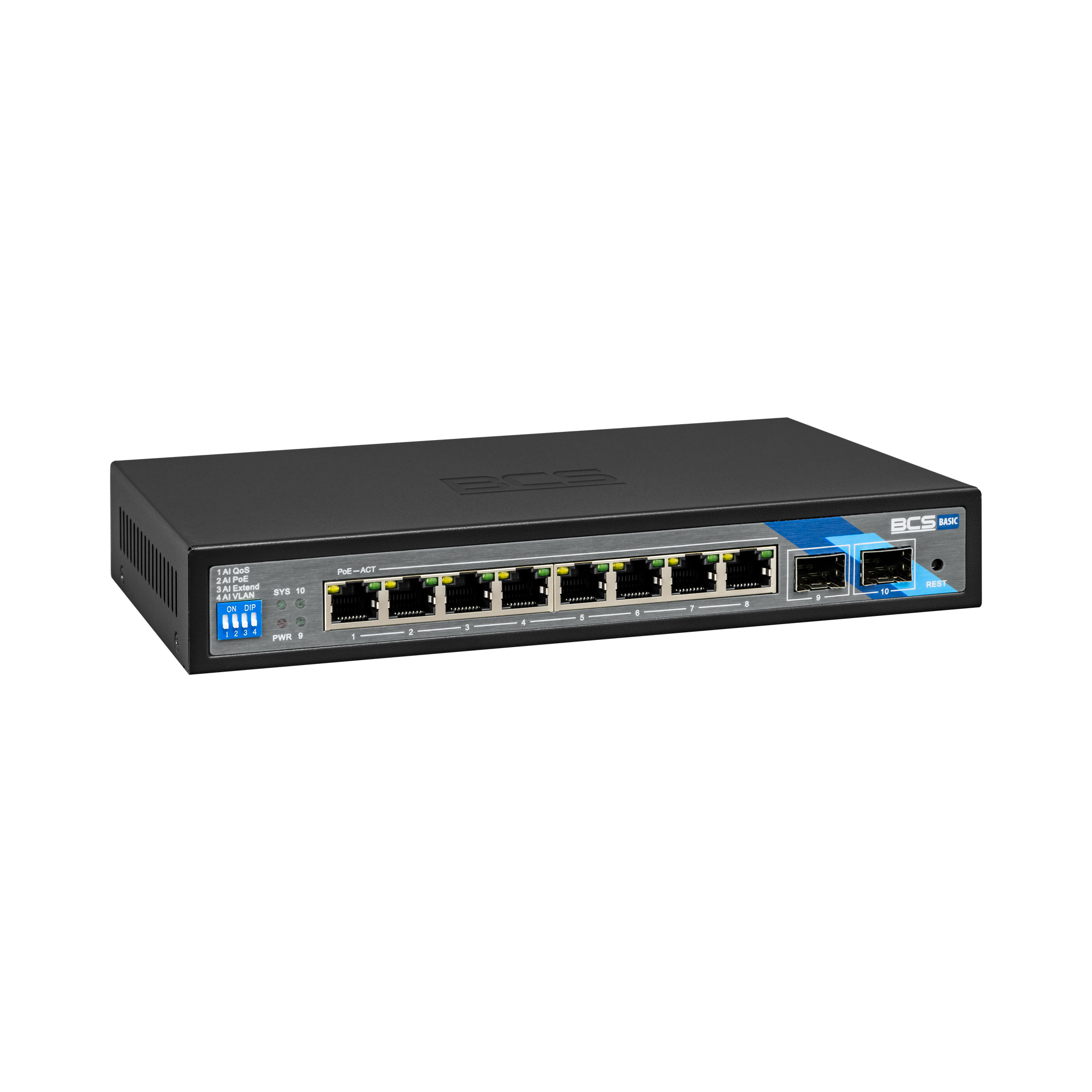

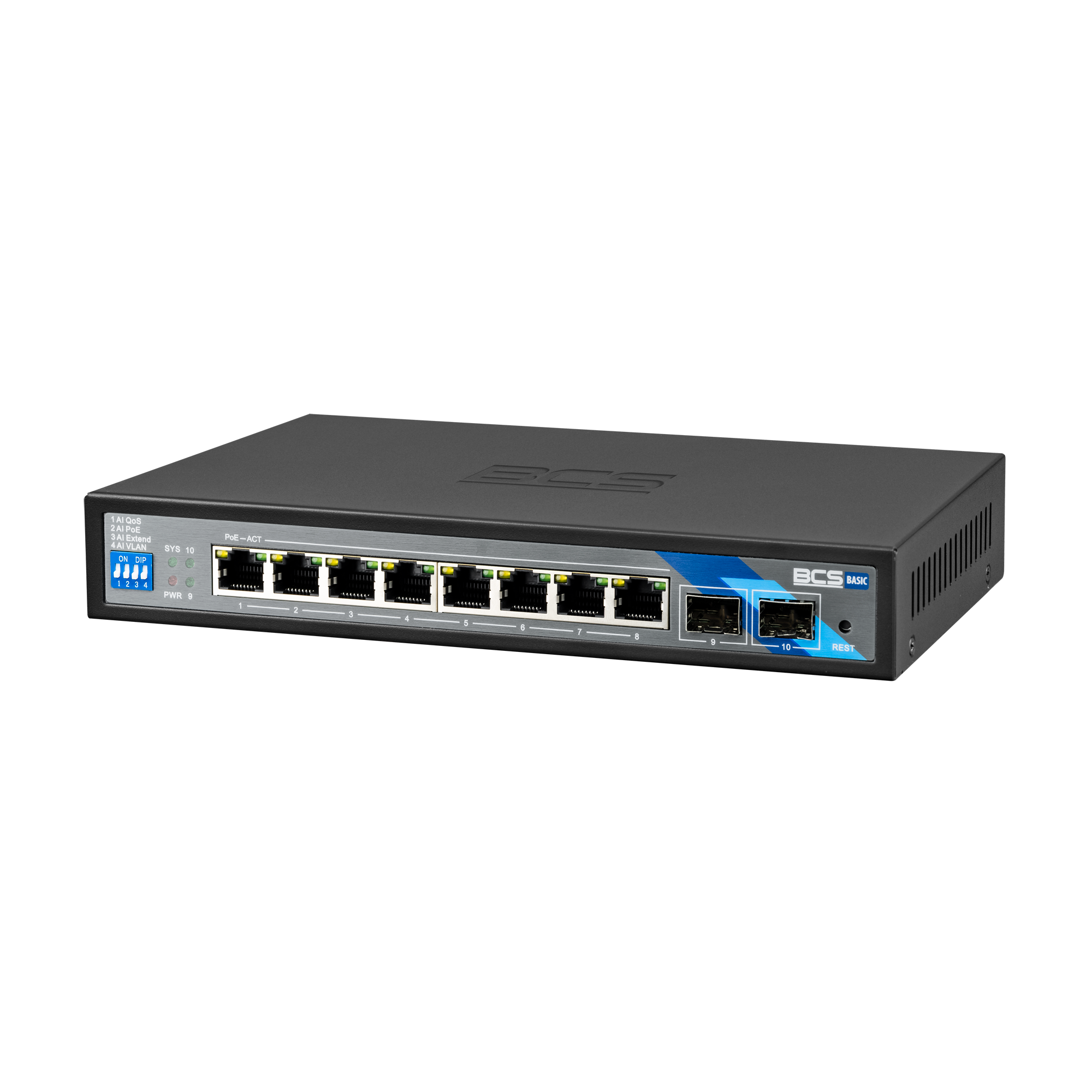

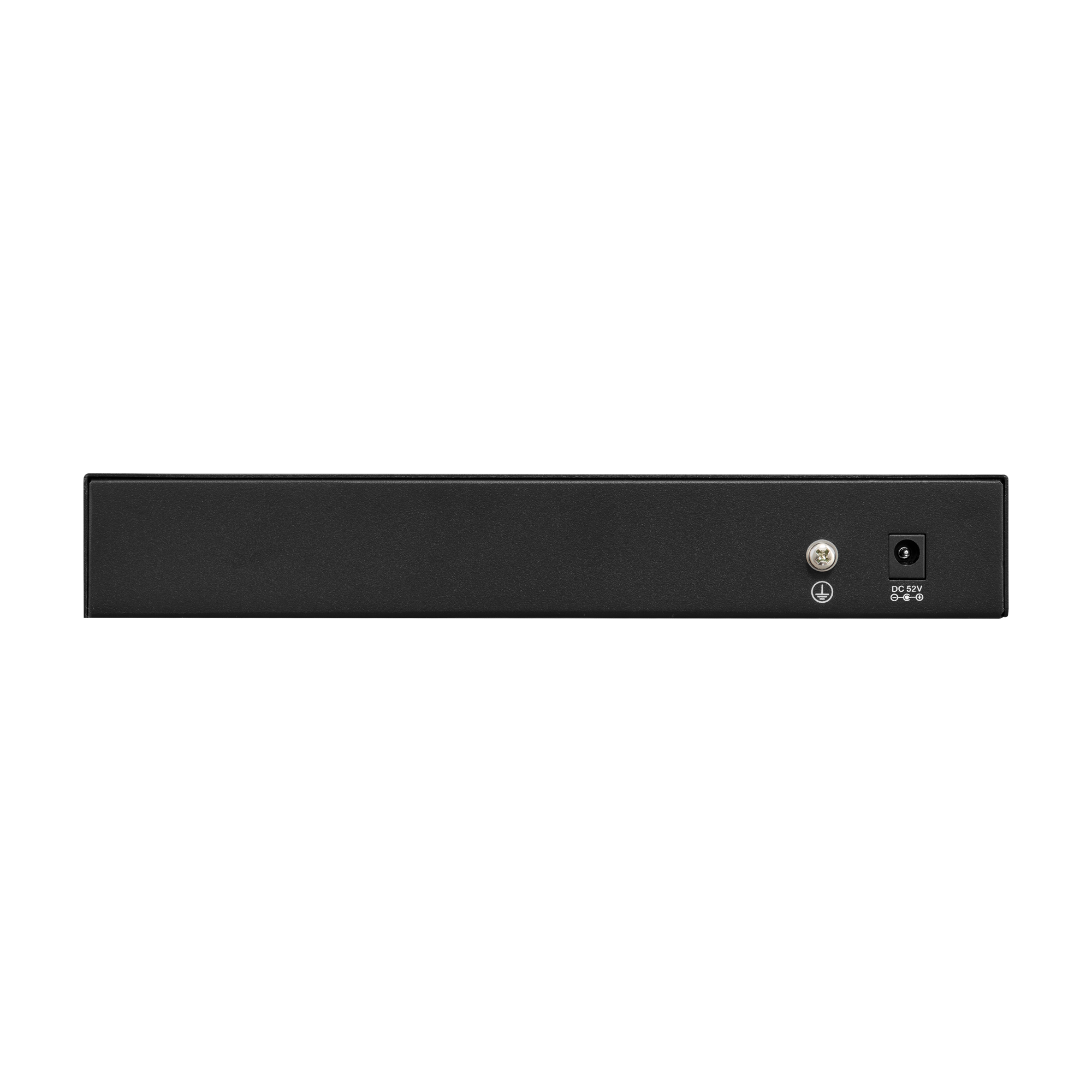

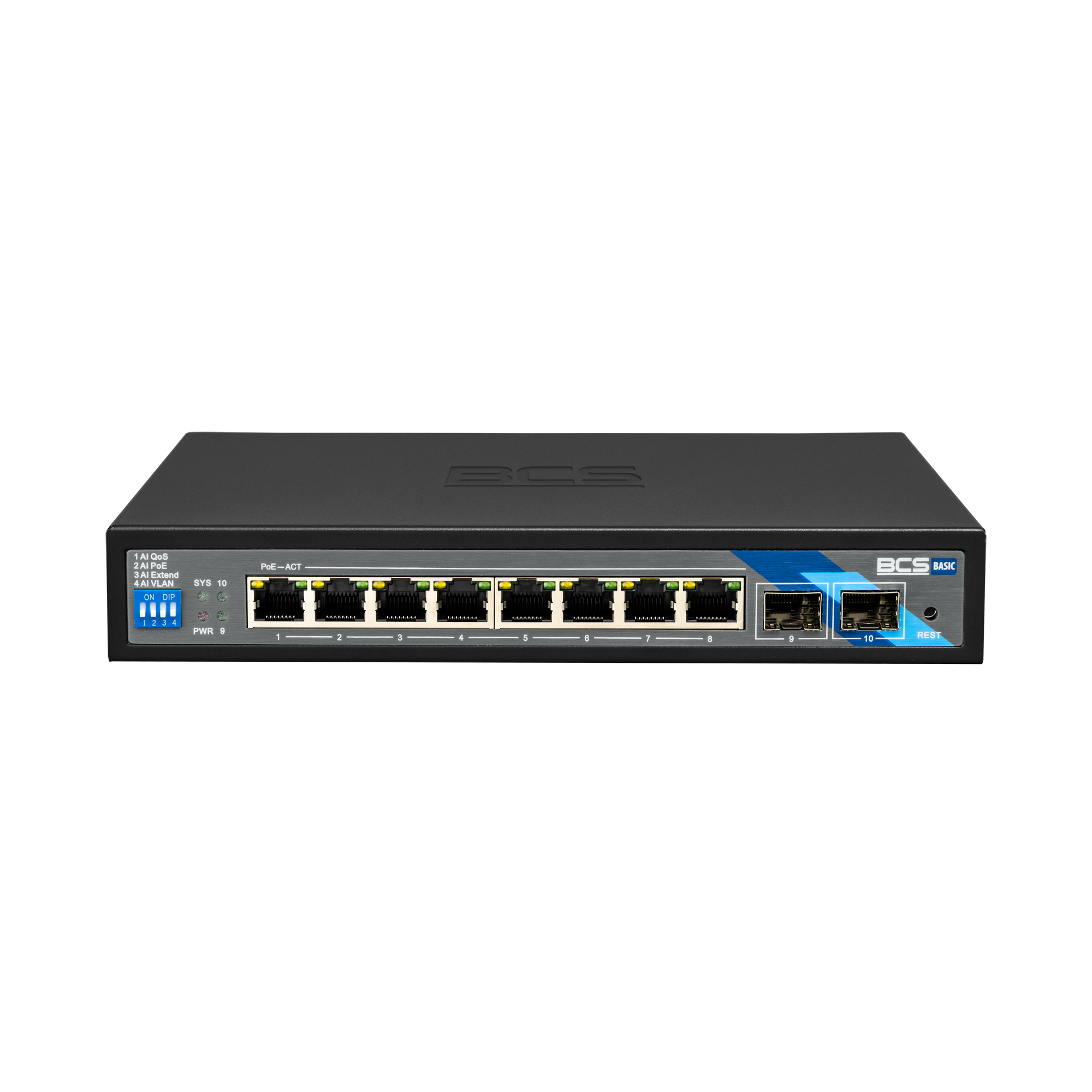

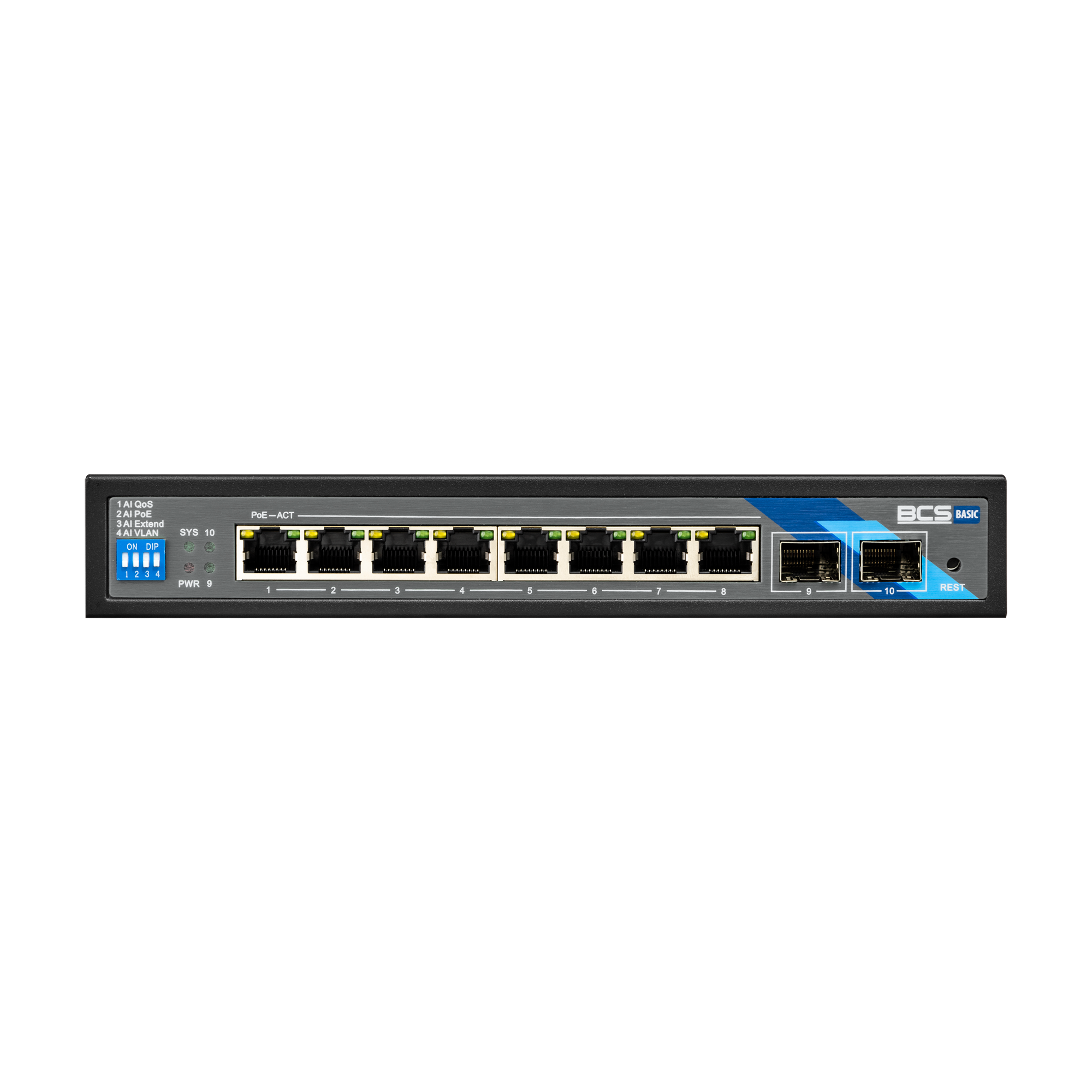

8-port switch (8 × PoE) 1000Mbps + 2 × Gigabit SFP with 4 operating modes

Product

BCS-B-SP08G-2SFP
PoE ports

8×RJ45 1Gbps
Uplink ports

2×SFP 1Gbps
Standard IEEE

802.3af / 802.3at
Transfer

10/100/1000Mbps half-duplex, full-duplex, auto-negotiation, auto MDI/MDIX
Packet forwarding rate

14.8Mpps
Capacity

20Gbps
STANDARD mode

100m
VLAN mode

VLAN mode ports 1-8 isolated
EXTEND mode

EXTEND mode ports 1-8 support transmission 250m 10Mbps (cat5e, cat6)
QoS mode

QOS Quality Of Service – priority video pockets
PoE mode

Monitoring ports supply PoE devices and automatic restart with power supply cut when not responding
PoE pin

1,2(+), 3,6(-)
LED status

PWR(red): power supply connected, LINK/ACT(green): device connected, PoE(yellow): device powered from PoE
PoE switch power

96W max 30W/port

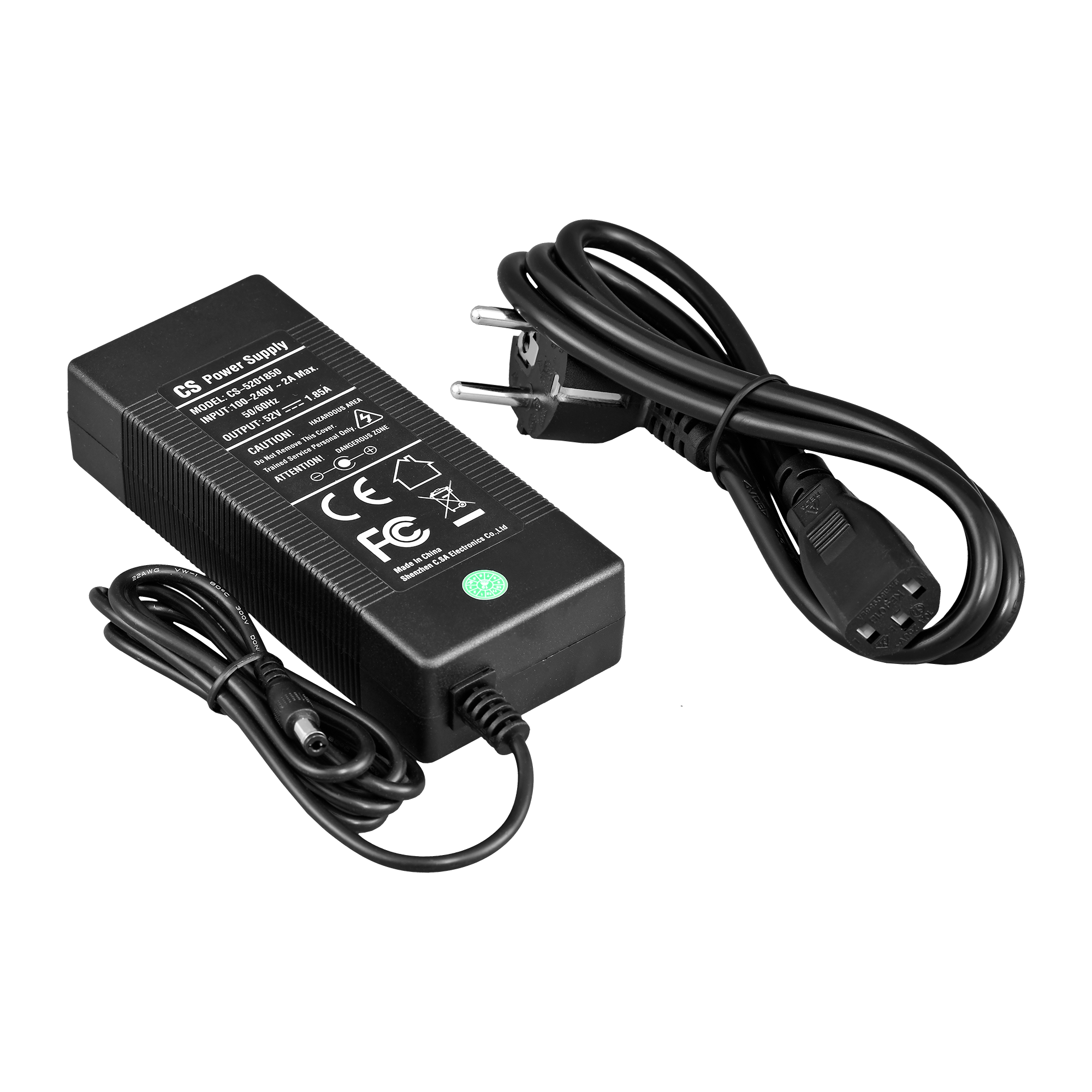

Power supply

52V DC 1.85A
Working environment

0°C~+40°C max 90% RH
Weight

0.8 kg
Casing

Desktop
Dimensions (W×D×H)

225×120×35mm
