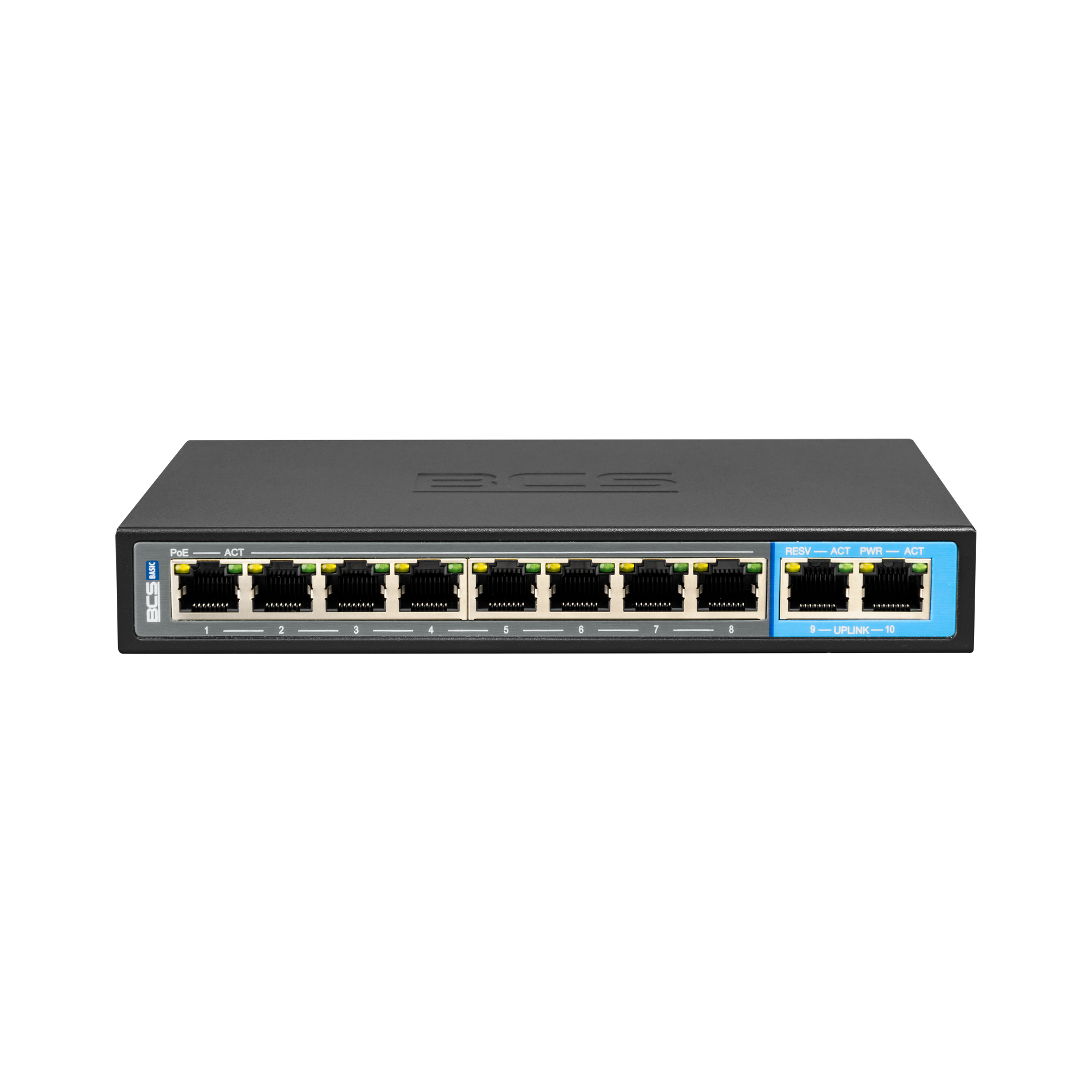

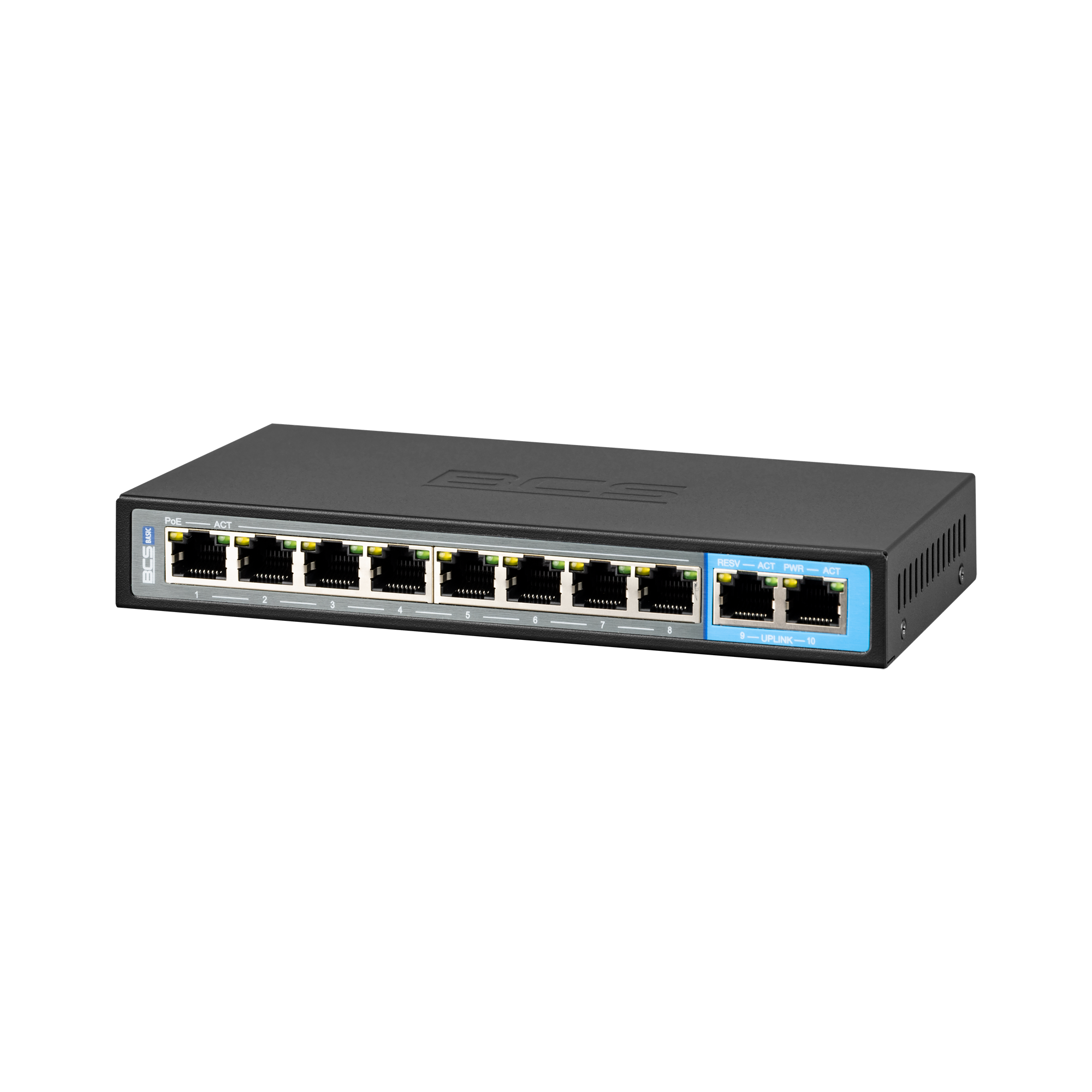

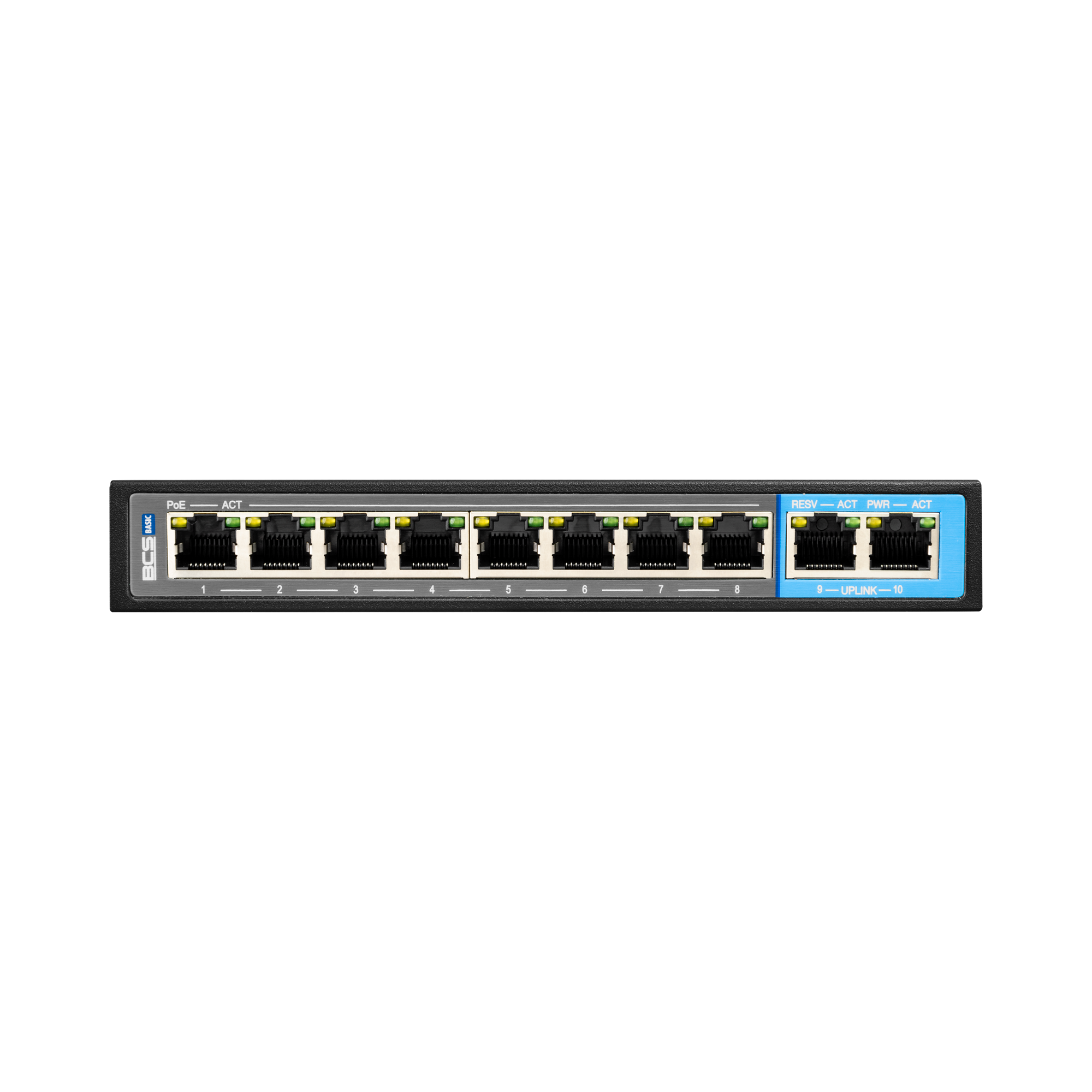

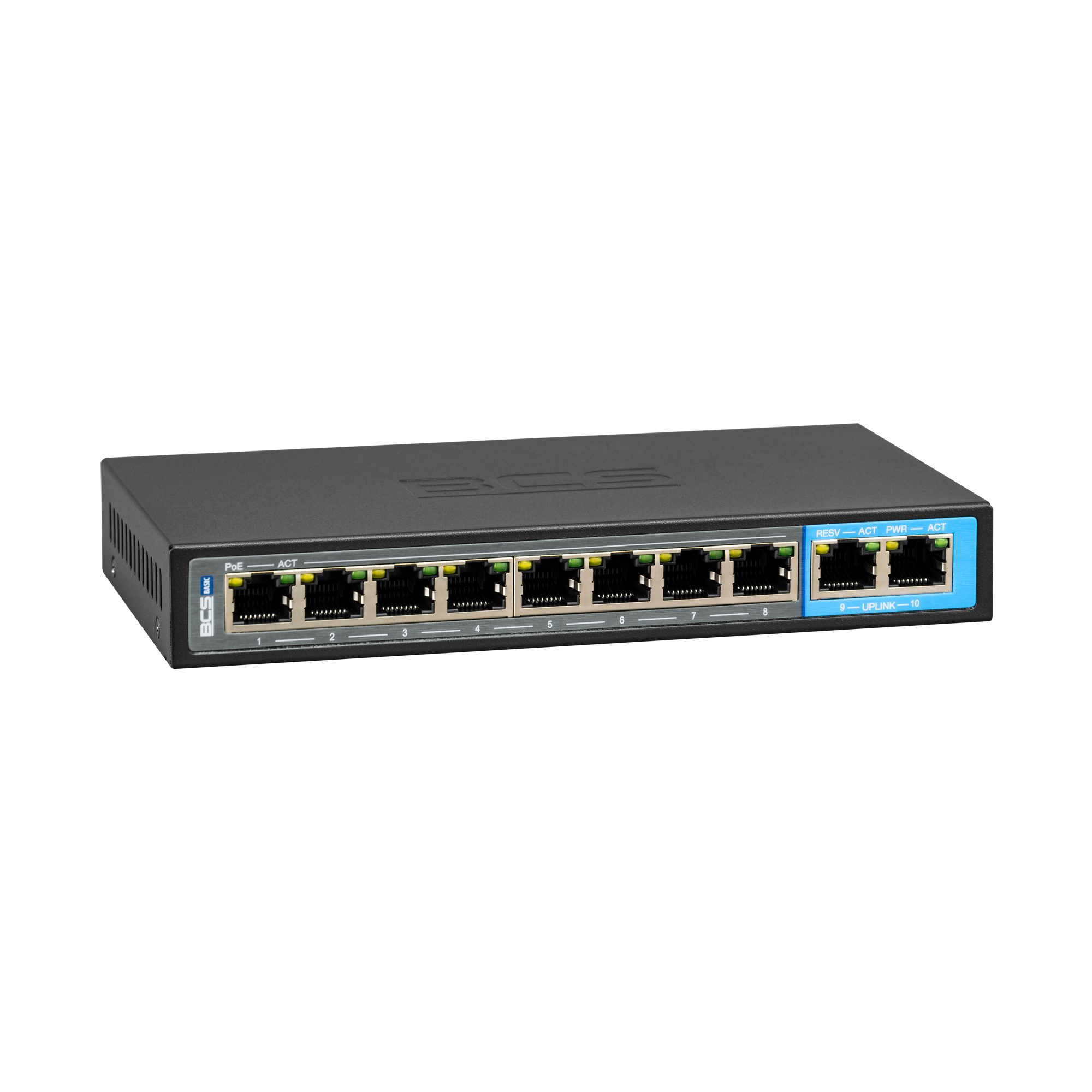

10-port Gigabit switch (8 × PoE) with 4 operating modes
Warning: This product belongs to the BCS BASIC product line.
Use only components and devices from the same line to ensure compatibility.
Save 37%
BCS BASIC
BCS-B-SP08G02G
65,58 € gross
100 In Stock8-port PoE switch
- exPoE technology
- 8xPoE 1Gbps af/at
- 2xRJ45 1Gbps uplink
- Total power 96W

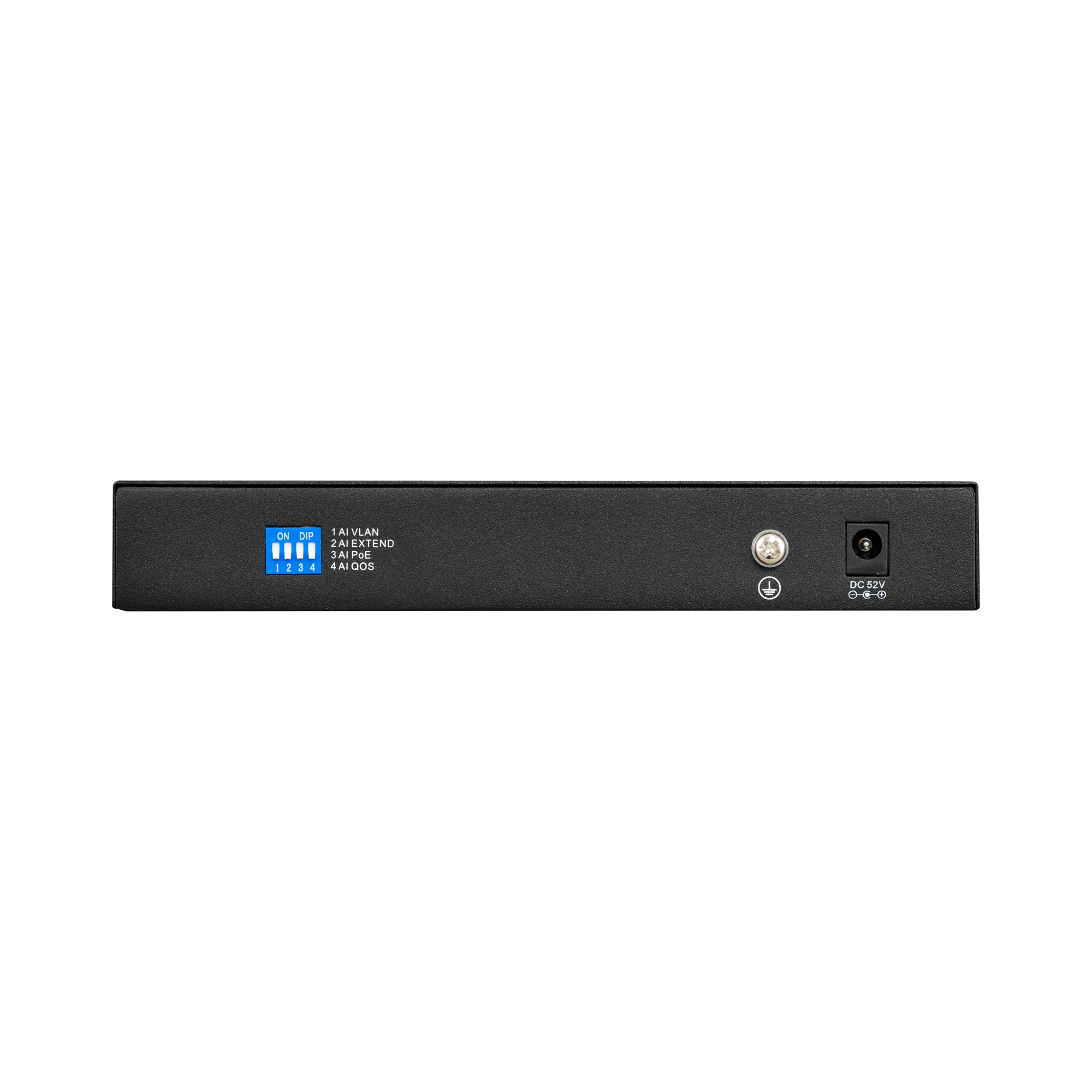

- modes: standard/VLAN/extend/QoS/PoE
100 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
| Flag | PROMOTION |
|---|---|
| Product | BCS-B-SP08G02G |
| PoE ports | 8×RJ45 1Gbps |
| Uplink ports | 2×RJ45 1Gbps |
| Standard IEEE | 802.3af / 802.3at |
| Transfer | 10/100/1000Mbps half-duplex, full-duplex, auto-negotiation, auto MDI/MDIX |
| Packet forwarding rate | 14.8Mpps |
| Capacity | 20Gbps |
| STANDARD mode | 100m |
| VLAN mode | VLAN mode ports 1-8 isolated |
| EXTEND mode | EXTEND mode ports 1-8 support transmission 250m 10Mbps (cat5e, cat6) |
| QoS mode | QOS Quality Of Service – priority video pockets |
| PoE mode | Monitoring ports supply PoE devices and automatic restart with power supply cut when not responding |
| PoE pin | 1,2(+), 3,6(-) |
| LED status | PWR(yellow): power supply connected, LINK/ACT(green): device connected, PoE(yellow): power supply PoE |
| PoE switch power | 96W max 30W/port |

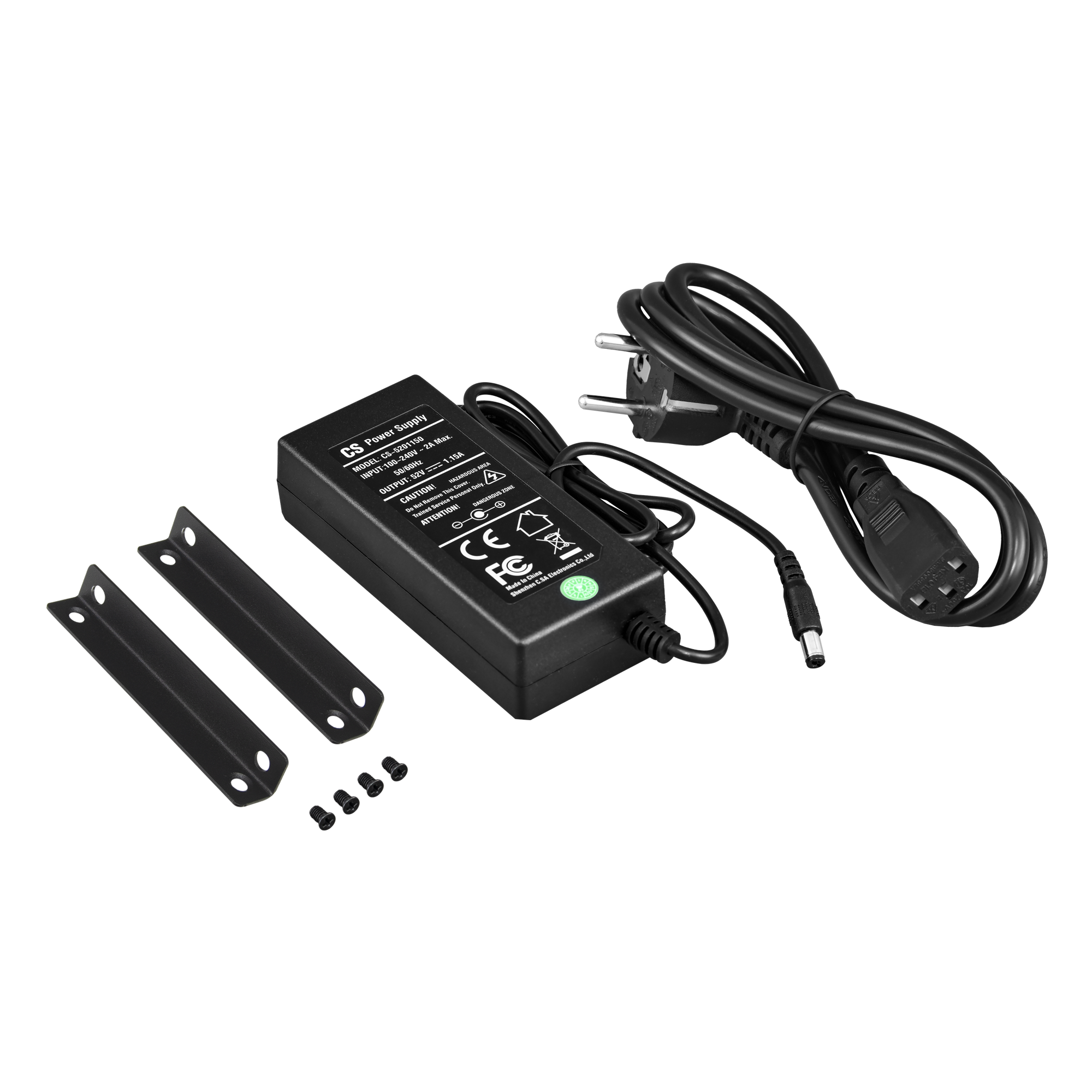

| Power supply | 52V DC 1.85A |
| Working environment | 0°C~+40°C max 90% RH |
| Weight | 0.8 kg |
| Casing | Desktop |
| Dimensions (W×D×H) | 184×94×27mm |
