BCS — Est. 2008 Decades of expertise A diverse portfolio developed across Europe

Warning: This product belongs to the BCS BASIC product line.
Use only components and devices from the same line to ensure compatibility.

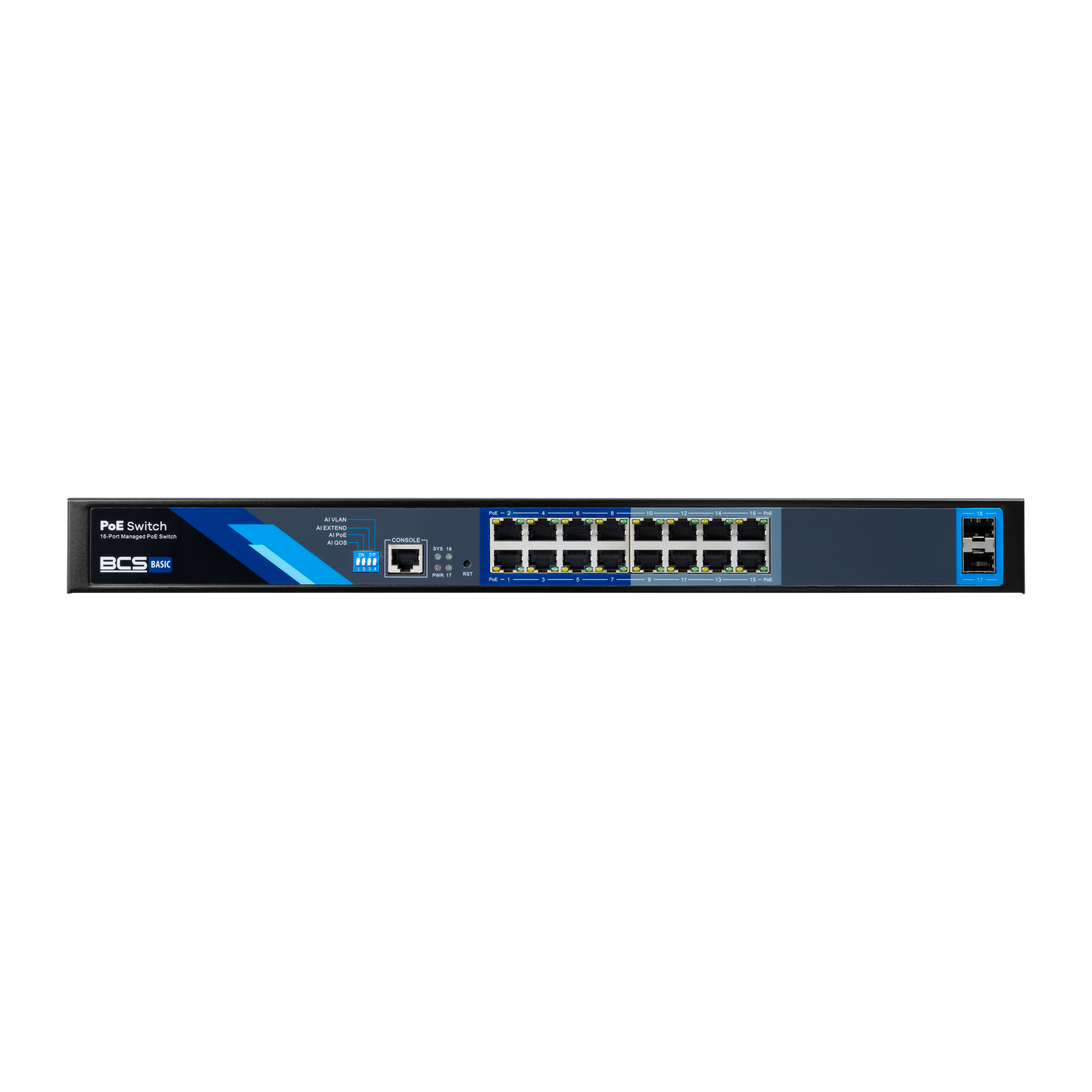

BCS-B-SP16G-2SFP-M

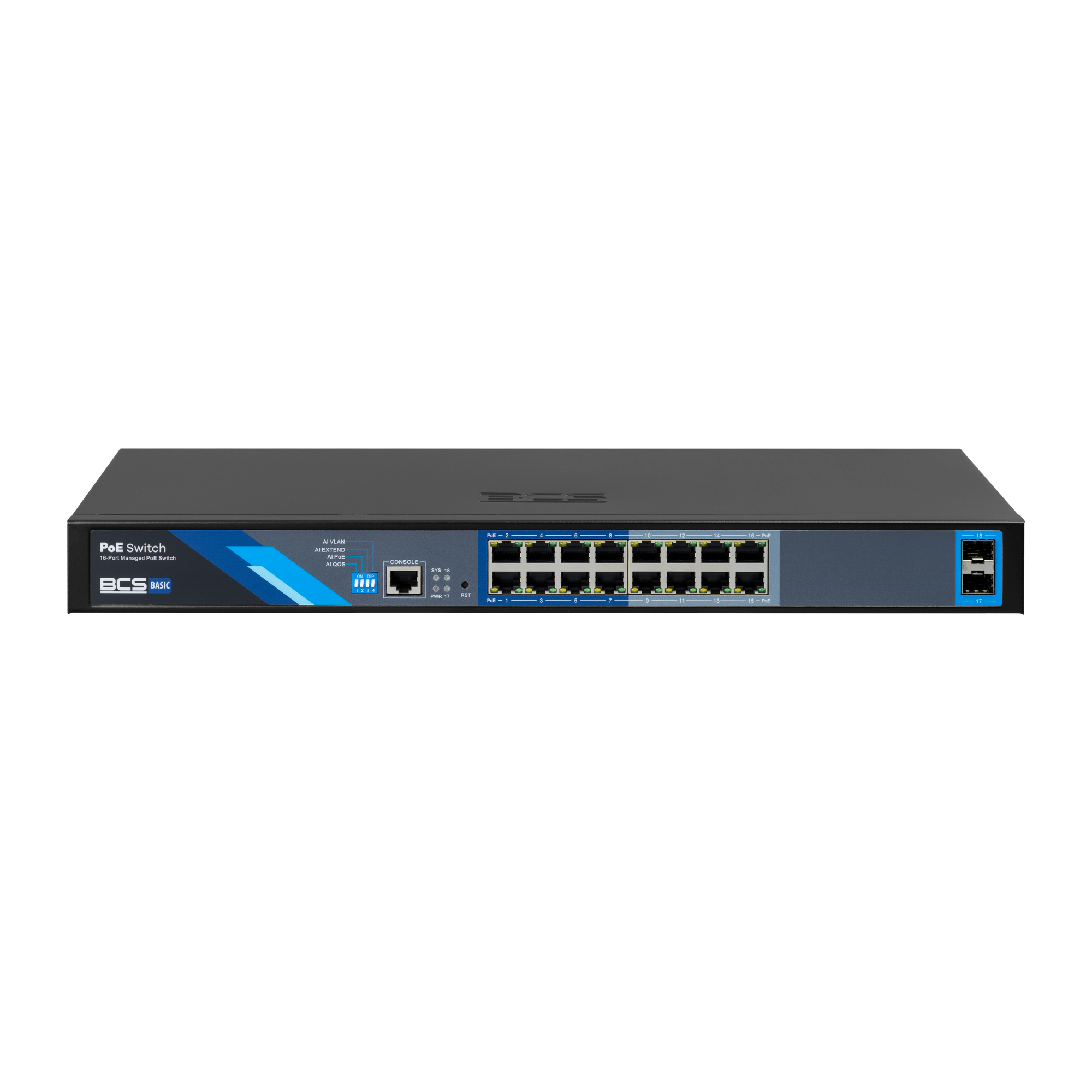

BCS-B-SP16G-2SFP-M - Image 2

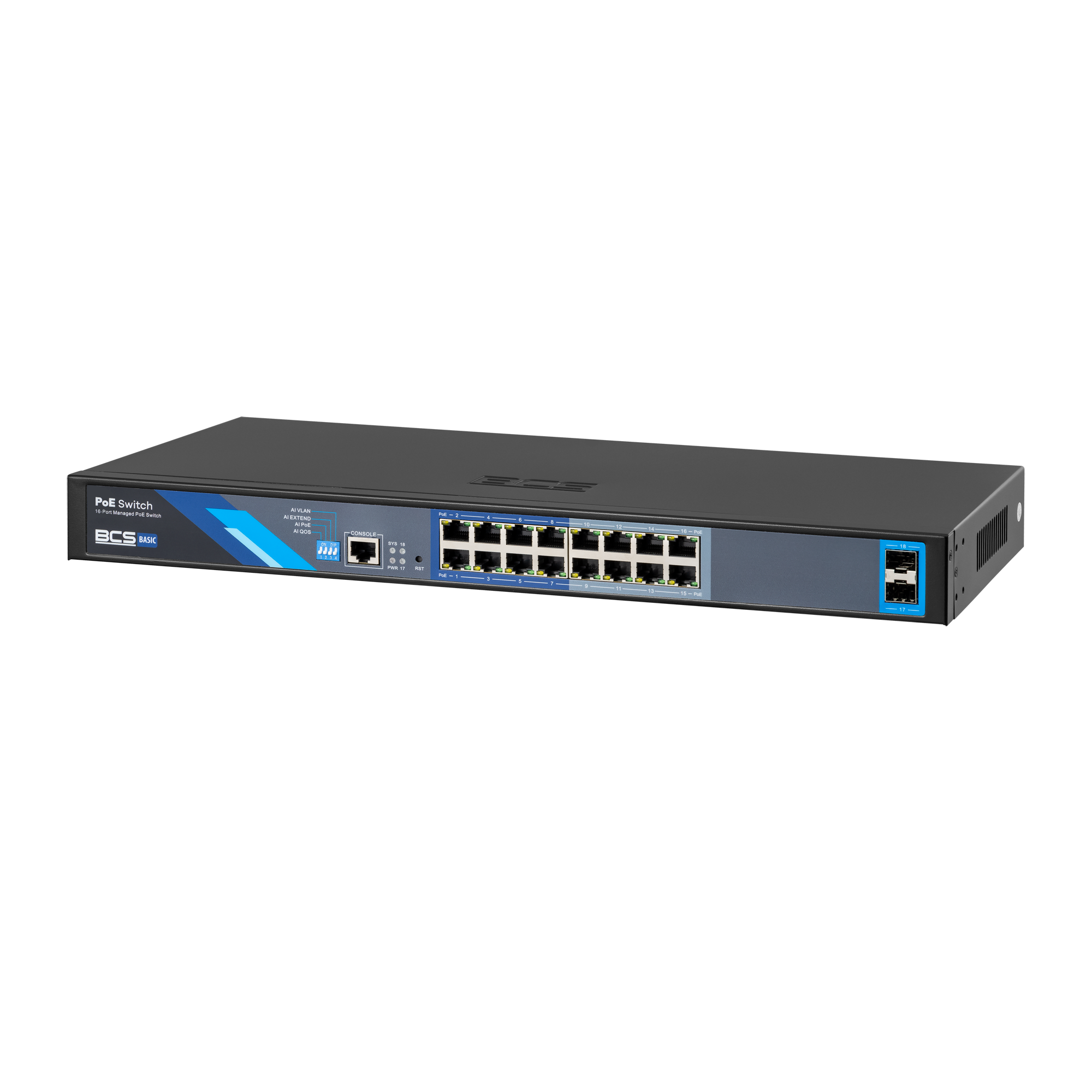

BCS-B-SP16G-2SFP-M - Image 3

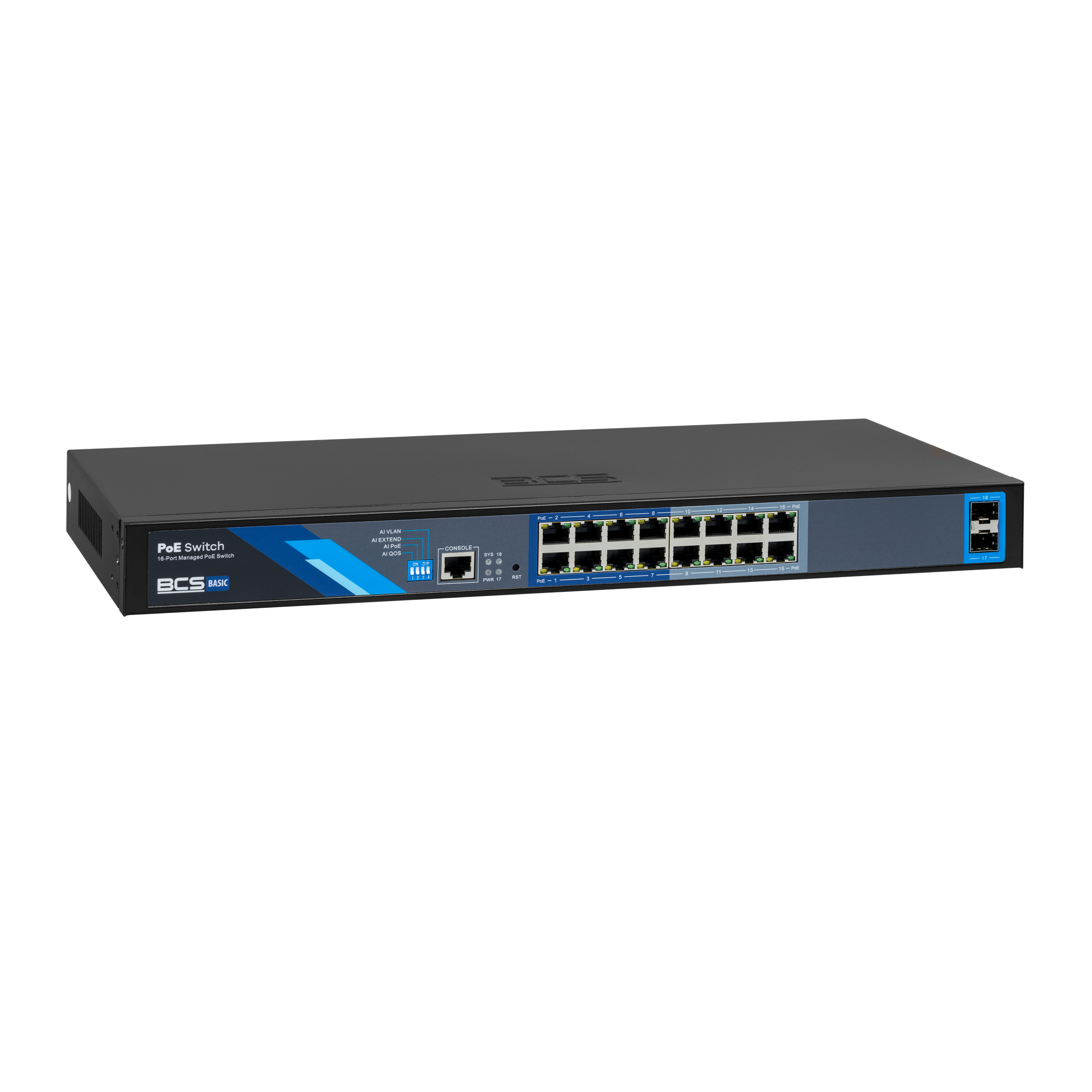

BCS-B-SP16G-2SFP-M - Image 4

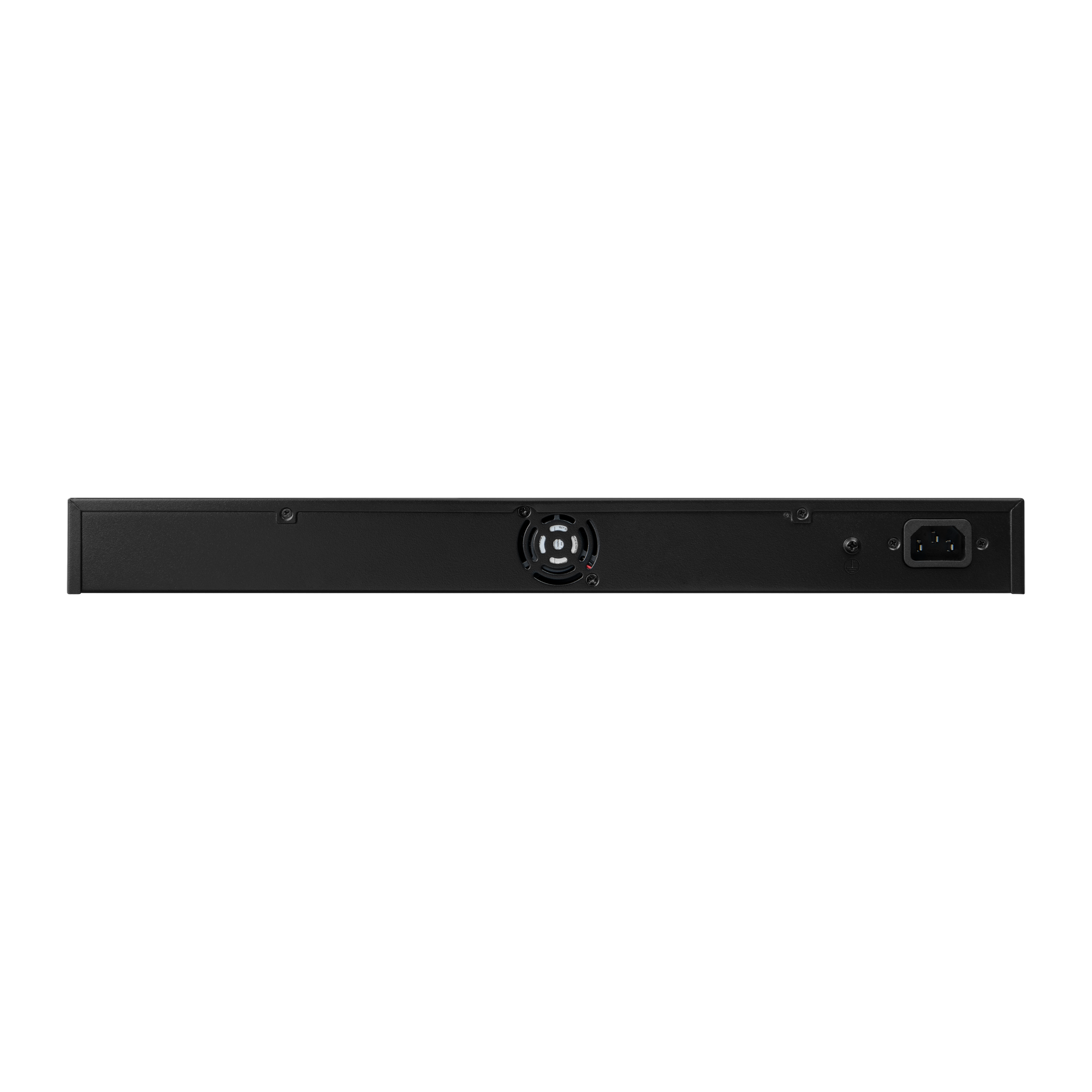

BCS-B-SP16G-2SFP-M - Image 5

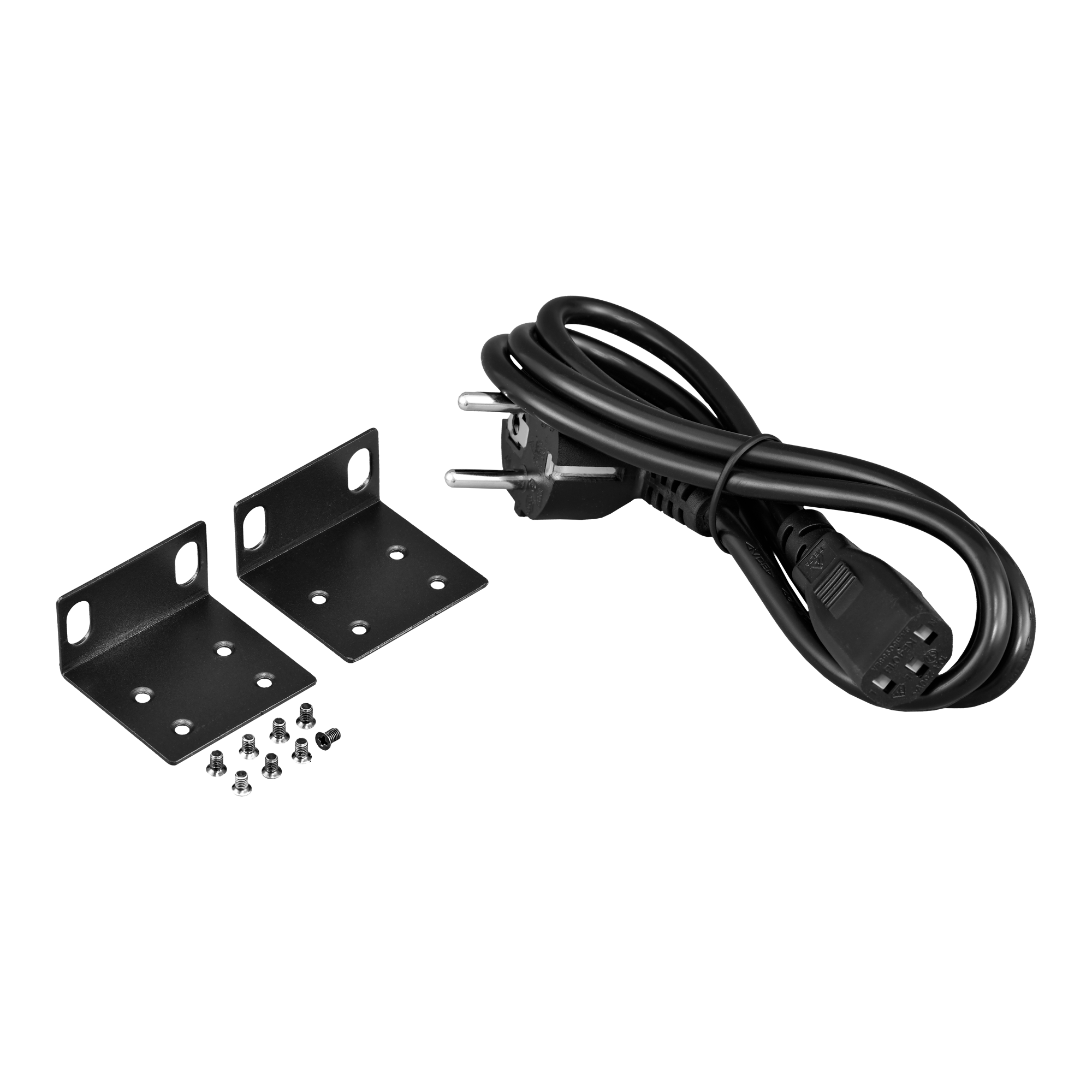

BCS-B-SP16G-2SFP-M - Image 6
BCS BASIC

BCS-B-SP16G-2SFP-M

309,96 € gross

100 In Stock
16-port managed PoE switch

  • exPoE technology
  • 16x 1Gbps PoE (af/at)
  • 2x 1Gbps SFP uplinks
  • Total power 150W
  • Modes: standard/VLAN/extend/QoS/PoE

100 in stock

  • DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
  • Official BCS e-commerce Business Partner
  • Technical support
SKU: 10759 Categories: ,

18-port PoE managed switch, 4 operating modes: AI VLAN, AI EXTEND, AI PoE, AI QoS, IEEE802.3 af / at standard, maximum power up to 30W for a single PoE port, 16 PoE 1000Mbps ports, 2 RJ45 Gigabit uplink ports, 2 Gigabit SFP fiber ports, RJ45 management console port. Built-in web-service MDI / MDIX function; Transmission up to 250m; VLAN function; Reset button; Metal housing; Can be installed in a RACK 1U cabinet; Cooling fan inside the case; 100 ~ 240V AC power supply.

Product

BCS-B-SP16G-2SFP-M
PoE ports

16×RJ45 1Gbps
Uplink ports

2×SFP 1Gbps
Managed

Yes
Management port

1×RJ45
Management functions
Standard IEEE

802.3af / 802.3at
Transfer

10/100/1000Mbps half-duplex, full-duplex, auto-negotiation, auto MDI/MDIX
Packet forwarding rate

23.8Mpps
Capacity

36Gbps
STANDARD mode

100m
VLAN mode

VLAN mode ports 1-16 isolated
EXTEND mode

EXTEND mode ports 1-8 support transmission 250m 10Mbps (cat5e, cat6)
QoS mode

QOS Quality Of Service – priority video pockets
PoE mode

Monitoring ports supply PoE devices and automatic restart with power supply cut when not responding
PoE pin

1,2(+), 3,6(-)
LED status

PWR(red): power supply connected, LINK/ACT(green): device connected, PoE(yellow): device powered from PoE, SYS(green blink): System status
PoE switch power

150W max 46W/port
Power supply

100~240V AC
Working environment

0°C~+40°C max 90% RH
Weight

2 kg
Casing

1U
Dimensions (W×D×H)

440×180×44mm
