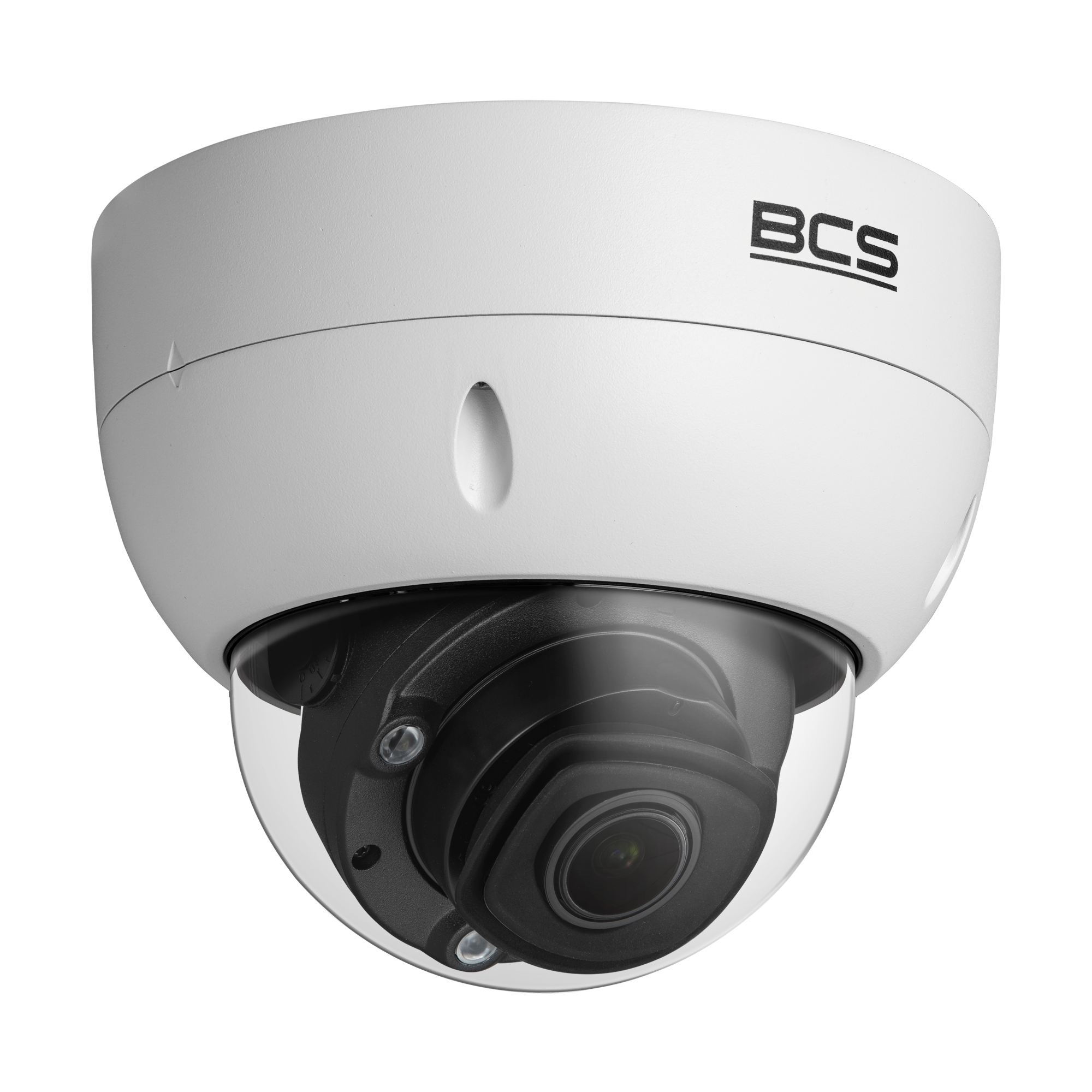

12Mpx dome IP camera, BCS Line series, with 1/1.7″ CMOS sensor and 2.7 ~ 12mm motozoom lens, DWDR, Infrared illuminator – 40m, 3/2 alarm, 1/1 audio, smart functions, built-in 256GB microSD memory card slot, white housing IK10, IP67, power supply: 12V DC, 24V AC. Dimensions: Ø157.9 x 129.1mm.
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE
BCS-DMIP91200IR-AI
1298,88 € gross
Out of Stock- 12Mpx dome IP camera
- 1/1.7" PS CMOS sensor
- SkyLight technology
- exPoE technology
- 2.7–12 mm motorised zoom lens
- IR 40m
- Alarm 3/2, audio 1/1
- IP67, IK10 housing
- Built-in smart features
Out of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
| Ai - Human/vehicle detection | Yes |
|---|---|
| Product | BCS-DMIP91200IR-Ai |
| Camera type | Dome |
| Sensor | 1/1.7'' CMOS |
| RAM | 4GB |
| Aperture | F1.8 |
| Digital zoom | 16× |
| S/N ratio | 56dB |
| Ai - Built-in intelligent functions | Yes |
| Gain control | (AGC) Auto / manual |
| Flag | OUTLET |
| Resolution | 12 Mpx |
| Scanning system | Progressive Scan |
| Pixels | 4000(H)×3000(V) |
| ROM | 2GB |
| Lens | motozoom |
| Focal length | 2.7~12 mm |
| Focus | Auto / manual |
| Iris | Auto |
| Optical zoom | 4× |
| Angle of view | H: 103°~44° V: 75°~33° D: 135°~55° |
| DORI | Detect 97~205m / Observe 38~82m / Recognize 19~41m / Identify 9~20m |
| Min illumination | 0.01Lux(F1.8) 0Lux(F1.8,IR) |
| Second stream | 704×576(1~25fps) 704×480(1~30fps) |
| White balance | (AWB) Auto / manual |
| WDR | DWDR |
| Backlight compensation | BLC / HLC / DWDR |
| Shutter | Auto / manual 1/3~1/100000s |
| Noise reduction | 3D DNR |
| Image rotate | Mirror, Flip 0°/90°/180°/270° |
| Stream support | 5 |
| Resolutions | |
| Main stream | 4000×3000(1~25/30fps) |
| Third stream | 1920×1080(1~25/30fps) |
| Fourth stream | 1920×1080(1~25/30fps) |
| Fifth stream | 704×576(1~25fps) 704×480(1~30fps) |
| Bitrate | H.264: 32 kbps~16384 kbps H.265: 32 kbps~14080 kbps |
| Video compression | H.265 / H.265+ / H.264 / H.264+ / MJPEG |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED |
| IR range | 40m |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711Mu / G.723 / G.726 / AAC |
| Alarm in | 3 |
| Alarm out | 2 |
| Memory card slot | microSD 256GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 4 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, 802.1x, SNMP, Bonjour |
| Power supply | PoE |
| Power supply type | 12VDC / 24VAC / PoE(802.3at) / ePoE |
| Power consumption | max 17.9W |
| Housing color | White |
| IP class | IP67 |
| IK10 | Yes |
| Working environment | -40°C~+60°C max 95% RH |
| Dimensions | Ø157.9×129.1mm |
| Weight | 1.5 kg |
| Ai - Perimeter protection | Yes |
| &Ai - Object classification | Yes |
| Ai - Face detection | Yes |
| Ai - Face recognition | Yes |
| Ai - People counting | Yes |
| Ai - Metadata | Yes |
| Ai - ARTR | Yes |
