IP camera power supply kit, for up to 16 PoE devices.

Out of stock

This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.

SKU: 8122 Categories: ,

BCS-IP16Gb / RACK5U

It is a set for powering IP CCTV cameras. The device is a convenient solution to the problem of central powering for monitoring cameras. The device is designed to work with IP cameras and other network devices powered in PoE 802.3at / af and PoE PASSIVE standards.

The device is especially recommended for systems requiring higher network bandwidth, such as 4K Ultra HD CCTV monitoring.

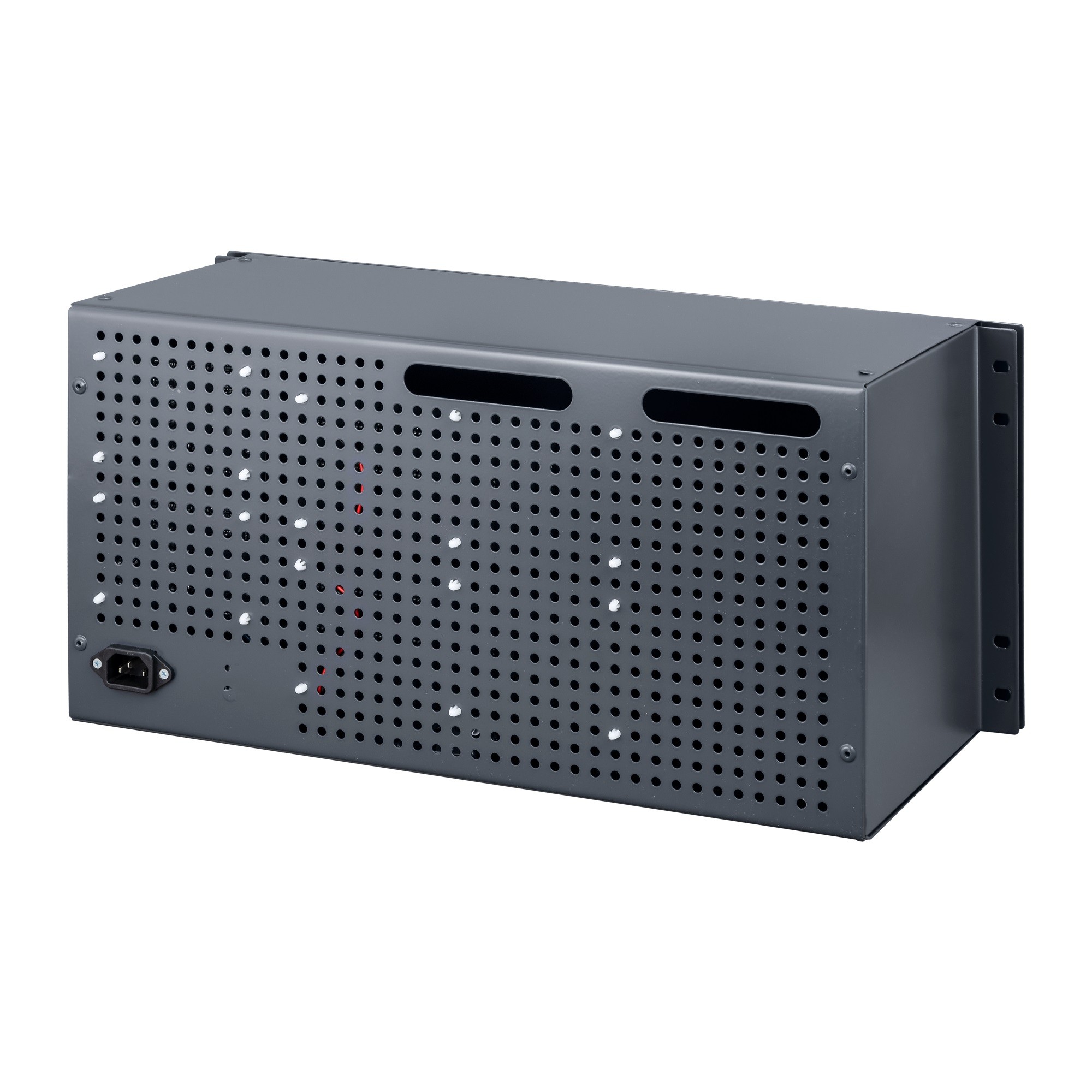

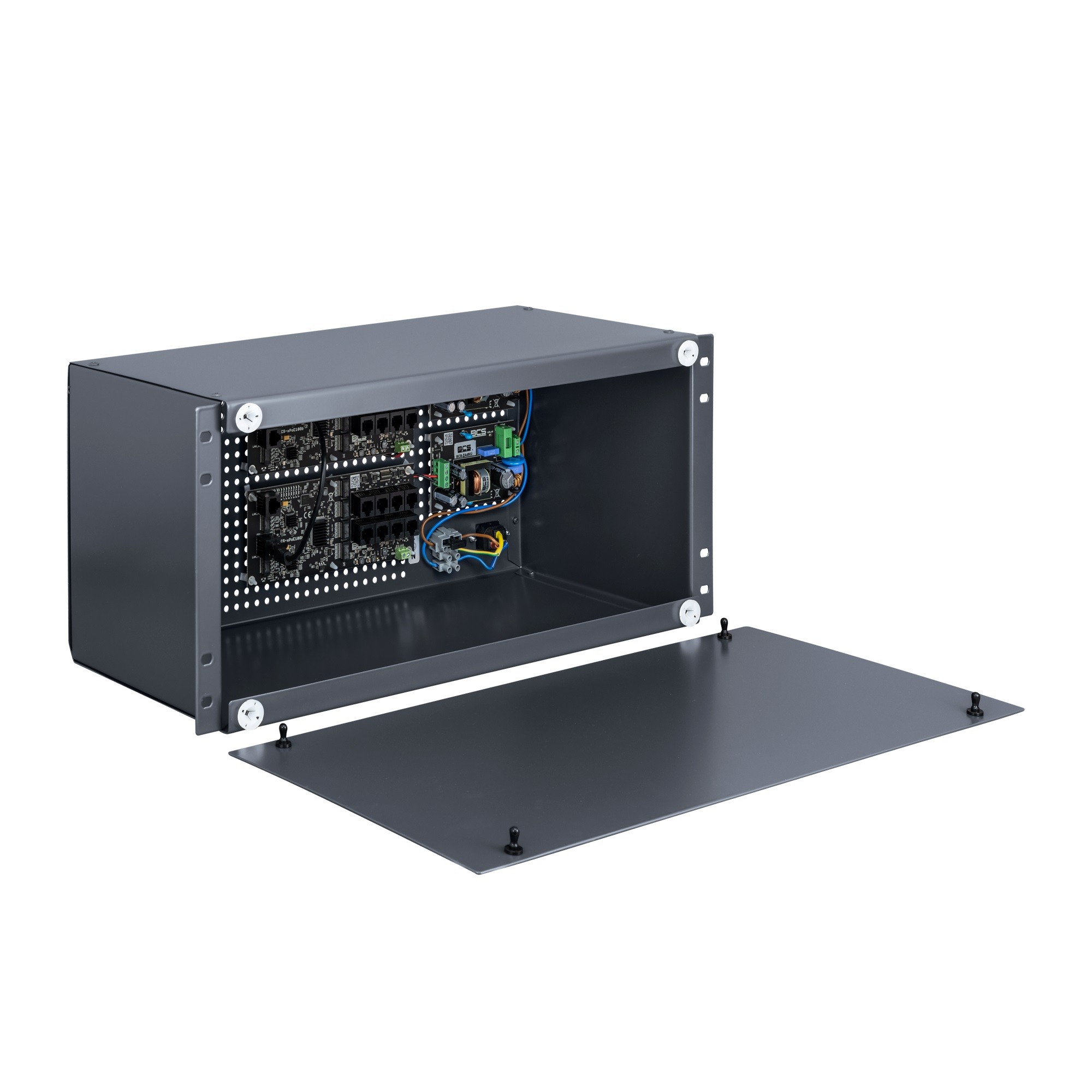

The device is closed in a housing that allows it to be installed in a RACK teletechnical cabinet. A well-thought-out and unique design on the Polish market enables installation in one device housing, together with buffer power supply and batteries. The body is made of steel sheet, and the masking cover is made of light aluminum sheet. Both elements are powder coated in a semi-matte graphite RAL 7024 color.

Flag

TO ORDER

Product

BCS-IP16Gb/RACK5U

PoE ports

16×RJ45 100Mbps

Standard IEEE

802.3af / 802.3at / PoE PASSIVE

STANDARD mode

100m

Adapter power

2×96W

Power supply

V in: 190-260 VAC, 50 Hz V out: 48 VDC +/- 2%

Working environment

-10°C~+40°C max 90% RH

Weight

3.4 kg

Protection level

IP20

Casing
Dimensions (W×D×H)

440×220×180mm
