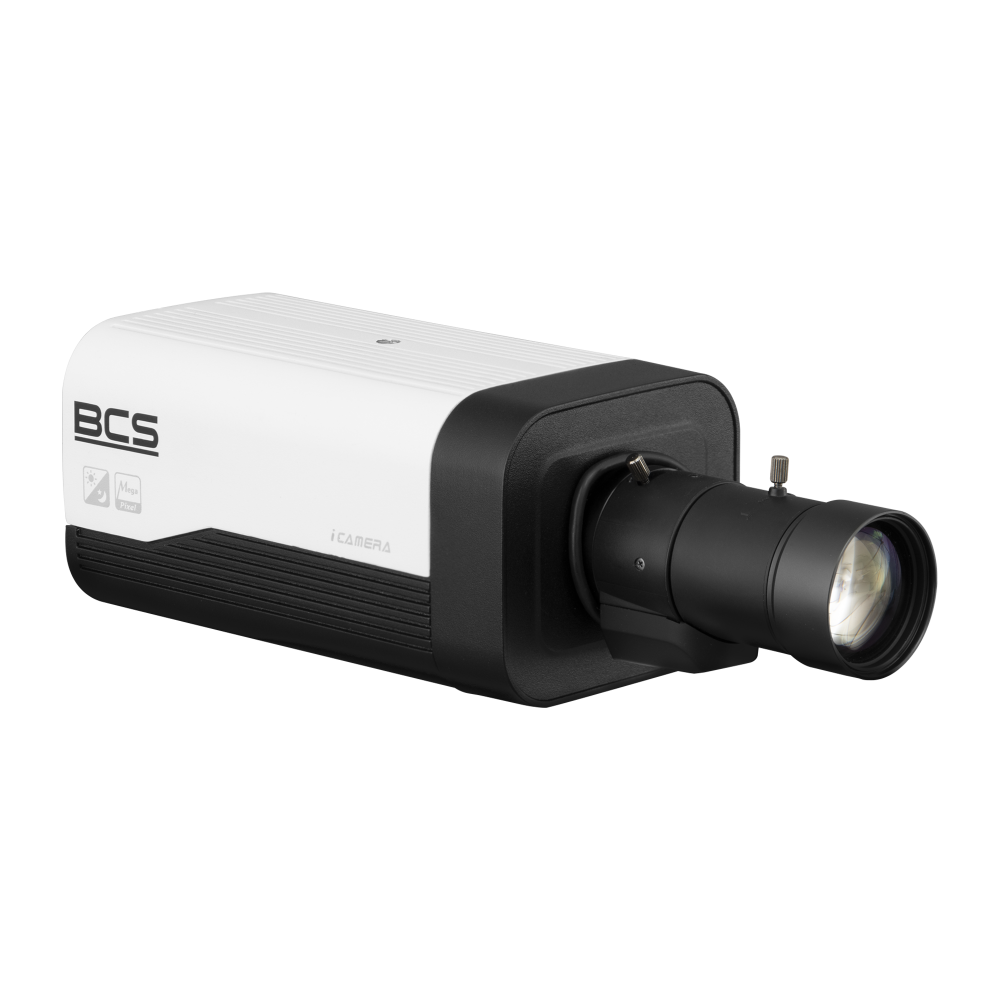

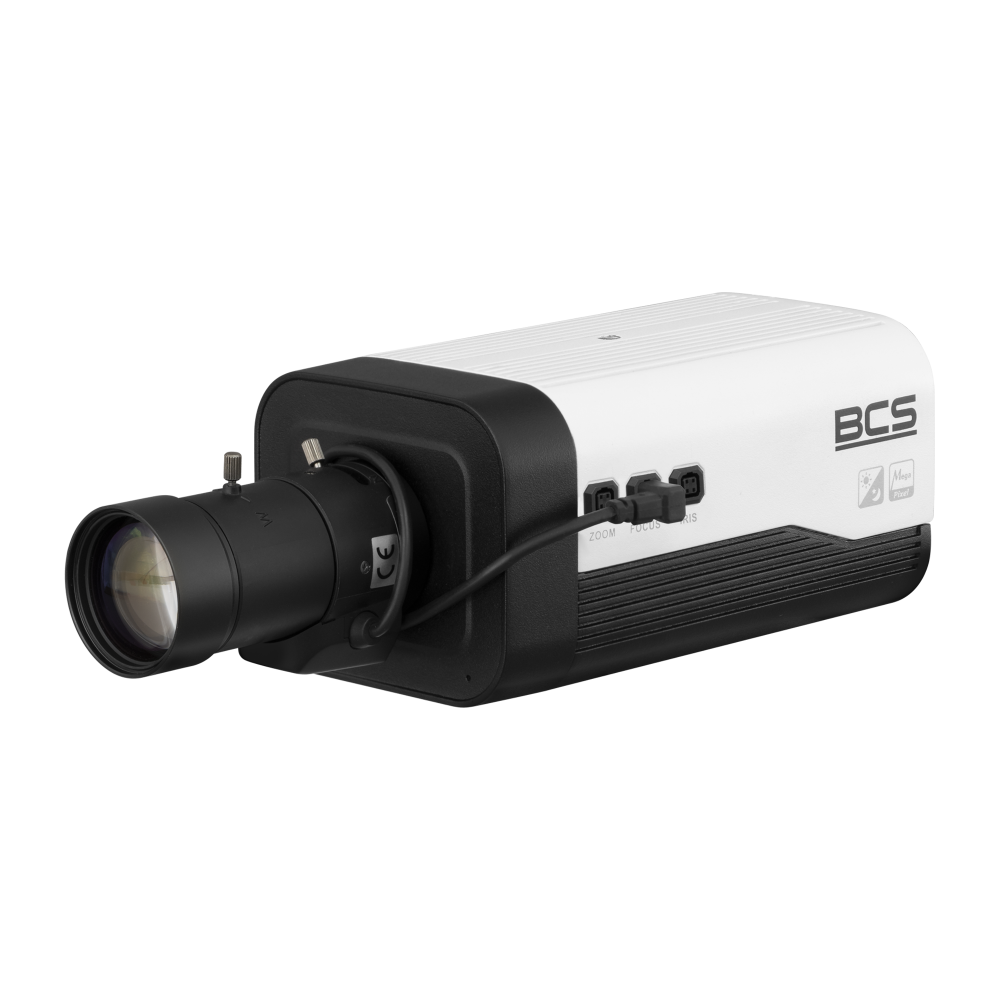

Name: BCS-L-BIP912S-Ai3
SKU: 12759
Availability: OutOfStock

Ai - Human/vehicle detection

Human/vehicle classification for crossline and intrusion and fast moving reduces false alarms

Product

BCS-L-BIP912S-Ai3

Camera type

Compact

Sensor

1/1.7'' CMOS

RAM

4GB

Iris

Auto / P-iris

White balance

(AWB) Auto / manual

Gain control

(AGC) Auto / manual

Ai - Built-in intelligent functions

Built-in intelligent algorithm of image analisis

Image rotate

Mirror, Flip 0°/90°/180°/270°

ROM

8GB

Flag

TO ORDER

Resolution

12 Mpx

Scanning system

Progressive Scan

Pixels

4000(H)×3000(V)

Lens

C/CS

Focus

Auto / manual

Fourth stream

1920×1080(1~25/30fps)

Digital zoom

16×

Min illumination

0.0009Lux(Color,F1.6,30IRE) 0.0005Lux(F1.6,B/W,30IRE)

S/N ratio

56dB

WDR

DWDR

Backlight compensation

BLC / HLC / DWDR / SSA

Shutter

Auto / manual 1/3~1/100000s

Noise reduction

3D DNR

RoI

Region of Interest

Image Stabilization

Electronic (EIS)

Defog

Electronic

Stream support

5

Resolutions

Main stream

4000×3000(1~25/30fps)

Second stream

1920×1080(1~25/30fps)

Third stream

1920×1080(1~25/30fps)

Fifth stream

704×576(1~25fps) 704×480(1~30fps)

Bitrate

H264: 32Kbps~16384Kbps H265: 32Kbps~12288Kbps

Video compression

H.265+ / H.265 / H.264+ / H.264 / MJPEG

Day/night

ICR mechanical infrared filter

Microphone

Yes

Audio in

2

Audio out

1

Audio compression

G.711A / G.711Mu / G.723 / G.726 / PCM

Alarm in

2

Alarm out

2

Storage

FTP, SFTP, NAS

Memory card slot

microSD 1TB

Other interfaces

RS485, BNC

Support

Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android)

Motion detect

4

Privacy masking

8

Network

RJ-45 10/100/1000 Mbps

Compatibility

ONVIF(S/G/T/M)

Protocols

IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP , RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P, Auto Register

Network security

Power supply

PoE

Power supply type

12V DC / 24V AC / PoE+(802.3at) / ePoE

Power consumption

max 17.1W

Housing color

White

Working environment

-30°C~+60°C max 95% RH

Dimensions

162×86×74mm

Weight

0.8 kg

Ai - Perimeter protection

Intrusion, crossline, fast moving, loitering, people gathering, parking detection

Ai - Smart object detection

Intelligent detection missing/abandoned objects

&Ai - Object classification

Yes

Ai - Face detection

Face detection and tracking, snapshot, attributes and expression recognition

Ai - Face recognition

Face identification with z database, max. 5 database, 200k records

Ai - People counting

People counting for intrusion and crossline, counting people in/out/stay in, queue management, generate and export reports in periods of time

Ai - Metadata

People attributes (gender, clothes, color, bag, hat, umbrella), face attributes (gender, age, expression, glasses, mask, beard), vehicle attributes (type, color, logo, seat belts, smoking, calling)

Ai - Heat map

Recording the movement of objects over a period of time, statistics of the time density of movement presented graphically in red/blue color tones

Ai - ARTR

License plate recognition, snapshot, track, speed max 60km/h, black and white list 10k records, attributes (license plate, vehicle type, vehicle color, seatbelts, smoking, calling)

Ai - Parking space management

Manage outdoor and planned parking lots, parking spaces in multiple areas, total and available parking spaces, trigger alarms based on a predefined number of vehicles.

Ai - Smart search

AcuPick technology – intelligent search for human/vehicle objects in the recording history with a recorder with the AcuPick function
