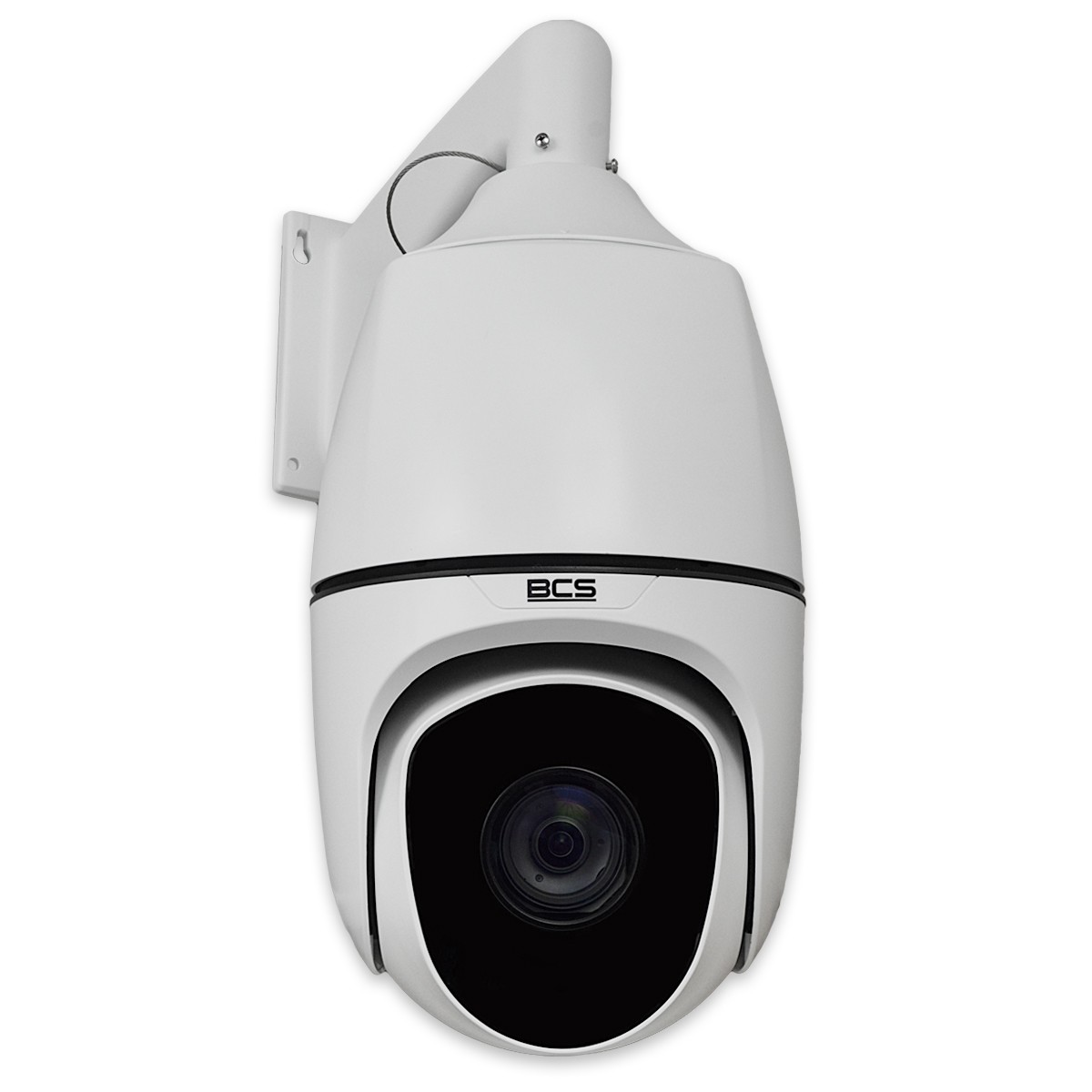

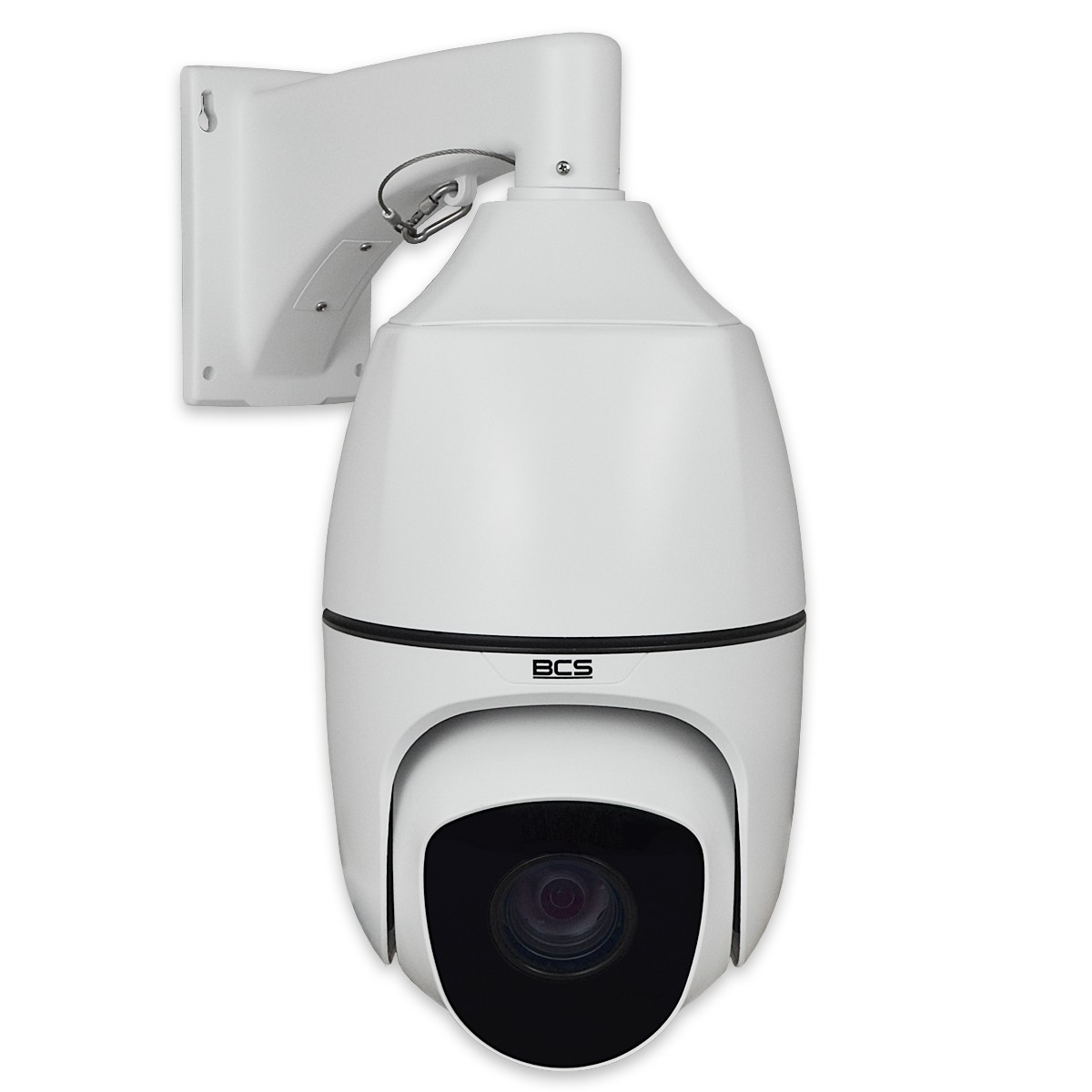

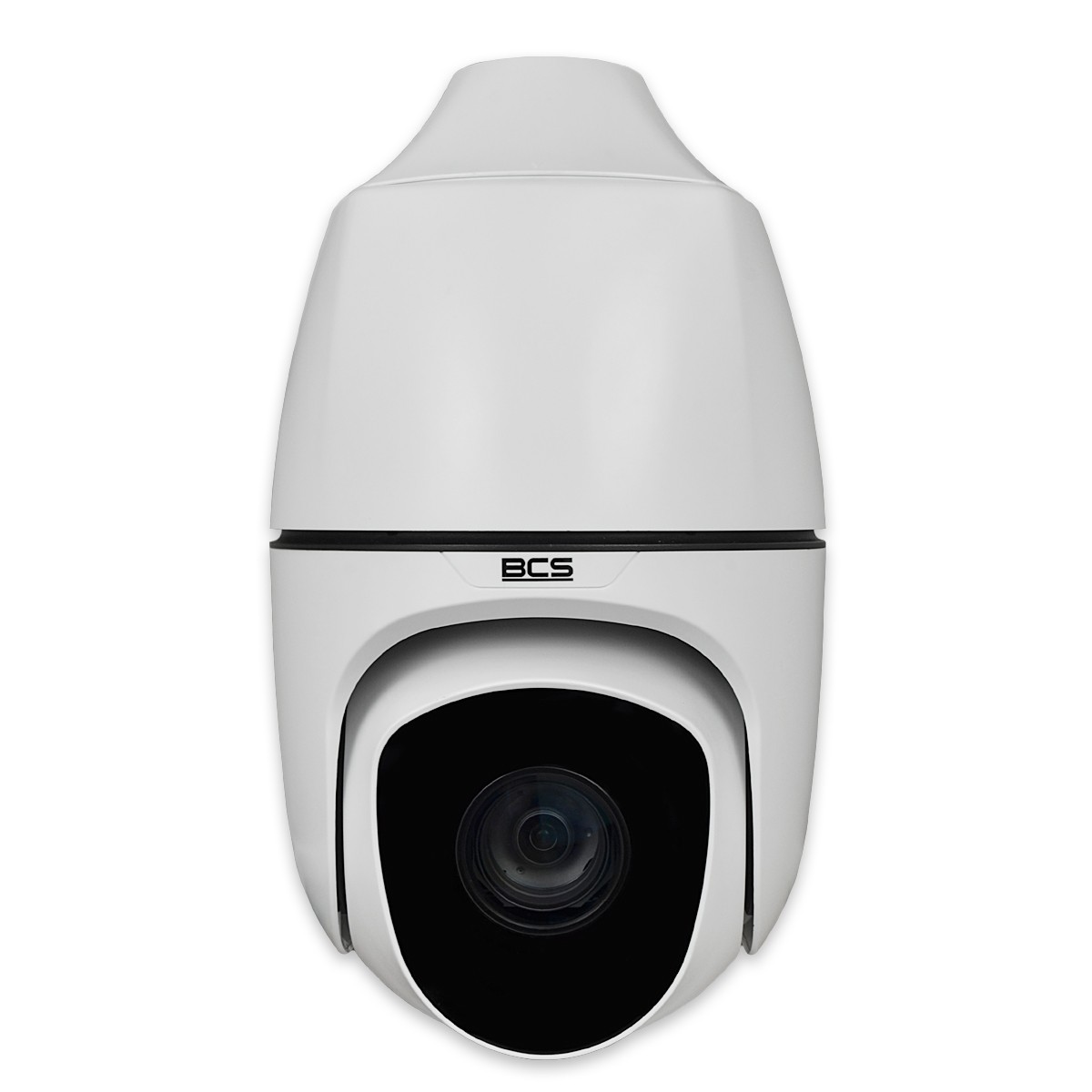

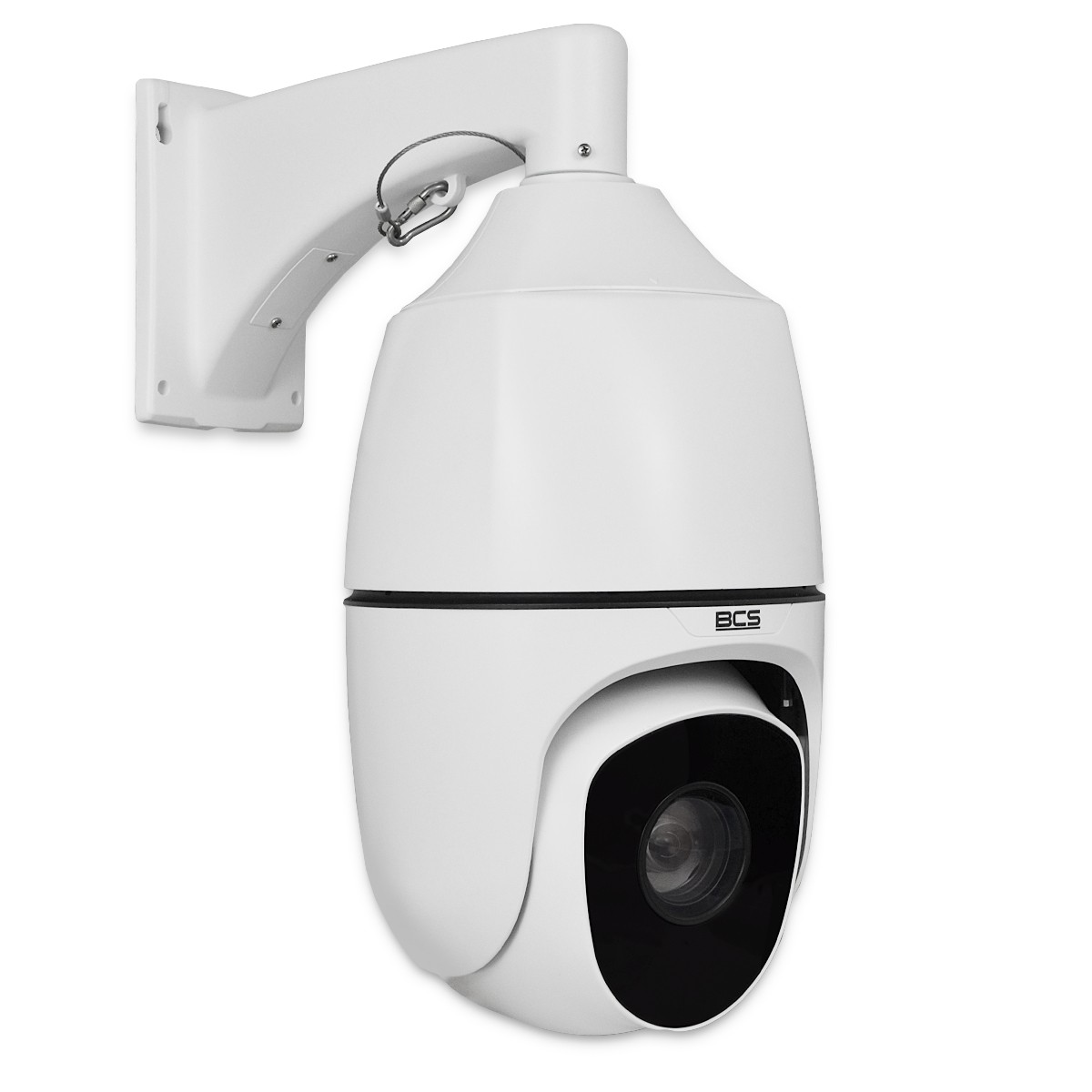

IP PTZ Camera, 2Mpx, Transducer 1/2.8″ PS CMOS with 5 ~ 220 mm lens with optical zoom 44 ×, H.265 + / H.264 + / MJPEG, infrared illuminator up to 250m, smart functions: line crossing detection, intrusion In the area, face detection, people counting, audio detection, automation functions: 255 presets, 16 routes (after 32 presets), 16 tracks, 2 inputs / 1 alarm output, 1 input / 1 audio output, white IP66 outdoor housing, power supply: AC24V / DC24V, surge protection up to 6kV. Dimensions: Ø270 x 496.7mm.
Warning: This product belongs to the BCS POINT product line.
Use only components and devices from the same line to ensure compatibility.
BCS POINT
BCS-P-5626RLSA
0,00 € gross
Out of Stock- 2Mpx pan-tilt IP camera
- 1/2.8" PS CMOS sensor
- SkyLight technology
- 5–220 mm motorised zoom lens
- 44x optical zoom
- WDR 120dB
- IR 250m
- Alarm 2/1, audio 1/1
- IP66-rated housing
- Built-in smart features
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
| Ai - People counting | Yes |
|---|---|
| Product | BCS-P-5626RLSA |
| Camera type | PTZ |
| Sensor | 1/2.8'' CMOS |
| Lens | motozoom |
| Iris | Auto / manual |
| Min illumination | 0.002Lux(F1.2,50IRE) 0lux(B/W,IR) |
| Backlight compensation | BLC / HLC / WDR(120dB) |
| Ai - Built-in intelligent functions | Yes |
| Flag | TO ORDER |
| Stream support | 3 |
| Optical zoom | 44× |
| Resolution | 2 Mpx |
| Scanning system | Progressive Scan |
| Pixels | 1920(H)×1080(V) |
| Focal length | 5~220 mm |
| Aperture | F 1.2~3.5 |
| Focus | Auto / manual |
| Digital zoom | 16× |
| Angle of view | H:56.7° V:~3.07° |
| S/N ratio | 52dB |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| Shutter | Auto / manual 1/6~1/8000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 2D/3D DNR |
| Image rotate | Mirror, Flip 0°/90°/180°/270° |
| Resolutions | 2M(1920×1080) / 720P(1280×720) / D1(704×576) / 2CIF(704×288) / (640×360) / CIF(352×288) |
| Main stream | 1920×1080(50/60fps) 1920×1080 / 1280×720(25/30fps) |
| Second stream | 1920×1080 / 1280×720 / 704×576 / 704×288 / 640×360 / 352×288(25/30fps) |
| Third stream | 704×576 / 704×288 / 640×360 / 352×288(25/30fps) |
| Bitrate | 128Kbps~16Mbps |
| Video compression | H.265 / H.265+ / H.264 / H.264+ / MJPEG |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED |
| IR range | 250m |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711U |
| Alarm in | 2 |
| Alarm out | 1 |
| Memory card slot | microSD 128GB |
| Other interfaces | RS485, BNC |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 8 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF |
| Protocols | L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SIP, 802.1x |
| Power supply | 24V AC / 24V DC |
| Power supply type | 24V AC / 24V DC |
| Power consumption | max 56W |
| Housing color | White |
| IP class | IP66 |
| Working environment | -45°C~+70°C max 95% RH |
| Dimensions | Ø270×496.7mm |
| Weight | 9.69 kg |
| PAN speed | 0.1°/s~240°/s(300°/s preset) |
| TILT speed | 0.1°/s~160°/s(240°/s preset) |
| PAN range | 0°~360° |
| TILT range | -15°~90° auto-flip |
| Ai - Perimeter protection | Yes |
| Ai - Face detection | Yes |
