| Power consumption (without HDD) | max 13W |
|---|---|
| &Ai - Built-in intelligent functions | Yes |
| Ai - Intelligent functions from recorder | Face detection, face identification, perimeter protection (person/vehicle recognition), metadata, SMD Plus |
| Ai - Intelligent functions from camera | Face detection, face recognition, metadata (human/vehicle classification), SMD Plus, people gathering, people counting, ARTR, vehicle density, object monitoring, heat map |
| Ai - SMD - Smart Motion Detection | 32 channels from recorder / 32 channels from camera |
| Flag | TO ORDER |
| Product | BCS-L-NVR3204-A-4K-16P-Ai(2) |
| System | IP |
| Pentaplex function | Live view / recording / playback / archiving / remote access |
| Channels | 32 |
| HDD support | 4 |
| HDD capacity | 20 TB |
| Incoming bandwidth | 512Mbps(200Mbps Ai) |
| Outgoing bandwidth | 512Mbps(200Mbps Ai) |
| Recording bandwidth | 512Mbps(200Mbps Ai) |
| Display efficiency | 2×32M@25fps /2×24M@25fps /4×16M@30fps /5×12M@30fps /8×8M@30fps /16×4M@30fps /32×2M@30fpsAi: 1×32M@25fps /1×24M@25fps /2×16M@30fps /4×12M@30fps /6×8M@30fps /8×5M@30fps /16×2M@30fps /32×D1@30fps |
| Recording resolutions | 32M / 24M / 16M / 12M / 8M / 5M / 4M / 2M / 1.3M / 720P / D1 / CIF / QCIF |
| Video compression | H.265+ / H265 / H.264+ / H.264 / MJPEG |
| HDMI out | 2×HDMI4K |
| VGA out | 2×VGA |
| HDMI display resolutions | 3840×2160 / 1920×1080 / 1280×1024 / 1280×720 |
| VGA display resolutions | 1920×1080 / 1280×1024 / 1280×720 |
| Display split | Main screen: 1/4/8/9/16/25/36 Secondary screen: 1/4/8/9/16 |
| Recording | continuous recording, with motion detection (with recording before and after detection), alarm (with pre- and post-alarm recording), cyclic (overwriting), Ai |
| Synchronous playback | 1/4/9/16 |
| Archiving | Possibility to download material to external media such as USB FLASH, USB HDD |
| User connections | 128 |
| Interfaces | 1×USB2.0, 2×USB3.0, eSATA |
| Serial port | RS232, RS485 |
| Audio in | 1 |
| Audio out | 2 |
| Audio compression | G.711A / G.711U / G.726 / PCM |
| Alarm in | 16 |
| Alarm out | 6 |
| Alarm | Motion detection, signal lost,, sabotage, scene change, PIR, IPC, Ai functions, offline, HDD, IP, MAC, login |
| Support | Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Network | 2×RJ-45 10/100/1000Mbps |
| Compatibility | ONVIF(S/G/T), support third party cameras |
| PTZ control | Inteligent 3D positioning with PTZ cameras BCS LINE series. |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, P2P, Auto Registration, IP Search, ISCSI |
| Cluster support | N+M |
| Standard | IEEE 802.3 af/at |
| Switch PoE power | 200W max 25.5W/port |
| PoE channels | 16 |
| ePoE & EoC | Port 1~8 |
| Power supply | 100~240V AC |
| Working environment | -10°C~+55°C max 93% RH |
| Casing | 1.5U |
| Dimensions (W×D×H) | 440×413×76mm |
| Weight (without HDD) | 4.58 kg |
| POS | Posnet |
| Ai - Perimeter protection | 24 channels from the recorder, 10 rules per channel / 32 camera channels |
| &Ai - Object classification | Yes |
| Ai - Face detection | 8 channels from the recorder (12 images/s) / 32 channels from cameras / facial attributes (gender, age, glasses, facial expression, mask, facial hair) |
| &Ai - SMD | Yes |
| Ai - Face recognition | |
| Ai - Metadata | |
| Ai - Smart search | AcuPick technology – intelligent search for human/vehicle objects in the recording history with camera with the AcuPick function |
| Ai - ARTR | 32 camera channels / black and white list 20 thousand positions |
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE

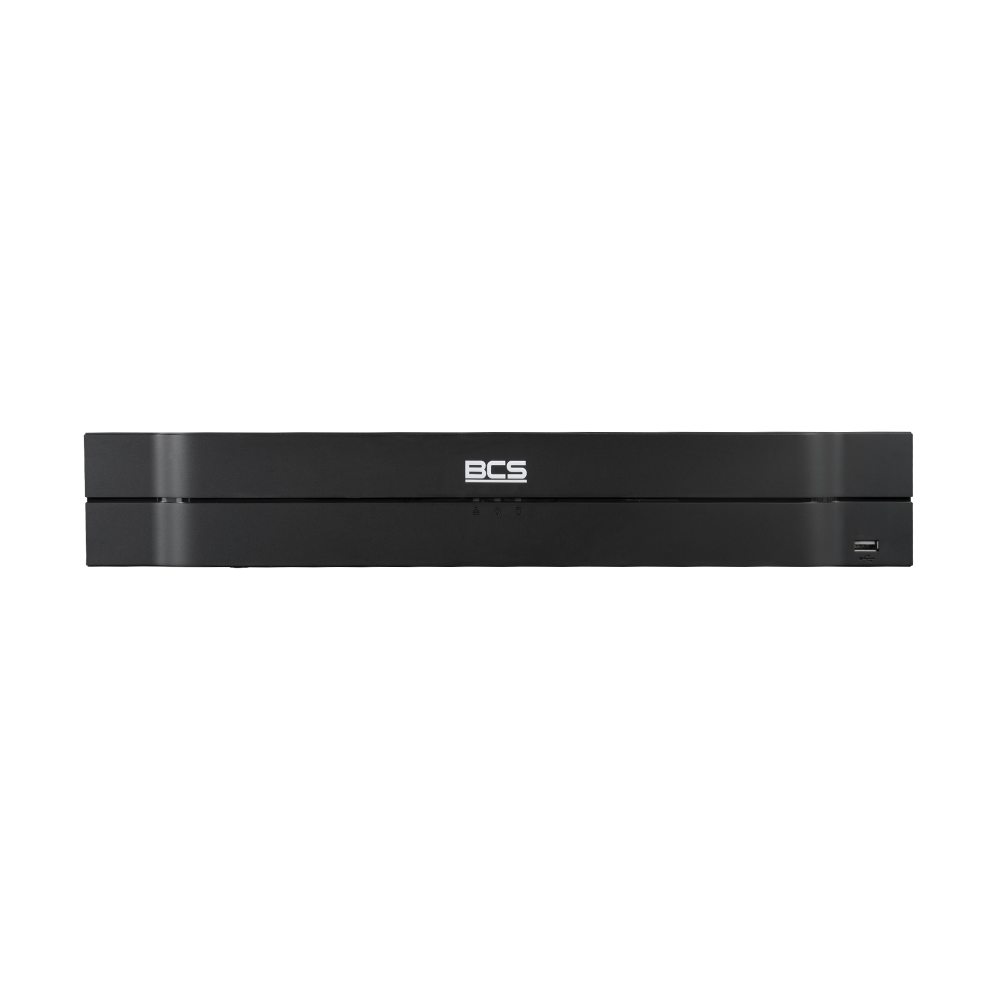

BCS-L-NVR3204-A-4K-16P-Ai(2)
0,00 € gross
Out of Stock- 32-channel IP recorder
- AcuPick technology
- Built-in 16-port 200W PoE switch
- Supports 4 hard drives
- Supports 32Mpx IP cameras
- 16/6 alarm channels, 1/2 audio channels
- 2×HDMI 4K/2×VGA outputs
- Built-in smart features
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
