| Accessories included | Wall mount |
|---|---|
| Min illumination overview camera | 0.001Lux(Color,F1.0,30IRE) 0.0005Lux(F1.0,B/W,30IRE) 0Lux(B/W,IR) |
| Angle of view overview camera | H: 101° V: 53° D: 120° |
| Ai - SMD - Smart Motion Detection | SMD 4.0 |
| Second stream overview camera | 704×576 / 704×480 / 640×480 / 352×288 / 352×240(25/30fps) |
| Illuminator type overview camera | IR LED + WhiteLight |
| WhiteLight range overview camera | 30m |
| Active deterrence function ADC | Sound-optical alarm |
| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |

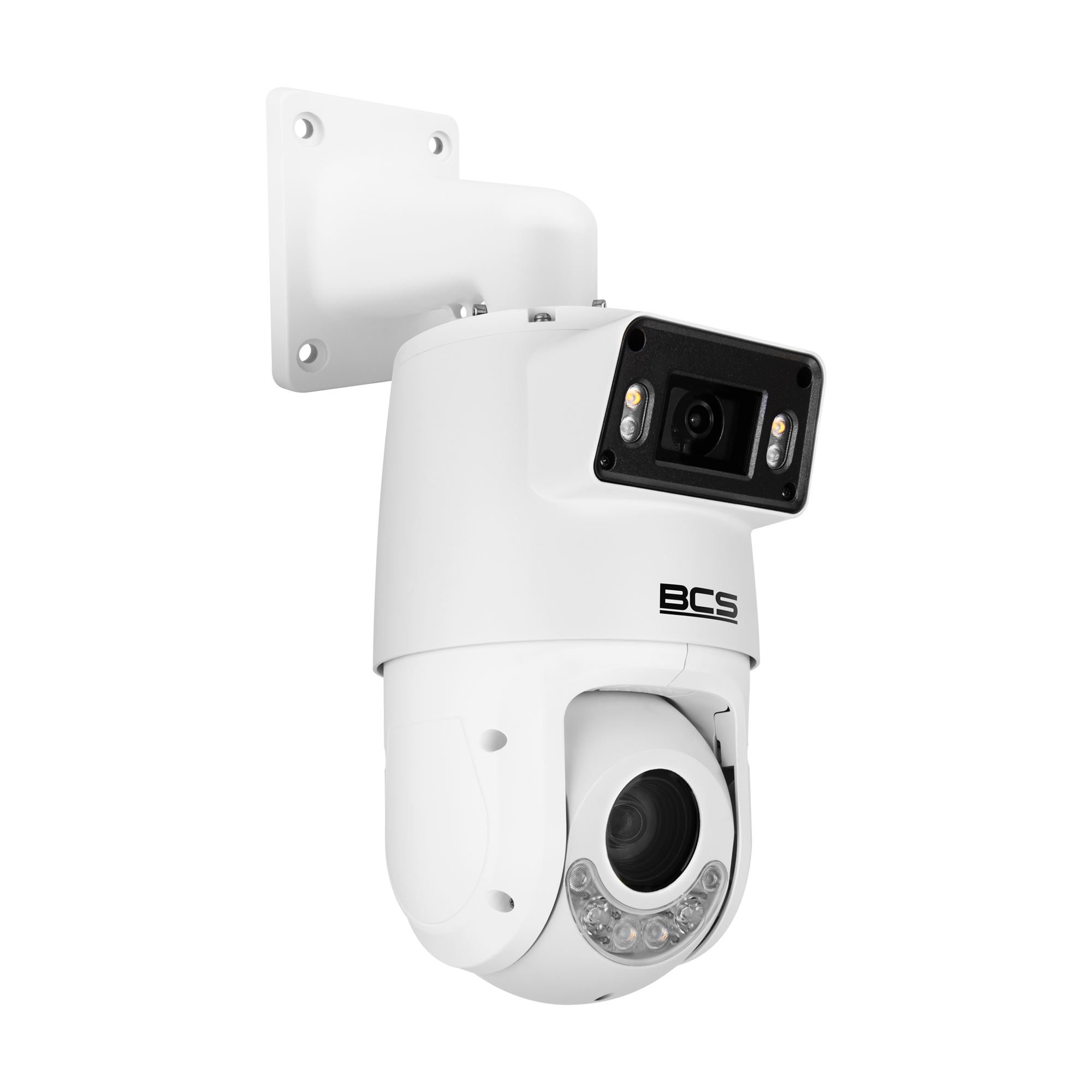

| Product | BCS-L-PSIP24425SCR10L5-Ai1 |
| Camera type | PTZ+fixed |
| Resolution | 4 Mpx |
| Resolution overview camera | 4 Mpx |
| Sensor | 1/2.8'' CMOS STARVIS |
| Sensor overview camera | 1/2.8'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 2560(H)×1440(V) |
| Pixels overview camera | 2560(H)×1440(V) |
| RAM | 1GB |
| RAM overview camera | 1GB |
| ROM | 4GB |
| ROM overview camera | 4GB |
| Lens | motozoom |
| Focal length | 5~125 mm |
| Focal lenght overview camera | 2.8 mm |
| Aperture | F1.6~3.6 |
| Aperture overview camera | F1.0 |
| Focus | Auto / manual |
| Iris | Auto / manual |
| Optical zoom | 25× |
| Digital zoom | 16× |
| Angle of view | H: 51.9°~3.0° V: 39.7°~2.2° D: 63.1°~3.7° |
| DORI | Detect 100~2500m / Observe 40~1000m / Recognize 20~500m / Identify 10~250m |
| DORI overview camera | Detect 56m / Observe 22m / Recognize 11m / Identify 6m |
| Min illumination | 0.005Lux(Color,F1.6,30IRE) 0.0005Lux(F1.6,B/W,30IRE) 0Lux(B/W,IR) |
| S/N ratio | 55dB |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| WDR overview camera | DWDR |
| Backlight compensation | BLC / HLC |
| Shutter | Auto / manual 1~1/30000s |
| Shutter overview camera | Auto / manual 1/3~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 2D/3D DNR |
| RoI | Region of Interest |
| Image Stabilization | Electronic (EIS) |
| Defog | Electronic |
| Image rotate | Flip 180° |
| Stream support | 3 |
| Resolutions | 4M(2560×1440) / 3M(2048×1536)(2304×1296) / 2M(1920×1080) / 1.3M(1280×960) / 720P(1280×720) / D1(704×576)(704×480) / VGA(640×480) / CIF(352×288)(352×240) |
| Resolutions overview camera | 4M(2560×1440) / 3M(2048×1536)(2304×1296) / 2M(1920×1080) / 1.3M(1280×960) / 720P(1280×720) / D1(704×576)(704×480) / VGA(640×480) / CIF(352×288)(352×240) |
| Main stream | 2560×1440 / 2304×1296 / 2048×1536 / 1920×1080 / 1280×960 / 1280×720(25/30fps) |
| Main stream overview camera | 2560×1440 / 2304×1296 / 2048×1536 / 1920×1080 / 1280×960 / 1280×720(25/30fps) |
| Second stream | 704×576 / 704×480 / 640×480 / 352×288 / 352×240(25/30fps) |
| Third stream | 1920×1080 / 1280×960 / 1280×720(25/30fps) |
| Third stream overview camera | 1920×1080 / 1280×960 / 1280×720(25/30fps) |
| Bitrate | H.264: 96 kbps~16384 kbps H.265: 38 kbps~10240 kbps |
| Bitrate overview camera | H.264: 96 kbps~16384 kbps H.265: 38 kbps~10240 kbps |
| Video compression | H.265 / H.265+ / H.264+ / H.264 / MJPEG |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED + WhiteLight |
| IR range | 100m |
| IR range overview camera | 30m |
| WhiteLight range | 50m |
| NightColor | Yes |
| Loudspeaker | Yes |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711Mu / G.726 / G.722.1 / G.723 / G.729 / MPEG2-L2 / PCM |
| Alarm in | 2 |
| Alarm out | 1 |
| Storage | FTP, SFTP, NAS |
| Memory card slot | microSD 512GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | Yes |
| Privacy masking | 24 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | FTP, RTMP, IPv6, Bonjour, IPv4, DNS, RTCP, PPPoE, NTP, RTP, 802.1x, HTTPS, SNMP, TCP/IP, DDNS, UPnP, NFS, ICMP, UDP, IGMP, HTTP, SSL, DHCP, SMTP, Qos, RTSP, ARP |
| Power supply | PoE |
| Power supply type | 12VDC / PoE(802.3at) |
| Power consumption | max 25W |
| Housing color | White |
| IP class | IP66 |
| Built-in heater | Yes |
| Surge protection | TVS 6kV |
| Working environment | -40°C~+65°C max 95% RH |
| Dimensions | 160×184×304mm |
| Weight | 3.41 kg |
| PAN speed | 0.1°/s~200°/s(240°/s preset) |
| TILT speed | 0.1°/s~120°/s(200°/s preset) |
| PAN range | 0°~360° |
| TILT range | -15°~90° auto-flip, kamera stała 13°~23° |
| Auto tracking | Yes |
| Automatic functions | 300 presets, 8 tour(32 presety), 5 pattern, 5 auto scan |
| Ai - Perimeter protection | Intrusion, crossline, fast moving, loitering, people gathering, parking detection |
| &Ai - Object classification | Yes |
| &Ai - SMD | Yes |
| Ai - Human/vehicle detection | Human/vehicle classification for crossline and intrusion and fast moving reduces false alarms |
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE
BCS-L-PSIP24425SCR10L5-Ai1
1093,47 € gross
Out of StockOut of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
