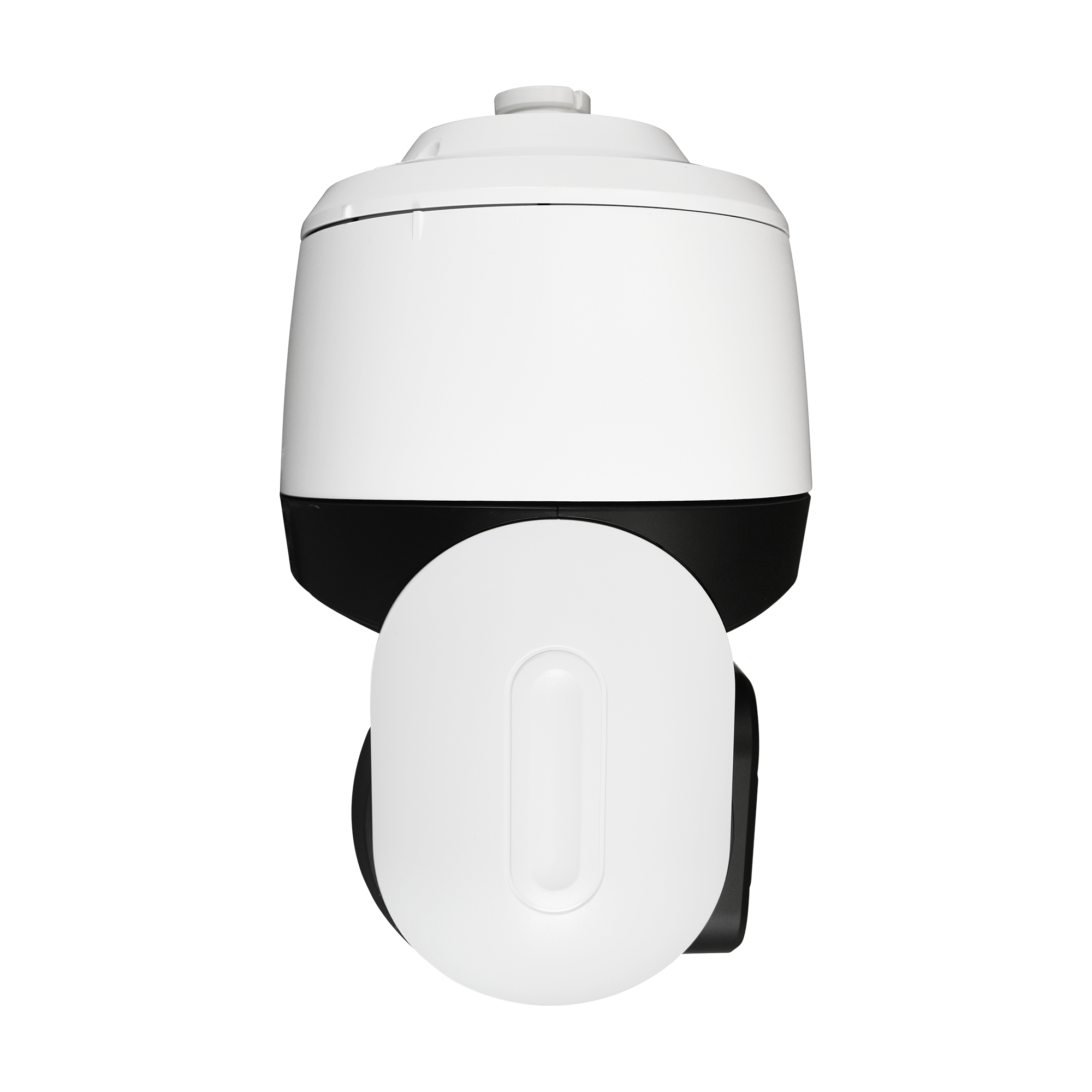

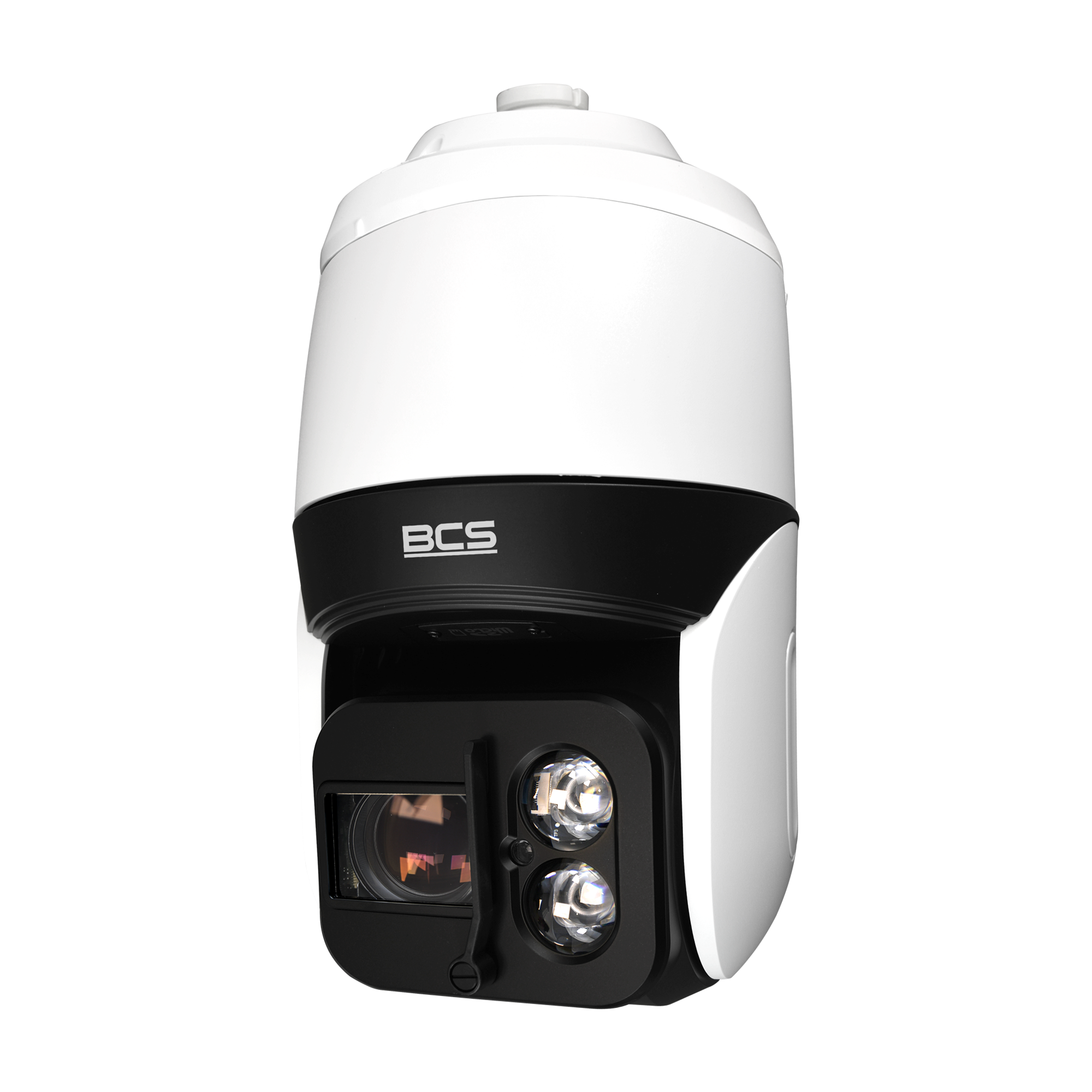

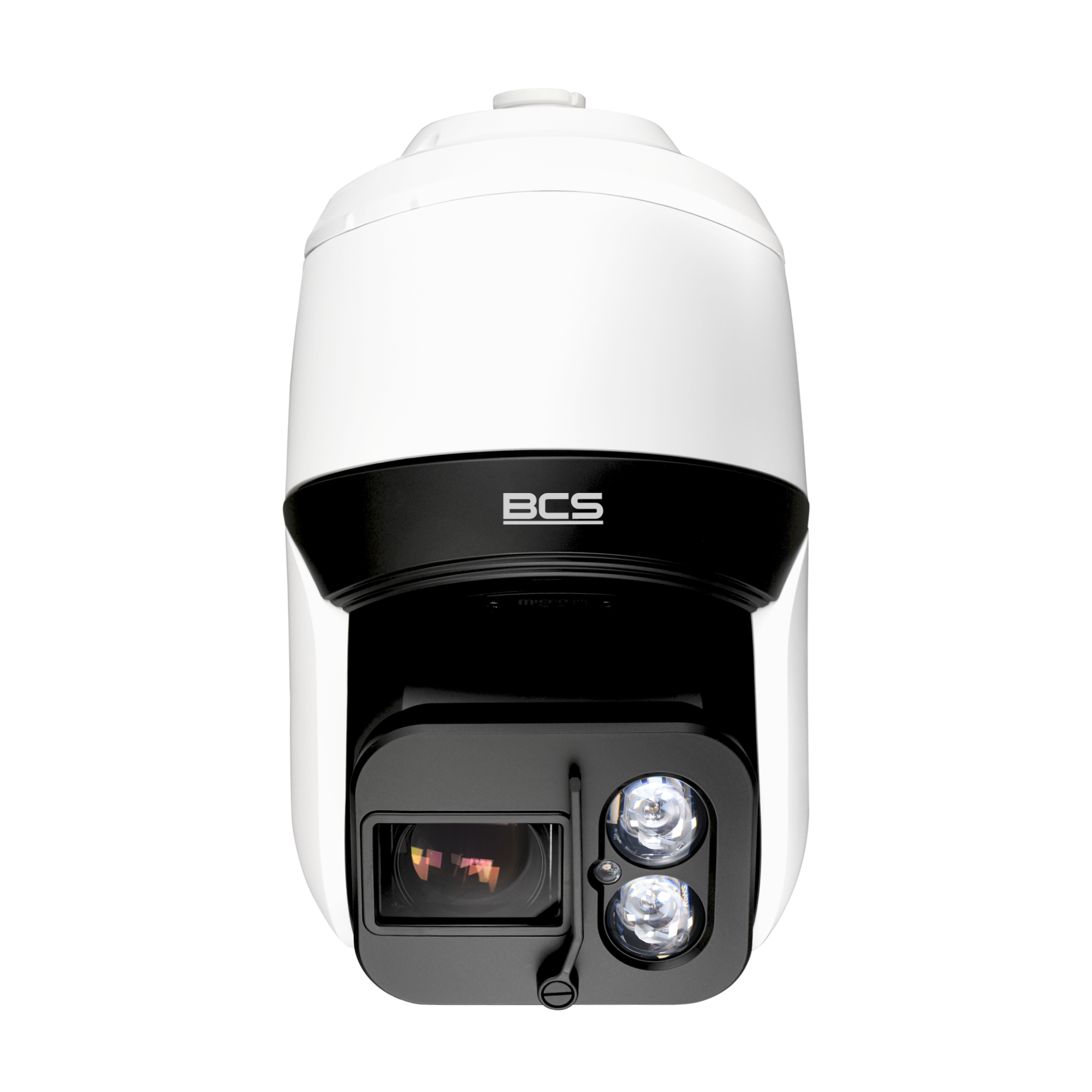

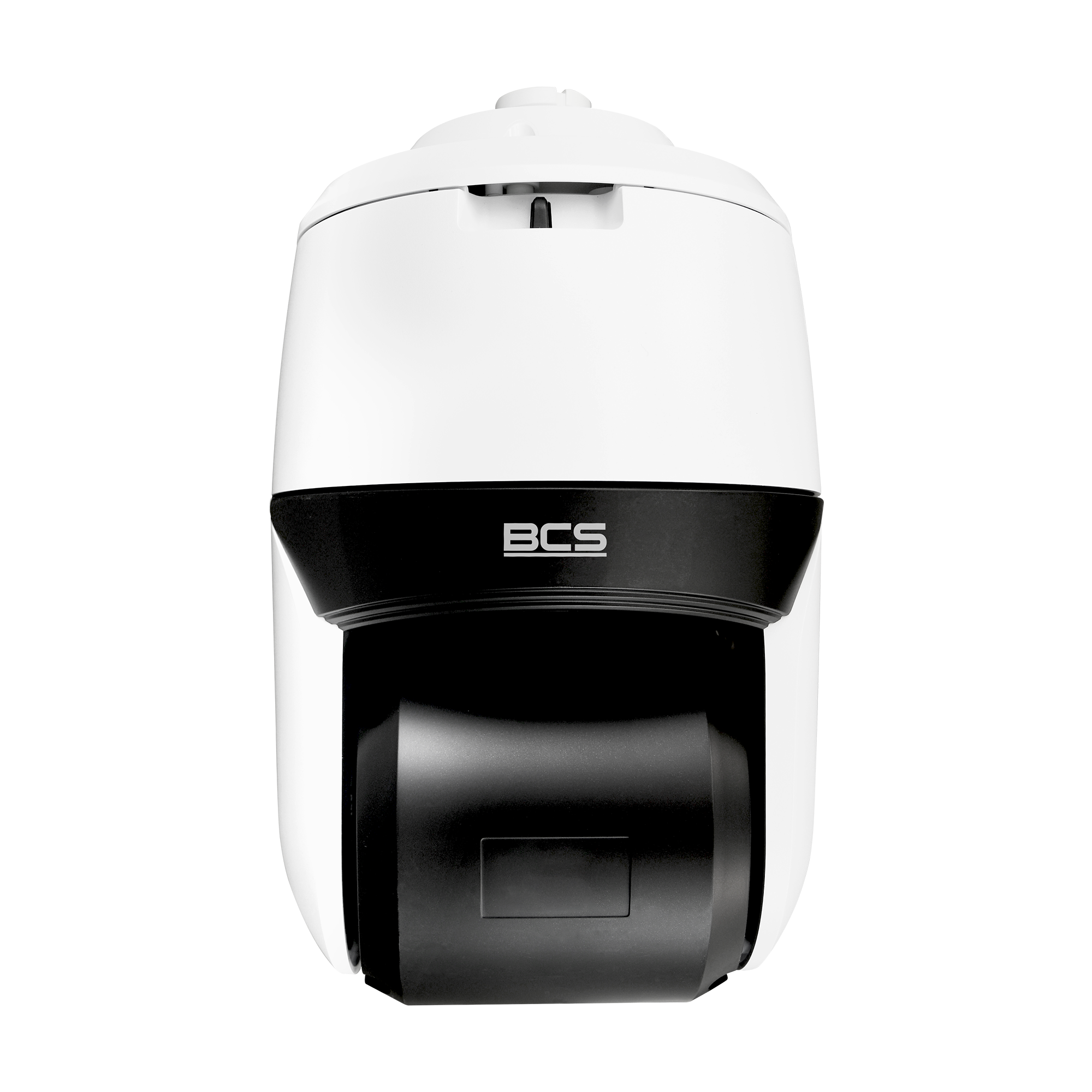

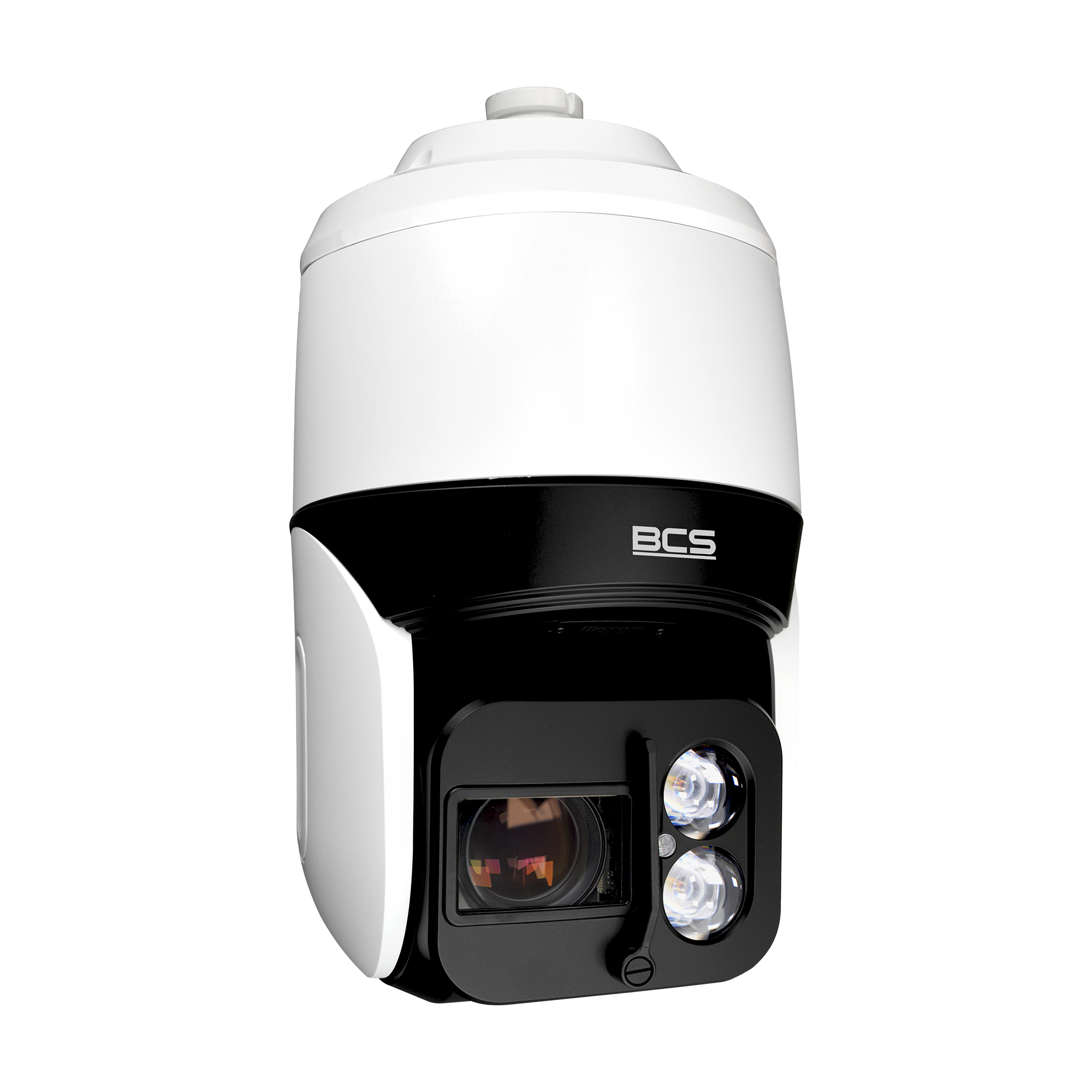

4Mpx PTZ IP pan-tilt-zoom camera, featuring a 1/1.8" CMOS sensor with a 6.91–248.76 mm motorised zoom lens and 36x optical zoom from the BCS Ultra series. NDAA-compliant. Two-way audio communication. The camera can store data in an internal buffer of up to 60MB in the event of a delay in data transmission caused by a temporary overload of the recorder or the network. Once normal operation is restored, the stored data is transferred to the recorder. Alarm events are received remotely by dedicated software or sent to a specified email address, with a photo of the event attached. Transmission is encrypted using the SSL protocol.
Warning: This product belongs to the BCS ULTRA product line.
Use only components and devices from the same line to ensure compatibility.
BCS ULTRA
BCS-U-SIP6436SR40-AI2
2600,22 € gross
1 In Stock- 4Mpx pan-tilt IP camera
- 1/1.8" PS CMOS sensor
- NDAA compliant
- SkyLight technology
- 6.91–248.76 mm motorised zoom lens
- 36x optical zoom
- IR 400m
- Alarm 8/2, audio 1/1
- IP66, IK10 housing
- Built-in smart features
1 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
| Product | BCS-U-SIP6436SR40-AI2 |
|---|---|
| NDAA | National Defense Authorization Act |
| Camera type | PTZ |
| Resolution | 4 Mpx |
| Sensor | 1/1.8'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 2688(H)×1520(V) |
| Lens | motozoom |
| Focal length | 6.91~248.76 mm |
| Aperture | F 1.35~4.6 |
| Focus | Auto / manual |
| Iris | Auto / P-iris |
| Optical zoom | 36× |
| Angle of view | H:61.8°~2.4° V:36.3°~1.3° D:70.3°~2.7° |
| Min illumination | 0.06Lux(F1.35) 0Lux(B/W,IR) |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| Backlight compensation | WDR(120dB) |
| Shutter | Auto / manual 1/30~1/10000s |
| Gain control | (AGC) Auto / manual |
| Image Stabilization | Electronic (EIS) |
| Defog | Electronic |
| Image rotate | Mirror, Flip |
| Stream support | 4 |
| Resolutions | 2688×1520 / 1920×1080 / 1280×720 / 640×360 |
| Main stream | 2688×1520@30fps |
| Video compression | H.265 / H.265+ / H.264+ / H.264 / MJPEG |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED |
| IR range | 400m |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | ADPCM 16K / G.726 / G.711u / G.711a |
| Alarm in | 8 |
| Alarm out | 2 |
| Memory card slot | microSD 512GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | Yes |
| Privacy masking | 8 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF |
| Protocols | IPv4, IPv6, RTP, RTSP, TCP, HTTP, UDP, HTTPS, FTP, SNTP, SMTP, uPNP, SNMPv2, mDNS (Multicast DNS), filtering IP,SSL, IEEE802.1x, |
| Network security | DirectIP, TLS, SSL, HTTPS, FEN, IEEE 802.1X, IP filtering, iBank, Chained Fingerprint, Digest Authentication |
| Power supply | PoE |
| Power supply type | 24V AC / PoE(802.3bt) klasa 8 |
| Power consumption | max 54.2W |
| Housing color | White |
| IP class | IP66 |
| IK10 | Yes |
| Built-in heater | Yes |
| Working environment | -40°C~+60°C max 95% RH |
| Dimensions | Ø242mm×401.8mm |
| Weight | 7.2 kg |
| PAN speed | 0.02°/s~240°/s(240°/s preset) |
| TILT speed | 0.02°/s~240°/s(240°/s preset) |
| PAN range | 0°~360° |
| TILT range | -10°~90° auto-flip |
| Auto tracking | Yes |
| Automatic functions | 256 presets |
| pa_ai-built-in-intelligen-cd701 | Built-in intelligent algorithm of image analisis |
| Ai - Perimeter protection | Intrusion, crossline, loitering, sabotage |
| Ai - Smart object detection | Intelligent detection for missing/abandoned object. |
| &Ai - Object classification | Yes |
| Ai - Face detection | Face detection and tracking |
| Ai - Human/vehicle detection | Human/vehicle classification for crossline and intrusion reduces false alarms |
