| Accessories included | Uchwyt ścienny, adapter APTZ2, zasilacz 36VDC |
|---|---|
| Product | BCS-L-SIP54445WR10-TH-Ai1(25) |
| Camera type | Thermal |
| Sensor | 1/2.8'' CMOS |
| Lens | motozoom |
| Optical zoom | 45× |
| S/N ratio | 55dB |
| Shutter | Auto / manual 1~1/30000s |
| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| Main stream | 2688×1520(25/30fps) 2560×1440(25/30fps) 1920×1080(25/30fps) 1280×720(25/30fps) 704×576(25/30fps) |
| Audio in | 1 |
| Flag | TO ORDER |
| Resolution | 4 Mpx |
| Scanning system | Progressive Scan |
| Focal length | 3.95~177.75 mm |
| Focus | Auto / manual |
| Iris | Auto / manual |
| Digital zoom | 16× |
| Pixels | 2688(H)×1520(V) |
| Angle of view | H:67.5°~1.9° V:39.4°~1.1° |
| Min illumination | 0.01Lux 0.001Lux(B/W) 0Lux(IR) |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| Backlight compensation | BLC / HLC / WDR(120dB) |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 2D/3D DNR |
| Stream support | 2 |
| Resolutions | 4M(2688×1520)(2560×1440) / 2M(1920×1080) / 720P(1280×720) / D1(704×576) |
| Second stream | 1920×1080(25/30fps) 1280×720(25/30fps) 704×576(25/30fps) |
| Video compression | H.265 / H.264M / H.264H / H.264B |
| Day/night | ICR |
| Illuminator type | IR LED |
| IR range | 100m |
| Audio out | 1 |
| Audio compression | G.711a / G.711mu |
| Alarm in | 7 |
| Alarm out | 2 |
| Memory card slot | microSD 512GB |
| Other interfaces | RS485 |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Privacy masking | 4 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF |
| Protocols | HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, SNMP, QoS, UPnP, NTP, Multicast, SFTP, 802.1x |
| Power supply | PoE |
| Power supply type | 36V DC / Hi-PoE |
| Power consumption | max 41W |
| Housing color | White |
| IP class | IP66 |
| Surge protection | Surge: 6kV Air: 15kV Contact: 8kV |
| Working environment | -30°C~+60°C max 95% RH |
| Dimensions | Ø240×382mm |
| Weight | 8 kg |
| PAN speed | 0.1°/s~200°/s(0.1°~240°/s preset) |
| TILT speed | 0.1°/s~120°/s (0.1°~200°/s preset) |
| PAN range | 0°~360° |
| TILT range | -10°~90° |
| Automatic functions | 300 presetów, 8 tras(po 32 presety), 5 ścieżek, 5 skanów |
| Ai - Perimeter protection | Intrusion, crossline |
| &Ai - Object classification | Yes |
| Thermal camera sensor | Focal plane detector microbolometric sensor with active absorbing material Vox |
| Thermal camera resolution | 400(H)×300(V) |
| Thermal camera main stream | 1280×1024(25fps) 1280×720(25fps) 640×512(25fps) |
| Thermal camera second stream | 640×512(25fps) 320×256(25fps) |
| Thermal camera lens | 25 mm |
| Thermal camera aperture | F1.0 |
| Thermal camera angle of view | H: 15.5° V: 11.6° |
| Thermal camera DORI | Osoba(pojazd) Detect 735(2262)m / Recognize 189(555)m / Identify 95(280)m |
| Fire detection and alarm | Yes |
| Cold and Hot Spot Trace | Tracking the coldest and warmest temperature points on screen |
| Fusion function | Yes |
| Pixel size | 17um |
| Thermal sensitivity | 35mK |
| Spectral range | 8~14um |
| Ai - Human/vehicle detection | Human/vehicle classification for crossline and intrusion and fast moving reduces false alarms |
| Ai - Ships detection | Ships detection, height, lenght, speed, distance |
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE
BCS-L-SIP54445WR10-TH-Ai1(25)
0,00 € gross

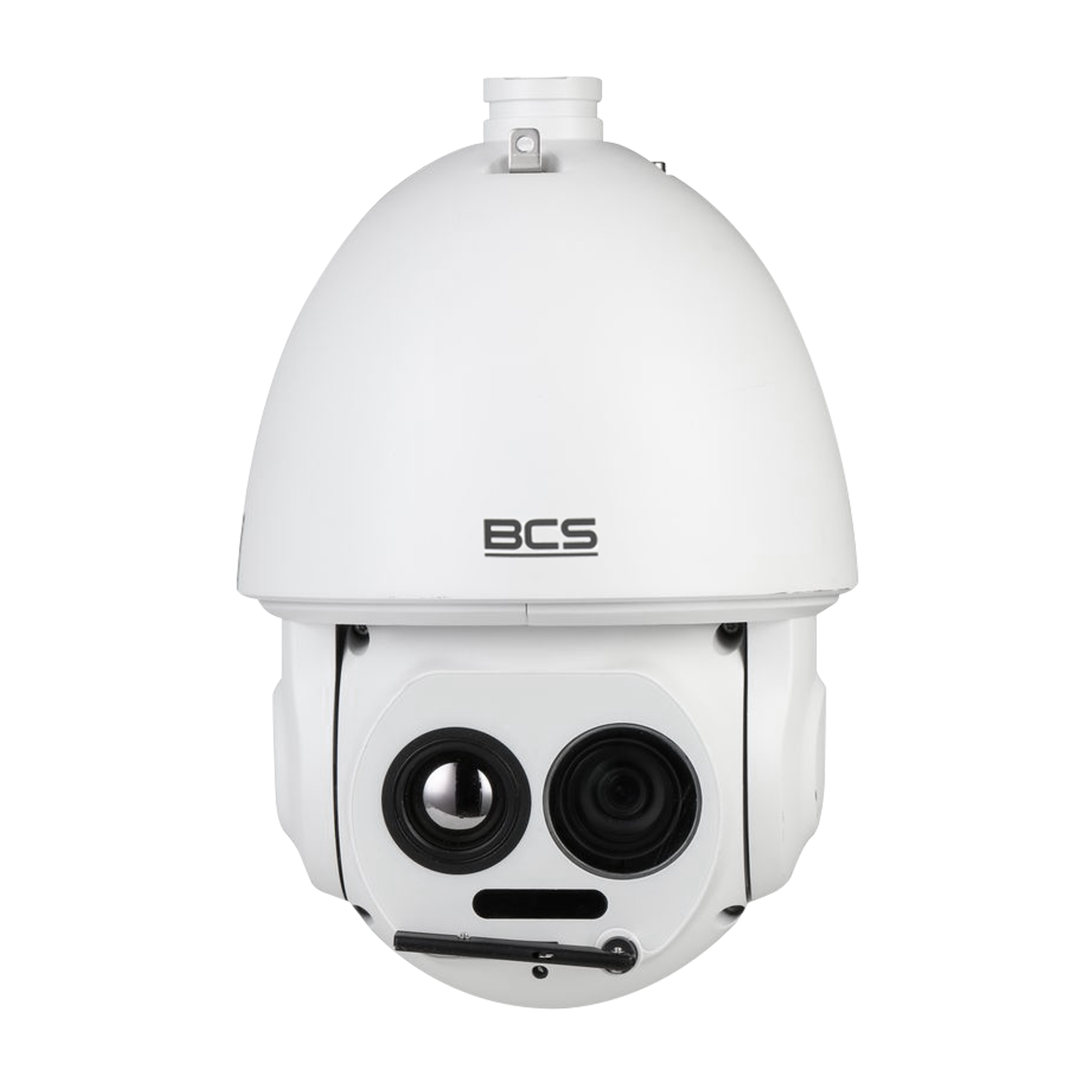

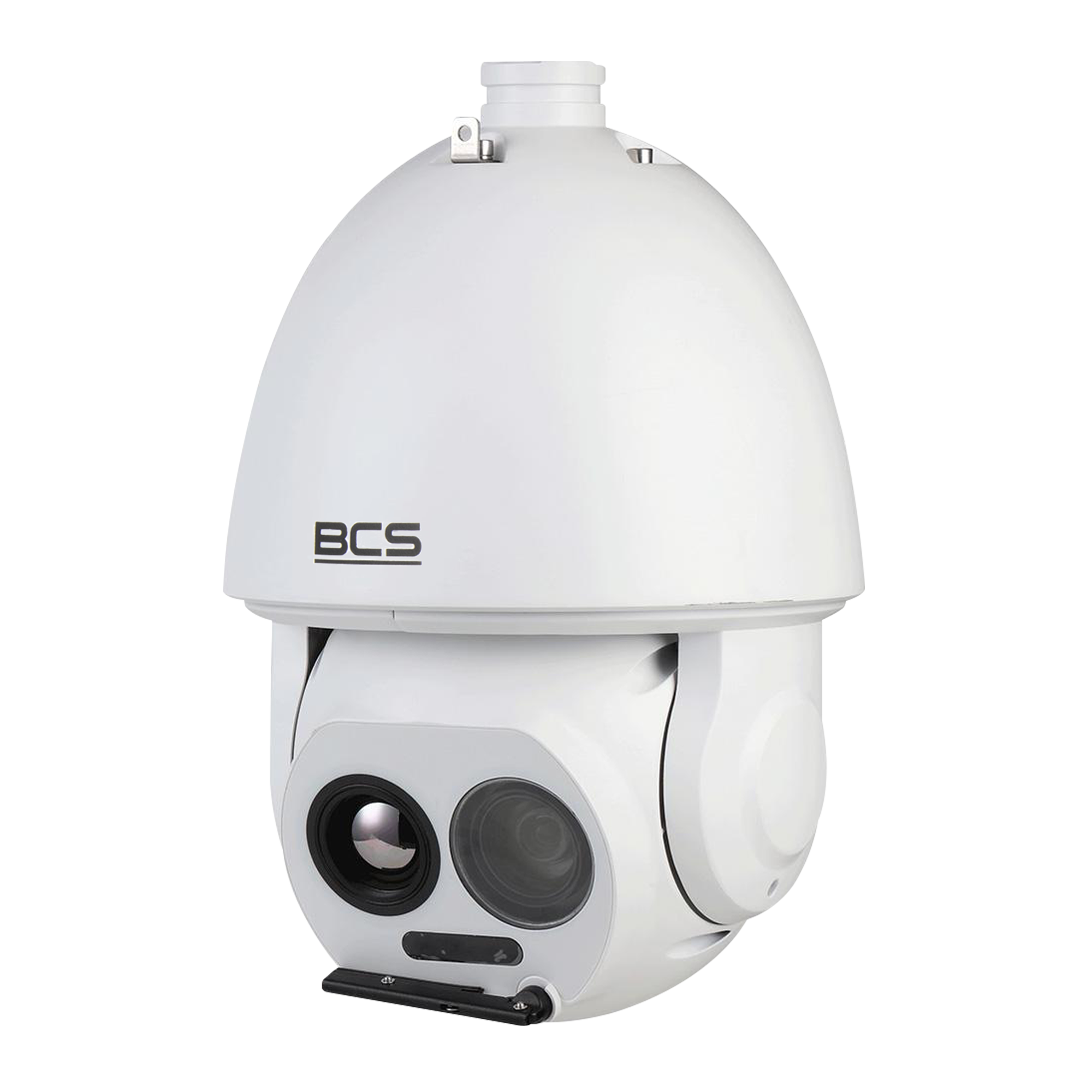

Out of Stock- Rotating thermal imaging IP camera
- 400×300 thermal sensor with a 25mm lens
- 4 Mpx video camera with 3.95–177.5 mm motorised zoom lens
- 45x optical zoom
- IR range: 100m
- Alarm 7/2, audio 1/1
- IP66 housing
- Built-in smart features
- Fire detection and alarm
- Fusion function
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
