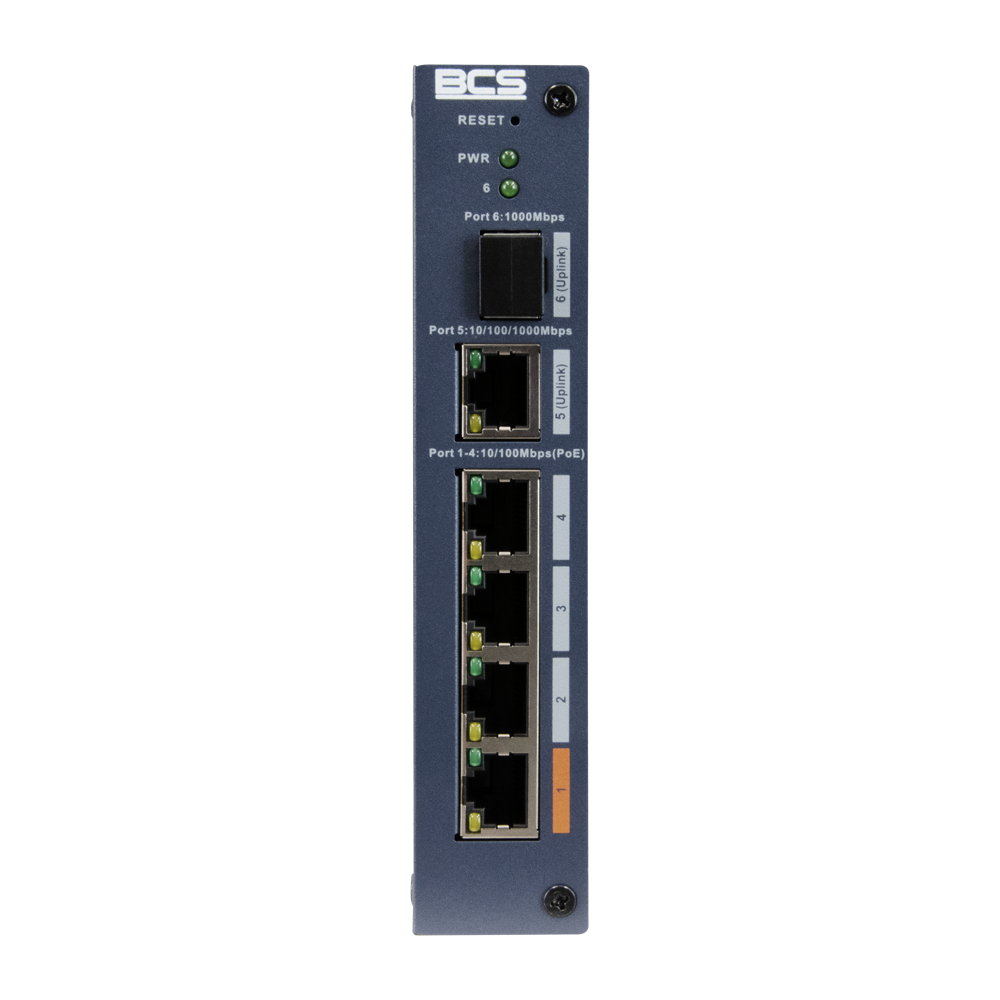

BCS-L-SP0401G-1SFP-M

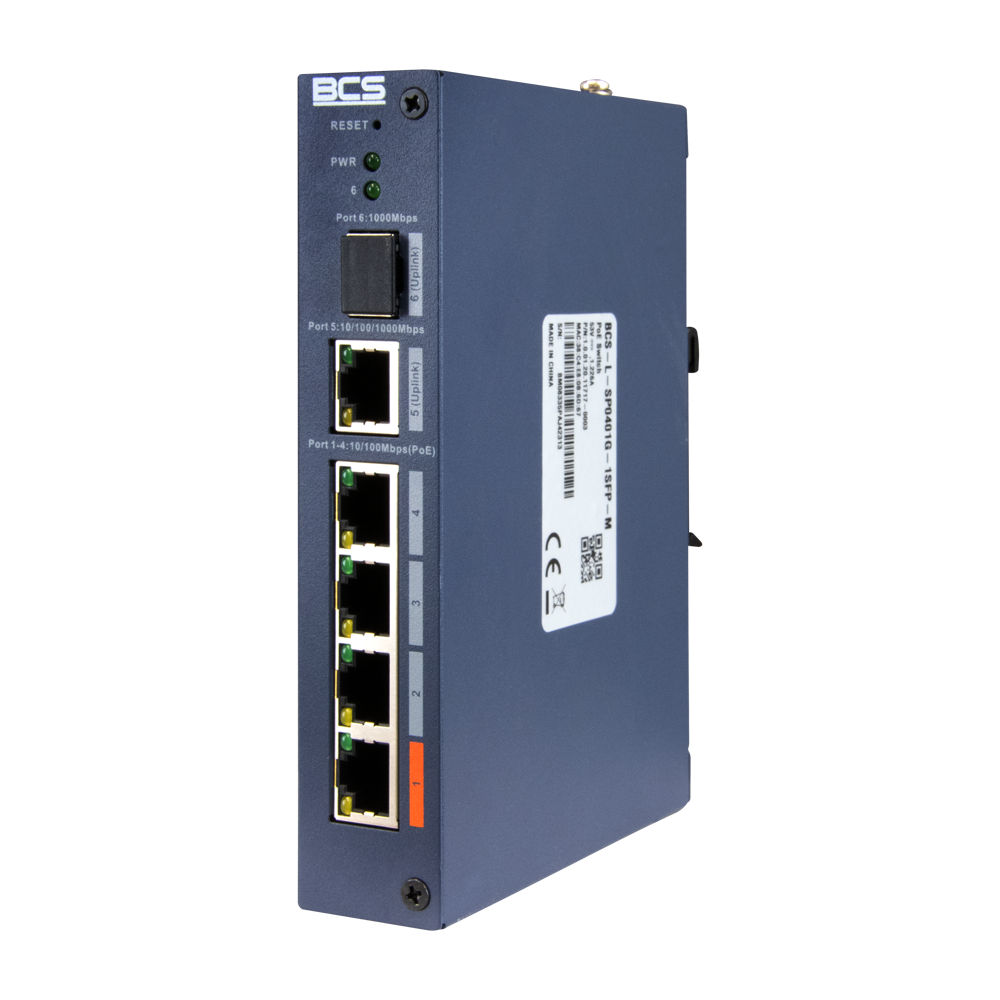

BCS-L-SP0401G-1SFP-M - Image 2

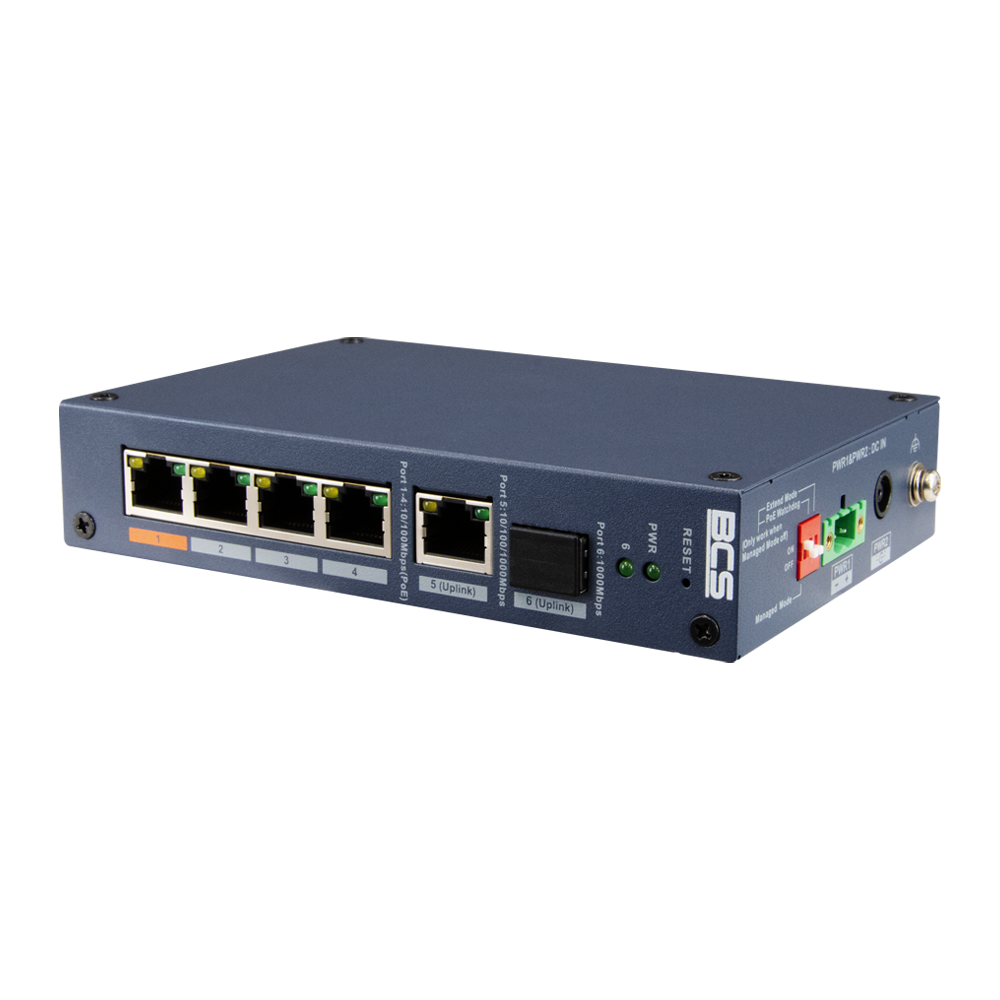

BCS-L-SP0401G-1SFP-M - Image 3

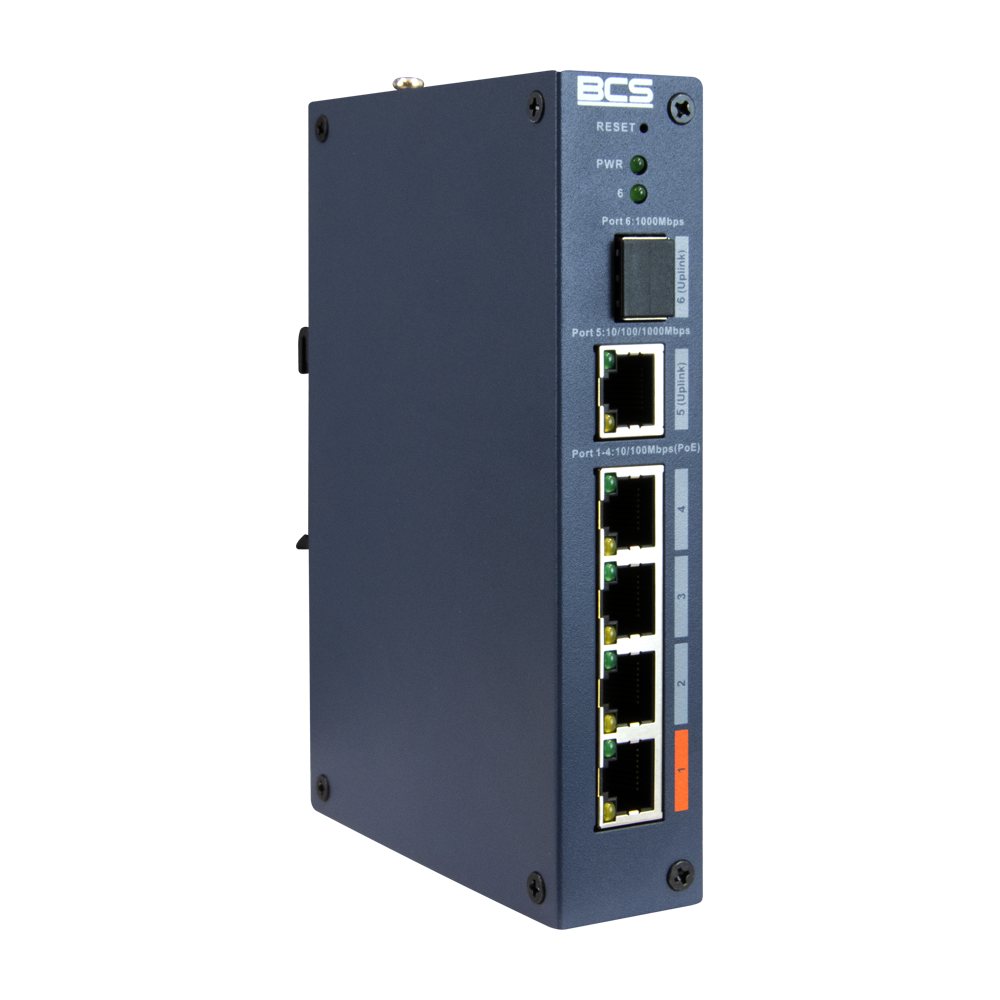

BCS-L-SP0401G-1SFP-M - Image 4

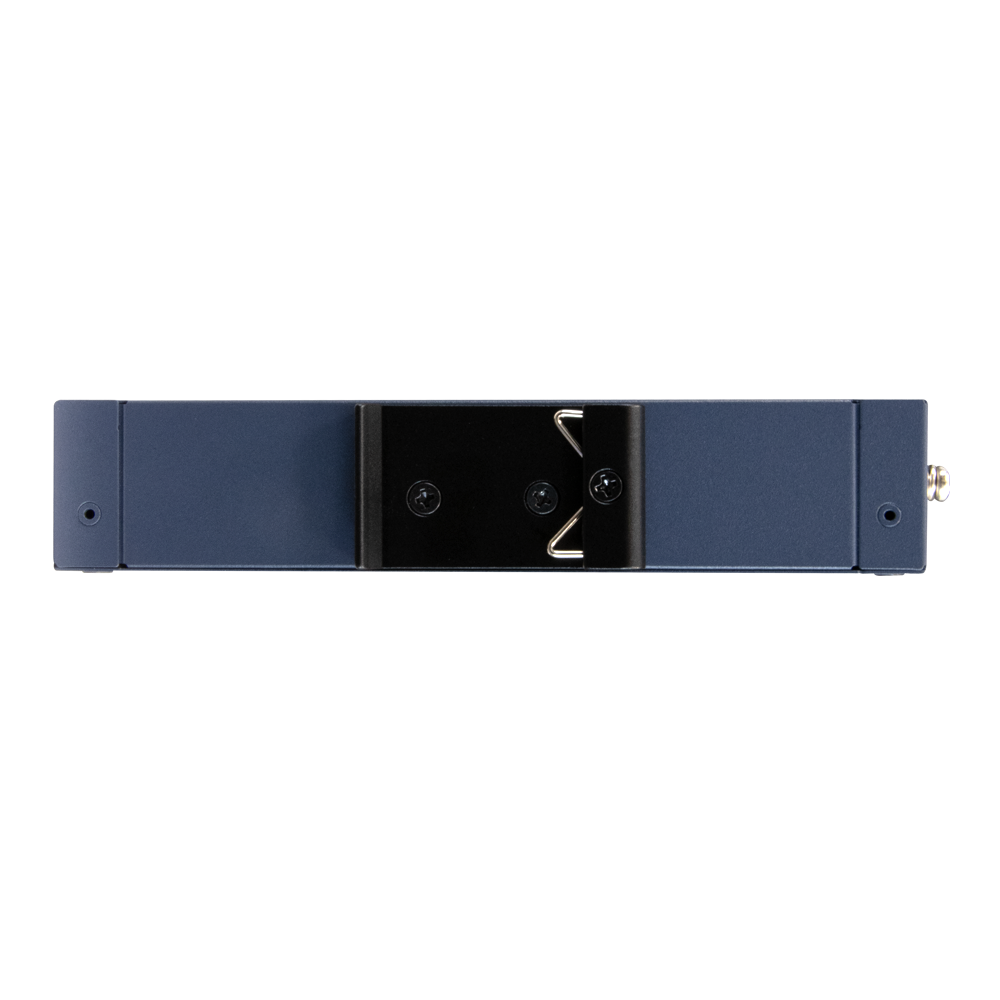

BCS-L-SP0401G-1SFP-M - Image 5

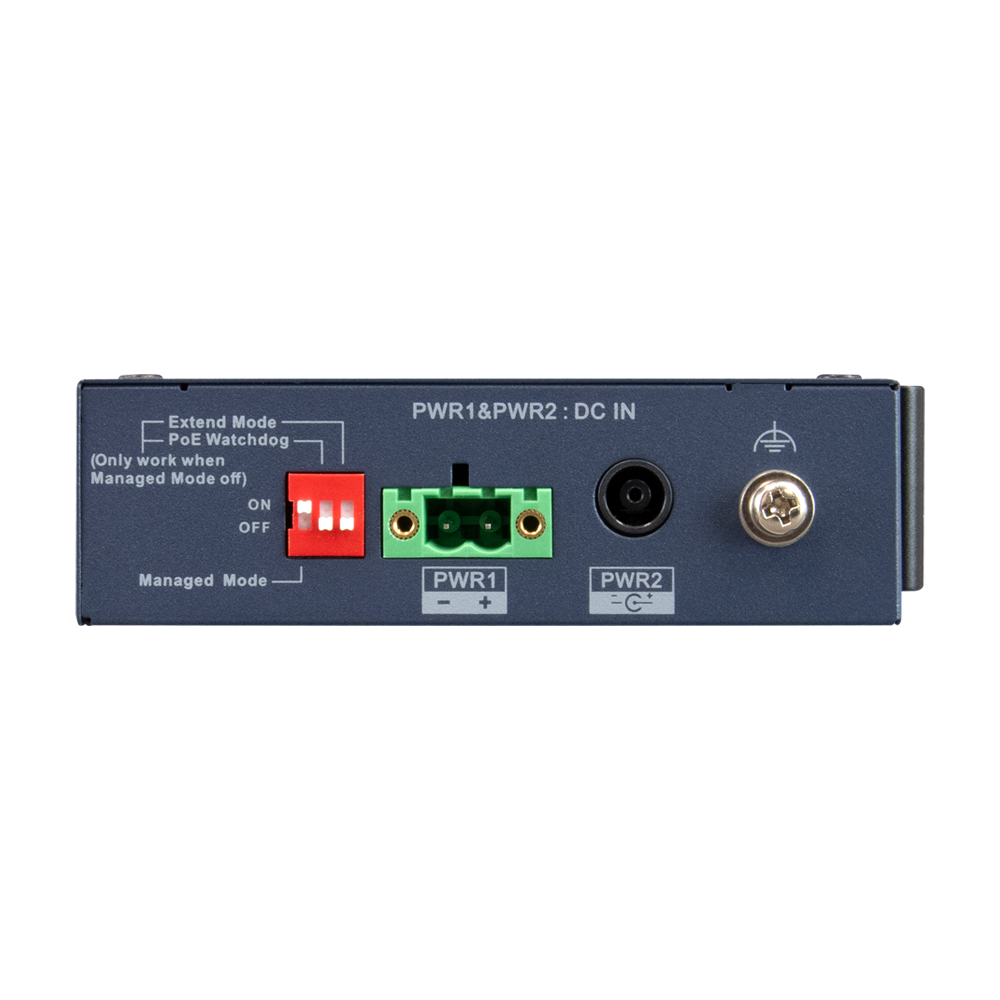

BCS-L-SP0401G-1SFP-M - Image 6

BCS-L-SP0401G-1SFP-M

132,84 € gross

76 In Stock
  • 4-port industrial PoE switch for DIN rail mounting
  • management features
  • exPoE technology
  • 4xPoE 100Mbps af/at
  • 1 x 802.3bt 60W PoE port
  • 1xSFP uplink 1Gbps
  • 1xRJ45 uplink 1Gbps
  • Total power 60W
  • Standard/Extend modes

76 in stock

  • DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
  • Official BCS e-commerce Business Partner
  • Technical support
SKU: 13039 Categories: ,
Product

BCS-L-SP0401G-1SFP-M
pa_product-line

BCS LINE
PoE ports

4×RJ45 100Mbps
Uplink ports

1×RJ45 1Gbps / 1×SFP 1Gbps
Managed

Yes
Management functions

Port-based VLAN, IEEE 802.3x Flow Control, Unknown Unicast Suppression, Multicast/Broadcast Storm Control, Port Self-loop Detection, Local Port Mirroring, N:1 Mirroring, LLDP, DHCP Client, Port Isolation, Web/Cloud Management, Logs, Fault Alarm
Standard IEEE

802.3 / 802.3u / 802.3x / 802.3ab / 802.3z / 802.3af / 802.3at
Transfer

10/100/1000Mbps half-duplex, full-duplex, auto-negotiation
Packet forwarding rate

3.57Mpps
Capacity

4.8Gbps
MAC table

8K
Packet buffer memory

4Mbit
STANDARD mode

100m
EXTEND mode

EXTEND mode suppport transmission 250m 10Mbps (cat5e, cat6)
PoE pin

1,2,4,5(+), 3,6,7,8(-)
LED status

PWR(green): power supply connected, LINK/ACT(green): device connected, PoE(yellow): device powered from PoE
PoE switch power

60W (port 1 max 60W / port 2-4 max 30W)
Protection

Air discharge: 8 kV Contact discharge: 6 kV Common mode: 4 kV Differential mode: 2 kV
Power supply

48~57V DC
Working environment

-40°C~+85°C max 95% RH
MTBF

1852444h
Weight

0.32 kg
Casing

DIN rail
pa_dimensions-mm-wxdxh

154.3×110.4×30mm
