5-port unmanaged switch (PoE), 4 PoE 100 Mbps ports, 1 RJ-45 uplink Gigabit port, Extend mode with transmission support up to 250m / 10Mbps. Dark color desktop housing. Power supply: DC 53V.
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE
BCS-L-SP0401G-1SFP(2)
175,89 € gross

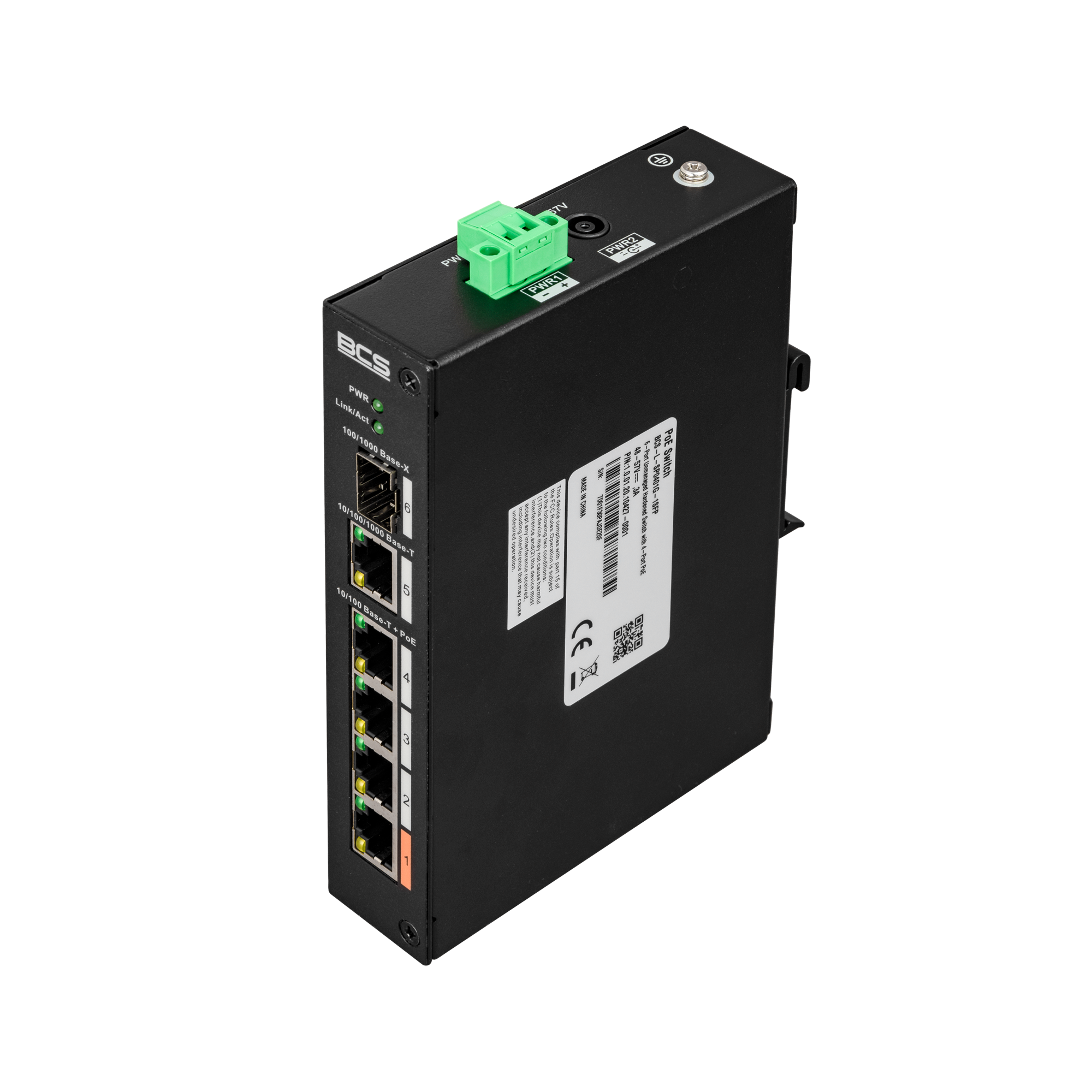

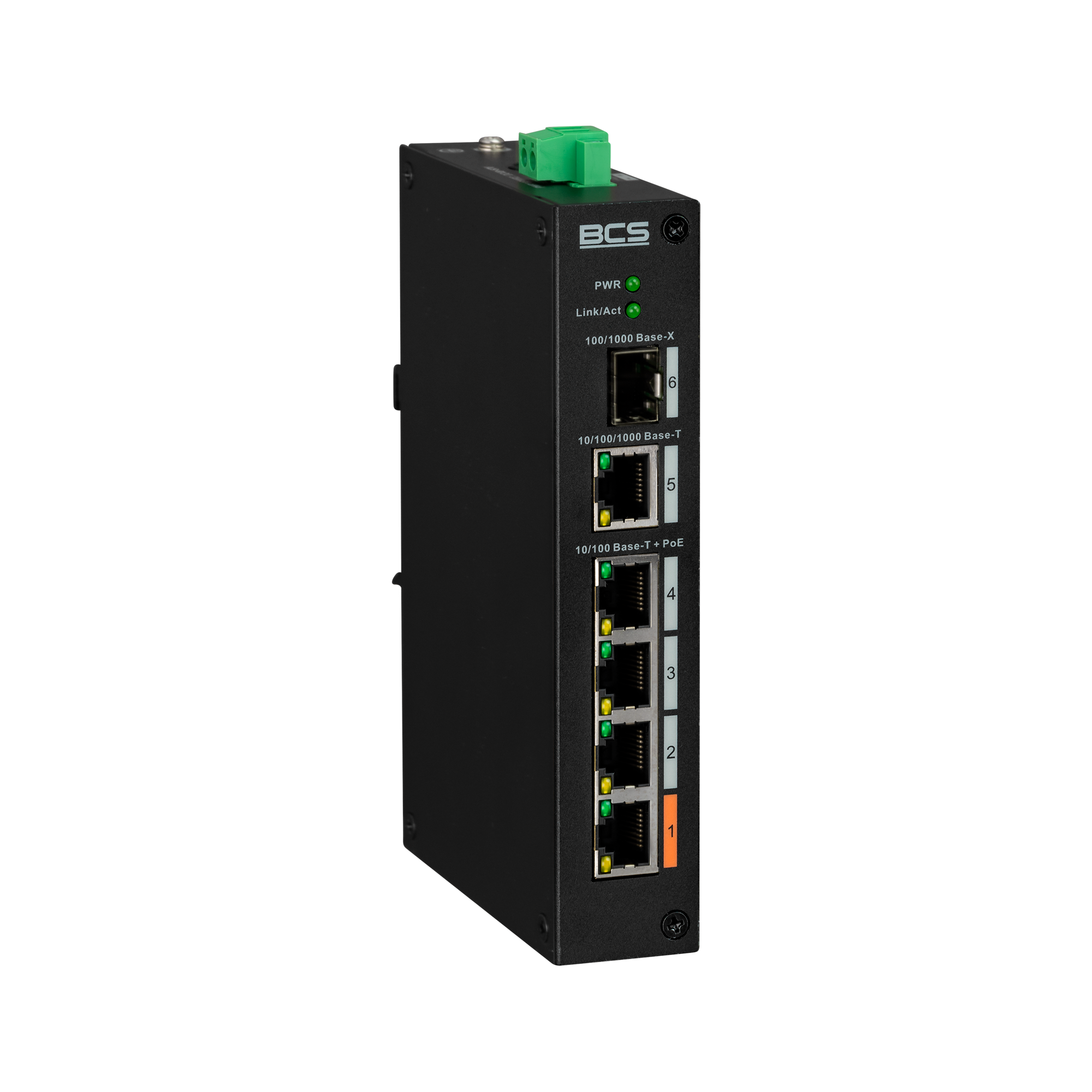

Out of Stock4-port industrial PoE switch for DIN rail mounting
- exPoE technology
- 4xPoE 100Mbps af/at
- 1 x 802.3bt 60W PoE port
- 1xSFP uplink 1Gbps
- 1x RJ45 uplink 1 Gbps
- Total power 65W
- Standard/Extend modes
Out of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
| Product | BCS-L-SP0401G-1SFP(II) |
|---|---|
| PoE ports | 4×RJ45 100Mbps |
| Uplink ports | 1×RJ45 1Gbps / 1×SFP 1Gbps |
| Standard IEEE | 802.3af / 802.3at / 802.3bt / 802.3 / 802.3u / 802.3x / 802.3ab / 802.3z |
| Transfer | 10/100/1000Mbps half-duplex, full-duplex, auto-negotiation |
| Packet forwarding rate | 3.57Mpps |
| Capacity | 6.8Gbps |
| MAC table | 8K |
| Packet buffer memory | 1Mbit |
| STANDARD mode | 100m |
| EXTEND mode | EXTEND mode suppport transmission 250m 10Mbps (cat5e, cat6) |
| PoE pin | 1,2,4,5(+), 3,6,7,8(-) |

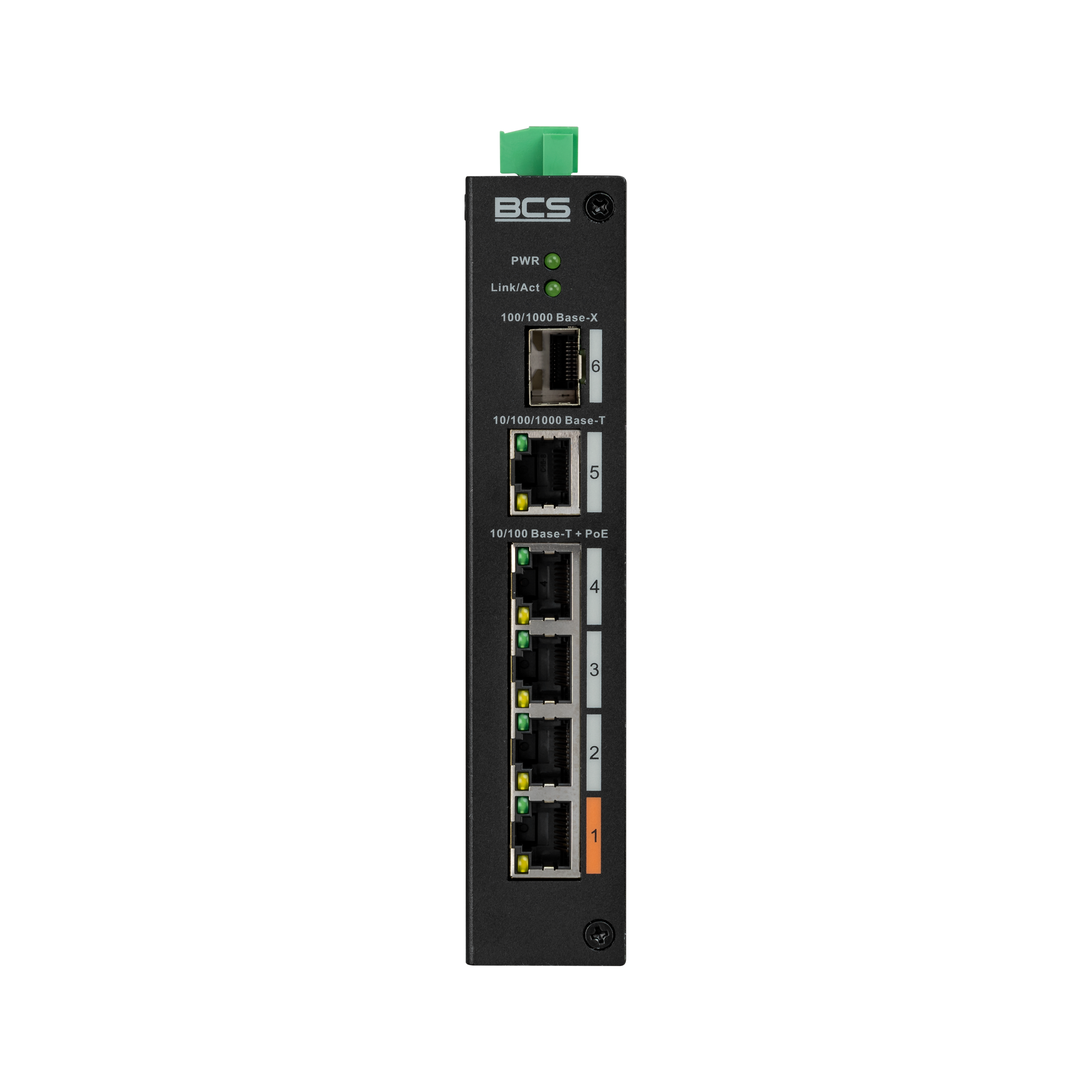

| LED status | PWR(green): power supply connected, LINK/ACT(green): device connected, PoE(yellow): device powered from PoE |
| PoE switch power | 60W (port 1 max 60W / port 2-4 max 30W) |
| Protection | Electrostatic 15kV environment / 8kV contact, 2kV DM / 4kV surge protection CM |

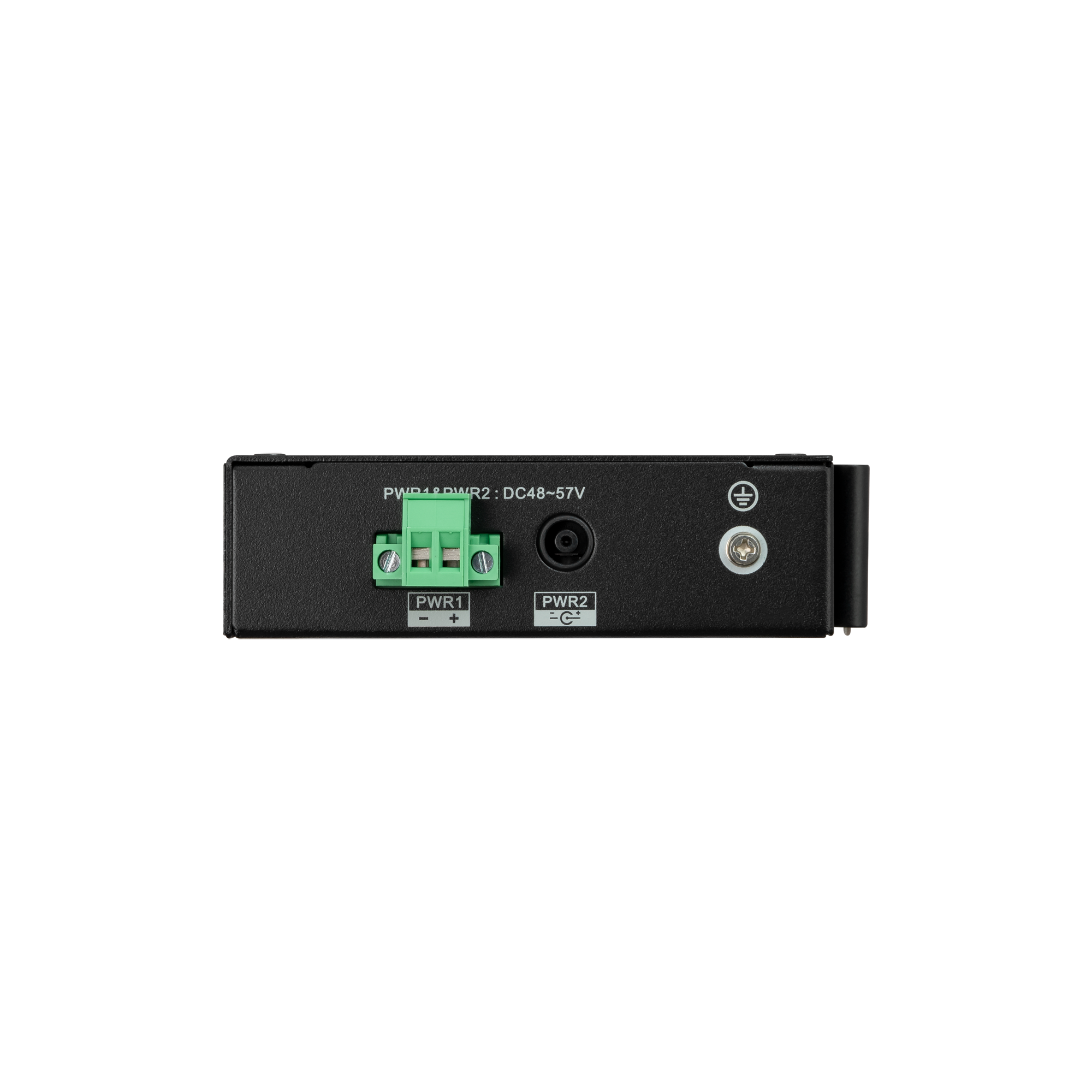

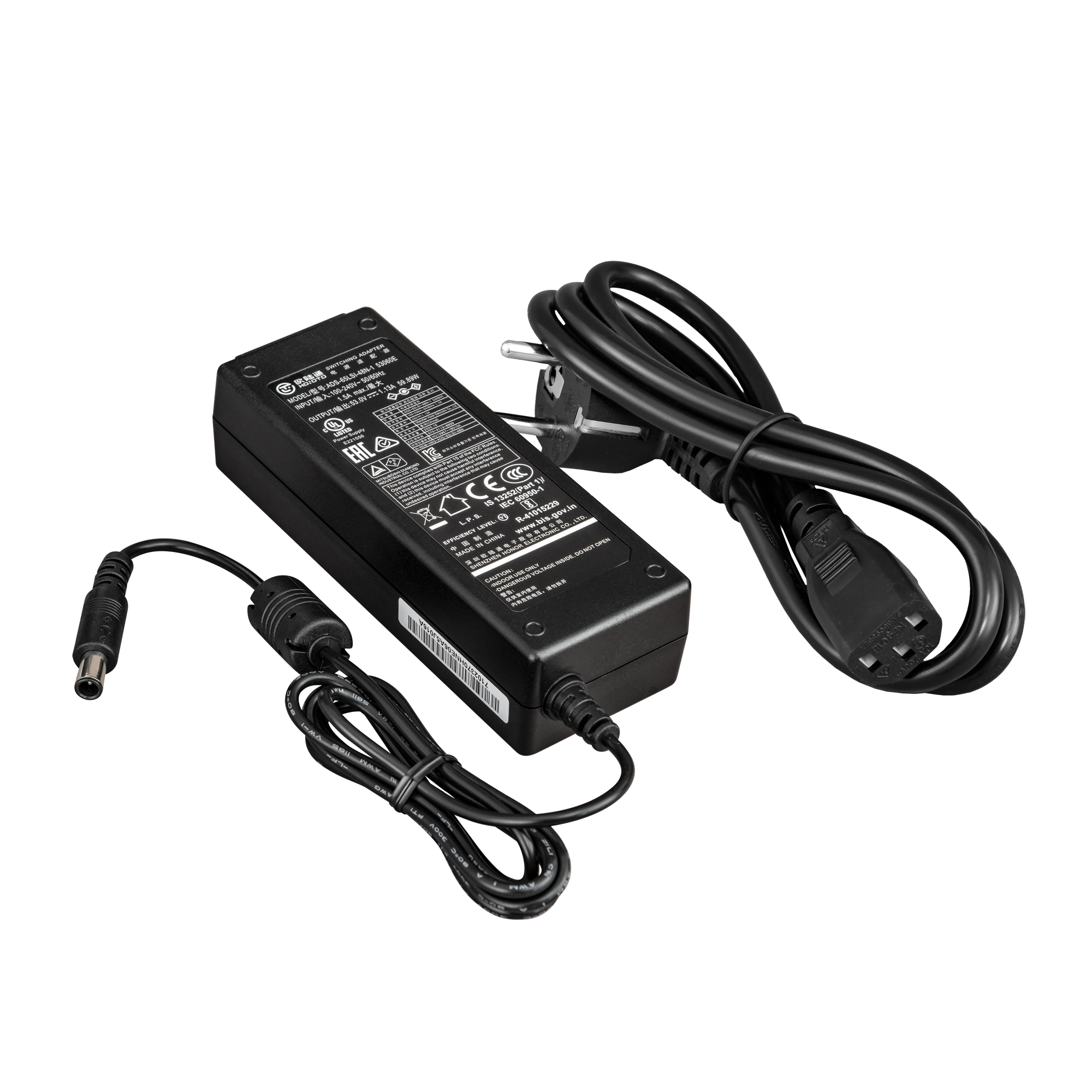

| Power supply | 53V DC |
| Working environment | -30°C~+65°C max 95% RH |
| Weight | 0.45 kg |

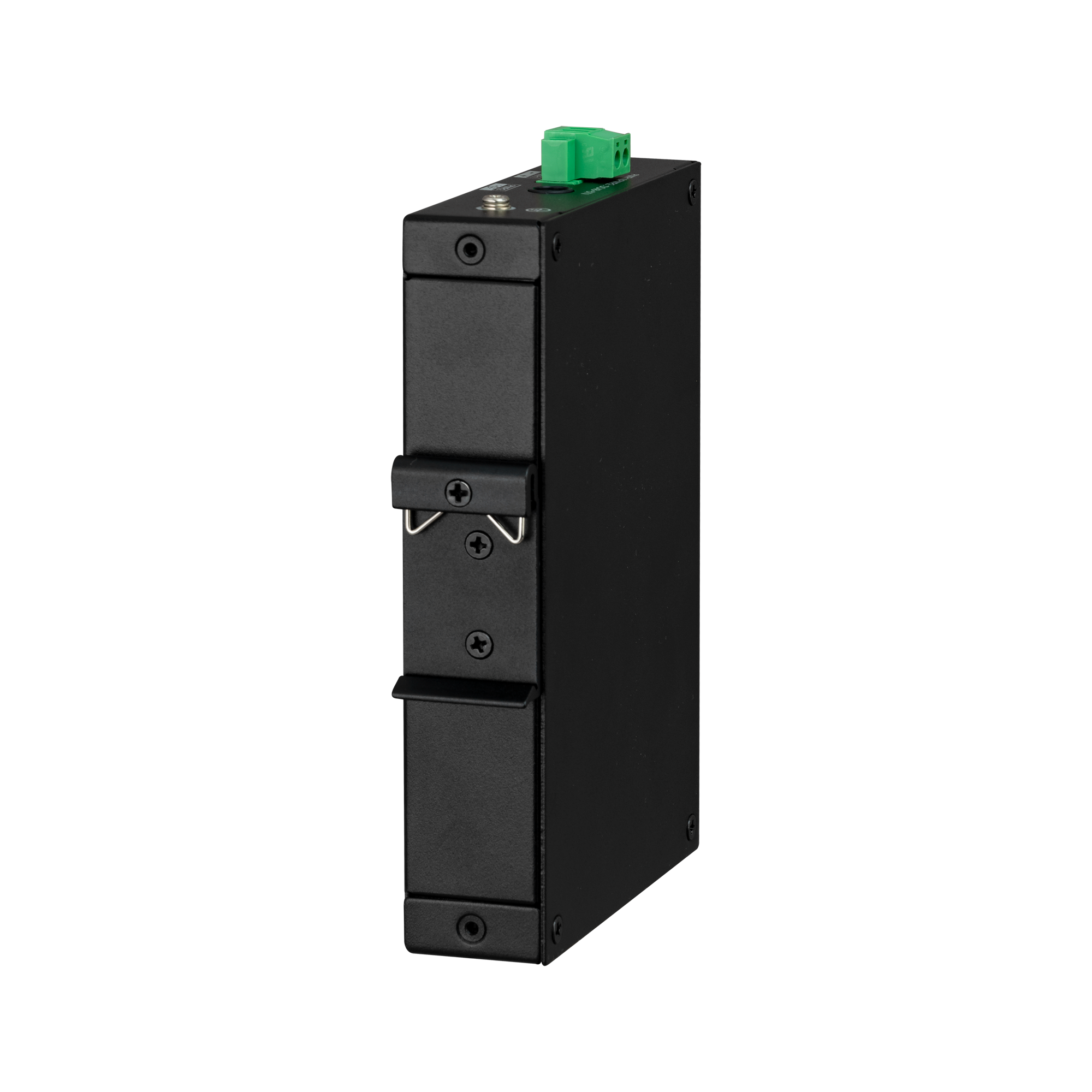

| Casing | DIN rail |
| Dimensions (W×D×H) | 150×100×30mm |
