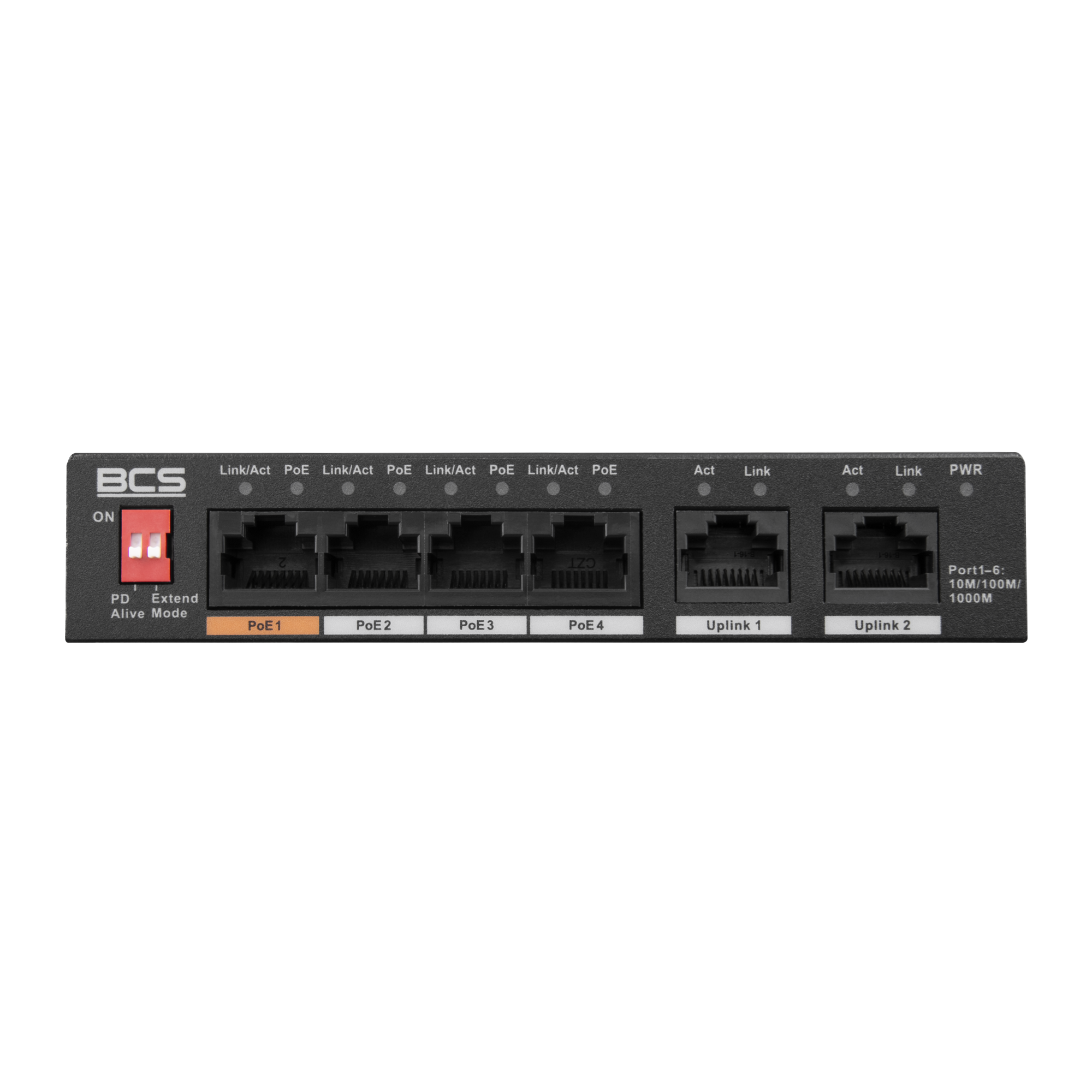

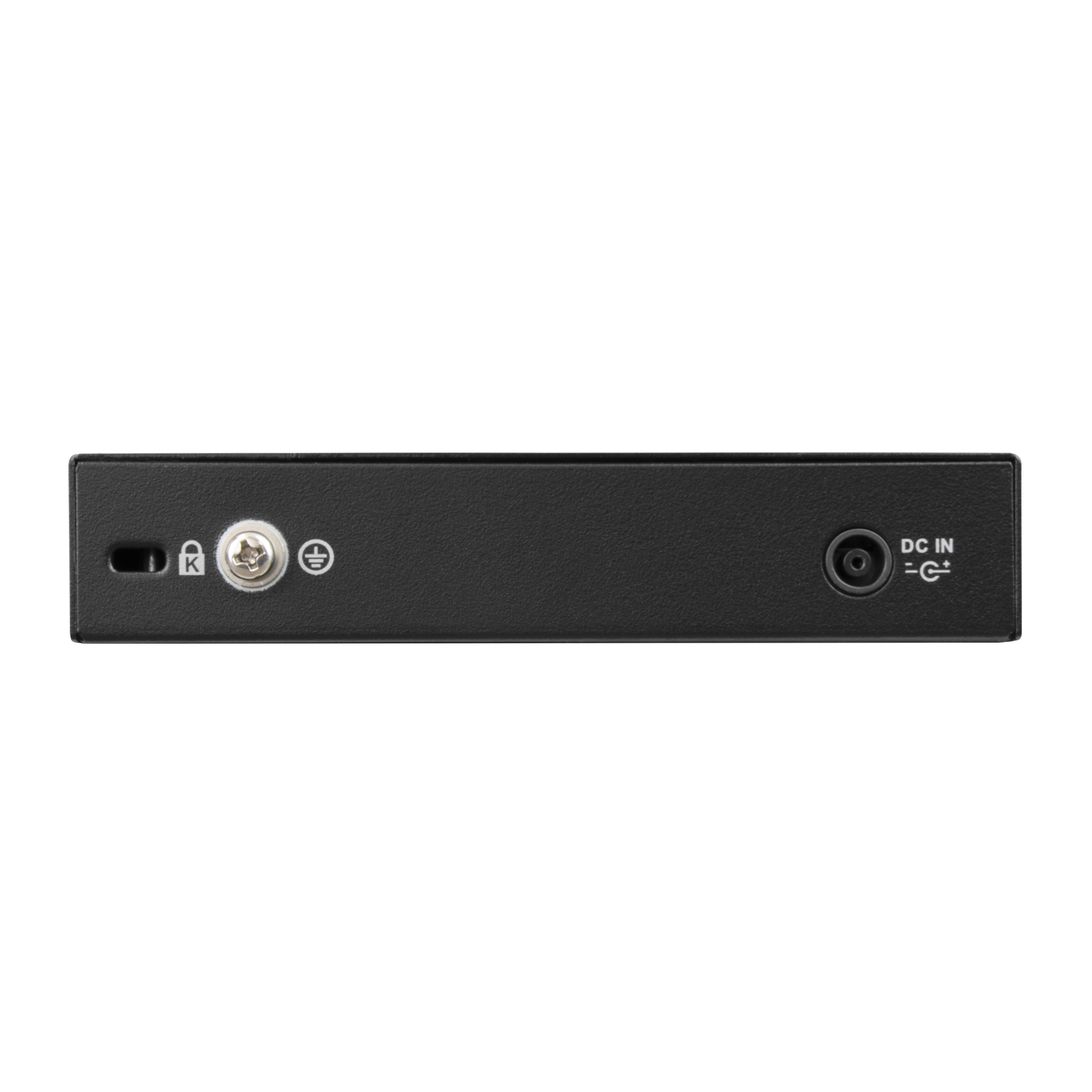

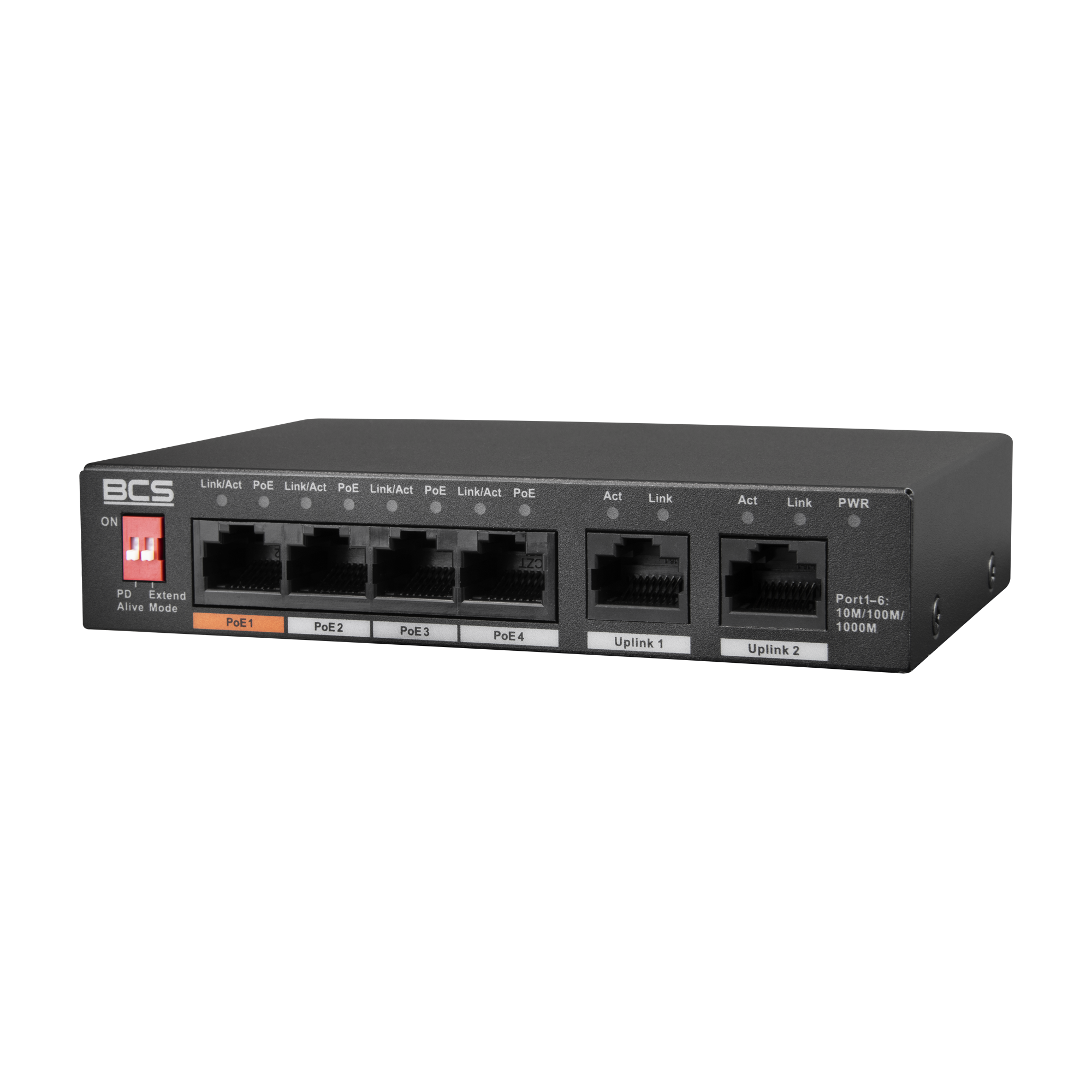

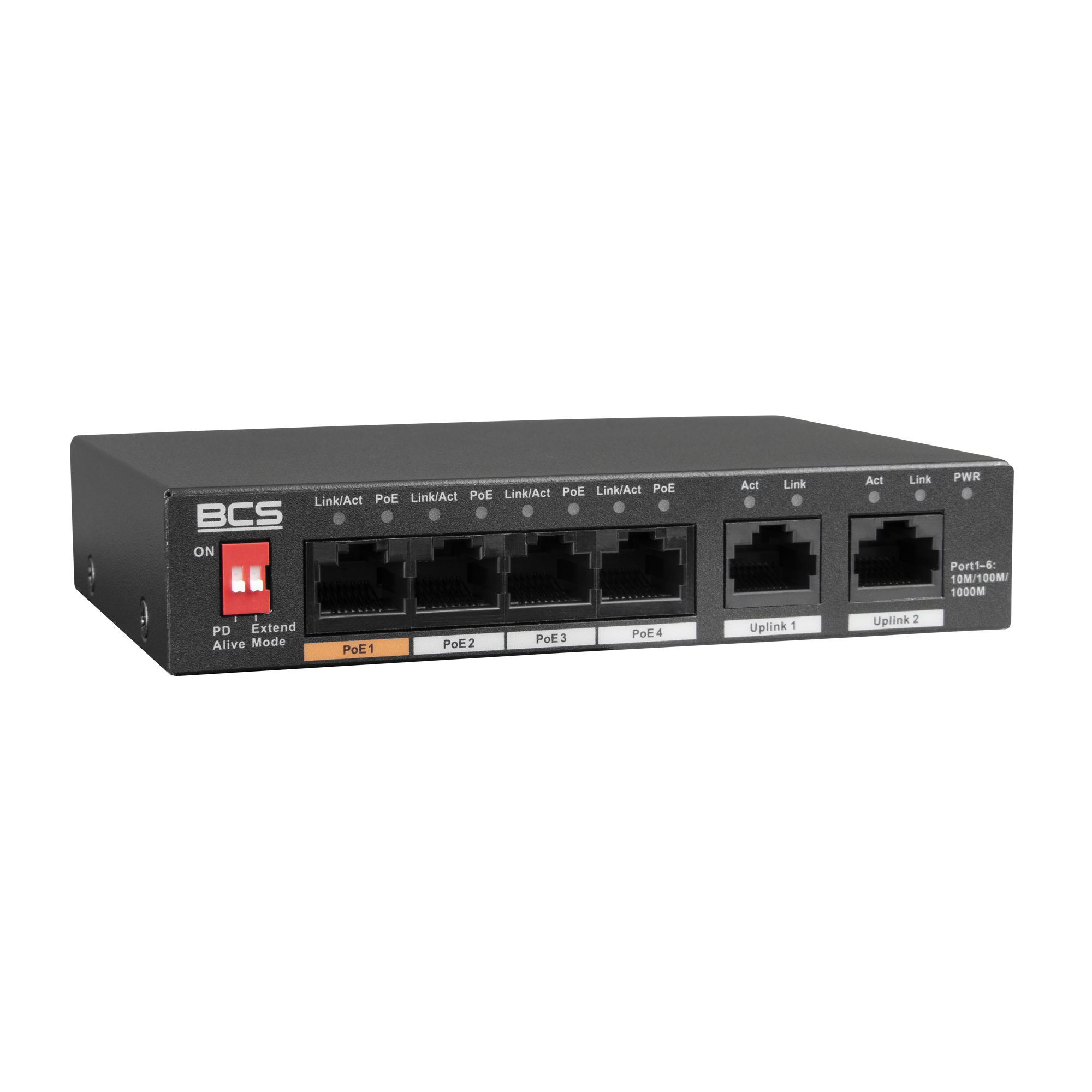

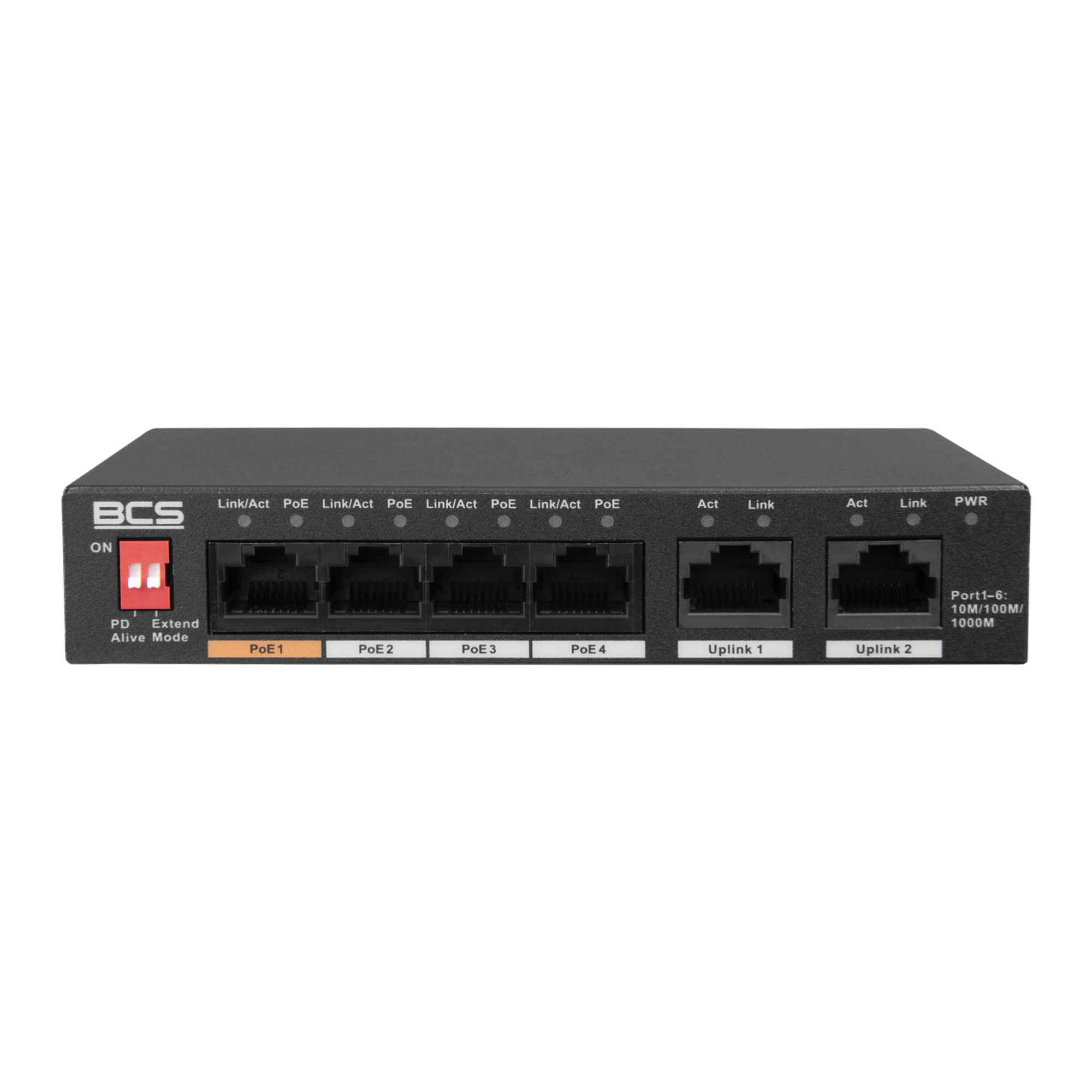

6-port Gigabit unmanaged switch (PoE), 4 PoE Gigabit ports, 2 RJ-45 Gigabit uplink ports. Dark color desktop housing. Power supply: DC 48-57V.
Save 56%
BCS-L-SP04G02G(2)
59,35 € gross
20 In Stock- 4-port PoE switch
- exPoE technology
- 4xPoE 1Gbps af/at
- 1 x 802.3bt 60W PoE port
- 2xRJ45 1Gbps uplink
- Total power 60W
- Standard/Extend modes
20 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
| Product | BCS-L-SP04G02G(2) |
|---|---|
| PoE ports | 4×RJ45 1Gbps |
| Uplink ports | 2×RJ45 1Gbps |
| Standard IEEE | 802.3af / 802.3at / 802.3bt / 802.3 / 802.3u / 802.3x / 802.3ab |
| Transfer | 10/100/1000Mbps half-duplex, full-duplex, auto-negotiation |
| Packet forwarding rate | 8.928Mpps |
| Capacity | 14Gbps |
| MAC table | 2K |
| Packet buffer memory | 1Mbit |
| STANDARD mode | 100m |
| EXTEND mode | EXTEND mode suppport transmission 250m 10Mbps (cat5e, cat6) |
| PoE pin | 1,2,4,5(+), 3,6,7,8(-) |
| LED status | PWR(green): power supply connected, LINK/ACT(green): device connected, PoE(yellow): device powered from PoE |
| PoE switch power | 60W (port 1 max 60W / port 2-4 max 30W) |
| Protection | Electrostatic 8kV environment / 6kV contact, 2kV DM / 4kV surge protection CM |
| Power supply | 48~57V DC |
| Working environment | -10°C~+55°C max 95% RH |
| Weight | 0.3 kg |
| Casing | Desktop |
| Dimensions (W×D×H) | 130×85×26mm |
