| Product | BCS-L-SP08E01G-1SFP(2) |
|---|---|
| PoE ports | 8×RJ45 100Mbps |
| Uplink ports | 1×RJ45 1Gbps / 1×SFP 1Gbps |
| Standard IEEE | 802.3af / 802.3at / 802.3bt / 802.3 / 802.3u / 802.3x / 802.3ab / 802.3z |
| Transfer | 10/100/1000Mbps half-duplex, full-duplex, auto-negotiation |
| Packet forwarding rate | 5.36Mpps |
| Capacity | 8.8Gbps |
| MAC table | 8K |
| Packet buffer memory | 2.75Mbit |
| STANDARD mode | 100m |
| EXTEND mode | EXTEND mode support transmission ePoE 800m/10Mbps, 300m/100Mbps (cat5e, cat6) |
| PoE pin | 1,2,4,5(+), 3,6,7,8(-) |
| LED status | PWR(green): power supply connected, LINK/ACT(green): device connected, PoE(yellow): device powered from PoE |
| PoE switch power | 120W (port 1,5 max 90W / port 2,3,4,6,7,8 max 30W) |
| Protection | Air discharge: 8 kV Contact discharge: 6 kV Common mode: 4 kV Differential mode: 2 kV |

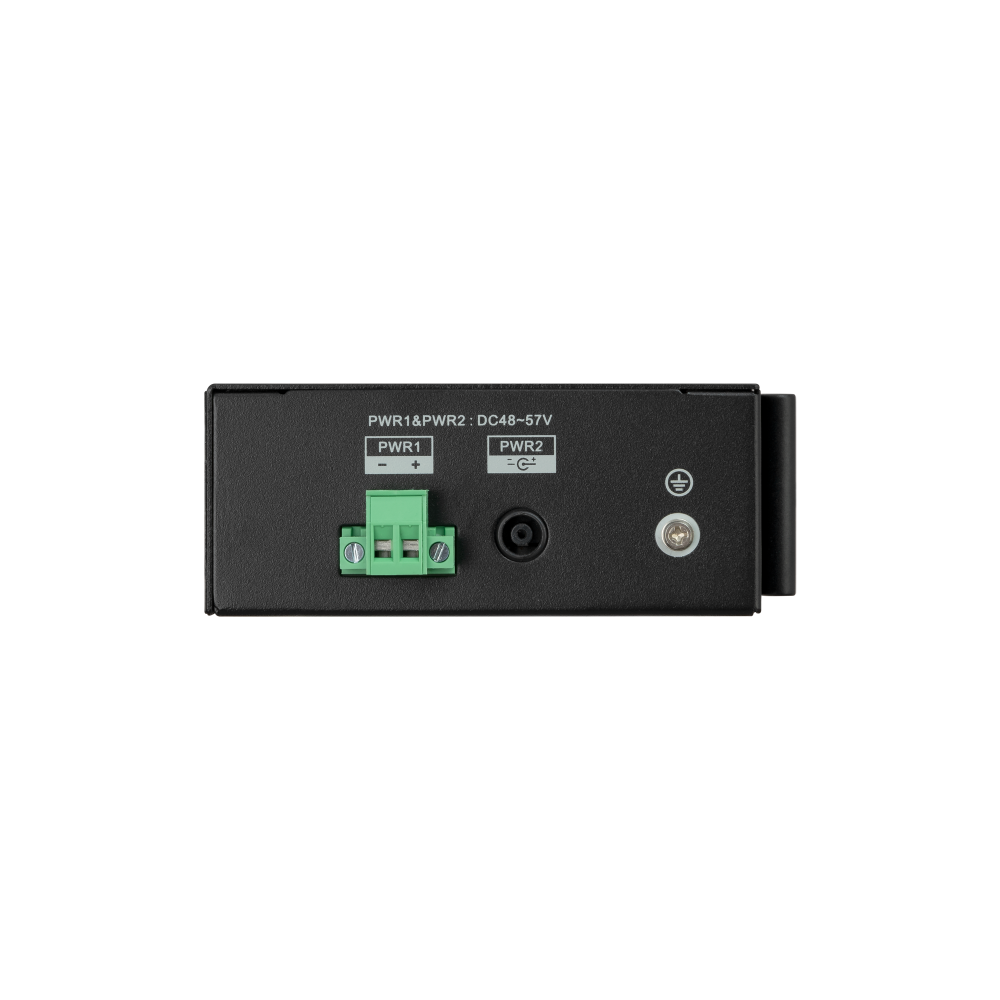

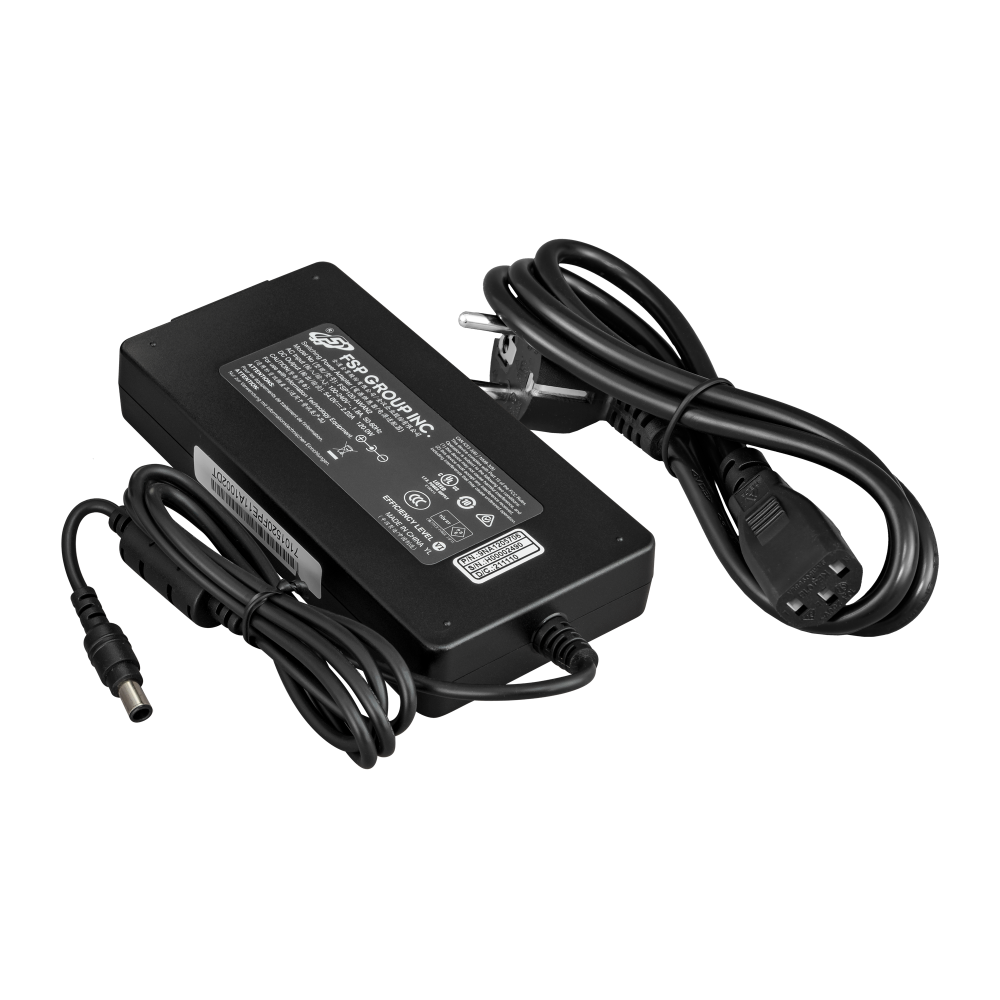

| Power supply | 54V DC 2.22A |
| Working environment | -30°C~+65°C max 95% RH |
| Weight | 0.6 kg |

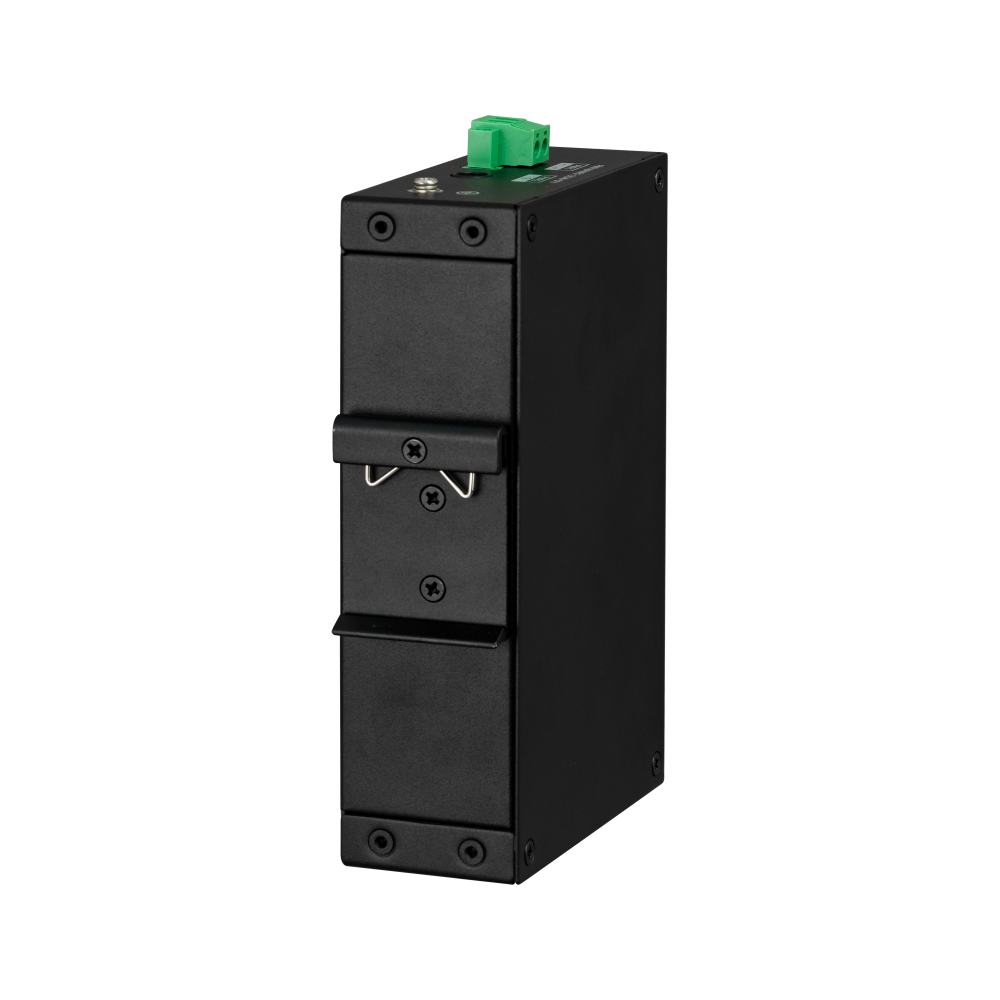

| Casing | DIN rail |
| Dimensions (W×D×H) | 150×100×42mm |

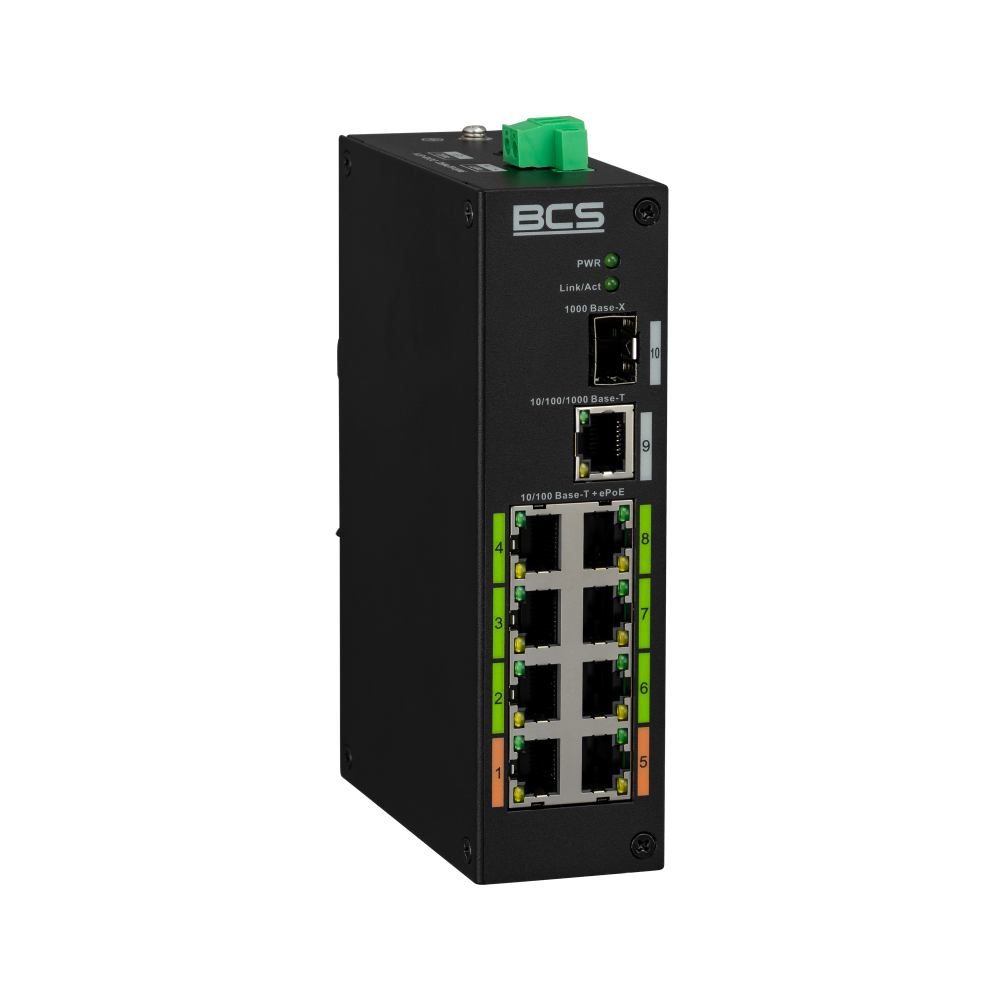

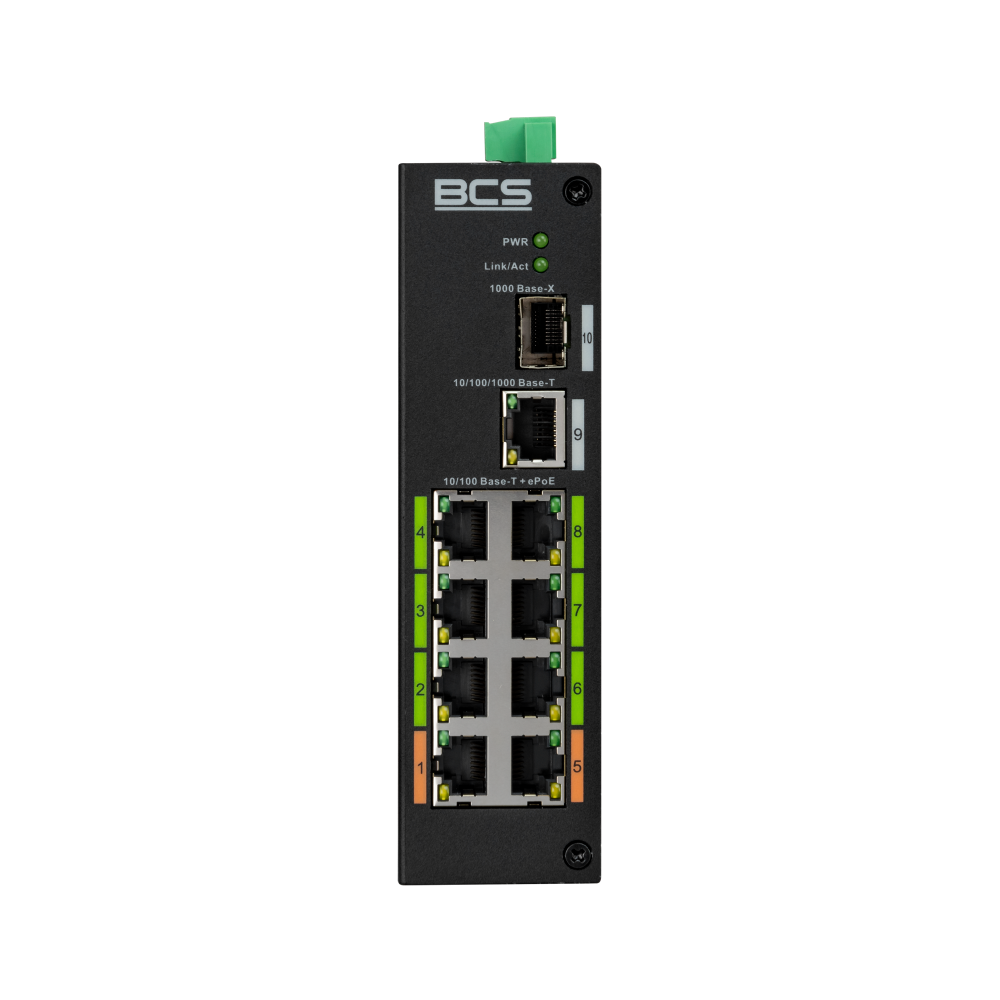

BCS-L-SP08E01G-1SFP(2)
409,59 € gross
9 In Stock8-port industrial PoE switch for DIN rail mounting
- exPoE technology
- 8xPoE 100Mbps af/at
- 2 x 802.3bt 90W PoE ports
- 1x 1Gbps SFP uplink
- 1xRJ45 uplink 1Gbps
- Total power 120W
- Standard/Extend modes
9 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
