| Ai - Human/vehicle detection | Human/vehicle classification for crossline and intrusion and fast moving reduces false alarms |
|---|---|
| Product | BCS-L-TIP912VSR6-Ai3 |
| Camera type | Bullet |
| Sensor | 1/1.7'' CMOS |
| RAM | 4GB |
| Aperture | F1.6 |
| Digital zoom | 16× |
| S/N ratio | 56dB |
| Gain control | (AGC) Auto / manual |
| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| Stream support | 5 |
| Pixels | 4000(H)×3000(V) |
| Flag | TO ORDER |
| Resolution | 12 Mpx |
| Scanning system | Progressive Scan |
| ROM | 8GB |
| Lens | motozoom |
| Focal length | 2.7~12 mm |
| Focus | Auto / manual |
| Iris | Auto / P-iris |
| Optical zoom | 4× |
| Angle of view | H: 106°~45° V: 77°~34° D: 140° ~56° |
| DORI | Detect 88~187m / Observe 35~75m / Recognize 17~37m / Identify 9~19m |
| Min illumination | 0.0009Lux(Color,F1.6,30IRE) 0.0005Lux(F1.6,B/W,30IRE) 0Lux(IR) |
| White balance | (AWB) Auto / manual |
| WDR | DWDR |
| Backlight compensation | BLC / HLC / DWDR / SSA |
| Shutter | Auto / manual 1/3~1/100000s |
| Fifth stream | 704×576(1~25fps) 704×480(1~30fps) |
| Noise reduction | 3D DNR |
| RoI | Region of Interest |
| Image Stabilization | Electronic (EIS) |
| Defog | Electronic |
| Image rotate | Mirror, Flip 0°/90°/180°/270° |
| Resolutions | |
| Main stream | 4000×3000(1~25/30fps) |
| Second stream | 1920×1080(1~25/30fps) |
| Third stream | 1920×1080(1~25/30fps) |
| Fourth stream | 1920×1080(1~25/30fps) |
| Bitrate | H264: 32Kbps~16384Kbps H265: 32Kbps~12288Kbps |
| Video compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED |
| IR range | 60m |
| Microphone | Yes |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711Mu / G.723 / G.726 / PCM |
| Alarm in | 3 |
| Alarm out | 2 |
| Storage | FTP, SFTP, NAS |
| Memory card slot | microSD 512GB |
| Other interfaces | RS485, BNC |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 8 |
| Network | RJ-45 10/100/1000 Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP , RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P |
| Network security | |
| Power supply | PoE |
| Power supply type | 12V DC / 24V AC / PoE+(802.3at) / ePoE |
| Power consumption | max 25W |
| Housing color | White |
| IP class | IP67 |
| IK10 | Yes |
| Anti-corrosion | Optional |
| Working environment | -40°C~+65°C max 95% RH |
| Dimensions | 345.6×134.2×135.1mm |
| Weight | 1.65 kg |
| Ai - Perimeter protection | Intrusion, crossline, fast moving, loitering, people gathering, parking detection |
| Ai - Smart object detection | Intelligent detection missing/abandoned objects |
| &Ai - Object classification | Yes |
| Ai - Face detection | Face detection and tracking, snapshot, attributes and expression recognition |
| Ai - Face recognition | Face identification with z database, max. 5 database, 200k records |
| Ai - People counting | People counting for intrusion and crossline, counting people in/out/stay in, queue management, generate and export reports in periods of time |
| Ai - Metadata | People attributes (gender, clothes, color, bag, hat, umbrella), face attributes (gender, age, expression, glasses, mask, beard), vehicle attributes (type, color, logo, seat belts, smoking, calling) |
| Ai - Heat map | Recording the movement of objects over a period of time, statistics of the time density of movement presented graphically in red/blue color tones |
| Ai - ARTR | License plate recognition, snapshot, track, speed max 60km/h, black and white list 10k records, attributes (license plate, vehicle type, vehicle color, seatbelts, smoking, calling) |
| Ai - Parking space management | Manage outdoor and planned parking lots, parking spaces in multiple areas, total and available parking spaces, trigger alarms based on a predefined number of vehicles. |
| Ai - Smart search | AcuPick technology – intelligent search for human/vehicle objects in the recording history with a recorder with the AcuPick function |
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE

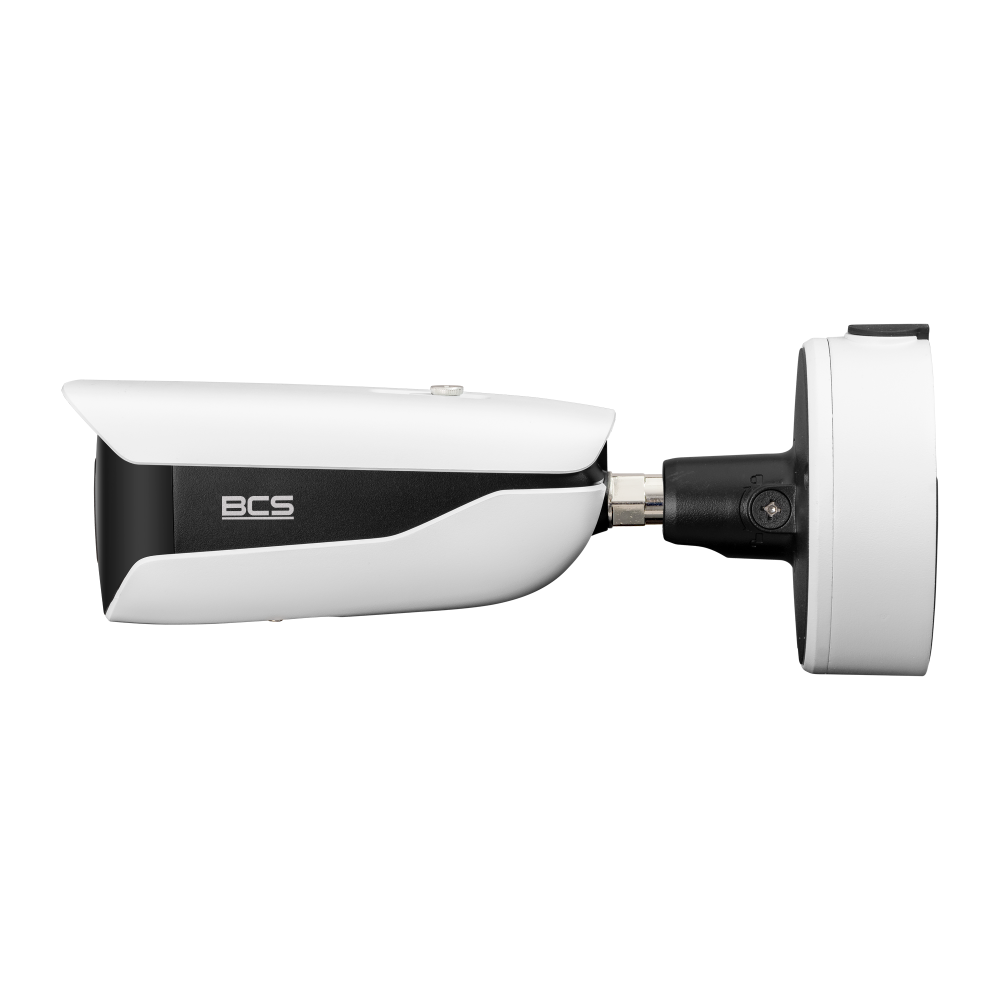

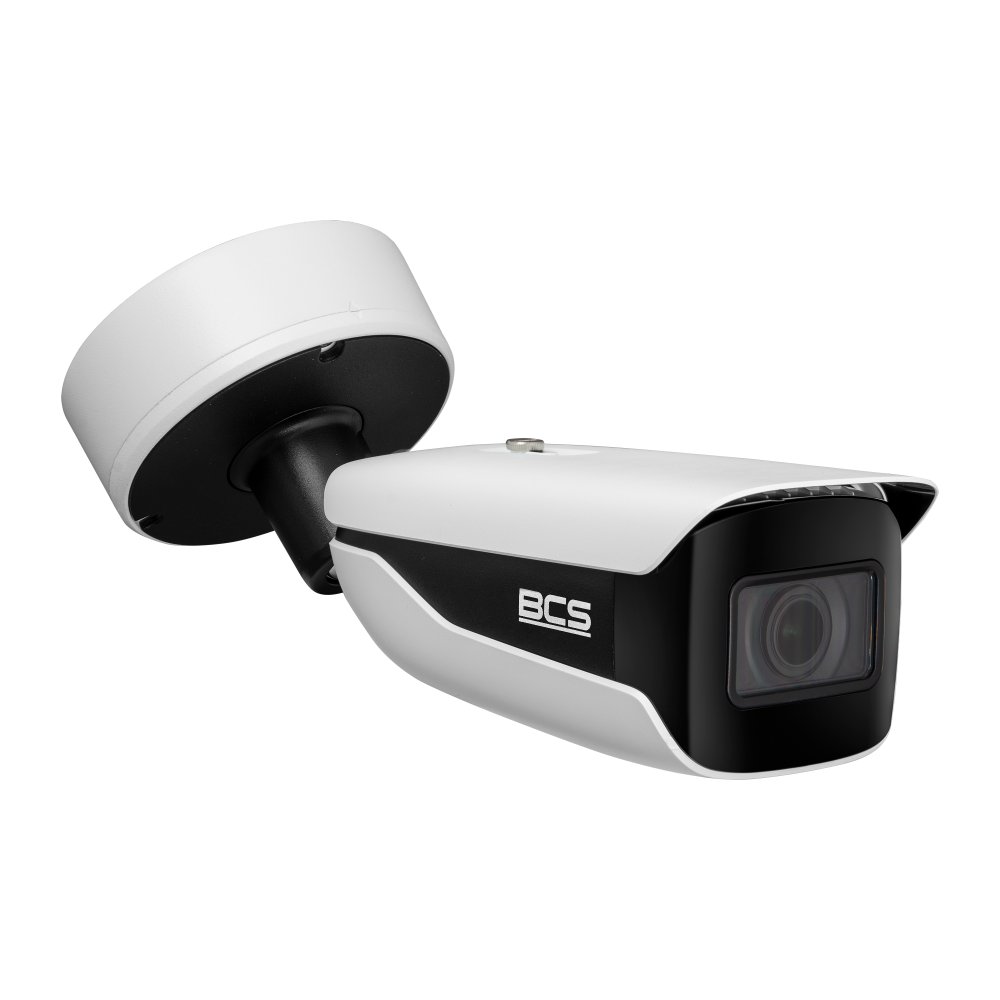

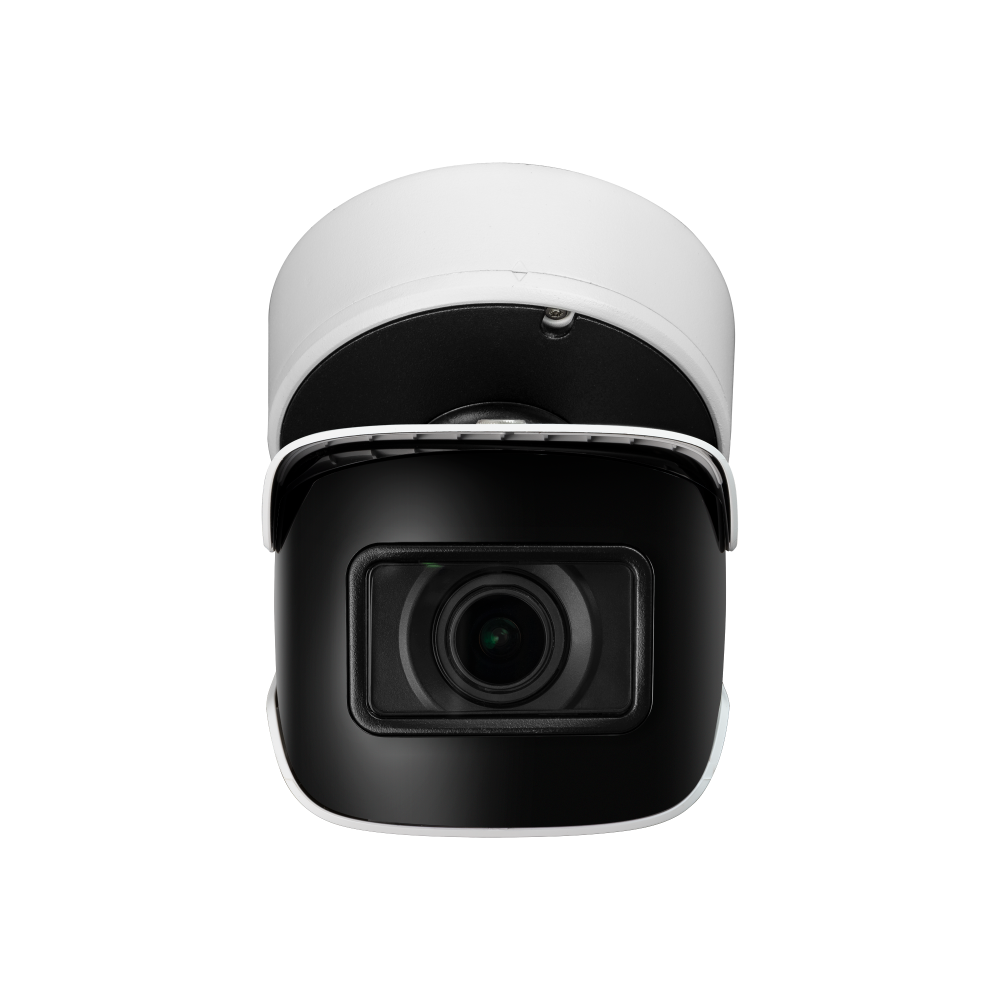

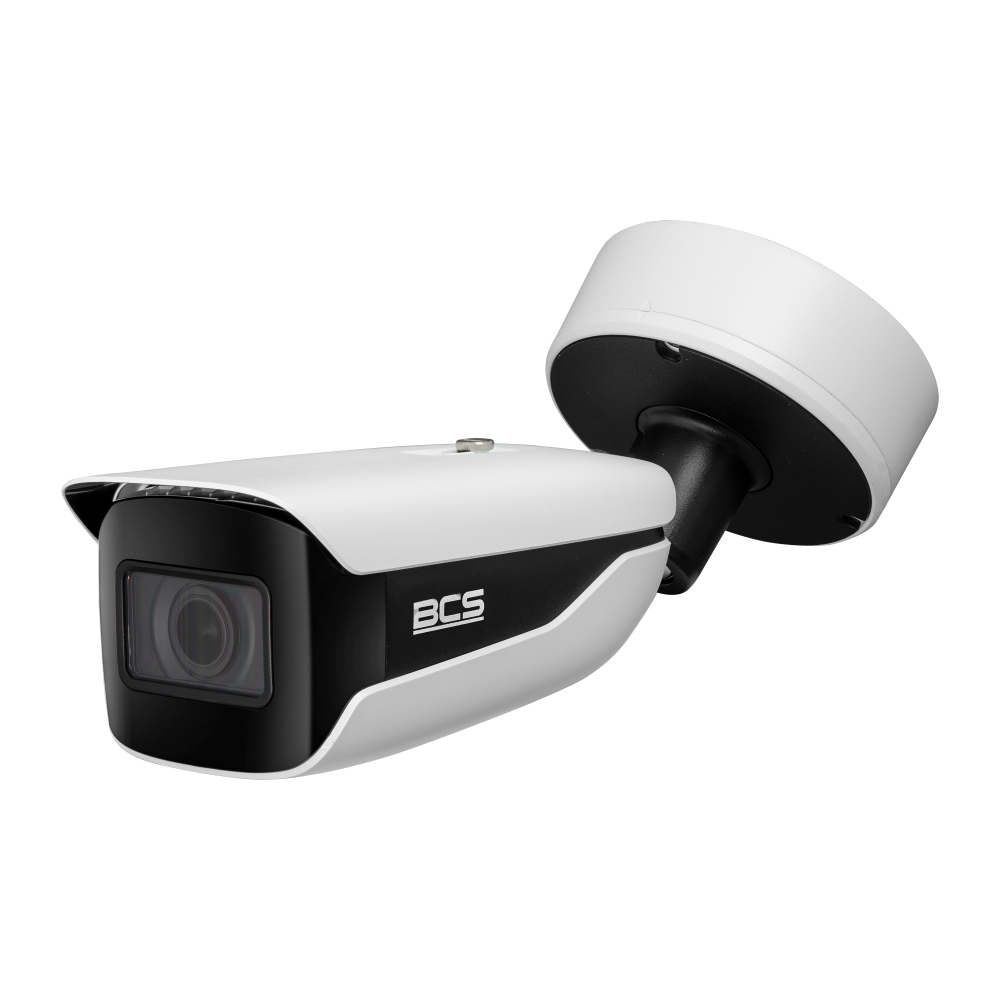

BCS-L-TIP912VSR6-Ai3
2619,90 € gross
Out of Stock- 12Mpx IP bullet camera
- 1/1.7" PS CMOS sensor
- SkyLight technology
- exPoE technology
- AcuPick technology
- 2.7–12 mm motorised zoom lens
- IR 60m
- Alarm 3/3, audio 1/1
- IP67, IK10 housing
- Built-in smart features
Out of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
