| &Ai - Smoking detection | Tak |
|---|---|
| Active deterrence function ADC | Sound-optical alarm |
| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| Temperature measurement range | Low gain: -20°C~150°C High gain: 0°C~550°C |
| Temperature measurement accuracy | Max (±2°C, ±2%) |
| Temperature measurement environment | -20°C~+60°C |
| Flag | TO ORDER |
| Product | BCS-L-TIP944FWL8-THT-Ai1(0613) |
| Camera type | Thermal |
| Resolution | 4 Mpx |
| Sensor | 1/1.8'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 2688(H)×1520(V) |
| Lens | fixed |
| Focal length | 6 mm |
| Aperture | F1.6 |
| Focus | fixed |
| Iris | fixed |
| Angle of view | H: 55.3° V: 30.0° |
| Min illumination | 0.01Lux 0.001Lux(B/W) 0Lux(White Light) |
| S/N ratio | 55dB |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| Backlight compensation | BLC / HLC / WDR(120dB) |
| Shutter | Auto / manual 1~1/30000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 2D/3D DNR |
| DDE | Digital Detail Enhancement |
| RoI | Region of Interest |
| Defog | Electronic |
| Image rotate | Mirror, flip 180° |
| Stream support | 2 |
| Resolutions | 2688×1520 / 2560×1440 / 1920×1080 / 1280×720 / 704×576 / 352×288 |
| Main stream | 2688×1520 / 2560×1440 / 1920×1080 / 1280×720 / 704×576 @25/30fps |
| Second stream | 704×576 / 352×288 @25/30fps |
| Video compression | H.265 / H.264M / H.264H / H.264B |
| Day/night | ICR |
| Illuminator type | WhiteLight |
| WhiteLight range | 80m |
| Loudspeaker | Yes |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711a / G.711mu |
| Alarm in | 2 |
| Alarm out | 2 |
| Storage | FTP |
| Memory card slot | microSD 512GB |
| Other interfaces | RS485 |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
| Power supply | PoE |
| Power supply type | 12V DC / PoE(802.3af) / ePoE |
| Power consumption | max 18W |
| Housing color | White |
| IP class | IP67 |
| Surge protection | Surge protection: 6 kV Air discharge: 15 kV Contact discharge: 8 kV |
| Working environment | -30°C~+70°C max 95% RH |
| Dimensions | 300.9×181.8×181.8mm |
| Weight | 2.35 kg |
| Casing | Metal |
| Ai - Perimeter protection | Intrusion, crossline |
| &Ai - Object classification | Yes |
| Thermal camera sensor | Microbolometric sensor with active absorbing material Vox |
| Thermal camera resolution | 400(H)×300(V) |
| Thermal camera main stream | 1280×1024 / 1280×960 / 1280×720 / 400×300 @25/30fps |
| Thermal camera second stream | 640×512 / 640×480 / 400×300 @25/30fps |
| Thermal camera lens | 13 mm |
| Thermal camera aperture | F1.0 |
| Thermal camera angle of view | H: 30.4° V: 22.5° |
| Thermal camera DORI | Osoba(pojazd) Detect 382(1019)m / Recognize 98(255)m / Identify 49(127)m |
| Temperature measurement | Yes |
| Fire detection distance | max 78m |
| Temperature measurement mode | Spot 12 / Line 12 / Area 12 |
| Fire detection and alarm | Yes |
| Cold and Hot Spot Trace | Tracking the coldest and warmest temperature points on screen |
| Fusion function | Yes |
| PIP | Image in image |
| Pixel size | 17um |
| Thermal sensitivity | 35mK |
| Spectral range | 8~14um |
| Ai - Human/vehicle detection | Recognition of people entering the area and crossing the line reduces false alarms. |
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE

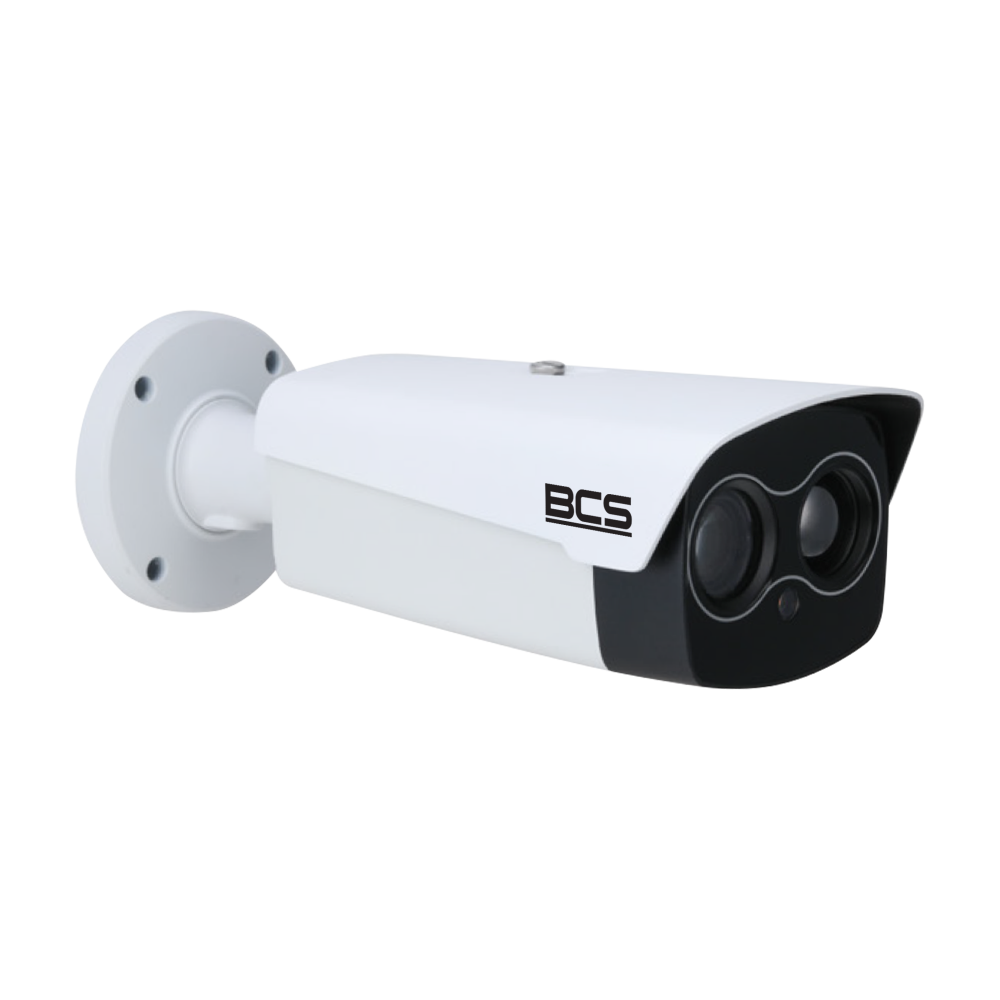

BCS-L-TIP944FWL8-THT-Ai1(0613)
0,00 € gross
Out of Stock- Thermal imaging tube IP camera
- 400×300 thermal sensor with a 13mm lens
- Temperature measurement
- 4 Mpx video camera with a 6mm lens
- White Light 80m
- Alarm 2/2, audio 1/1
- IP67 housing
- Fire detection and alarm
- ADC technology
- Built-in smart features
