| Ai - Human/vehicle detection | Recognition of people entering the area and crossing the line reduces false alarms. |
|---|---|
| Product | BCS-L-TIP96F-TH-Ai1(25) |
| Camera type | Thermal |
| Noise reduction | 2D/3D DNR |
| Video compression | H.265 / H.264 / H.264H / MJPEG |
| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| Alarm in | 2 |
| Other interfaces | RS485, BNC |
| Flag | TO ORDER |
| Gain control | (AGC) Auto / manual |
| DDE | Digital Detail Enhancement |
| Image rotate | Flip 180° |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711a / G.711mu / AAC / PCM |
| Power supply | PoE |
| Alarm out | 2 |
| Storage | FTP |
| Memory card slot | microSD 512GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF |
| Protocols | HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, SNMP, QoS, UPnP, NTP |
| Power supply type | 12V DC / PoE(802.3af) / ePoE |
| Power consumption | max 14W |
| Housing color | White |
| IP class | IP67 |
| Built-in heater | Yes |
| Surge protection | Surge protection: 6 kV Air discharge: 15 kV Contact discharge: 8 kV |
| Working environment | -40°C~+70°C max 95% RH |
| Dimensions | 291×103×97mm |
| Weight | 1.4 kg |
| Casing | Metal |
| Ai - Perimeter protection | Intrusion, crossline |
| &Ai - Object classification | Yes |
| Thermal camera sensor | Microbolometric sensor with active absorbing material Vox |
| Thermal camera resolution | 640(H)×512(V) |
| Thermal camera main stream | 1280×1024 / 1280×720 / 640×512 @50/60fps |
| Thermal camera second stream | 640×512 / 320×256 @50/60fps |
| Thermal camera lens | 25 mm |
| Thermal camera aperture | F1.0 |
| Thermal camera angle of view | H: 17.6° V: 14.1° |
| Thermal camera DORI | Osoba(pojazd) Detect 1041(3205)m / Recognize 267(786)m / Identify 133(396)m |
| Fire detection and alarm | Yes |
| Cold and Hot Spot Trace | Tracking the coldest and warmest temperature points on screen |
| Pixel size | 12um |
| Thermal sensitivity | 35mK |
| Spectral range | 8~14um |
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE
BCS-L-TIP96F-TH-Ai1(25)
0,00 € gross

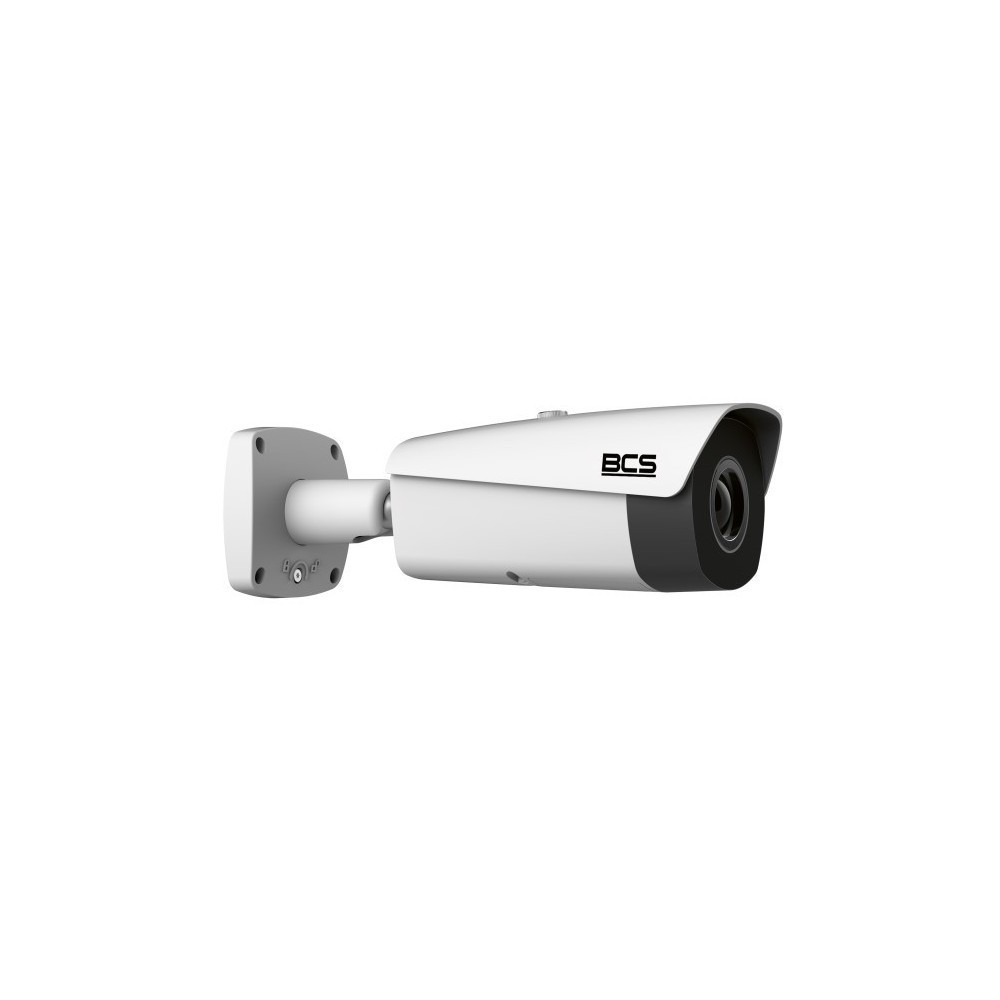

Out of Stock- Thermal imaging tube IP camera
- 640×512 thermal sensor with a 25mm lens
- 2/2 alarms, 1/1 audio
- IP67-rated housing
- Fire detection and alarm
- Built-in smart features
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
