| Ai - Human/vehicle detection | Recognition of people entering the area and crossing the line reduces false alarms. |
|---|---|
| Fire detection and alarm | Yes |
| Active deterrence function ADC | Sound-optical alarm |
| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| Temperature Measurement Range | 3.5m |
| Temperature measurement accuracy | Max (±8°C, ±8%) |
| Product | BCS-P-EIP242FSR3-THT-AI1(0202) |
| NDAA | National Defense Authorization Act |
| Camera type | Thermal |
| Resolution | 4 Mpx |
| Sensor | 1/2.8'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 2688(H)×1520(V) |
| Lens | fixed |
| Focal length | 2.6 mm |
| Aperture | F1.6 |
| Focus | fixed |
| Iris | fixed |
| Angle of view | H: 108.5° V: 70.7° D: 133.5° |
| DORI | Detect 59m / Observe 23m / Recognize 12m / Identify 6m |
| Min illumination | 0.01Lux(Color, F2.0, AGC) 0.005Lux(B/W, F2.0, AGC) 0Lux(IR) |
| S/N ratio | 56dB |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| Backlight compensation | WDR(120dB) |
| Shutter | Auto / manual 1~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 2D/3D DNR |
| RoI | Region of Interest |
| Defog | Electronic |
| Image rotate | Mirror, Flip 90° 180° 270° |
| Main stream | 2688×1520@30fps |
| Bitrate | 128Kbps~16Mbps |
| Video compression | H.265+ / H.265 / H.264 / MJPEG |
| Day/night | ICR |
| Illuminator type | IR LED |
| IR range | 30m |
| Microphone | Yes |
| Loudspeaker | Yes |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711U |
| Alarm in | 2 |
| Alarm out | 2 |
| Memory card slot | microSD 512GB |
| Other interfaces | RS485, BNC |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | Yes |
| Privacy masking | 8 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH |
| Network security | 802.1x, SSL/TLS, HTTPS, watermark, IP adreess filtering, access policy, ARP protection, RTSP authentication, user authentication |
| Power supply | PoE |
| Power supply type | 12V DC / PoE(802.3af) |
| Power consumption | max 12W |
| Housing color | White |
| IP class | IP67 |
| Surge protection | TVS 6kV |
| Working environment | -40°C~+70°C max 95% RH |
| Dimensions | Ø129×114mm |
| Weight | 0.72 kg |
| Ai - Perimeter protection | Intrusion, crossline |
| &Ai - Object classification | Yes |
| Thermal camera sensor | Microbolometric sensor with active absorbing material Vox |
| Thermal camera resolution | 256(H)×192(V) |
| Thermal camera main stream | 1280×960@30fps |
| Thermal camera lens | 2.1 mm |
| Thermal camera aperture | F1.0 |
| Thermal camera angle of view | H: 88.8° V: 63.7° D:109.2° |
| Temperature measurement | Yes |
| Fire detection distance | 9m |
| Fusion function | Yes |
| PIP | Image in image |
| Pixel size | 12um |
| Thermal sensitivity | 50mK |
Warning: This product belongs to the BCS POINT product line.
Use only components and devices from the same line to ensure compatibility.
BCS POINT
BCS-P-EIP242FSR3-THT-AI1(0202)
1258,29 € gross

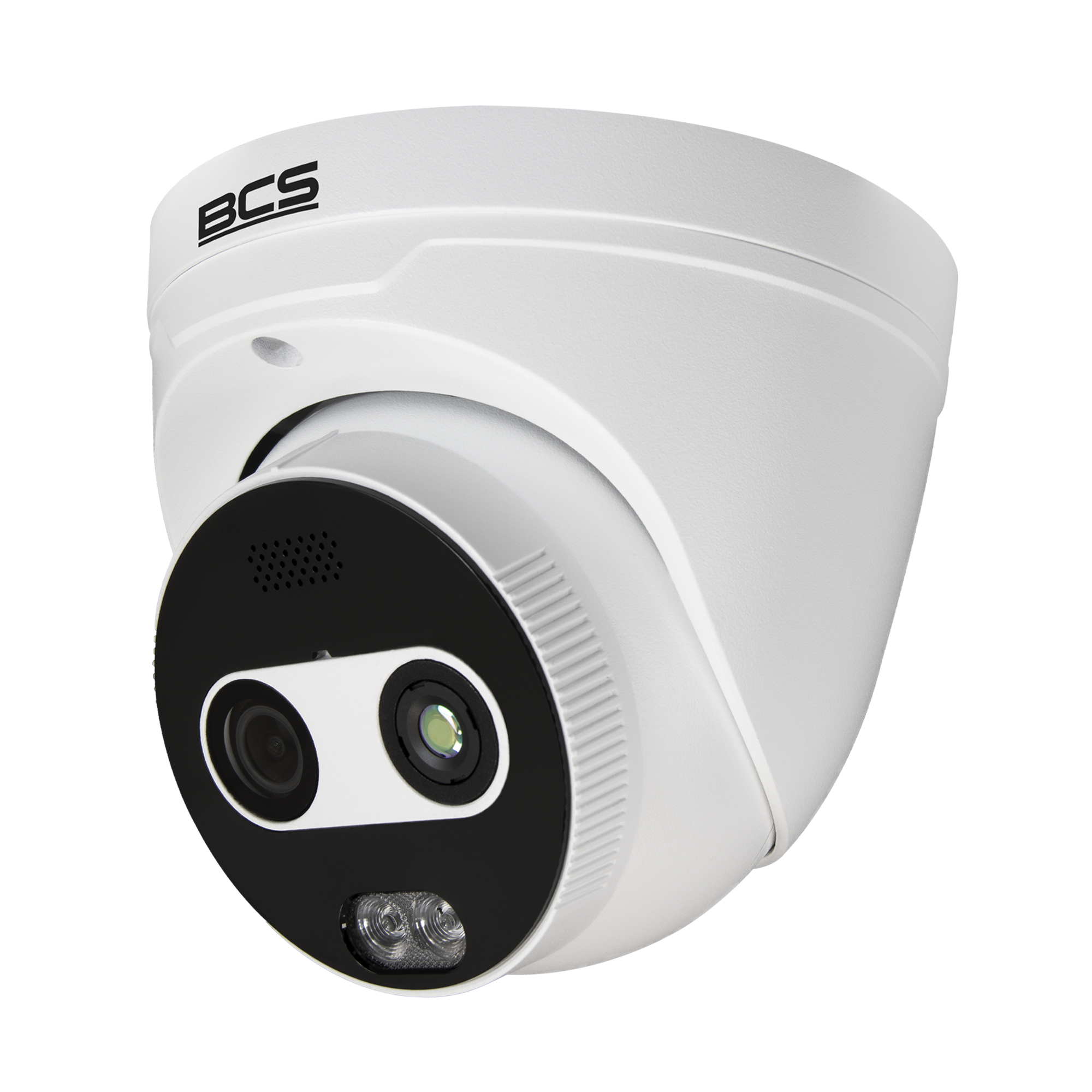

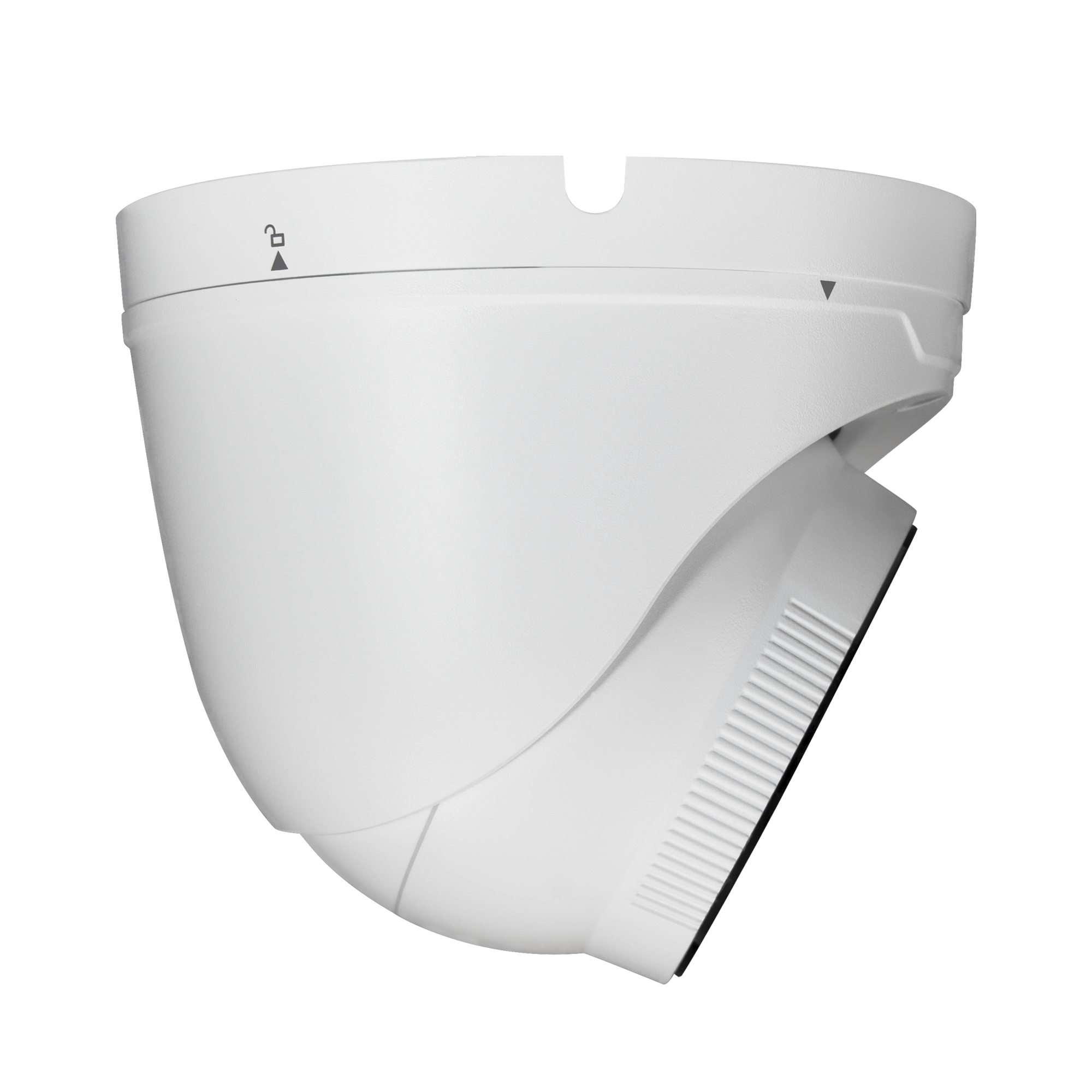

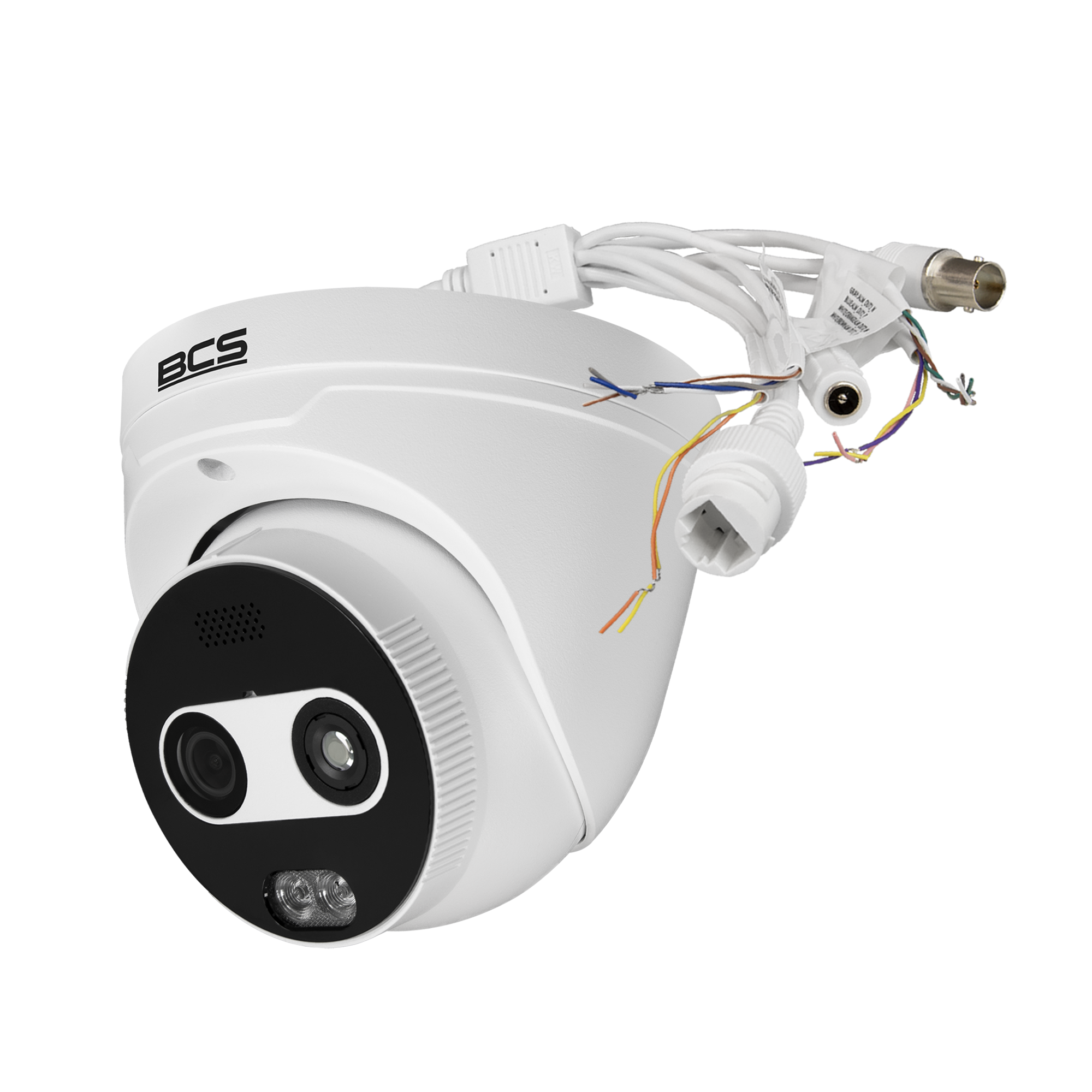

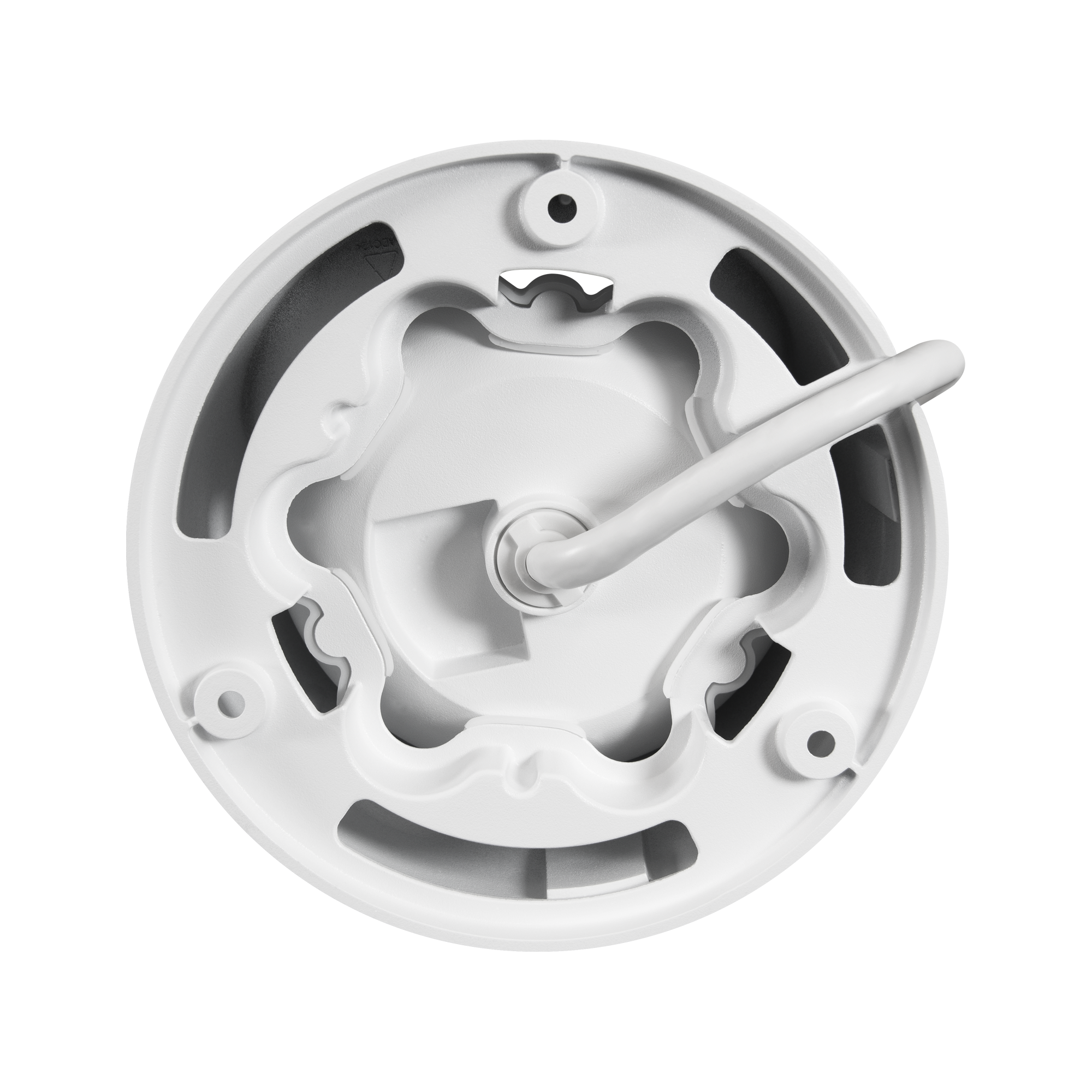

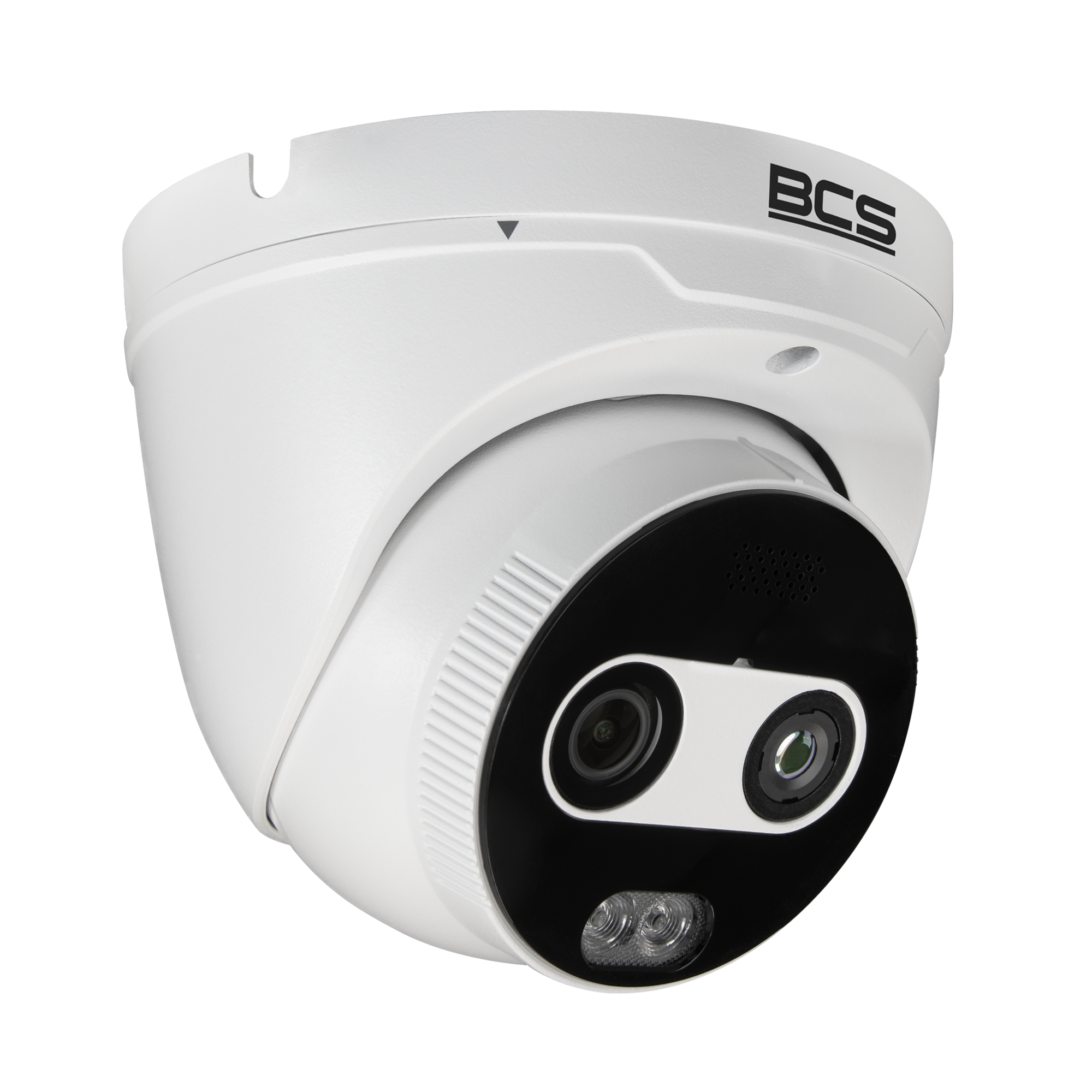

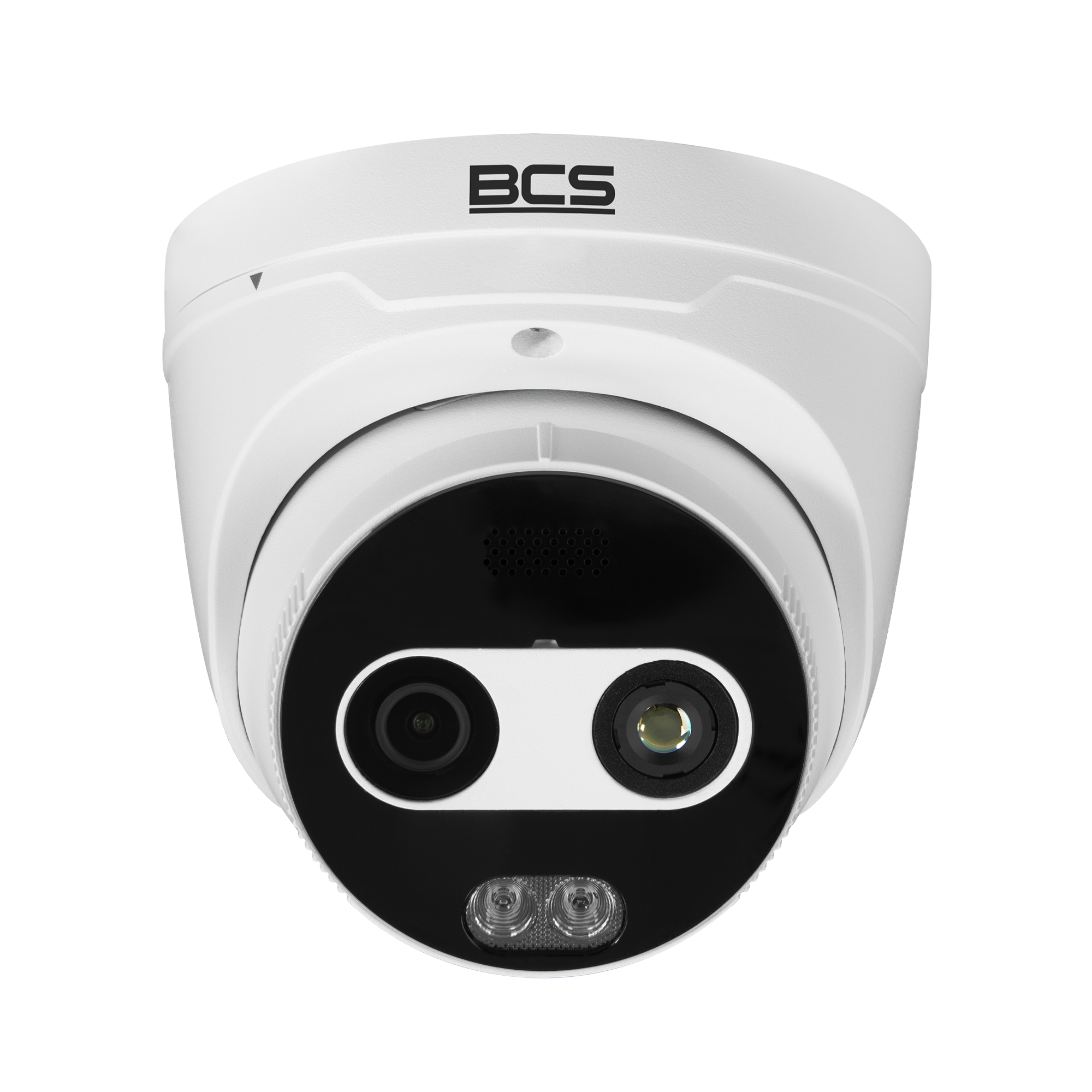

32 In Stock- Thermal dome IP camera
- 256×192 thermal sensor with a 2.1mm lens
- Temperature measurement
- 4 Mpx video camera with a 2.6mm lens
- SkyLight technology
- ADC technology
- IR 30m
- Alarm 2/2, audio 1/1, microphone, speaker
- IP67 housing
- Fire detection and alarm
- Built-in smart features
