| Product | BCS-P-NVR0902-A-4K(5) |
|---|---|
| NDAA | National Defense Authorization Act |
| System | IP |
| Pentaplex function | Live view / recording / playback / archiving / remote access |
| Channels | 9 |
| HDD support | 2 |
| HDD capacity | 16 TB |
| &RAID | Yes |
| RAID type | 1 |
| ANR | Automatic synchronization of recordings from the camera's microSD card after the connection is lost and restored. |
| Max recording resolution | 16 Mpx |
| Incoming bandwidth | 320Mbps(160Mbps Ai) |
| Outgoing bandwidth | 160Mbps |
| Display efficiency | 2x16MP@30 2x12MP@30 4x4K@30 8x4MP@30 9x3MP@30 9x1080P@30 Ai: 2x12MP@30 2x4K@30 6x4MP@30 8x3MP@30 9x1080P@30 |
| Recording resolutions | 16M / 12M / 8M / 6M / 5M / 4M / 3M / 2M / 960p / 720p / D1 / 2CIF / CIF |
| Video compression | H.265+ / H265 / H.264 |
| HDMI out | HDMI4K |
| VGA out | VGA |
| HDMI display resolutions | 3840×2160 / 1920×1080 / 1600×1200 / 1280×1024 / 1280×720 / 1024×768 |
| VGA display resolutions | 1920×1080 / 1600×1200 / 1280×1024 / 1280×720 / 1024×768 |
| Display split | 1/4/6/8/9 (3/4/5/7/9 corridor mode) |
| Synchronous playback | 1/4/8/9 |
| Archiving | Possibility to download material to external media such as USB FLASH, USB HDD |
| User connections | 128 |

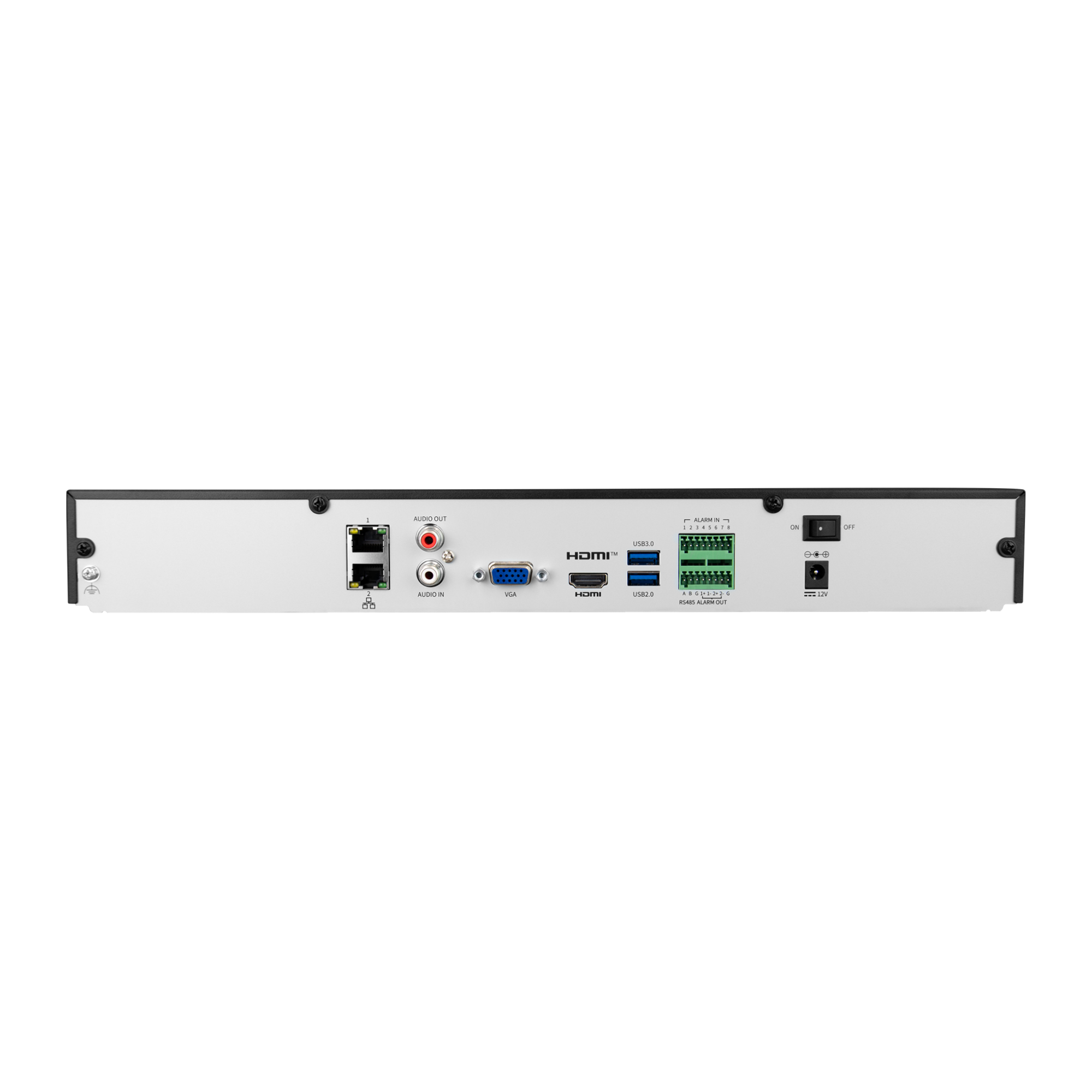

| Interfaces | 2×USB2.0, 1×USB3.0 |
| Serial port | RS485 |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711U |
| Alarm in | 8 |
| Alarm out | 2 |
| Support | Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Network | 2×RJ-45 10/100/1000Mbps |
| Compatibility | ONVIF(S/G/T), support third party cameras |
| Protocols | TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, IPv6, IPv4 |
| Power supply | 12V DC |
| Power consumption (without HDD) | max 12W |
| Working environment | -10°C~+50°C max 90% RH |
| Casing | 1U |
| Dimensions (W×D×H) | 380×315×53mm |
| Weight (without HDD) | 2 kg |
| POS | Yes |
| &Ai - Built-in intelligent functions | Yes |
| Ai - Intelligent functions from recorder | Face Detection, Face Comparison, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD) |
| Ai - Intelligent functions from camera | Face Detection/Comparison, Vehicle Detection, SIP(Intrusion/Cross Line, Enter/Leave Area), Ultra Motion Detection(UMD), Temperature(Fire/Smoking/Measurement/Smoke/Fire Detection), People Counting(People Flow, Crowd Density), Video Metadata, Traffic |

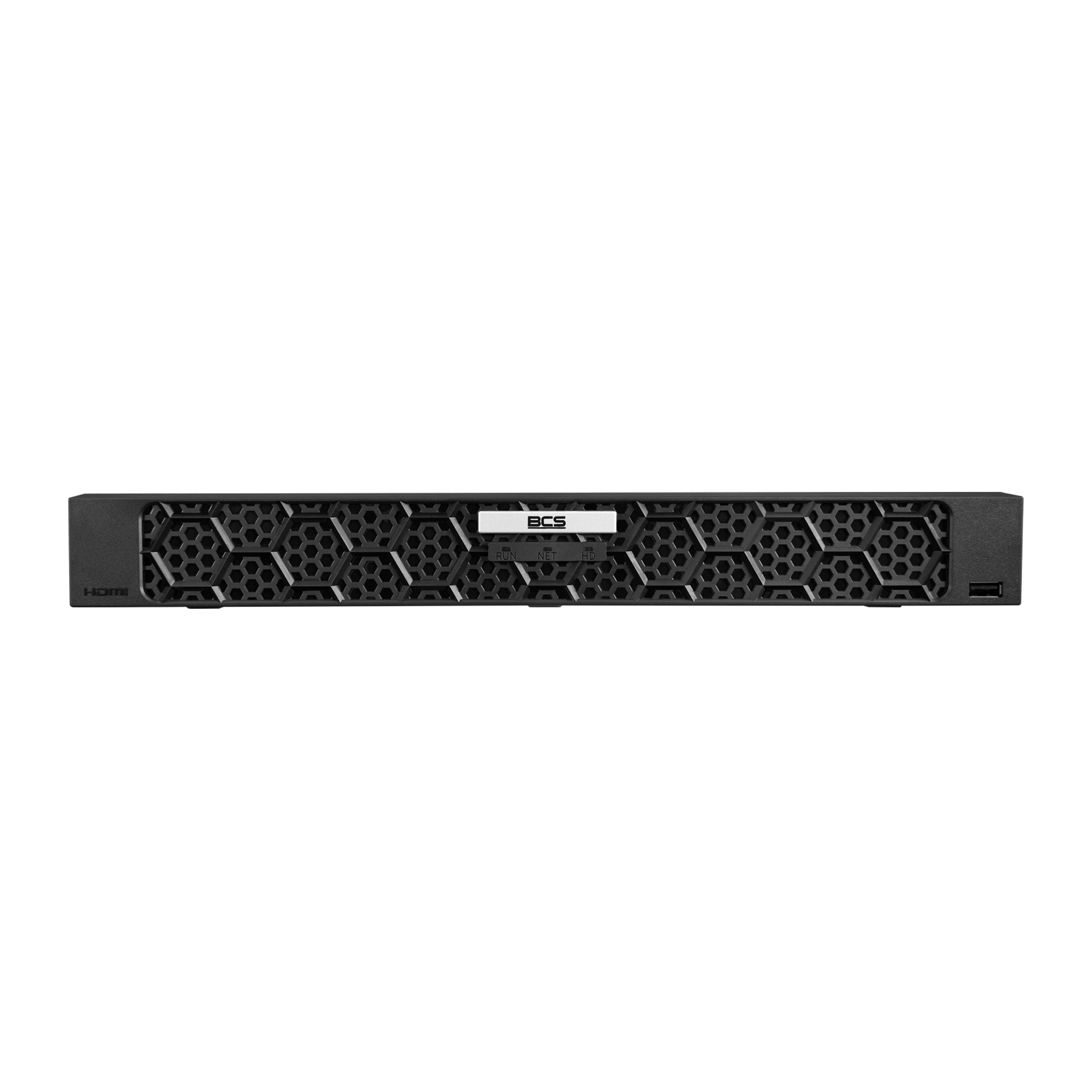

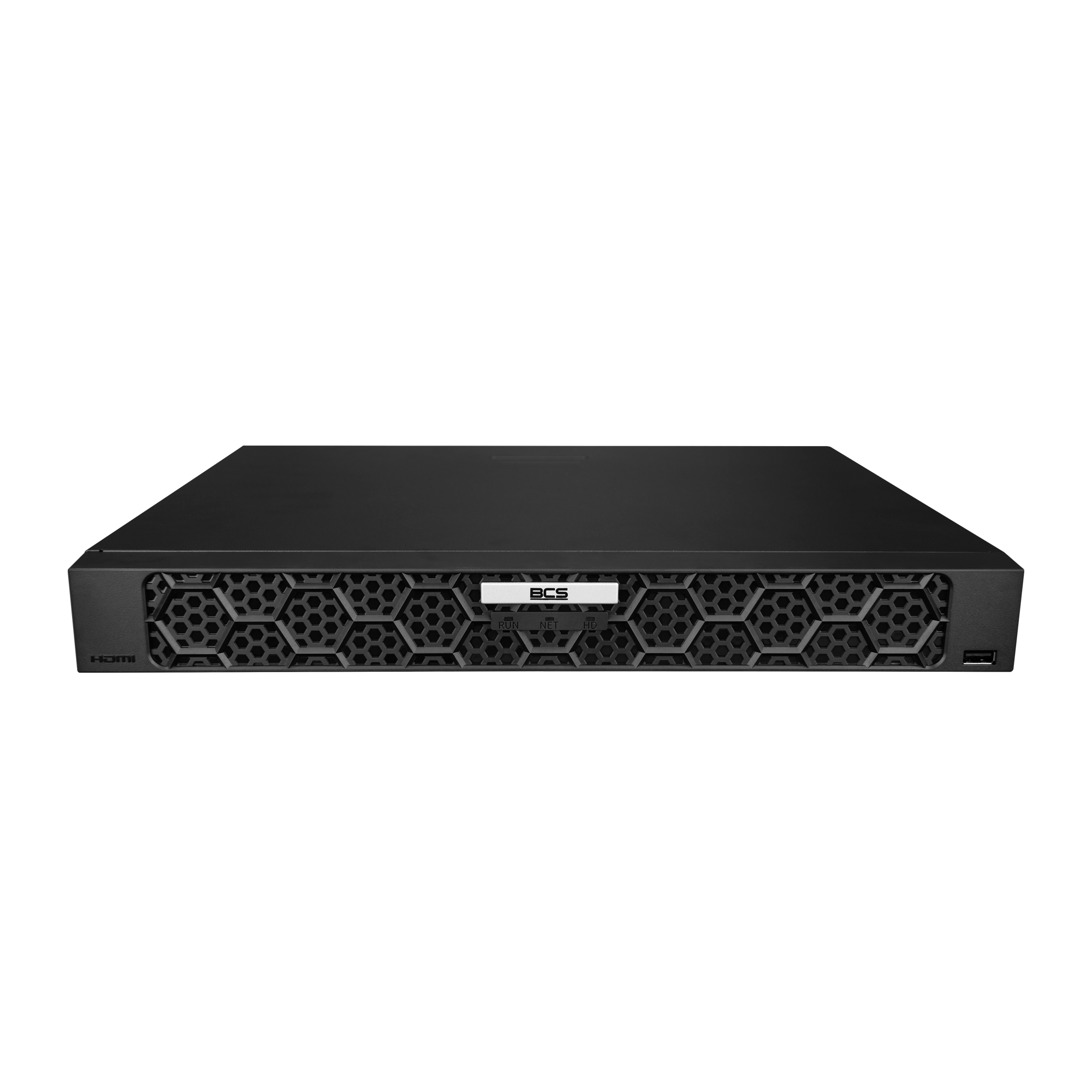

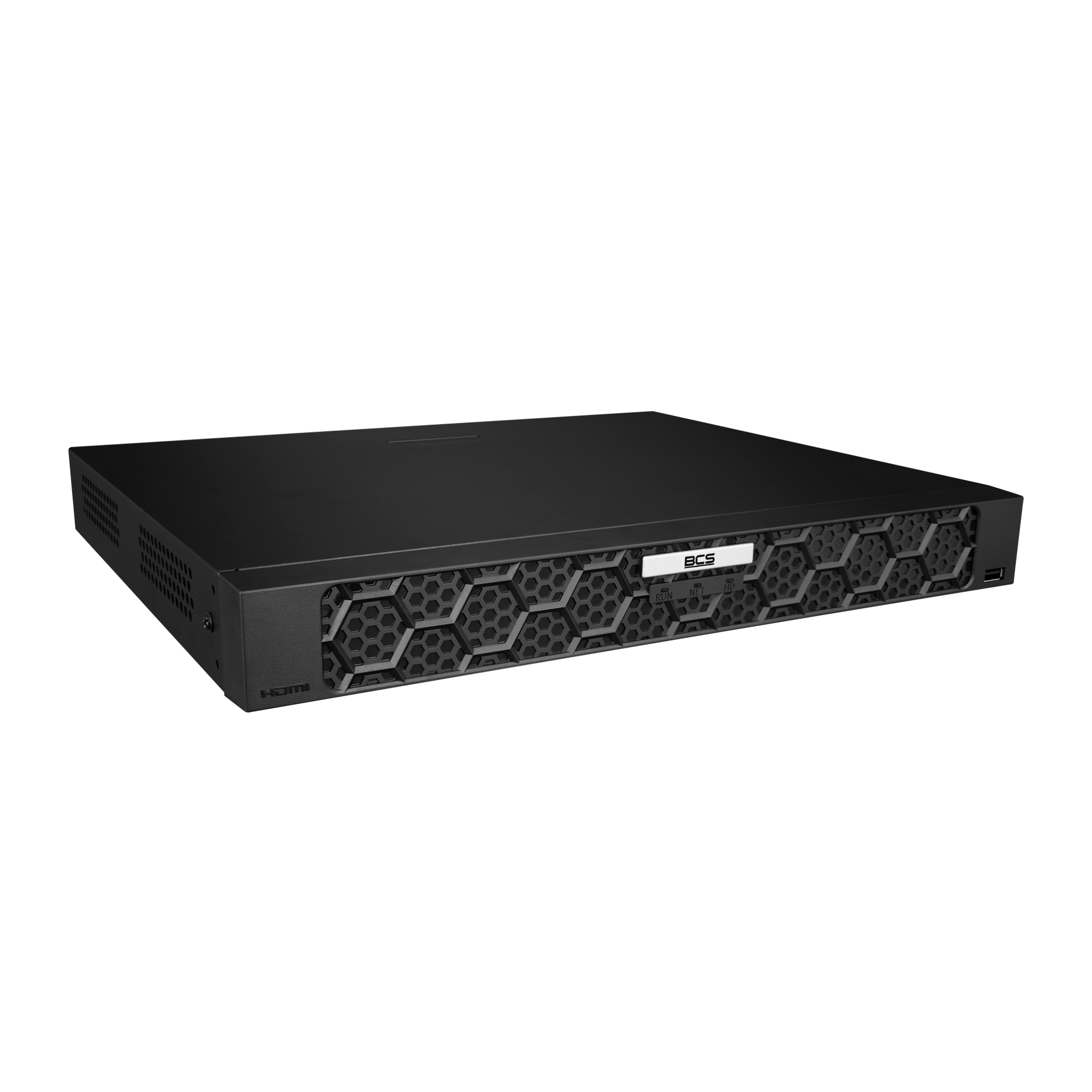

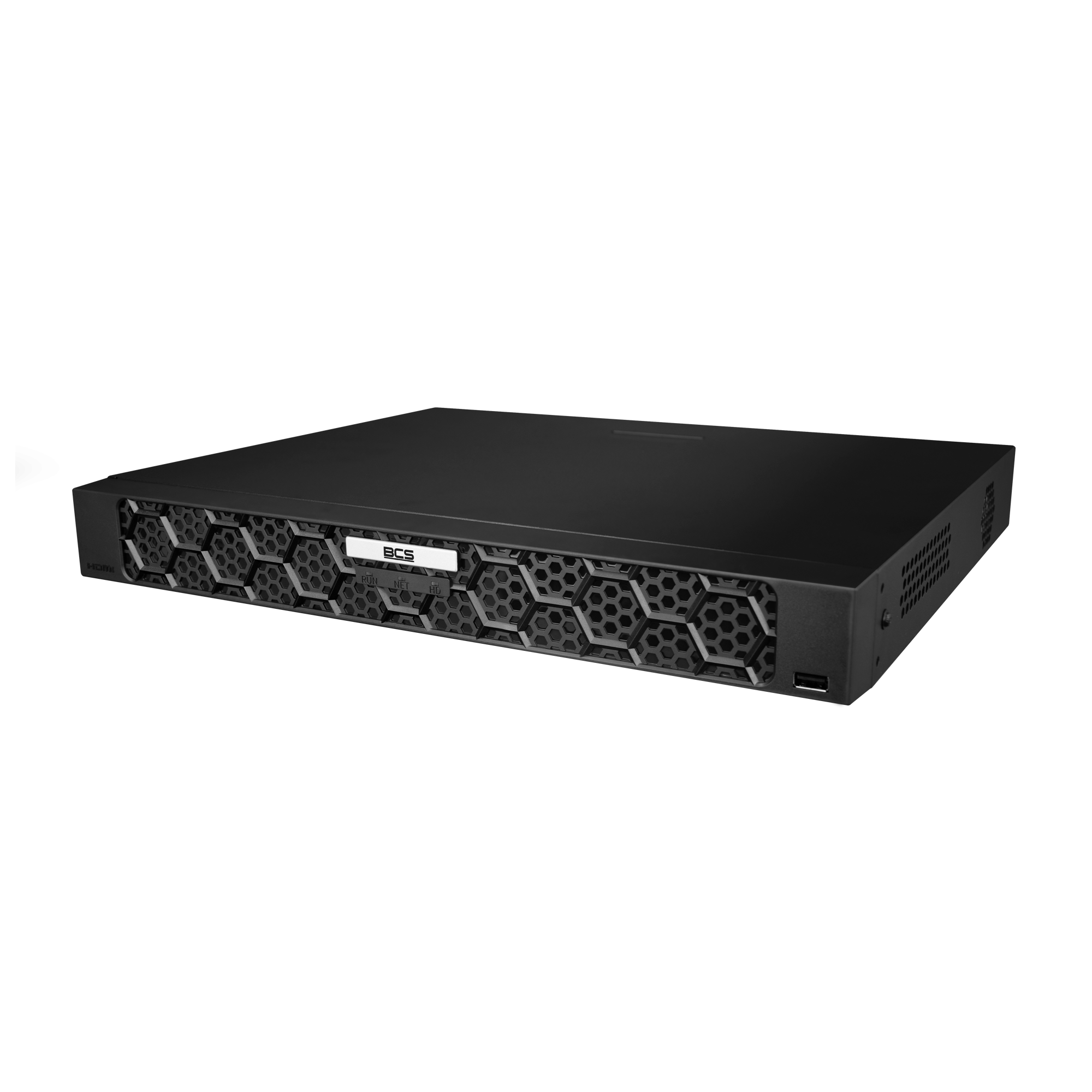

BCS-P-NVR0902-A-4K(5)
487,08 € gross
27 In Stock- 9-channel IP recorder
- Compliance with the NDAA
- Supports 2 hard drives
- Supports 16Mpx IP cameras
- 8/2 alarm channels, 1/1 audio channels
- HDMI 4K/VGA output
