| Power consumption (without HDD) | max 12W |
|---|---|
| &Ai - Built-in intelligent functions | Yes |
| Ai - Intelligent functions from recorder | Face detection; Smart Intrusion Prevention (SIP); Ultra Motion Detection (UMD) |
| Ai - Intelligent functions from camera | Face detection; Vehicle Detection; SIP(Intrusion, Cross Line, Enter/Leave Area); Ultra Motion Detection (UMD); People Counting, Crowd, Traffic Monitoring |
| Flag | TO ORDER |
| Product | BCS-P-NVR216-4KE |
| NDAA | National Defense Authorization Act |
| System | IP |
| Pentaplex function | Live view / recording / playback / archiving / remote access |
| Channels | 16 |
| HDD support | 2 |
| HDD capacity | 10 TB |
| ANR | Automatic synchronization of recordings from the camera's microSD card after the connection is lost and restored. |
| Max recording resolution | 12 Mpx |
| Incoming bandwidth | 160Mbps |
| Outgoing bandwidth | 128Mbps |
| Display efficiency | 2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 10 x 1080P@30, 16x 720P@30 Ai: 2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30, 16 x 720P@30 |
| Recording resolutions | 12M / 8M / 6M / 5M / 4M / 3M / 2M / 960p / 720p / D1 / 2CIF / CIF |
| Video compression | H.265+ / H265 / H.264 |
| HDMI out | HDMI4K |
| VGA out | VGA |
| HDMI display resolutions | 3840×2160 / 1920×1080 / 1600×1200 / 1280×1024 / 1280×720 / 1024×768 |
| VGA display resolutions | 1920×1080 / 1600×1200 / 1280×1024 / 1280×720 / 1024×768 |
| Display split | 1/4/6/8/9/16 (3/4/5/7/9/10/12/16 corridor mode) |
| Synchronous playback | 1/4/9/16 |
| Archiving | Possibility to download material to external media such as USB FLASH, USB HDD |
| User connections | 128 |

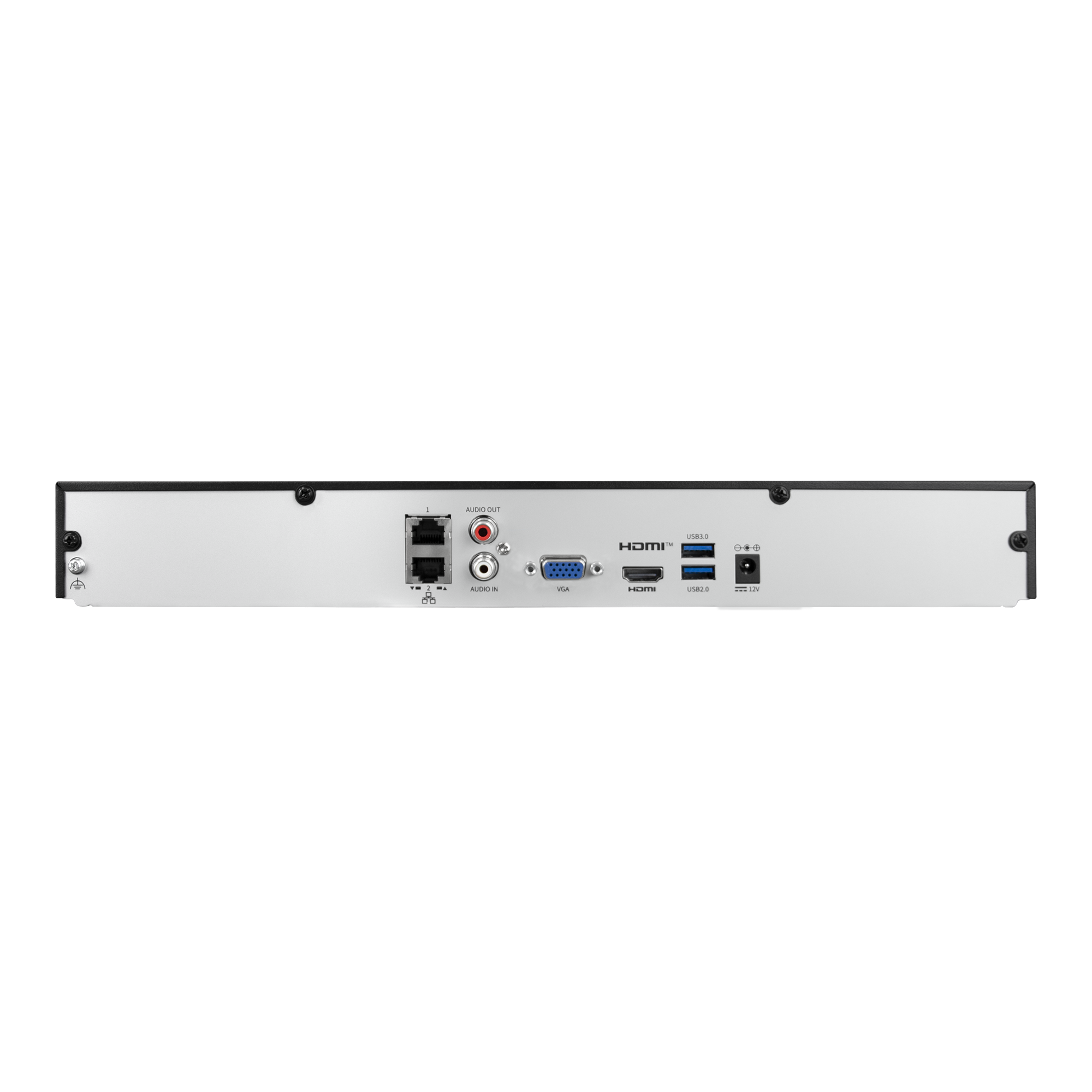

| Interfaces | 2×USB2.0, 1×USB3.0 |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711U |
| Support | Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Network | 2×RJ-45 10/100/1000Mbps |
| Compatibility | ONVIF(S/G/T), support third party cameras |
| Protocols | TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4 |
| Power supply | 12V DC |
| Working environment | -10°C~+55°C max 90% RH |
| Casing | 1U |
| Dimensions (W×D×H) | 380×315×53mm |
| Weight (without HDD) | 2 kg |
Warning: This product belongs to the BCS POINT product line.
Use only components and devices from the same line to ensure compatibility.
BCS POINT

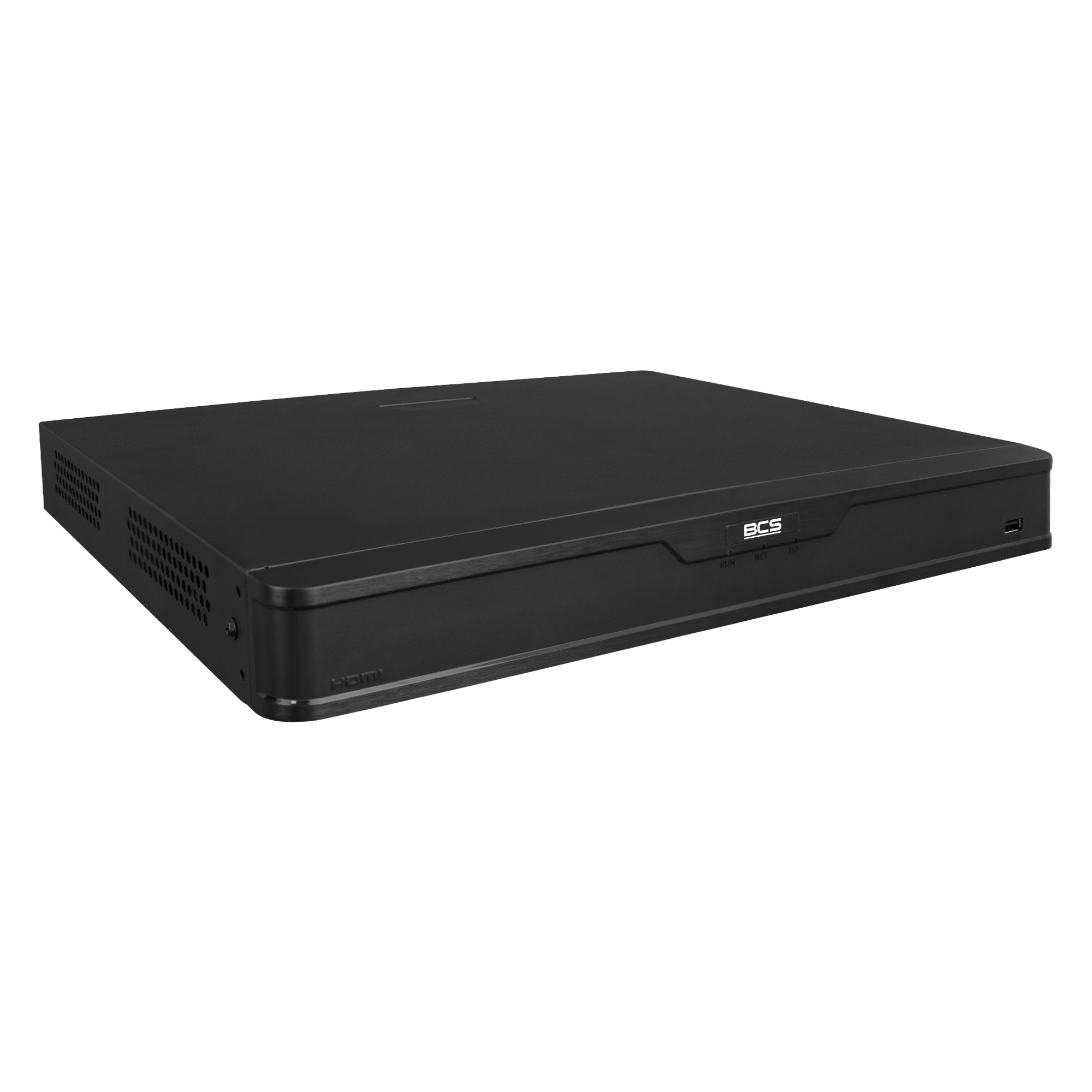

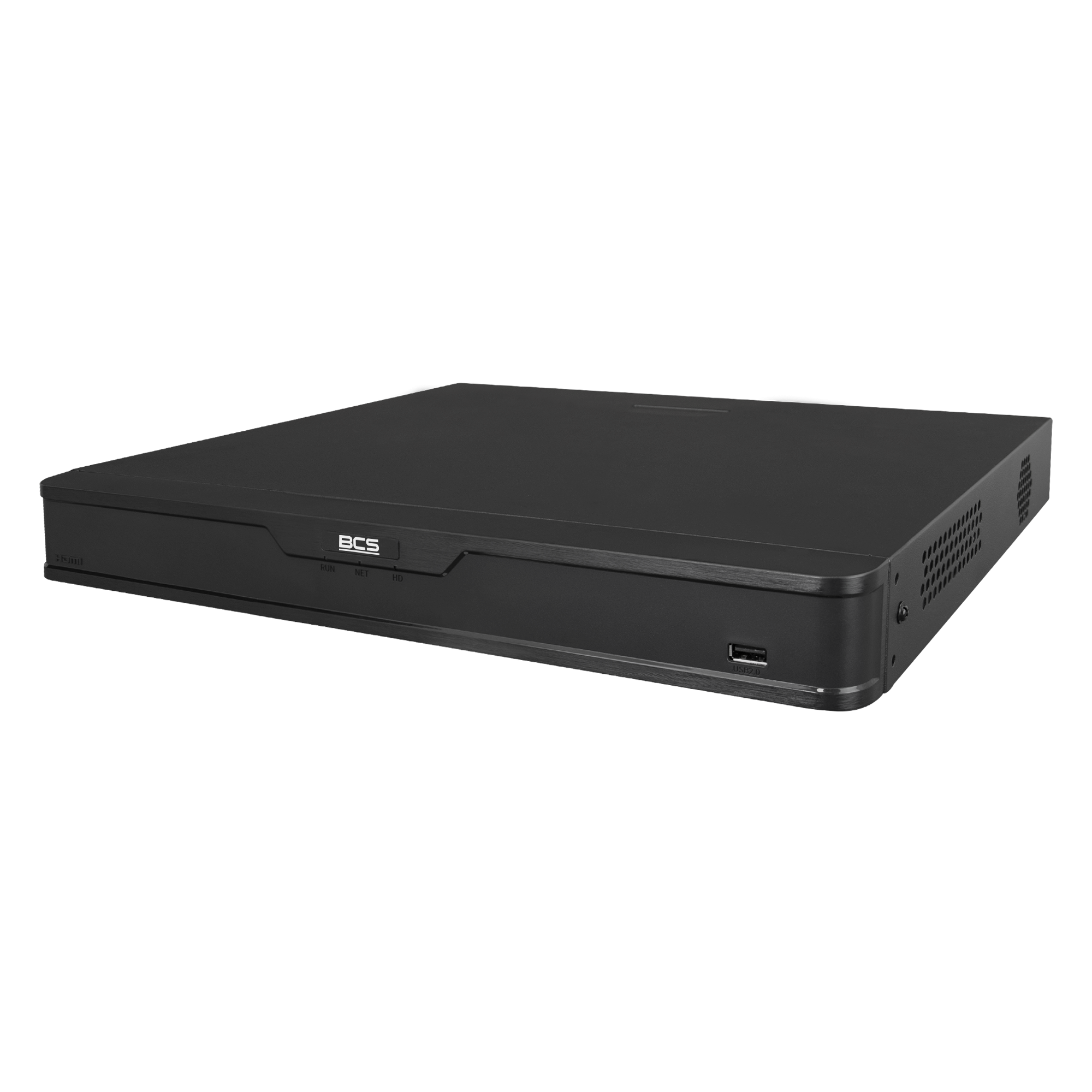

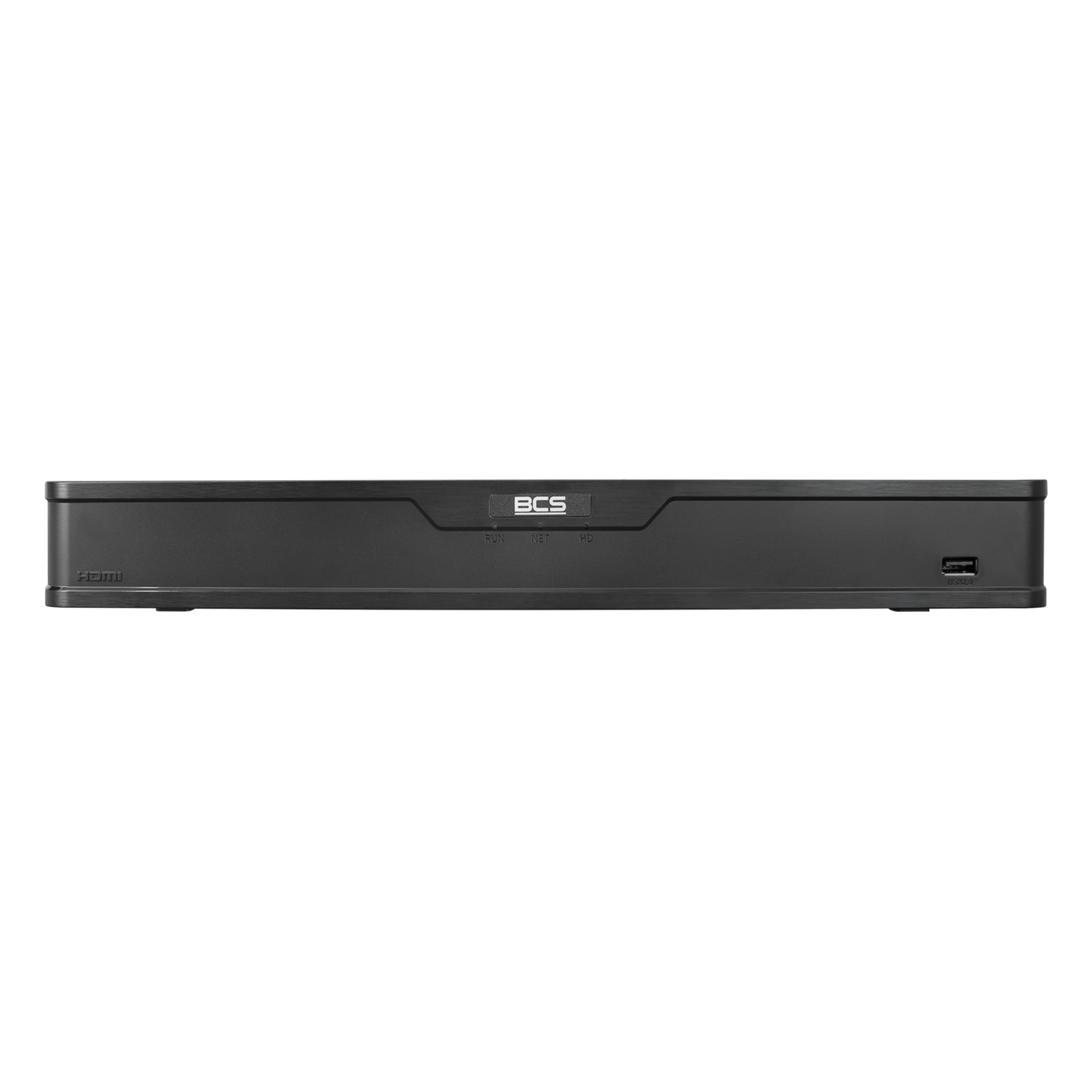

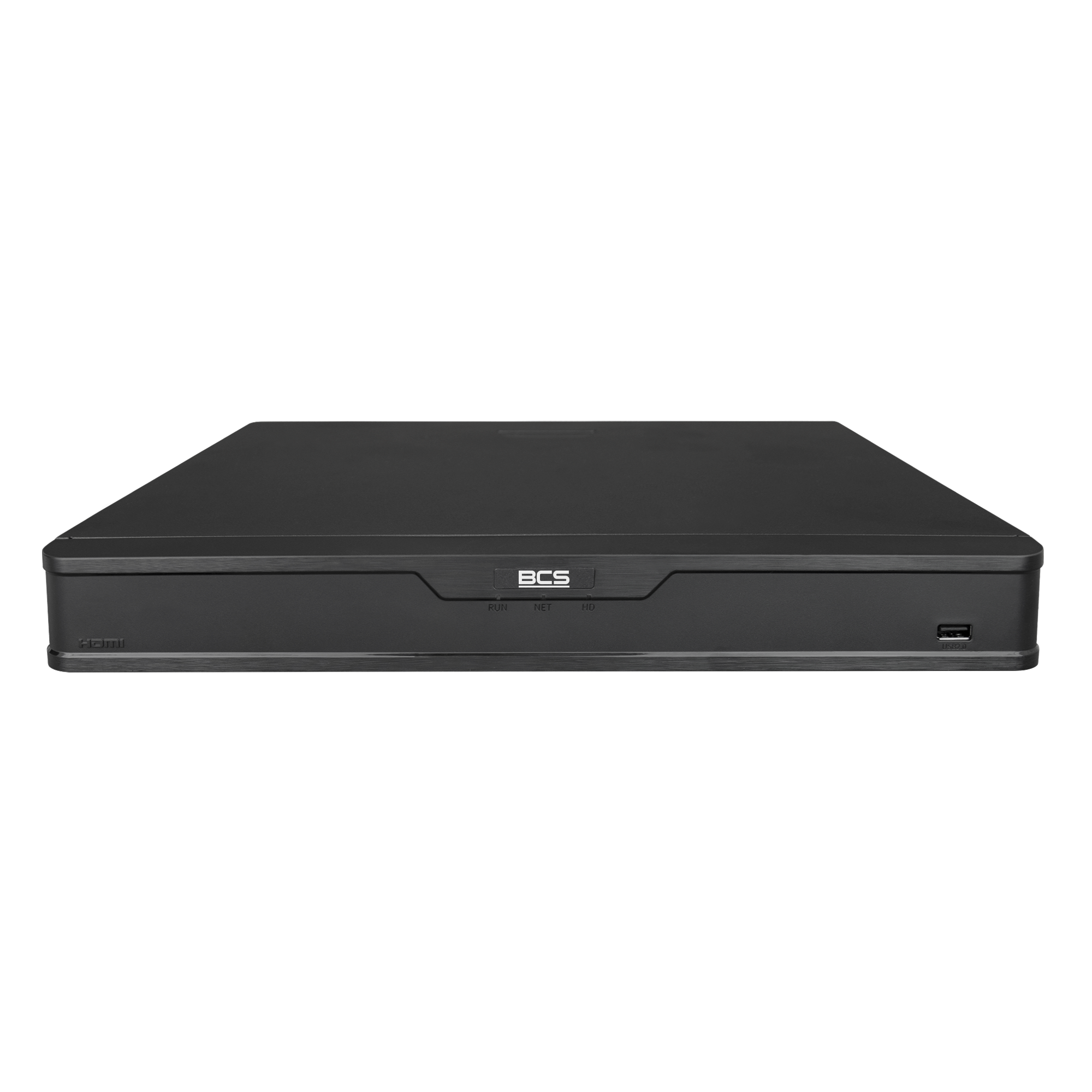

BCS-P-NVR216-4KE
0,00 € gross
Out of Stock- 16-channel IP recorder
- Compliance with the NDAA
- Supports 2 hard drives
- Supports 12Mpx IP cameras
- Audio 1/1
- HDMI 4K/VGA output
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
