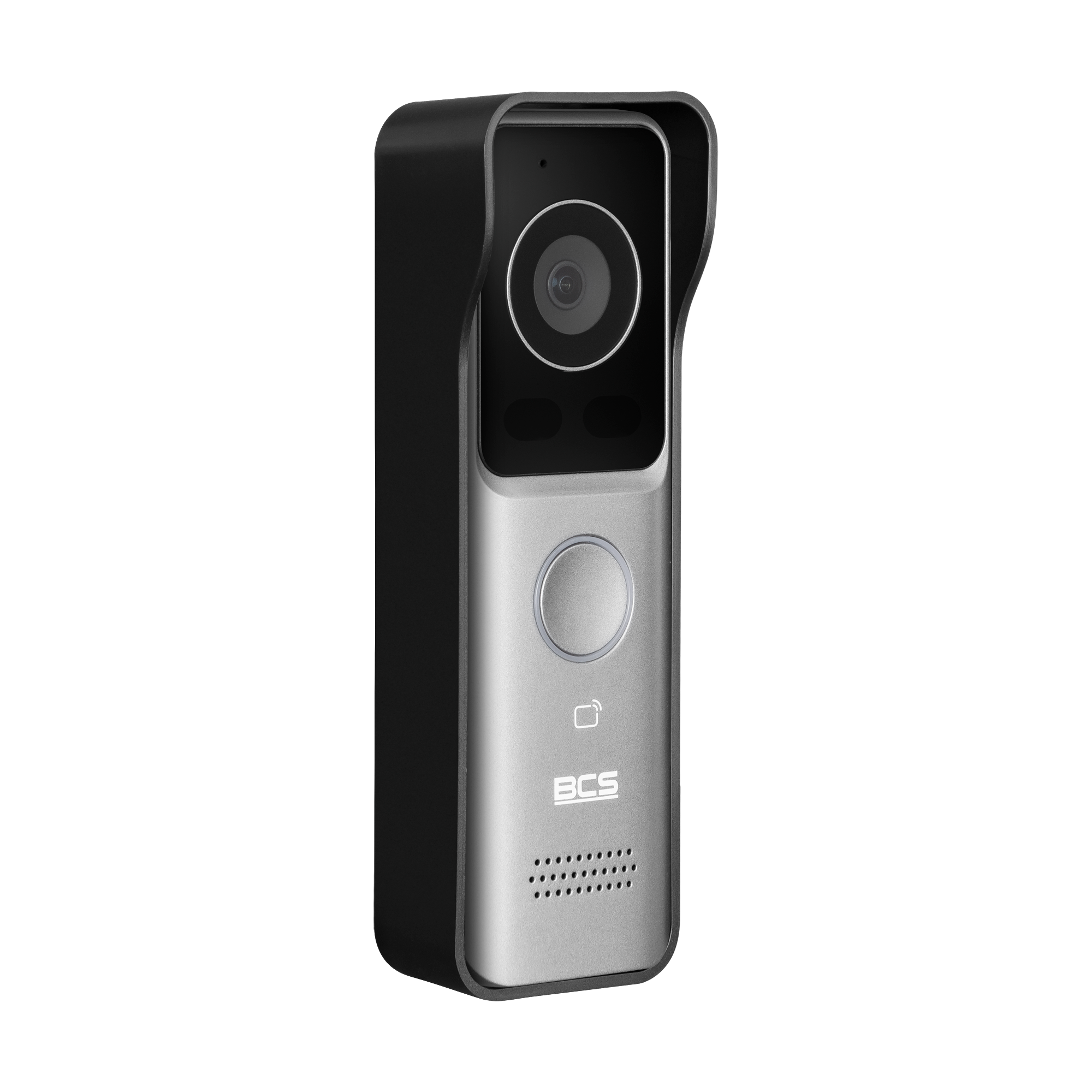

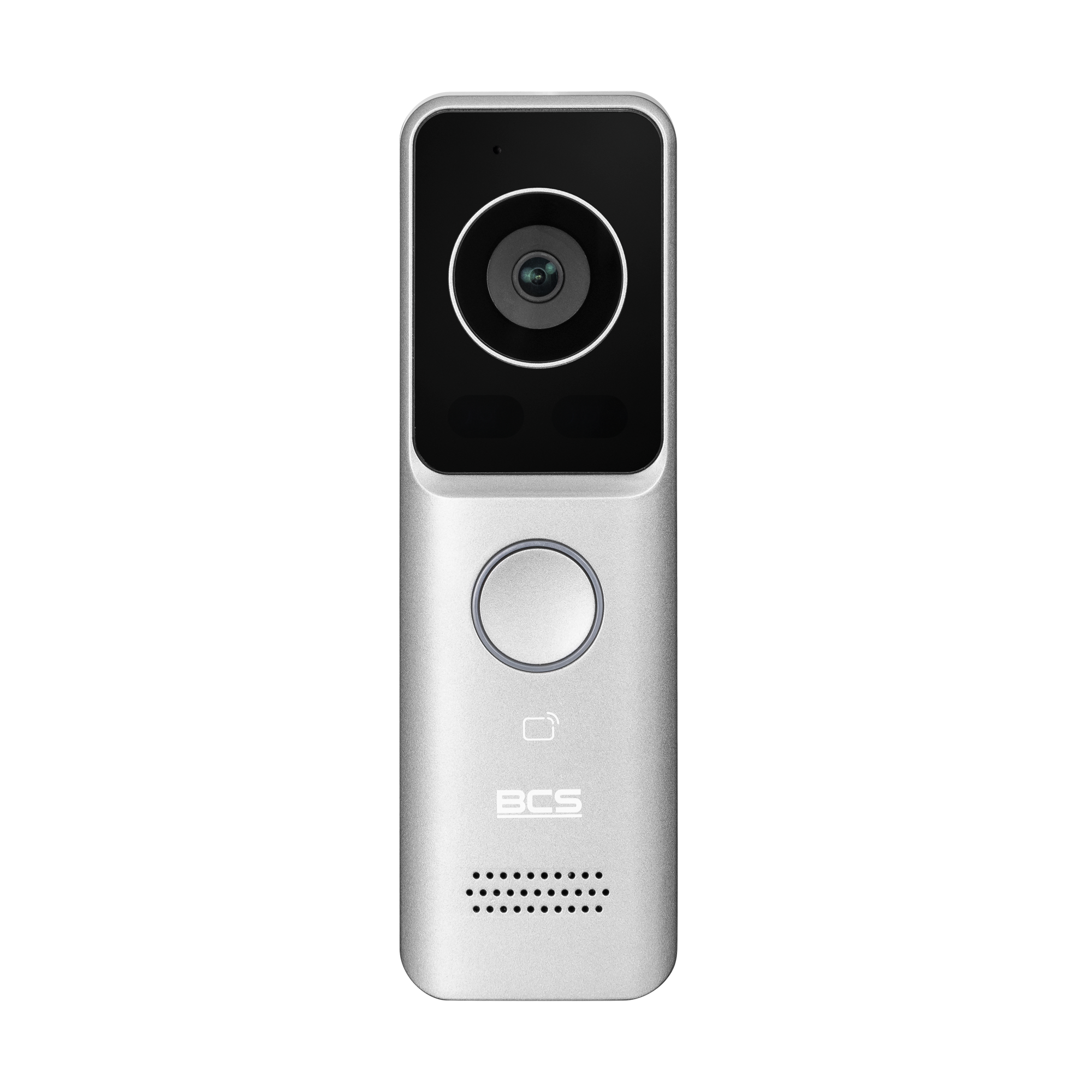

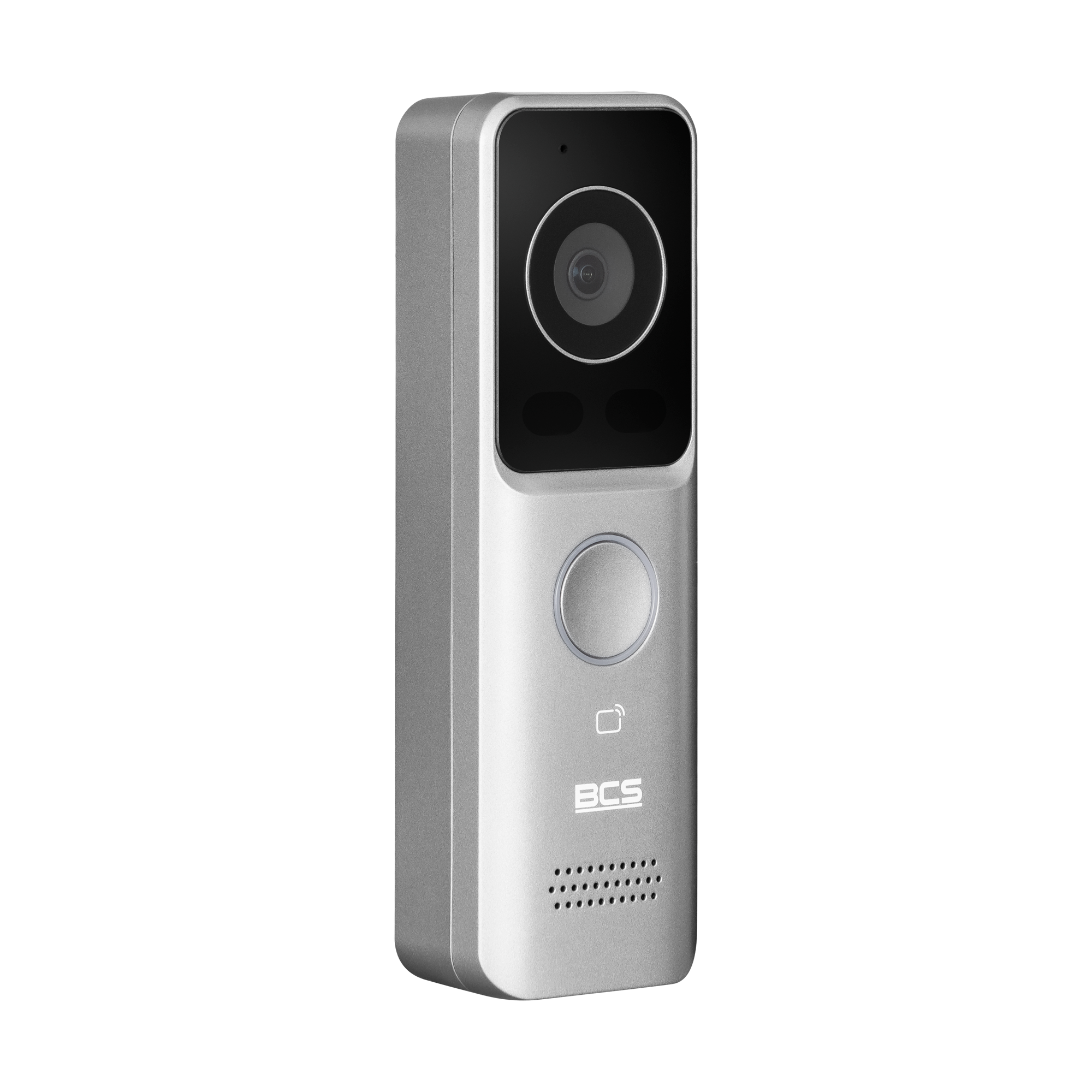

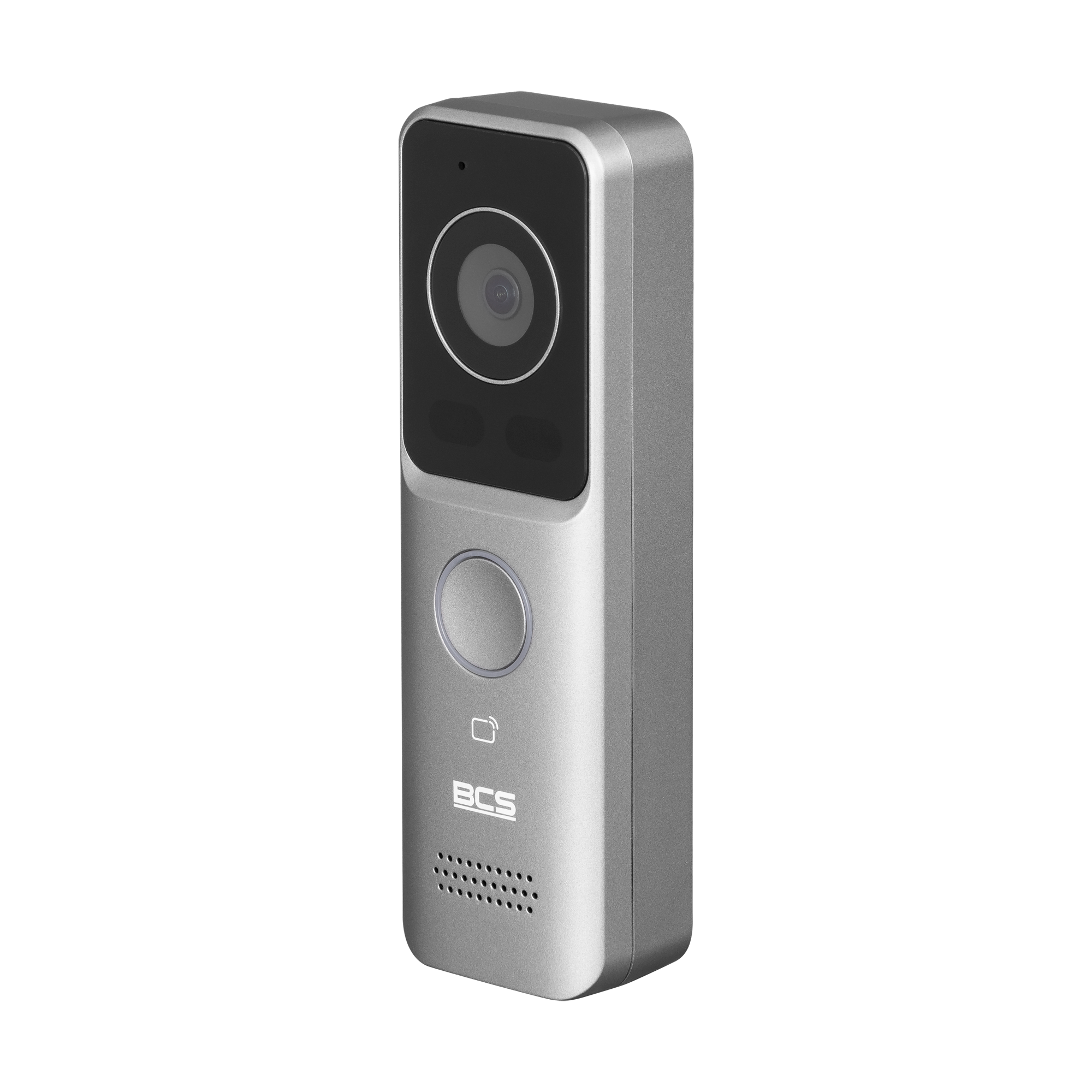

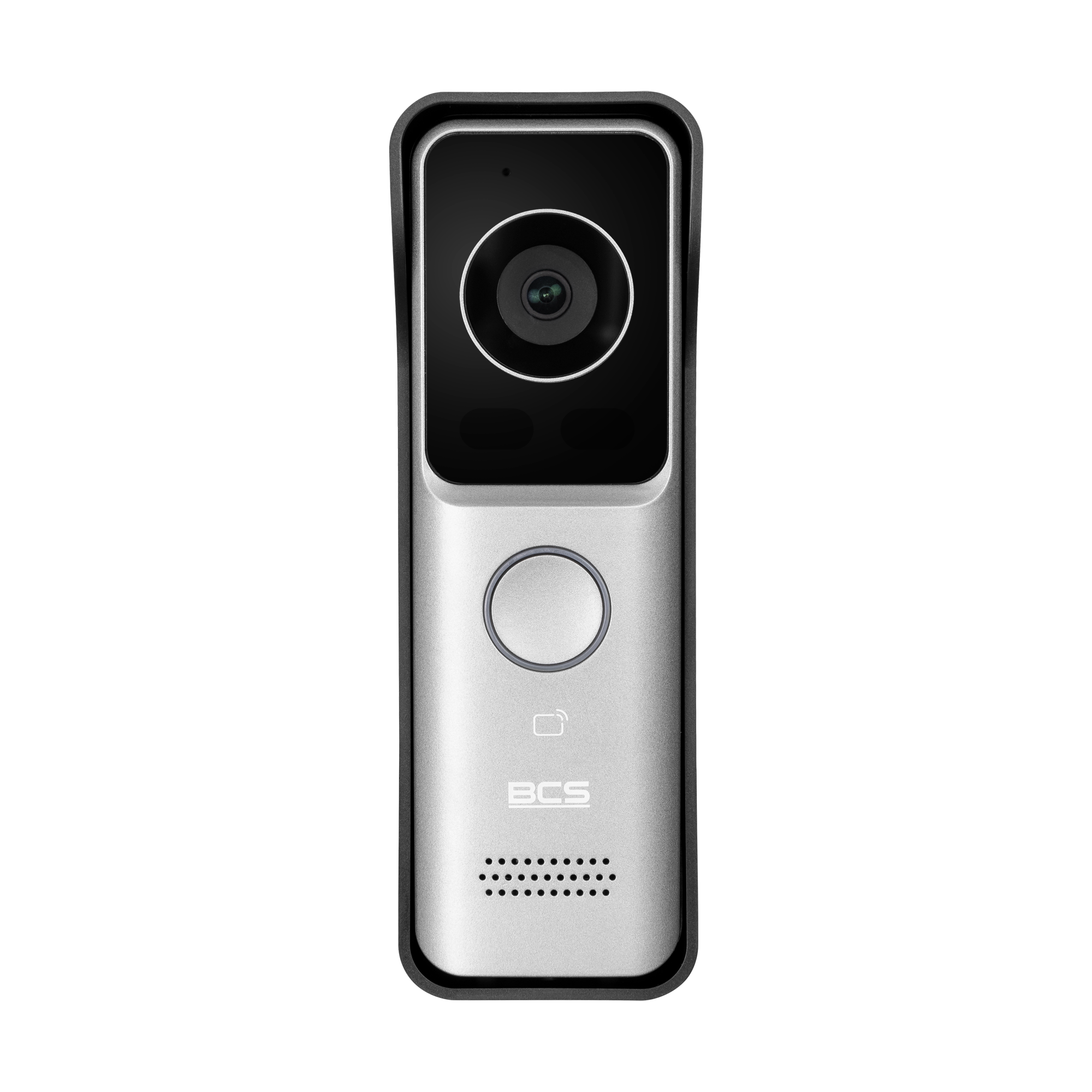

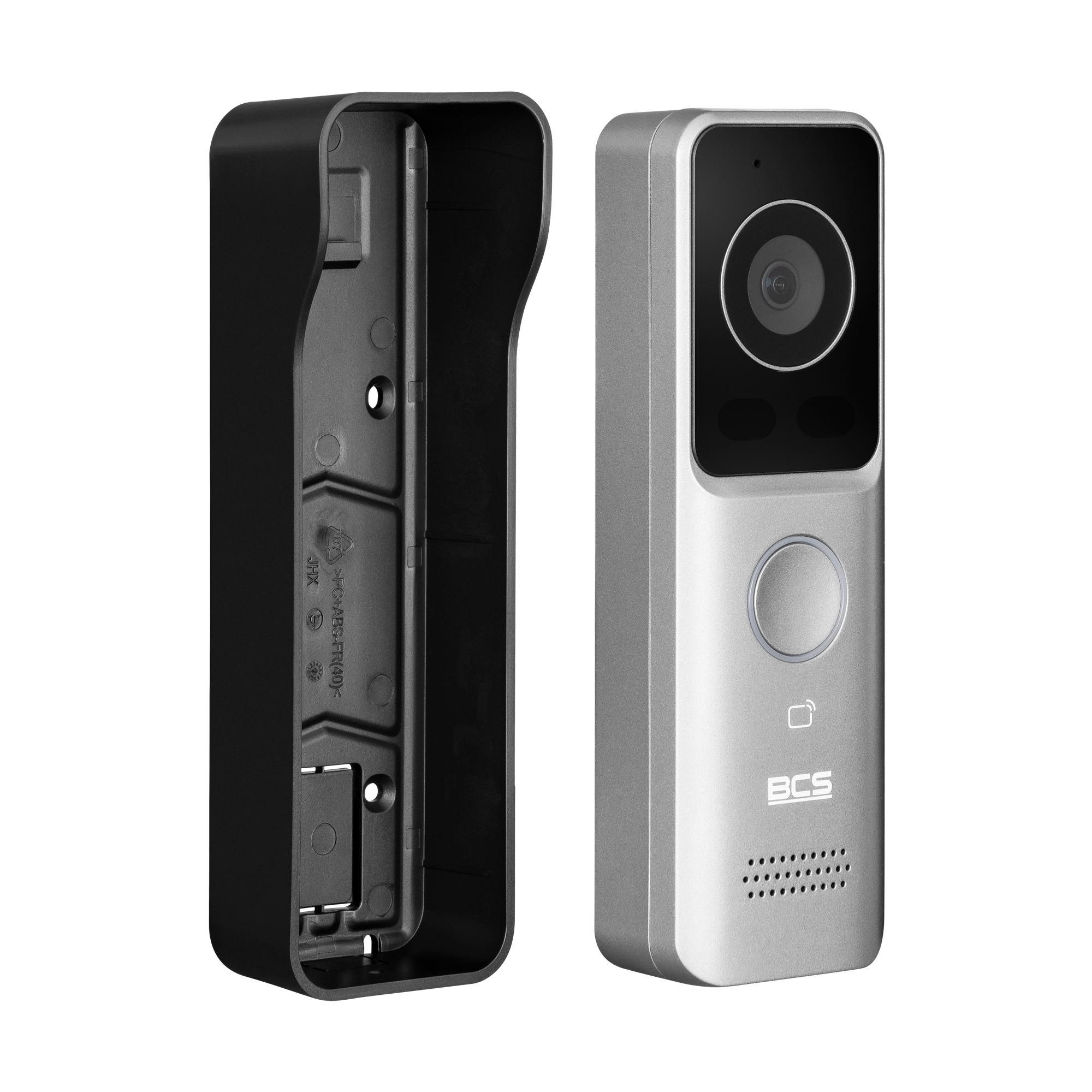

Single-family IP outdoor panel – compact slim design (50mm wide), IP65 plastic housing, 1/2.8″ HD CMOS sensor, IR illuminator, auto WDR, built-in Onvif protocol, H.264 / H.265 encoding, built-in Mifare proximity card reader, surface mounting, rain canopy included, mobile application support, 12VDC or PoE 802.3 at / af / passive power supply, built-in relay output (no additional BCS-MODKD2 / MODKD-III relay support).
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
Save 61%
BCS LINE
BCS-PAN1210S-S
150,70 € gross
10 In StockSingle-family TCP/IP/SIP external panel. Surface-mounted. Built-in rain visor and proximity card reader.
10 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
| Number of supported places | 1 |
|---|---|
| Product | BCS-PAN1210S-S |
| Alarm out | No |
| Camera horizontal angle of view | 110 |
| System type | IP |
| Number of door opening codes | not applicable |
| Working environment (temperature) | -40°C ~ +60°C |
| Camera sensor | 1/2.8'' |
| Device type | External Panel |
| Call buttons | 1 |
| Proximity reader | Yes, Mifare 13.56MHz |
| Keyboard | No |
| Finger print reader | No |
| Display | No |
| Information leds | No |
| Camera resolution | Strumień główny: max 720p; strumień dodatkowy max 1080p |
| Camera video compression | H.264, H.265 |
| Onvif compatibility | Yes |
| Camera lens | 2.2 |
| Lens regulation (left/right) | No |
| Camera illumination | IR |
| Ethernet | Built-in |
| Panel power supply type | 12V DC / PoE(802.3at/af/passive) |
| Network connection | LAN |
| RS485 output | Nie |
| 12V power supply output | No |
| Wiegand output | No |
| Panel color | Silver |
| Panel dimensions (mm) | 160 × 50 × 30 |
| Panel weight (g) | 180 |
| Mounting type | Surface mount |
| Mobile app compatibility | Yes, videomonitor required |
| Material | PC + ABS |
| IP class | IP65 |
| IK class | not applicable |
| Max power consumption | 6W |
