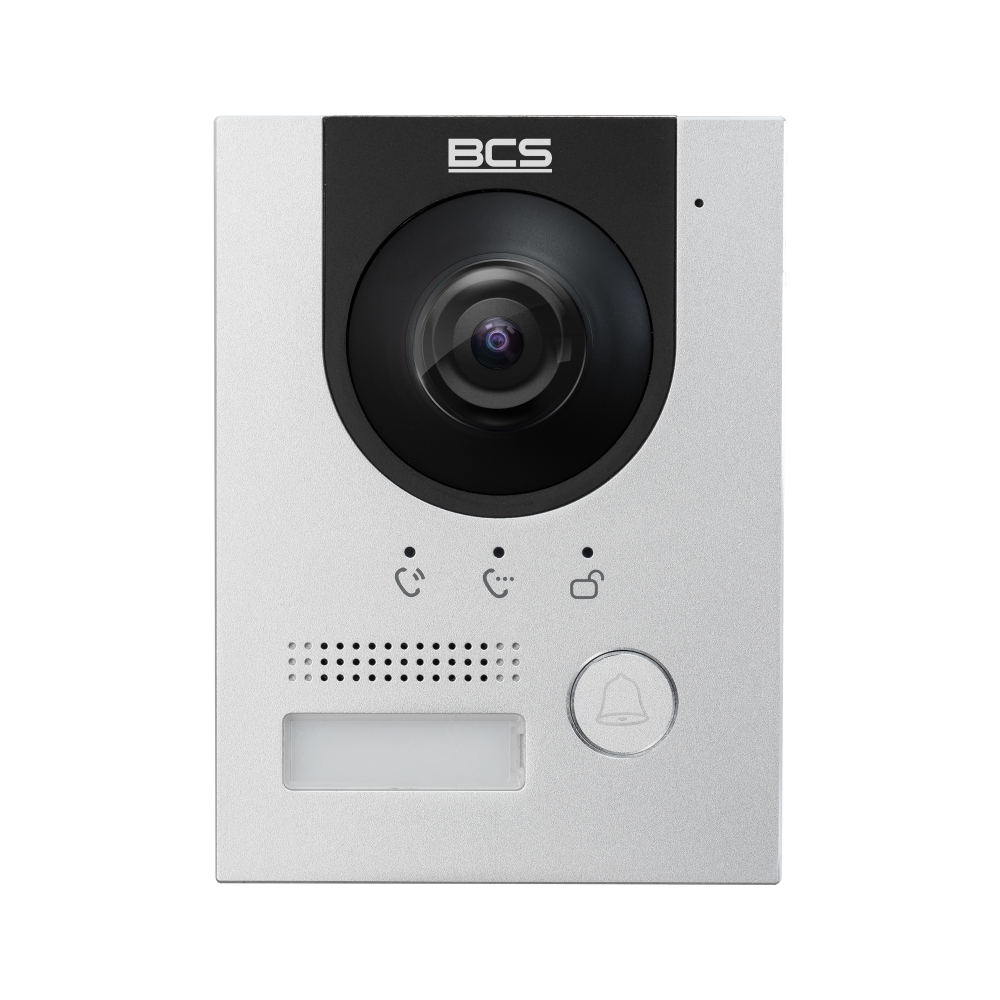

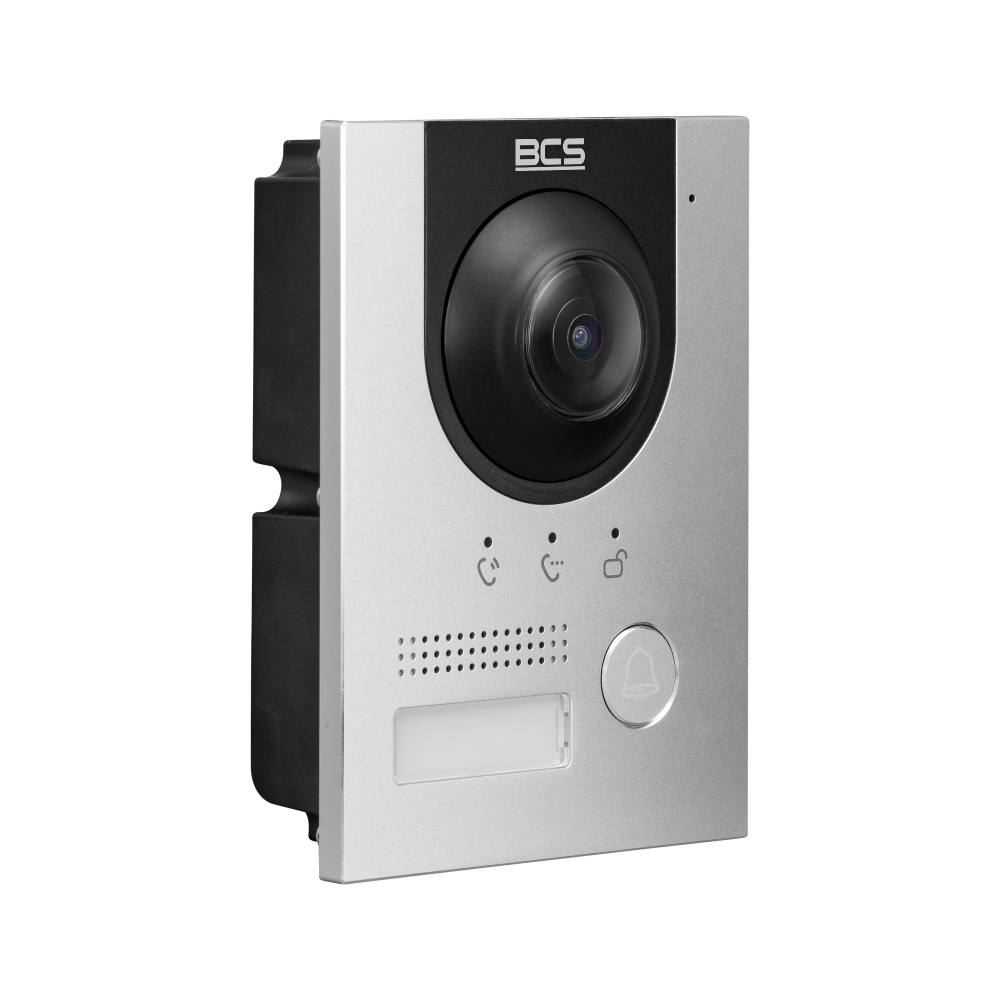

- Dual-protocol single-family outdoor panel (TCP/IP/SIP)
- Designed for IP or 2-wire systems (selectable)
- In IP mode, it works with LAN / PoE switches
- In 2-wire mode, power supply and signal transmission are via a non-polarised 2-wire bus (requires the BCS-ADIP-II/-III adapter, together with the BCS-ZA4815/4820 power supply)
- Compatible with TCP/IP/SIP video monitors running SIP version 4.4 or higher (IP mode); in 2-wire mode, it works with BCS-MON7600B(W)-2 video monitors
- 1.9 mm fish-eye lens
- Camera field of view: 168.6° horizontally, 87.1° vertically
- Video compression: H.264, H.265
- Installation: flush-mounted or surface-mounted using a dedicated housing available separately (BCS-PP17/PN17/PN17-II)
- Management via web service
- Video recording on BCS LINE recorders, ONVIF support
- Front panel made from aluminium alloy
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
Save 61%
BCS LINE
BCS-PAN1703S-S
133,16 € gross
97 In StockSingle-family TCP/IP/SIP external panel.
97 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
| Number of supported places | 1 |
|---|---|
| Flag | PROMOTION |
| Camera horizontal angle of view | 168.6 |
| Call buttons | 1 |
| Keyboard | No |
| Working environment (temperature) | -30°C ~ +60°C |
| Information leds | Yes |
| Product | BCS-PAN1703S-S |
| Alarm out | Yes, for future use |
| Device type | External Panel |
| System type | IP, 2-wire IP |
| Proximity reader | No |
| Number of door opening codes | not applicable |
| Finger print reader | No |
| Display | No |
| Camera sensor | 1/2.9'' |
| Camera resolution | Strumień główny: max 720p; strumień dodatkowy max 1080p |
| Camera video compression | H.264, H.265 |
| Onvif compatibility | Yes |
| Camera lens | 1.9 fisheye |
| Lens regulation (left/right) | No |
| Camera illumination | IR |
| Ethernet | Built-in |
| Panel power supply type | 48V DC / PoE(802.3at/af/passive) |
| Network connection | LAN, magistrala 2-wire |
| RS485 output | Tak, do podłączenia modułu BCS-MODK-III |
| 12V power supply output | Tak, 12VDC 600mA (wymagany switch PoE+) |
| Wiegand output | No |
| Panel color | Silver |
| Panel dimensions (mm) | 130× 96×28.5 |
| Panel weight (g) | 480 |
| Mounting type | Surface / Recessed |
| Mobile app compatibility | Yes, videomonitor required |
| Material | Aluminum alloy |
| IP class | IP65 |
| IK class | IK07 |
| Max power consumption | 5W |
