- One call button with LED backlight
- 1/2.8” HD CMOS sensor
- Camera viewing angle: 107°/60° (H/V)
- Built-in 13.56 MHz proximity reader
- Surface-mounted installation, built-in visor
- Management via web service
- Video recording on BCS recorders: proprietary protocol, ONVIF or RTSP (depending on the recorder series)
- Material: PC + acrylic, black housing
- Water resistance: IP65 (after additional sealing; see installation instructions)
- Relay output: NO/NC/COM
- Independent control of a gate or door using various proximity cards / key fobs
- RS485 output for connecting an additional relay module (BCS-MODKD-III)
- 10/100 Mbps auto-negotiating Ethernet port
- Power supply: 12 V DC 1 A or PoE 802.3 at/af/passive
- 12VDC output with a capacity of 200mA (requires a PoE+ or Passive switch)
- Free BCS Line mobile app for Android and iOS
- To use the mobile app, a video monitor must be installed on the premises.
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE

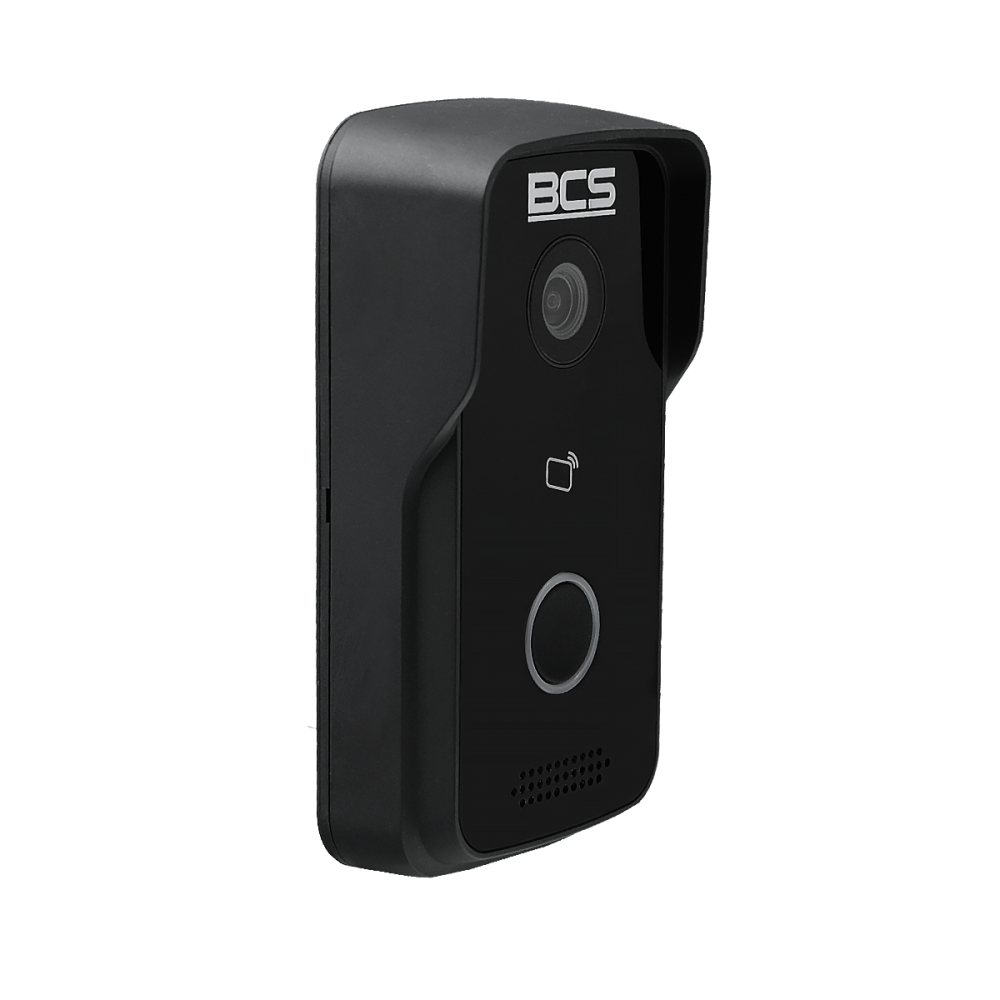

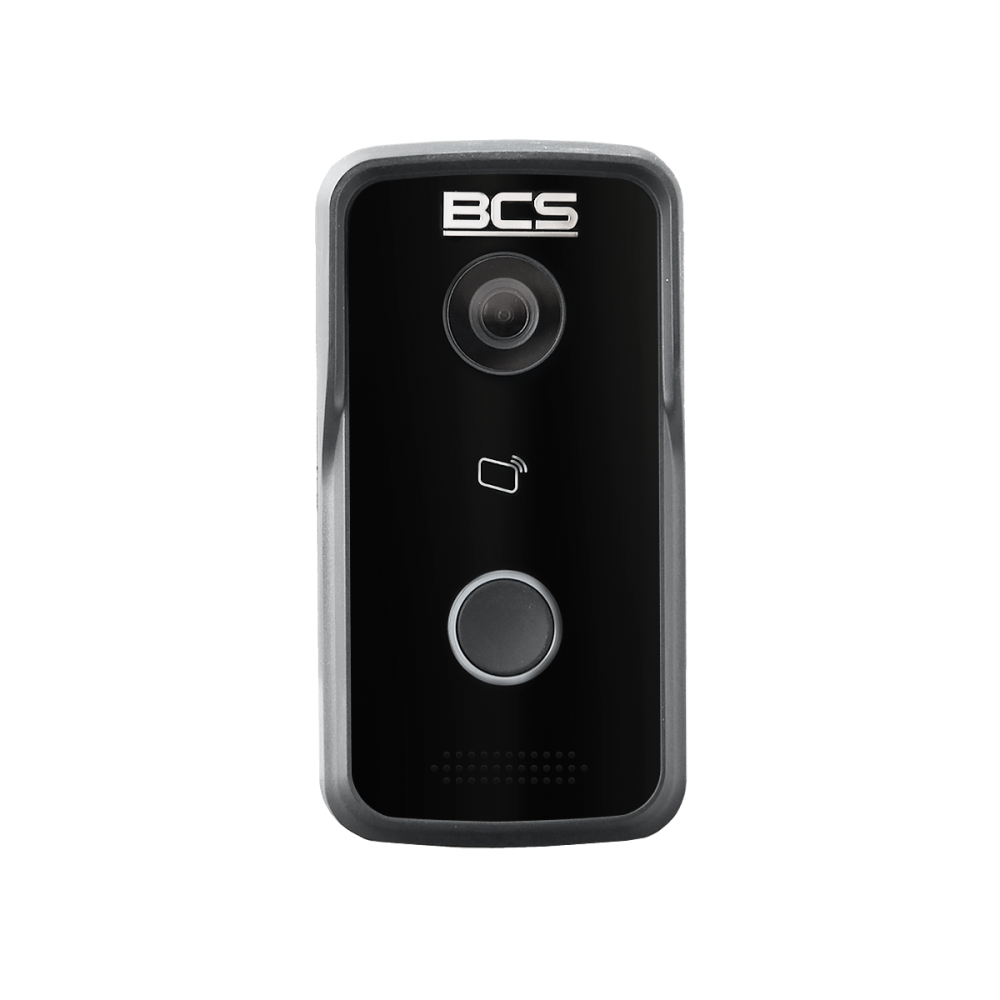

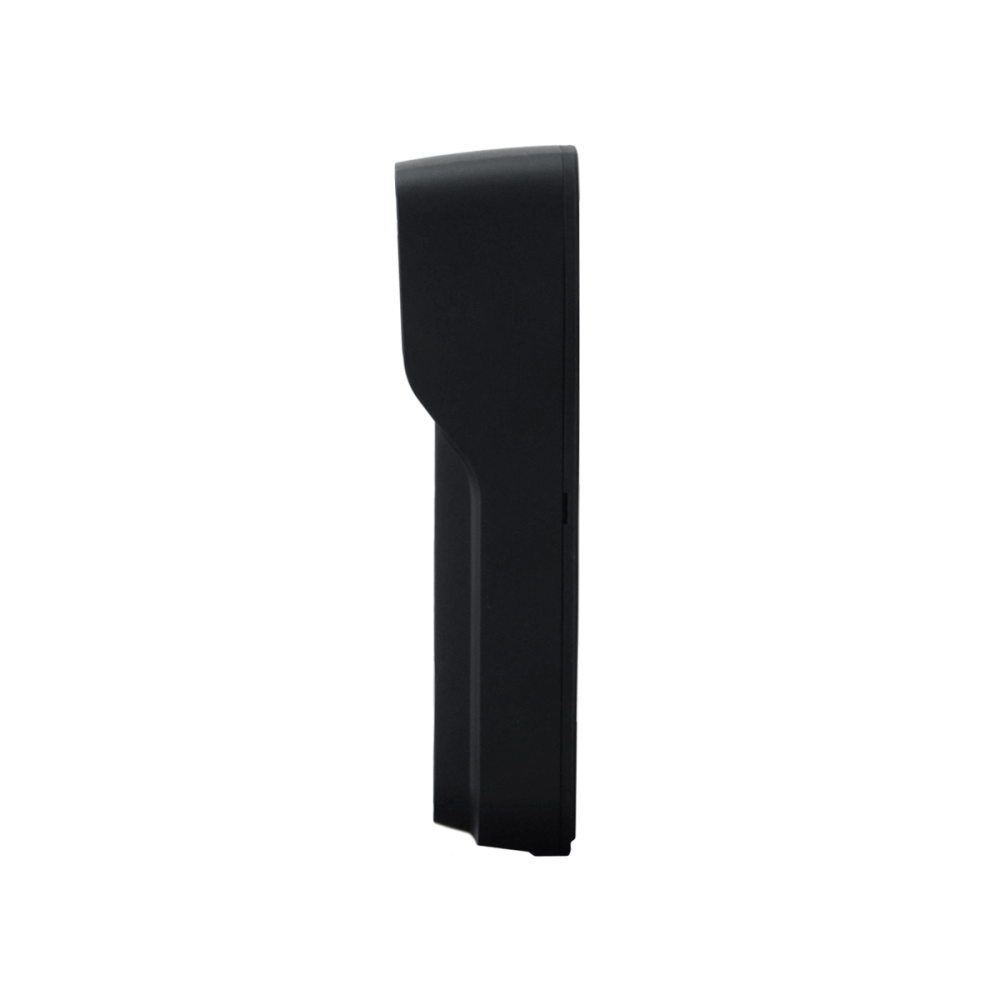

BCS-PAN1320B-S
252,15 € gross
100 In StockSingle-family TCP/IP/SIP external panel. Surface-mounted. Built-in rain visor and proximity card reader.
100 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
| Number of supported places | 1 |
|---|---|
| Product | BCS-PAN1320B-S |
| Alarm out | No |
| Camera horizontal angle of view | 107 |
| System type | IP |
| Number of door opening codes | not applicable |
| Working environment (temperature) | -30°C ~ +60°C |
| Camera sensor | 1/2.8'' |
| Device type | External Panel |
| Call buttons | 1 |
| Proximity reader | Yes, Mifare 13.56MHz |
| Keyboard | No |
| Finger print reader | No |
| Display | No |
| Information leds | No |
| Camera resolution | Strumień główny: max 720p; strumień dodatkowy max 1080p |
| Camera video compression | H.264, H.265 |
| Onvif compatibility | Yes |
| Camera lens | 2.2 |
| Lens regulation (left/right) | No |
| Camera illumination | IR |
| Ethernet | Adapter included |
| Panel power supply type | 12V DC / PoE(802.3at/af/passive) |
| Network connection | LAN |
| RS485 output | Tak, do podłączenia modułu BCS-MODK-III |
| 12V power supply output | 12VDC 200mA (only power supply to the relay module) |
| Wiegand output | No |
| Panel color | Black |
| Panel dimensions (mm) | 135.1 × 70.6 × 34.6 |
| Panel weight (g) | 326 |
| Mounting type | Surface mount |
| Mobile app compatibility | Yes, videomonitor required |
| Material | PC + akryl |
| IP class | IP65 |
| IK class | IK04 |
| Max power consumption | 5W |
