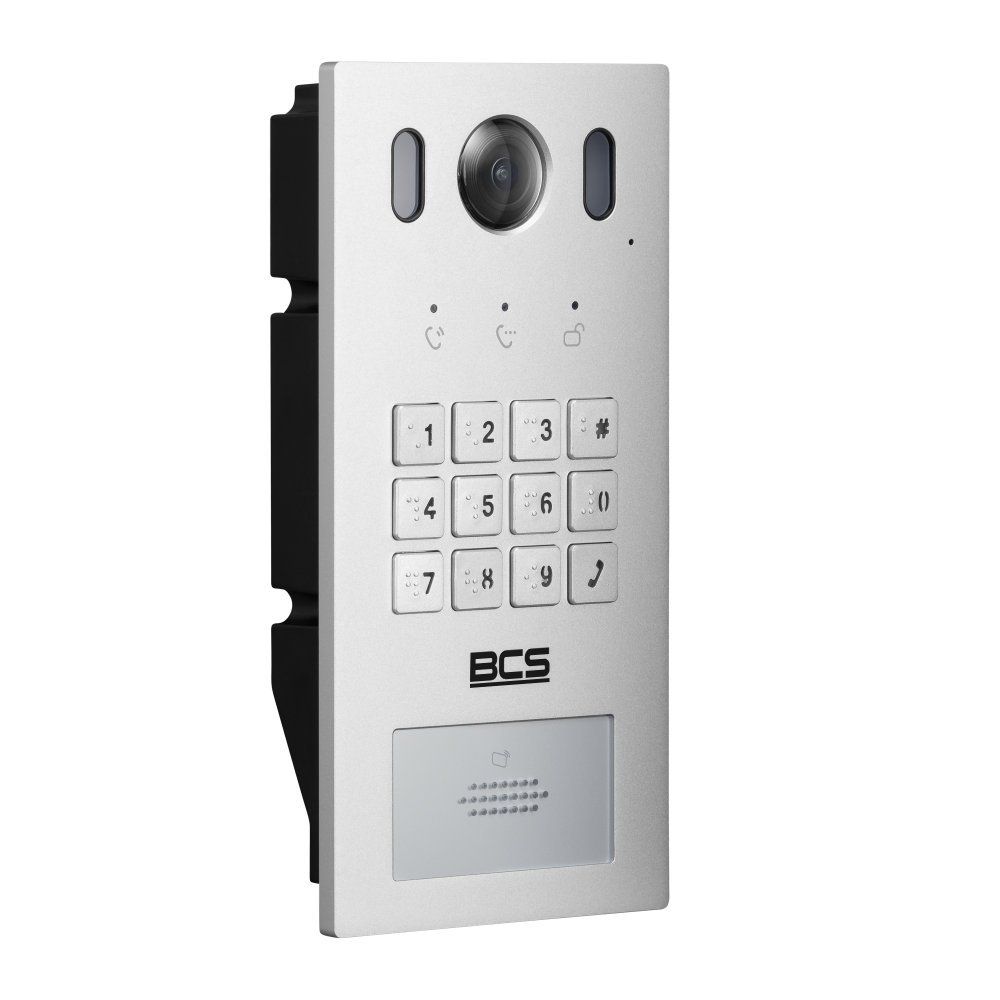

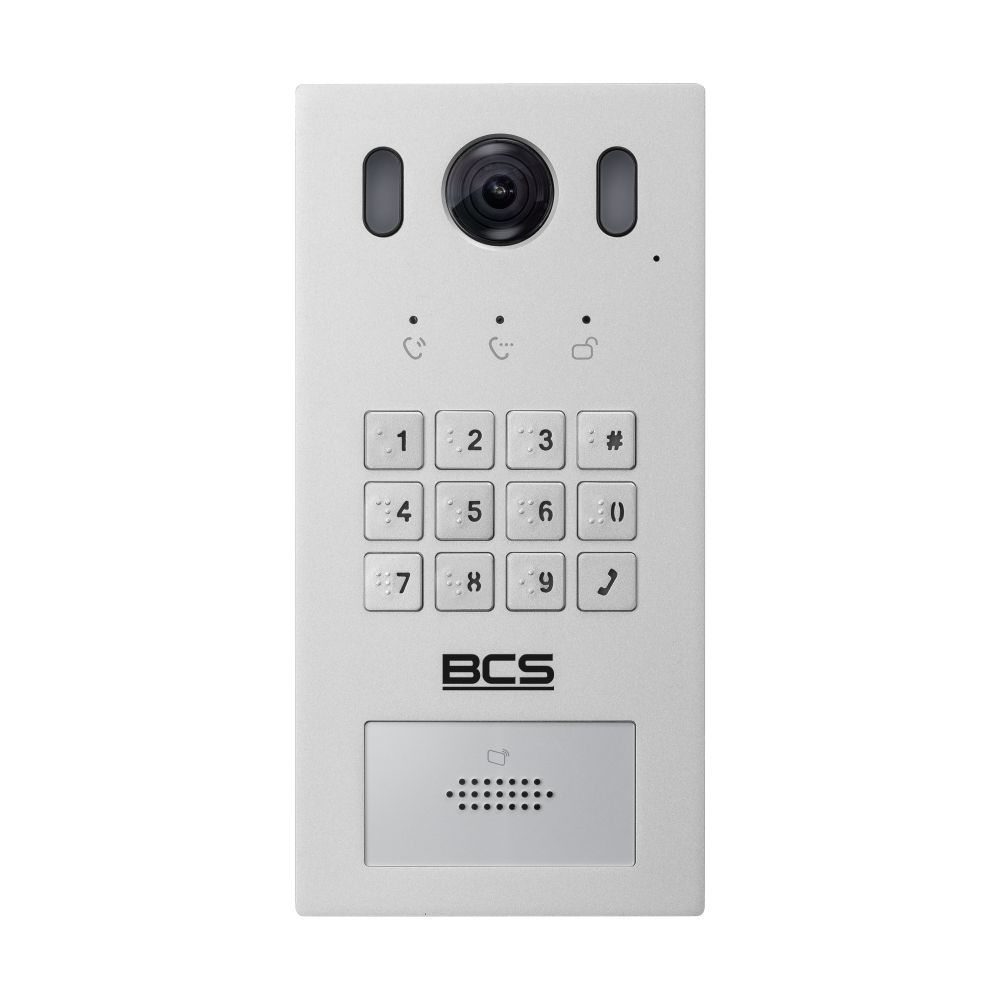

• Dual-protocol TCP/IP/SIP outdoor panel for single-family homes
• Designed for IP or 2-wire IP systems (selectable):
in IP mode, it works with PoE switches (BCS PoE switches recommended) –
in 2-wire mode, power supply and signal transmission via a 2-wire bus (requires the BCS-ADIP-II/-III adapter, together with the BCS-ZA4815 power supply)
• 1/2.9” HD CMOS sensor, 2mm lens
• Camera field of view: 140°/80° (H/V)
• Built-in combination lock and 13.56 MHz proximity reader
• Built-in status LEDs
• Installation: flush-mounted or surface-mounted using a dedicated housing
• Management via web service
• Video recording on BCS LINE recorders: proprietary protocol; others: ONVIF or RTSP
• Front panel made of aluminium alloy
• Water resistance: IP65 (additional sealing required; see manual)
• Relay output: NO/NC/COM
