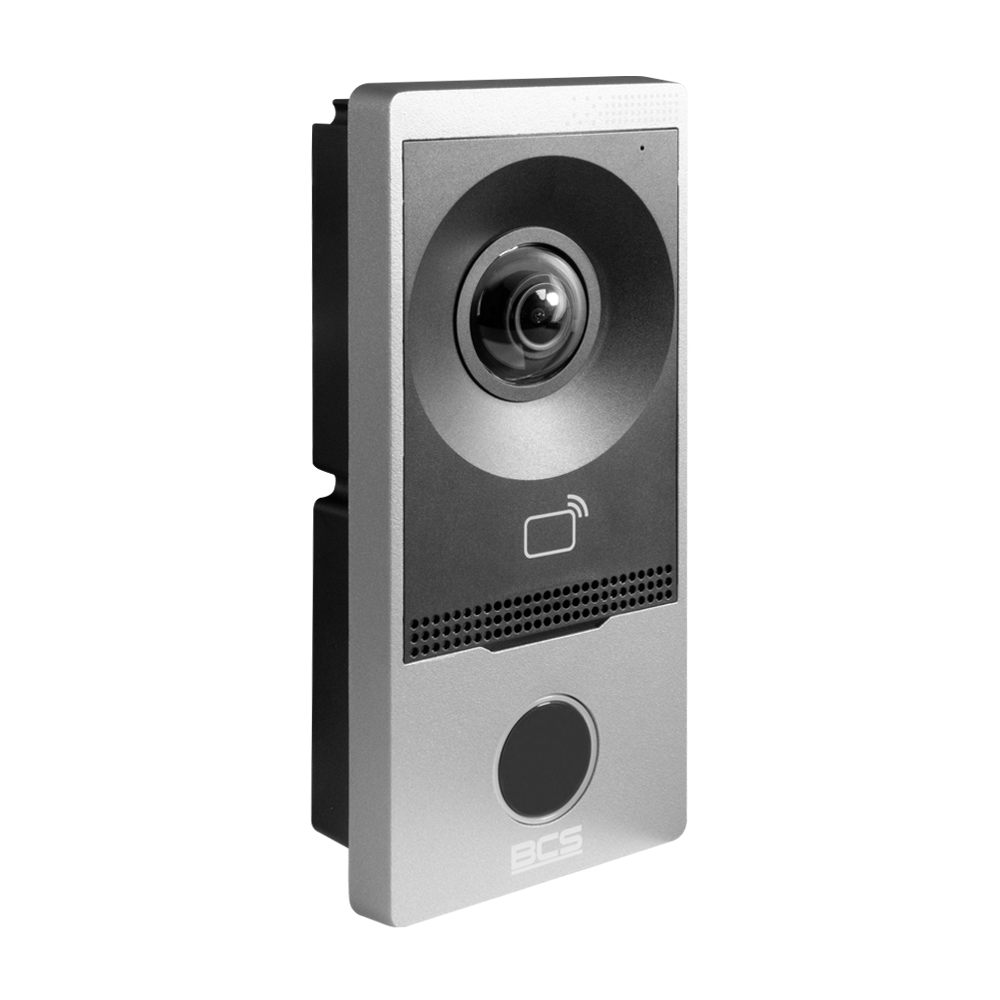

| Product | BCS-P-PAN1101G |
|---|---|
| NDAA | National Defense Authorization Act |
| Alarm out | No |
| Device type | External Panel |
| Call buttons | 1 |
| System type | IP |
| Proximity reader | Tak, 13.56MHz |
| Keyboard | No |
| Number of door opening codes | not applicable |
| Finger print reader | No |
| Display | No |
| Information leds | No |
| Camera sensor | 2 Mpx CMOS |
| Camera resolution | 1080p (720p strumień dodatkowy) |
| Camera video compression | H.264, H.265 |
| Onvif compatibility | Yes |
| pa_camera-horizontal-angl-39aa1 | 124.3 |
| Camera lens | bd. |
| Lens regulation (left/right) | No |
| Camera illumination | IR |
| Ethernet | Built-in |
| Panel power supply type | 12V DC / PoE(802.3at/af/passive) |
| Network connection | 10 / 100 Mb/s Ethernet, Wifi |
| RS485 output | Tak, do przyszłych zastosowań |
| 12V power supply output | No |
| Wiegand output | No |
| Panel color | Grafitowo-czarny |
| Panel dimensions (mm) | 79 × 171 × 34 |
| Panel weight (g) | 267 |
| Mounting type | Surface / Recessed |
| Mobile app compatibility | Tak, BCS Point |
| Material | Stop aluminium + tworzywo sztuczne |
| pa_working-environment-te-35ea7 | -30°C ~ +60°C |
| IP class | IP65 |
| IK class | IK08 |
| Max power consumption | ＜10W |
| Number of supported places | 1 |
Warning: This product belongs to the BCS POINT product line.
Use only components and devices from the same line to ensure compatibility.
BCS POINT
BCS-P-PAN1101G
298,89 € gross

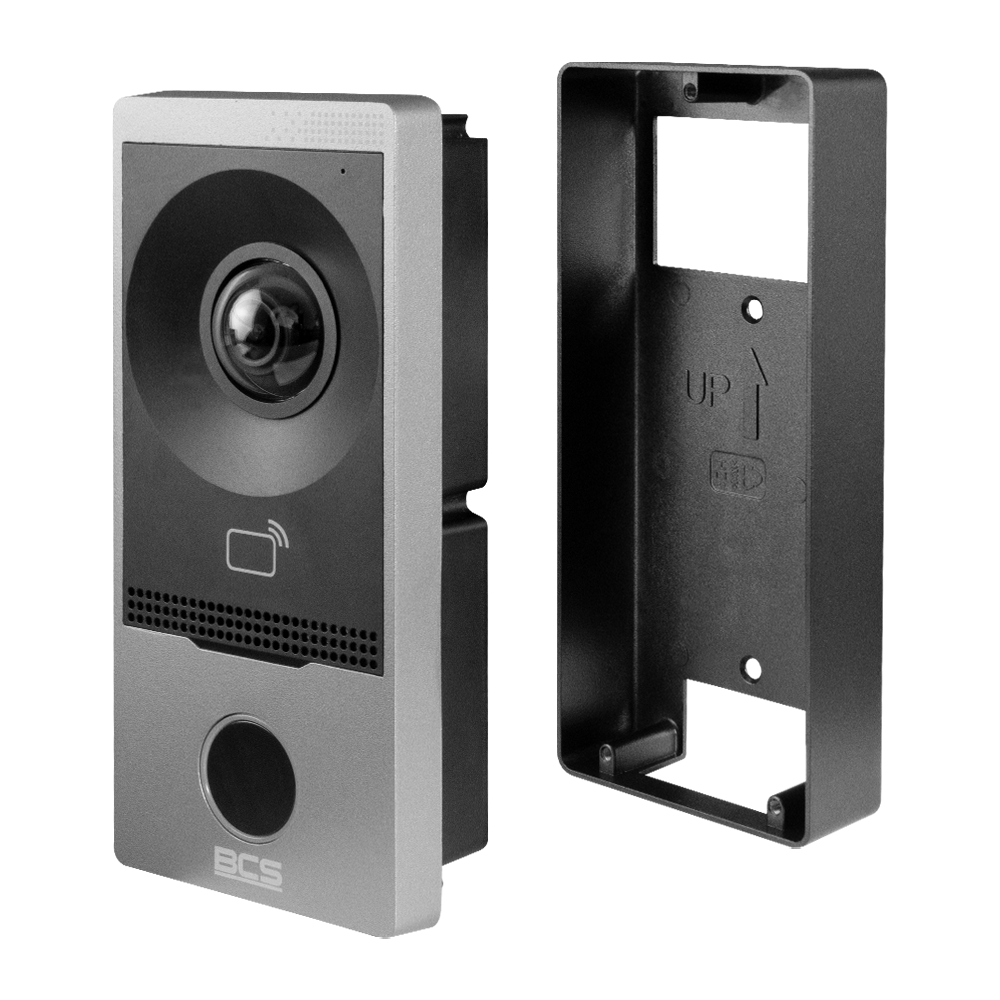

24 In StockBCS-P-PAN1101G from the BCS POINT range. Single-button external panel with a proximity reader. Surface-mounted or flush-mounted installation. An optional surface-mounted housing with a rain visor is available.
24 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
