Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
146,59 € gross

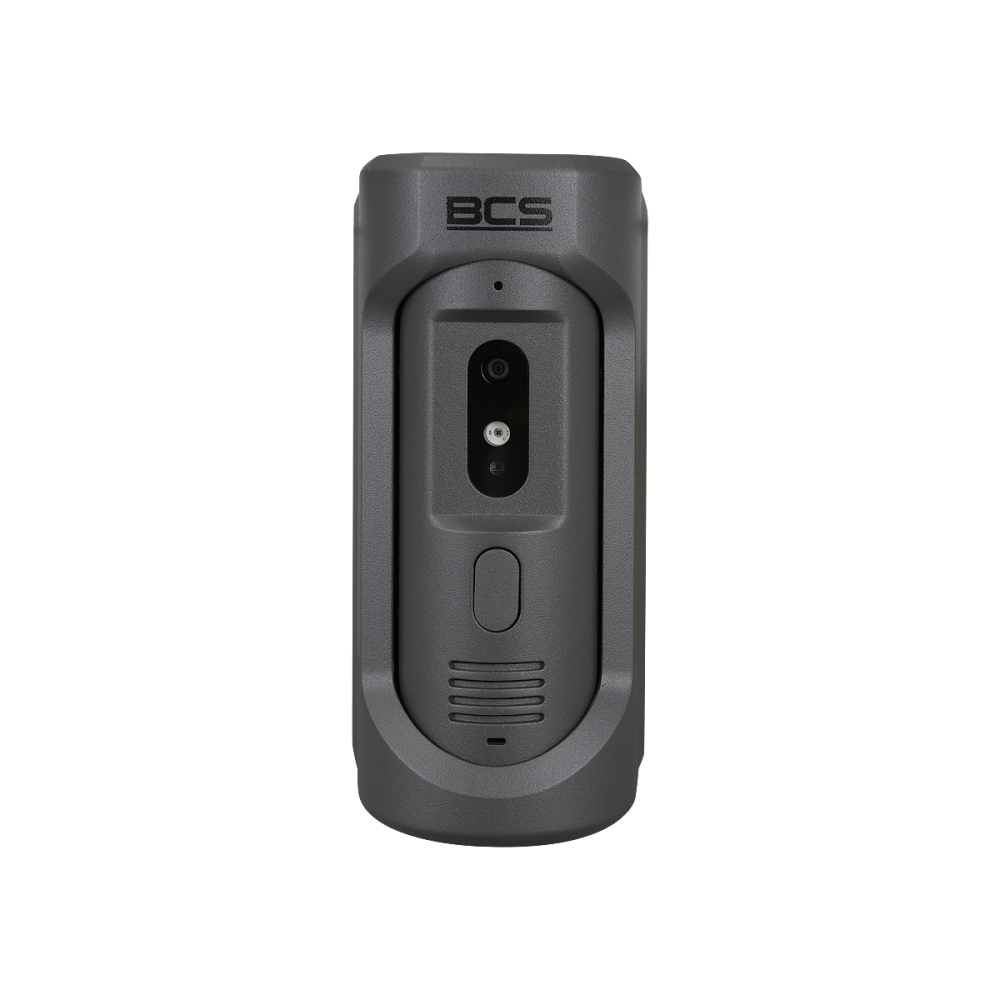

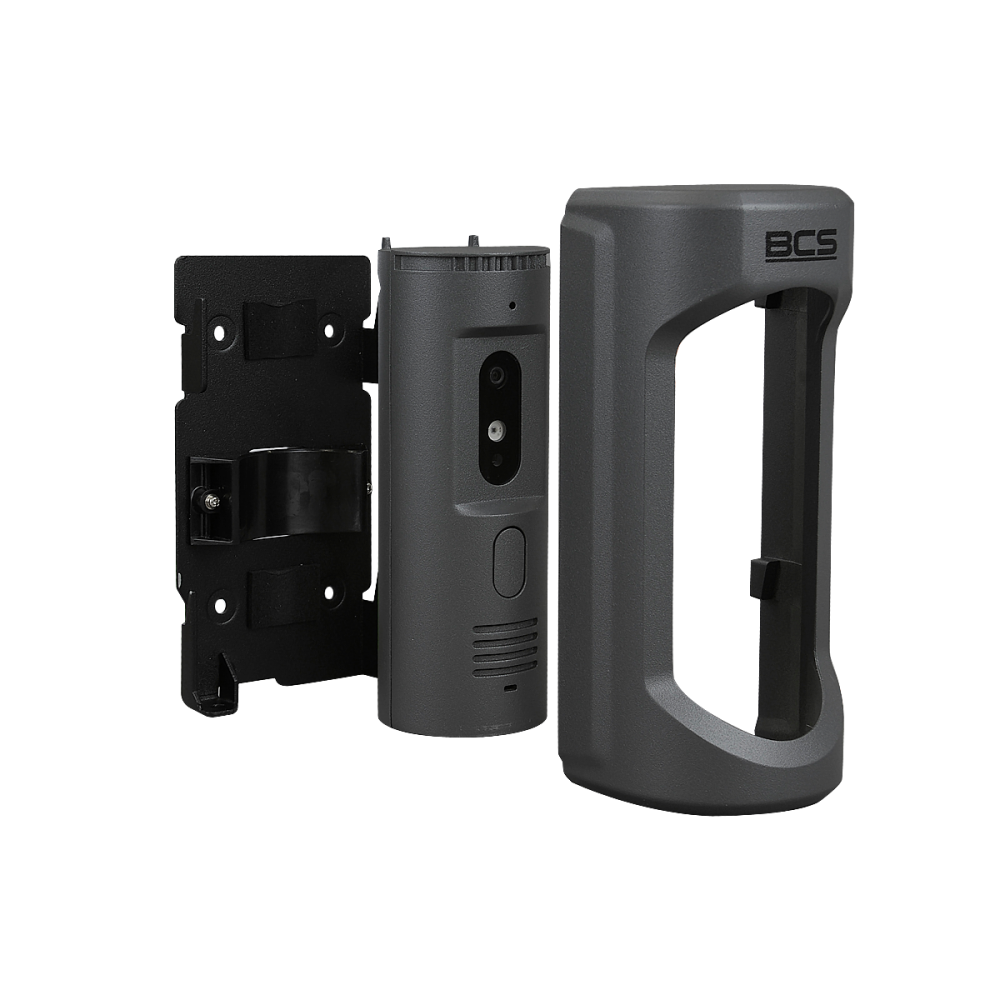

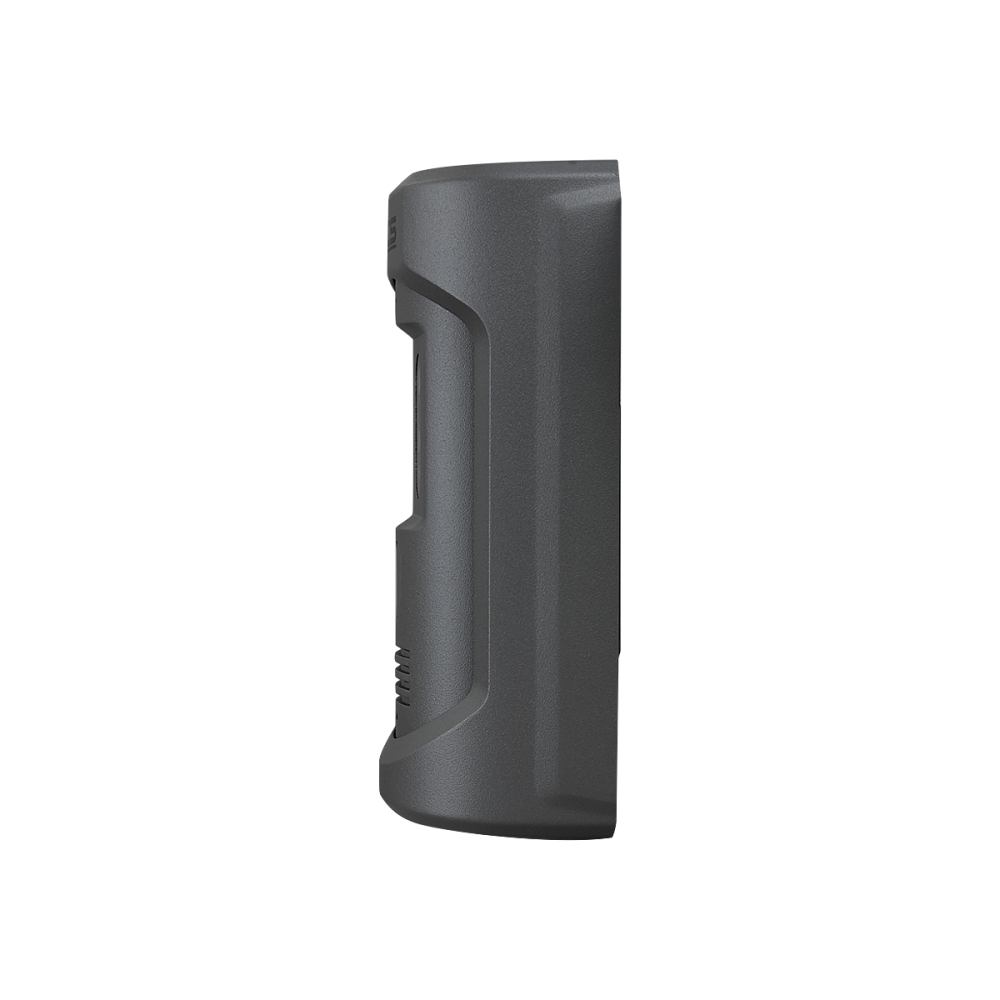

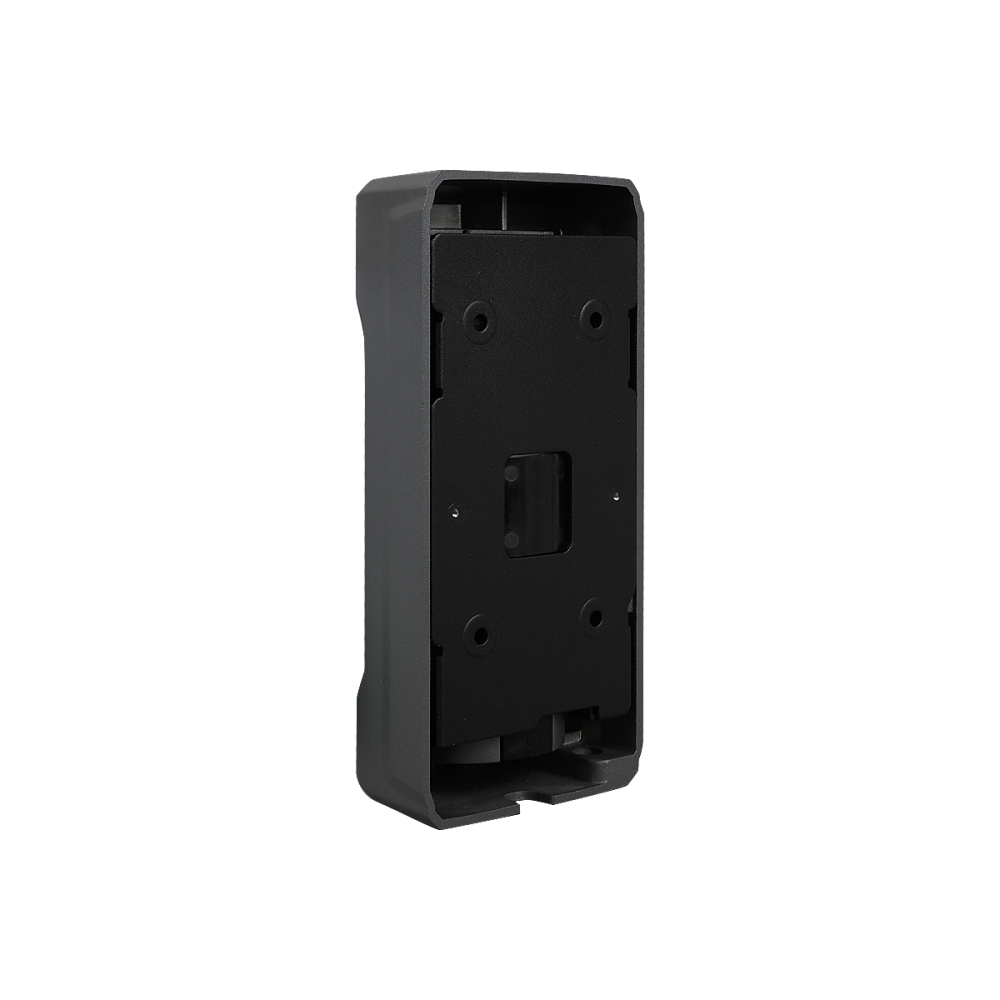

71 In StockSingle-family IP outdoor camera. Surface-mounted, IK10 vandal-proof housing made from an aluminium/zinc alloy, 2.8 mm lens, 720p camera with a 1/2.8" CMOS sensor, ICR, PoE power supply option.
71 in stock
Single-family IP outdoor camera. Surface-mounted, IK10 vandal-proof housing made of aluminium/zinc alloy, 2.8 mm lens, 720p camera with 1/2.8" CMOS sensor, ICR, PoE power supply option.
The panel is compatible with any BCS IP video monitor in the SIP version.
| Number of supported places | 1 |
|---|---|
| Product | BCS-PAN1511G-S |
| Alarm out | No |
| Camera horizontal angle of view | 100 |
| System type | IP |
| Number of door opening codes | not applicable |
| Working environment (temperature) | -40°C ~ +60°C |
| Camera sensor | 1/2.8'' |
| Device type | External Panel |
| Call buttons | 1 |
| Proximity reader | No |
| Keyboard | No |
| Finger print reader | No |
| Display | No |
| Information leds | No |
| Camera resolution | Strumień główny: max 720p; strumień dodatkowy max 1080p |
| Camera video compression | H.264, H.265 |
| Onvif compatibility | Yes |
| Camera lens | 2.8 |

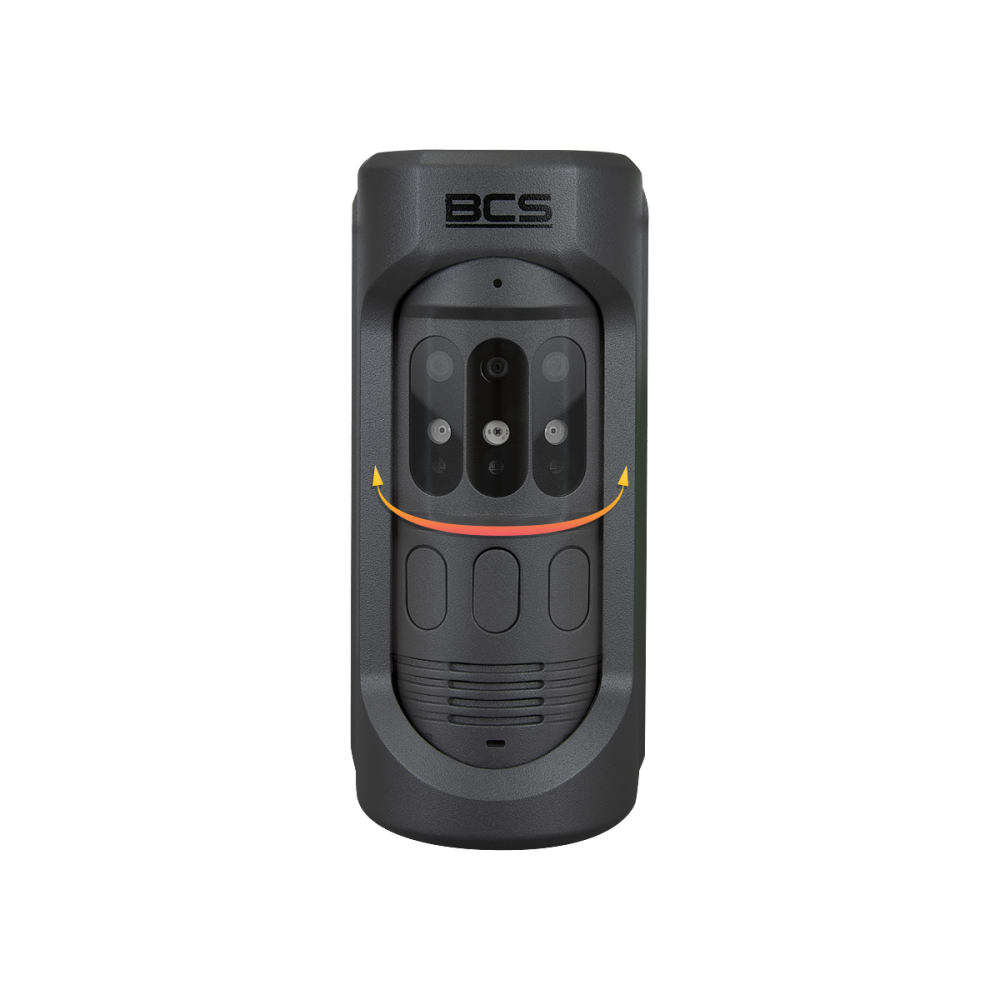

| Lens regulation (left/right) | Yes, ±45° |
| Camera illumination | IR |
| Ethernet | Built-in |
| Panel power supply type | 12V DC / PoE(802.3at/af/passive) |
| Network connection | LAN |
| RS485 output | Tak, do podłączenia modułu BCS-MODK-III |
| 12V power supply output | No |
| Wiegand output | No |
| Panel color | Graphite |
| Panel dimensions (mm) | 163×73×55 |
| Panel weight (g) | 800 |
| Mounting type | Surface mount |
| Mobile app compatibility | Yes, videomonitor required |
| Material | Stop cynku |
| IP class | IP65 |
| IK class | IK10 |
| Max power consumption | 5W |
