| Product | BCS-U-SIP6631SR30 |
|---|---|
| NDAA | National Defense Authorization Act |
| Camera type | PTZ |
| Resolution | 6 Mpx |
| Sensor | 1/1.8'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 3328(H)×1872(V) |
| Lens | motozoom |
| Focal length | 6.5~202 mm |
| Aperture | F 1.55~4.8 |
| Focus | Auto / manual |
| Iris | Auto / manual |
| Optical zoom | 31× |
| Angle of view | H:63°~2.4° V:37.6°~1.3° D:70.3°~2.7° |
| Min illumination | 0.1Lux(F1.55) 0Lux(B/W,IR) |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| Backlight compensation | WDR(120dB) |
| Shutter | Auto / manual 1/30~1/10000s |
| Gain control | (AGC) Auto / manual |
| Image Stabilization | Electronic (EIS) |
| Image rotate | Mirror, Flip |
| Stream support | 4 |
| Resolutions | 3328×1872 / 1920×1080 / 1280×720 / 640×360 |
| Main stream | 3328×1872@30fps |
| Video compression | H.265 / H.265+ / H.264+ / H.264 / MJPEG |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED |
| IR range | 300m |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | ADPCM 16K / G.726 / G.711u / G.711a |
| Alarm in | 8 |
| Alarm out | 2 |
| Memory card slot | microSD 512GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | Yes |
| Privacy masking | 8 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF |
| Protocols | IPv4, IPv6, RTP, RTSP, TCP, HTTP, UDP, HTTPS, FTP, SNTP, SMTP, uPNP, SNMPv2 |
| Network security | DirectIP, TLS, SSL, HTTPS, FEN, IEEE 802.1X, IP filtering, iBank, Chained Fingerprint, Digest Authentication |
| Power supply | PoE |
| Power supply type | 24V AC / PoE(802.3bt) |
| Power consumption | max 65.8W |
| Housing color | White |
| IP class | IP66 |
| IK10 | Yes |
| Built-in heater | Yes |
| Working environment | -40°C~+55°C max 95% RH |
| Dimensions | Ø242mm×401.8mm |
| Weight | 7.4 kg |
| PAN speed | 0.02°/s~240°/s(240°/s preset) |
| TILT speed | 0.02°/s~240°/s(240°/s preset) |
| PAN range | 0°~360° |
| TILT range | -10°~90° auto-flip |
| Automatic functions | 256 presets |
Warning: This product belongs to the BCS ULTRA product line.
Use only components and devices from the same line to ensure compatibility.
BCS ULTRA

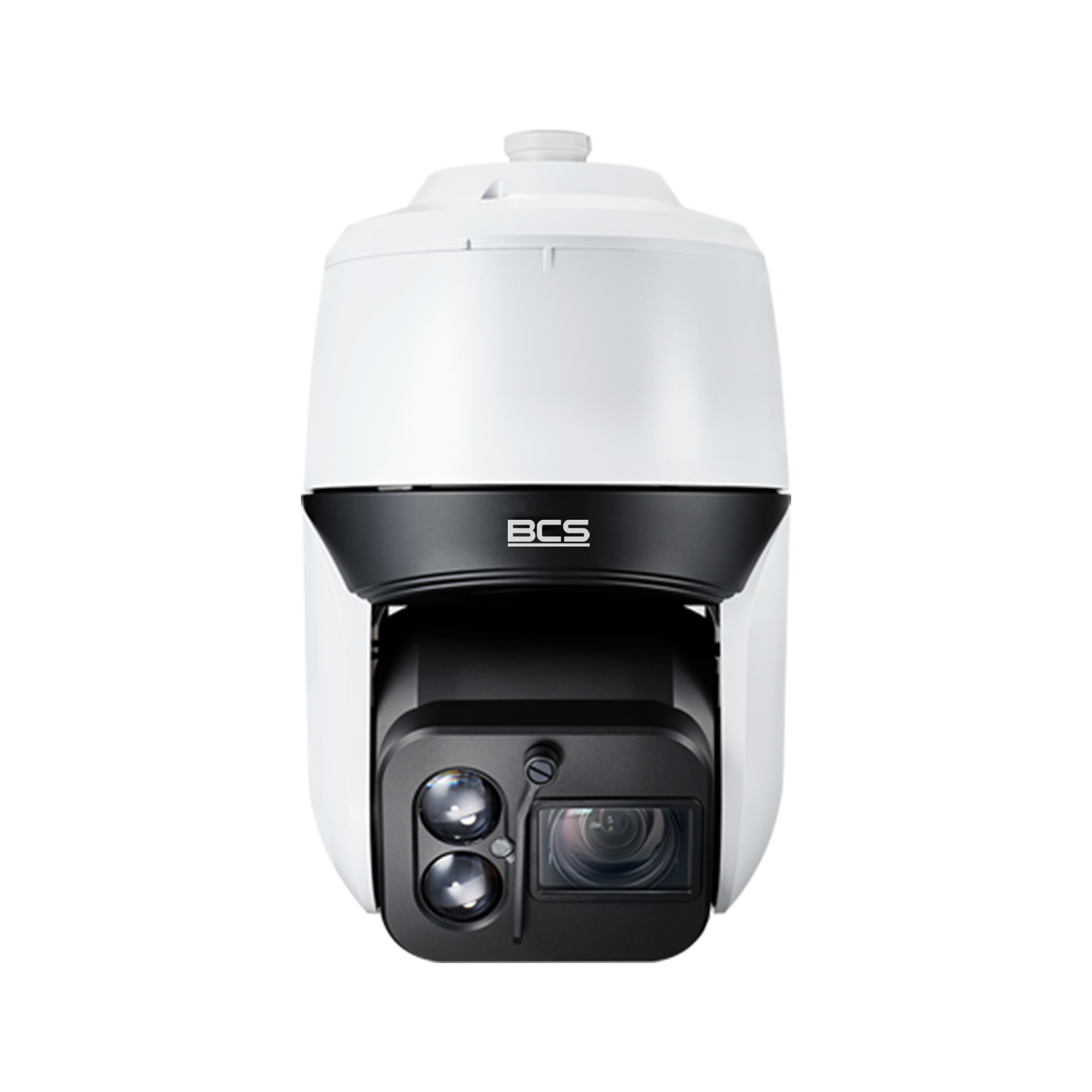

BCS-U-SIP6631SR30
3046,71 € gross
Out of Stock- 6Mpx pan-tilt IP camera
- 1/1.8" PS CMOS sensor
- NDAA compliant
- SkyLight technology
- 6.5–202 mm motorised zoom lens
- 31x optical zoom
- IR 300m
- Alarm 8/2, audio 1/1
- IP66, IK10 housing
Out of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
