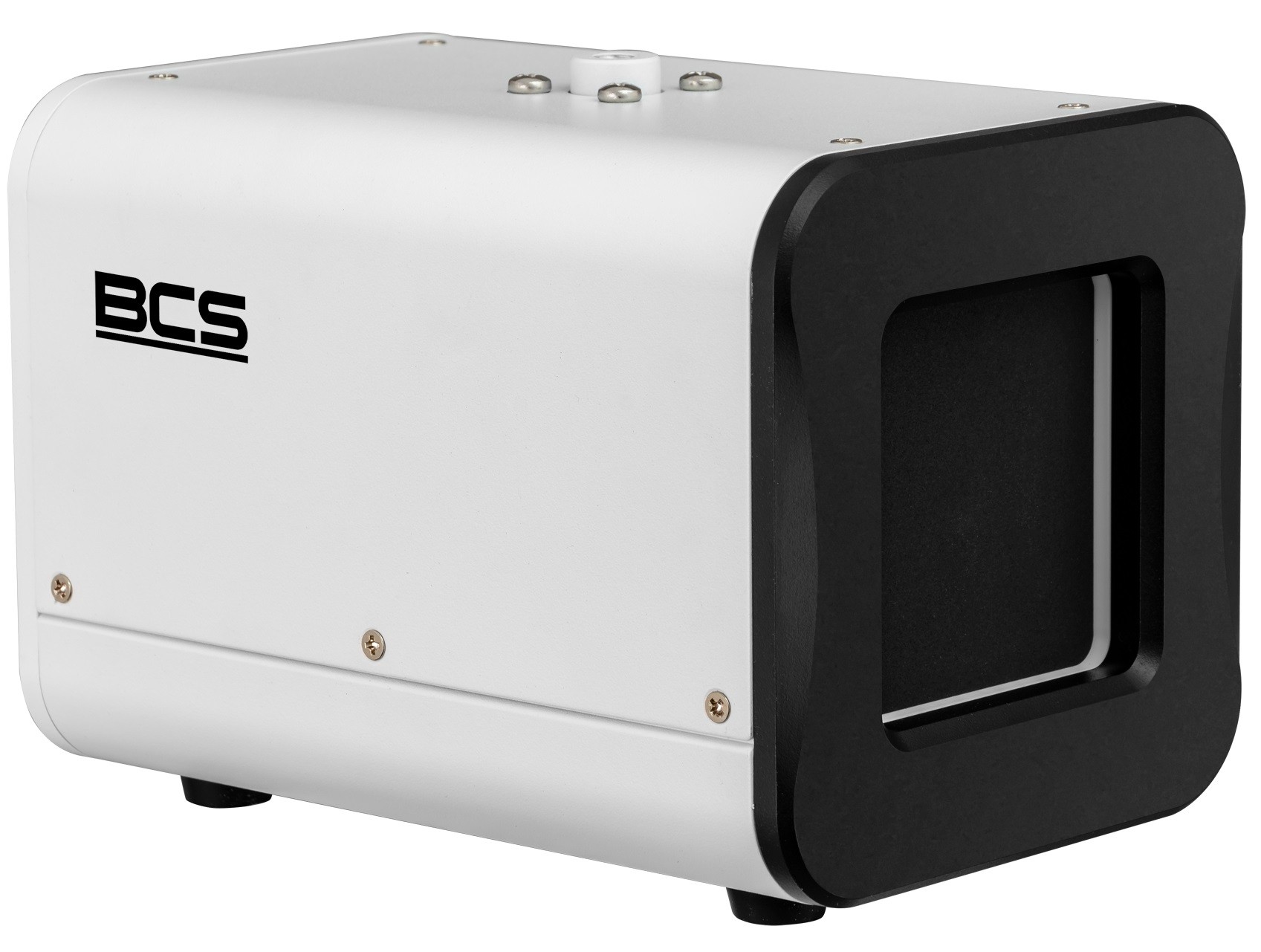

BlackBody – a module for calibrating BCS LINE thermal imaging cameras
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE
BCS-WT
0,00 € gross
1 In Stock- BCS-WT is a modern heat standard, with properties similar to those of a perfect black body, which enables greater precision in temperature measurements taken by thermal imaging cameras
- BlackBody – a module used to calibrate BCS LINE thermal imaging cameras
- The control system used ensures high accuracy and stability of parameters
- The surface of the standard is coated with a highly emissive material
- Temperature accuracy: ±0.2 (single point)
- Effective emissivity 0.97
- Effective surface area 70 × 70 mm
- Temperature resolution 0.1
- Temperature stability: ±(0.1–0.2) / 30 min
- Power supply: 220 VAC 50 Hz 35 W
- Weight 1.8 kg
- Dimensions 110 × 120 × 180 mm
- Operating conditions 0°C to 40°C / ≤ 80%
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
| Product | BCS-WT |
|---|
